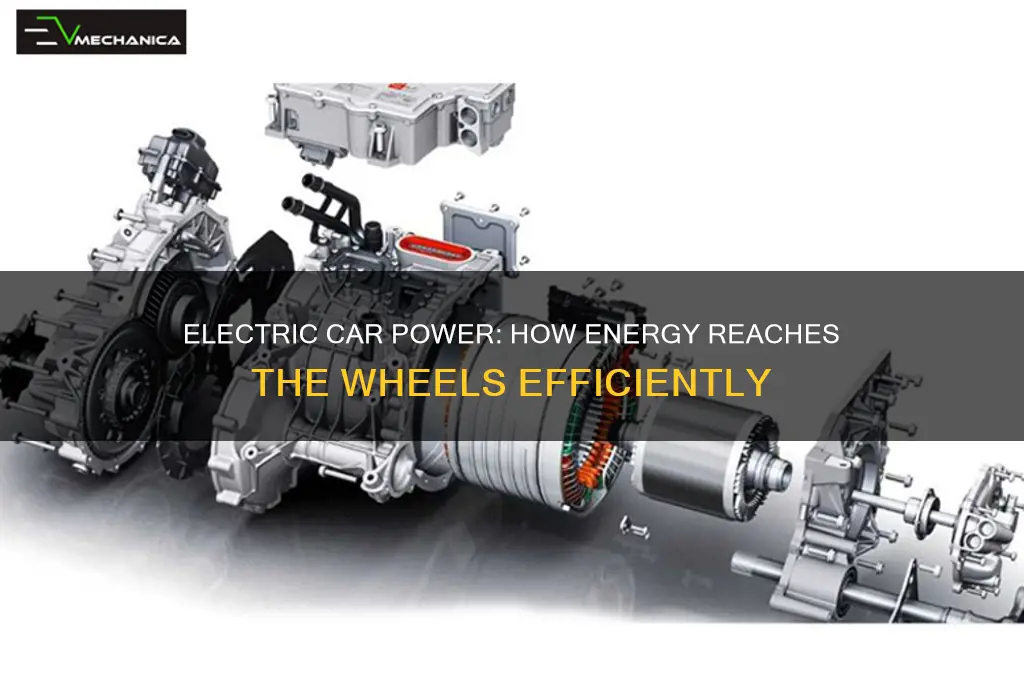

Electric cars deliver power to their wheels through a sophisticated yet efficient system that begins with the battery pack, which stores electrical energy. When the driver presses the accelerator, the battery sends electricity to the electric motor, typically located near the wheels. The motor converts this electrical energy into mechanical energy, producing torque that drives the wheels directly in most designs. Unlike traditional internal combustion engines, electric vehicles often eliminate the need for a complex transmission, as electric motors provide full torque from a standstill. Some models use a single motor, while others employ multiple motors for enhanced performance and all-wheel-drive capabilities. This streamlined process ensures smooth, responsive acceleration and efficient power delivery, making electric cars both environmentally friendly and technologically advanced.
Explore related products
What You'll Learn
- Battery to Inverter: Battery stores energy, inverter converts DC to AC for motor use
- Electric Motor Function: Motor uses AC power to generate rotational force for movement
- Transmission Role: Single-speed transmission transfers motor power to the wheels efficiently
- Regenerative Braking: Kinetic energy is recaptured during braking, recharging the battery
- Power Electronics: Control modules manage energy flow, optimize efficiency, and protect components
Battery to Inverter: Battery stores energy, inverter converts DC to AC for motor use
In an electric vehicle (EV), the process of delivering power to the wheels begins with the battery, which serves as the primary energy storage unit. The battery pack in an electric car is typically made up of numerous individual lithium-ion cells connected in series and parallel to achieve the desired voltage and capacity. These batteries store electrical energy in the form of direct current (DC), which is the standard for energy storage in most electronic devices. When the driver presses the accelerator, the battery's stored energy is ready to be utilized, but it requires conversion to power the electric motor efficiently.
The inverter plays a crucial role in this energy transformation process. It is an electronic device designed to convert the DC power from the battery into alternating current (AC) power, which is necessary for the electric motor to function. This conversion is essential because most electric car motors operate on AC power, allowing for efficient torque generation and speed control. The inverter achieves this by using power electronics, including transistors and capacitors, to rapidly switch the DC current, creating a pulsating waveform that mimics AC power.
When the inverter receives the DC power from the battery, it employs a technique called pulse-width modulation (PWM) to adjust the voltage and frequency of the output AC power. This modulation ensures that the electric motor receives the precise amount of power required, enabling smooth acceleration and maintaining optimal efficiency. The inverter's ability to vary the frequency and voltage of the AC output is key to controlling the motor's speed and torque, providing the driver with a responsive and dynamic driving experience.
The efficiency of the inverter is critical to the overall performance of the electric vehicle. Modern inverters are designed to minimize energy losses during the DC-to-AC conversion process, ensuring that the maximum amount of power from the battery reaches the motor. This efficiency is achieved through advanced cooling systems and sophisticated control algorithms that optimize the switching patterns of the power electronics. As a result, the inverter not only facilitates the power delivery but also contributes to the overall range and performance of the electric car.
In summary, the journey from battery to inverter is a critical step in an electric car's power train. The battery stores the energy required to propel the vehicle, and the inverter acts as the intermediary, transforming the stored DC power into usable AC power for the electric motor. This process showcases the intricate interplay of components in an EV, where each part is meticulously designed to work in harmony, ensuring efficient and sustainable transportation. Understanding this relationship between the battery and inverter provides valuable insight into the inner workings of electric vehicles and their unique power delivery systems.
Faraday's Electric Motor: Revolutionary Applications and Historical Impact
You may want to see also
Explore related products
Electric Motor Function: Motor uses AC power to generate rotational force for movement
The electric motor in an electric vehicle (EV) plays a pivotal role in converting electrical energy into mechanical energy, which ultimately drives the wheels. At the heart of this process is the utilization of Alternating Current (AC) power, which is supplied from the vehicle's battery pack through an inverter. The inverter is a critical component that converts the Direct Current (DC) power stored in the battery into AC power, which is necessary for the motor's operation. This conversion is essential because most electric motors used in EVs are AC motors, specifically three-phase AC induction motors or permanent magnet synchronous motors (PMSM), due to their efficiency and performance characteristics.
Once the AC power is delivered to the motor, it is directed to the motor's stator, which is the stationary part of the motor. The stator contains coils of wire that, when energized by the AC power, create a rotating magnetic field. This rotating magnetic field is a fundamental principle in the operation of AC motors. The magnetic field's rotation induces a current in the rotor, which is the moving part of the motor. In the case of a PMSM, the rotor contains permanent magnets, while in an induction motor, the rotor has conductive bars that create currents through electromagnetic induction.
The interaction between the rotating magnetic field in the stator and the magnetic field in the rotor generates a torque, which is the rotational force required to turn the motor's shaft. This torque is produced due to the attraction and repulsion forces between the magnetic fields of the stator and rotor. As the magnetic field in the stator continues to rotate, it causes the rotor to follow, resulting in continuous rotation of the motor's shaft. The speed and torque of the motor can be precisely controlled by adjusting the frequency and amplitude of the AC power supplied to the stator, which is managed by the vehicle's electronic control unit (ECU).
The rotational force generated by the motor is then transferred to the wheels of the electric car through a transmission system, which may include a single-speed or multi-speed gearbox, depending on the vehicle's design. In many modern EVs, a single-speed transmission is used because electric motors can deliver a wide range of torque and speed from a standstill, eliminating the need for multiple gears. The transmission ensures that the motor's output is matched to the driving conditions, providing optimal performance and efficiency.
Efficiency is a key advantage of electric motors in this application. AC motors can convert over 90% of the electrical energy into mechanical energy, compared to internal combustion engines, which typically convert only 20-30% of the fuel's energy into useful work. This high efficiency, combined with the precise control over torque and speed, contributes to the smooth and responsive driving experience that electric vehicles are known for. Additionally, the regenerative braking capability of electric motors allows some of the kinetic energy to be recovered and returned to the battery during deceleration, further enhancing the overall efficiency of the vehicle.
In summary, the electric motor's function in an EV is to use AC power to generate a rotational force that drives the wheels. This process involves converting DC power from the battery to AC power, creating a rotating magnetic field in the stator, inducing torque in the rotor, and transferring this mechanical energy to the wheels via a transmission. The efficiency, control, and regenerative capabilities of electric motors make them a cornerstone of electric vehicle technology, contributing to their performance, sustainability, and appeal in the automotive industry.
Best Lubricants for Electric Fan Motors: Enhance Performance and Longevity
You may want to see also
Explore related products
Transmission Role: Single-speed transmission transfers motor power to the wheels efficiently
In electric vehicles (EVs), the transmission plays a crucial role in transferring power from the electric motor to the wheels, ensuring efficient propulsion. Unlike traditional internal combustion engine (ICE) vehicles, which often require multi-speed transmissions to manage varying engine RPMs, electric cars typically utilize a single-speed transmission. This simplicity is due to the inherent characteristics of electric motors, which deliver maximum torque from zero RPM and maintain a wide, flat torque curve across their operating range. The single-speed transmission is designed to optimize this torque delivery, directly connecting the motor's output to the wheels without the need for gear shifting.
The primary function of the single-speed transmission in an EV is to match the motor's rotational speed to the vehicle's wheel speed, ensuring smooth and efficient power transfer. Electric motors operate most efficiently at higher RPMs, but vehicle wheels require lower rotational speeds for practical driving. The transmission acts as a fixed gear reduction mechanism, stepping down the motor's RPM while increasing torque to the wheels. This fixed ratio eliminates the complexity of shifting gears, reduces energy losses, and enhances overall efficiency, as there are no power interruptions during gear changes.
Another advantage of the single-speed transmission is its compact and lightweight design, which contributes to the overall efficiency and performance of the electric vehicle. Without the need for multiple gears, clutches, or complex shifting mechanisms, the transmission system is simpler and requires less maintenance. This simplicity also reduces the potential points of failure, improving the reliability of the drivetrain. Additionally, the reduced weight of the single-speed transmission helps maximize the vehicle's range by minimizing energy consumption.
Efficiency is further enhanced by the direct and consistent power delivery of the single-speed transmission. Since electric motors provide instant torque, the transmission ensures that this torque is effectively transferred to the wheels without lag or inefficiency. This direct connection allows EVs to accelerate quickly and smoothly, a hallmark of electric vehicle performance. The absence of gear shifts also eliminates the energy losses associated with traditional transmissions, ensuring that more of the motor's power is used for propulsion rather than being wasted as heat or friction.
In summary, the single-speed transmission in electric vehicles is a critical component that efficiently transfers motor power to the wheels. Its fixed gear ratio optimizes torque delivery, matches motor and wheel speeds, and eliminates the complexities of multi-speed transmissions. This design not only enhances efficiency and performance but also contributes to the simplicity, reliability, and lightweight nature of electric vehicle drivetrains. By focusing on direct and consistent power transfer, the single-speed transmission plays a pivotal role in the overall functionality and appeal of electric cars.
Are Grand Prix Cars Electric? Exploring F1's Hybrid Revolution
You may want to see also
Explore related products
Regenerative Braking: Kinetic energy is recaptured during braking, recharging the battery
Regenerative braking is a cornerstone technology in electric vehicles (EVs) that significantly enhances their efficiency by recapturing energy that would otherwise be lost during braking. When the driver applies the brakes or lifts off the accelerator, the electric motor that typically drives the wheels switches roles and becomes a generator. This process converts the vehicle’s kinetic energy—the energy of motion—into electrical energy, which is then fed back into the battery for later use. Unlike traditional braking systems that rely solely on friction to slow the vehicle, regenerative braking reduces wear on mechanical brake components while simultaneously extending the EV’s driving range.
The process of regenerative braking begins when the driver reduces speed, either by pressing the brake pedal or easing off the accelerator. The vehicle’s control system detects this action and instructs the electric motor to reverse its function. As the motor spins in response to the wheels slowing down, it generates an electric current through electromagnetic induction. This current is then directed to the battery pack, where it is stored as chemical energy. The efficiency of this energy recapture depends on factors such as the vehicle’s speed, the rate of deceleration, and the battery’s state of charge, but it typically recovers a substantial portion of the energy that would have been dissipated as heat in conventional braking systems.
One of the key advantages of regenerative braking is its seamless integration with the driving experience. Most modern EVs are designed to balance regenerative braking with traditional friction brakes, ensuring smooth and responsive deceleration. Drivers can often adjust the strength of regenerative braking through settings in the vehicle’s interface, allowing for a more customized driving experience. For instance, some EVs offer a “one-pedal driving” mode, where lifting off the accelerator pedal engages strong regenerative braking, bringing the car to a complete stop without needing to touch the brake pedal.
The effectiveness of regenerative braking also varies depending on driving conditions. It is most efficient in stop-and-go traffic or during downhill driving, where frequent deceleration provides ample opportunities to recapture energy. In contrast, its impact is minimal at constant highway speeds, where braking is less frequent. Despite this, the cumulative effect of regenerative braking over the course of a drive can add several miles to an EV’s range, making it a vital component of electric vehicle efficiency.
In summary, regenerative braking is a transformative feature in electric vehicles that harnesses the principles of energy conservation to improve overall performance. By recapturing kinetic energy during braking and converting it into electrical energy to recharge the battery, this technology not only extends the driving range of EVs but also reduces wear on mechanical brake components. Its integration into the driving experience is both intuitive and customizable, making it a key factor in the appeal and sustainability of electric vehicles.
Applications of Thermal Electric Motors: Where and How They're Used
You may want to see also
Explore related products
Power Electronics: Control modules manage energy flow, optimize efficiency, and protect components
In an electric vehicle (EV), power electronics play a pivotal role in ensuring that energy from the battery is efficiently and safely delivered to the wheels. The control modules within the power electronics system are the brains behind this operation, managing the flow of electrical energy with precision. These modules act as intermediaries between the high-voltage battery and the electric motor, converting and regulating the power to meet the demands of the vehicle. The primary function of these control modules is to ensure that the right amount of power reaches the motor at the right time, enabling smooth acceleration, consistent speed, and optimal performance.
One of the key tasks of power electronics control modules is to optimize energy efficiency. Electric vehicles rely on battery power, which is a finite resource, so maximizing efficiency is crucial for extending driving range. Control modules achieve this by adjusting the voltage and current supplied to the motor based on driving conditions. For instance, during acceleration, the module increases power output to deliver higher torque, while during cruising, it reduces power to conserve energy. This dynamic management ensures that the motor operates at its most efficient point, minimizing energy waste and maximizing the use of stored battery power.
Another critical function of these control modules is to protect the components of the electric drivetrain. High-voltage systems in EVs can be susceptible to damage from overvoltage, overcurrent, or thermal stress. Control modules monitor these parameters in real time and implement protective measures when necessary. For example, if the motor draws too much current, the module can reduce power output or temporarily shut down the system to prevent overheating or damage. Similarly, in the event of a short circuit or fault, the control module can isolate the affected component, ensuring the safety of the vehicle and its occupants.
The control modules also facilitate regenerative braking, a feature unique to electric vehicles that further enhances efficiency. During deceleration, the electric motor acts as a generator, converting kinetic energy back into electrical energy that can be stored in the battery. The power electronics control module manages this process by reversing the power flow and ensuring that the regenerated energy is safely and efficiently fed back into the battery. This not only improves energy recovery but also reduces wear on mechanical brake components, contributing to lower maintenance costs.
In addition to these functions, power electronics control modules support advanced features such as torque vectoring and traction control, which enhance vehicle handling and stability. By individually controlling the power delivered to each wheel, these modules can optimize traction and improve cornering performance, especially in electric vehicles with multiple motors. This level of control is made possible by sophisticated algorithms and high-speed processing capabilities embedded within the control modules, which continuously analyze sensor data and adjust power distribution accordingly.
In summary, power electronics control modules are essential components in electric vehicles, managing energy flow, optimizing efficiency, and protecting critical systems. Their ability to dynamically adjust power delivery, ensure component safety, and support advanced vehicle features makes them a cornerstone of EV technology. As electric vehicles continue to evolve, advancements in power electronics will play a crucial role in improving performance, range, and reliability, driving the transition toward sustainable transportation.
Troubleshooting Car Electrical Shorts: A Step-by-Step Guide to Finding the Issue
You may want to see also
Frequently asked questions
An electric car gets power to the wheels through an electric motor, which is powered by energy stored in the battery pack. The battery sends electricity to the motor, which converts it into mechanical energy to turn the wheels.
Most electric cars have a single-speed transmission, meaning they don’t need multiple gears like traditional internal combustion engines. The electric motor delivers power directly to the wheels without shifting gears.
The power from the battery is controlled by an electronic controller, which regulates the flow of electricity to the motor based on the driver’s input (e.g., pressing the accelerator pedal). This ensures smooth and efficient power delivery.
No, electric cars can use different types of motors, such as AC induction motors (e.g., Tesla) or permanent magnet motors (e.g., Nissan Leaf). Each type has its own advantages in terms of efficiency, performance, and cost.
Regenerative braking captures kinetic energy when the car slows down and converts it back into electrical energy to recharge the battery. This process reduces wear on the brake pads and improves overall efficiency, but it doesn’t directly power the wheels—it recycles energy instead.
