Electric circuits are an essential part of modern life, powering our homes, appliances, and devices. They are closed-loop paths that allow the flow of electric current, which is supplied to specific zones or circuits in a building. These circuits are made up of essential components, including a power source, conductors, switches, and loads. The power source, such as a battery or generator, provides the electrical energy, while conductors, typically copper wires, facilitate the movement of electrons. Switches act as small gaps in the circuit, allowing it to be opened or closed, and loads, such as light bulbs or motors, utilize the electrical energy to perform tasks. Understanding the principles of electric circuits is crucial for ensuring safe and efficient power distribution, as issues with circuits can lead to short circuits, power outages, fires, or even explosions.
| Characteristics | Values |
|---|---|
| Definition | A path for transmitting electric current |
| Basic Laws | Ohm's Law and Kirchhoff's Rules |
| Types | Direct-current circuit, Alternating-current circuit, Series circuit, Parallel circuit |
| Basic Components | Power source, Conductors, Switch, Load |
| Power Sources | Battery, Generator, Fuel cell, Solar cell |
| Conductors | Copper wires |
| Load | Light bulb, Motor |
| Circuit Breaker | Protects against overload, short circuit, and unsafe current levels |
| Circuit Interruption | Caused by overheating or unsafe current levels |
| Voltage | Higher for long-distance transmission, Lower for homes and businesses |
Explore related products
What You'll Learn
Completing a circuit
A circuit is a closed path that electrons flow along to provide power to your home and electronics. A simple electric circuit contains a power source (a battery), wires, and a resistor (light bulb). In a circuit, electrons flow from the battery, through the wires, and into the light bulb.
To complete a circuit, the wires must be totally exposed, so you must strip the ends. All wires must be touching the metal parts of each component. If your bulb doesn’t light up, check each side of the battery and the screws on the bulb holder to make sure the wires are in contact with the metal. In some cases, you may need to strip more of the insulation off the wire.
The source of electricity will power the load, and the load will perform whatever task it's designed to carry out, from spinning a shaft to generating light. Electrical circuits can get quite complex, but the basic principle is that you always have the source of electricity (such as a battery), a load, and two wires to carry electricity between the two.
A complete circuit is an uninterrupted path for electrons to flow from an energy source (i.e. a battery or household power), through a device and back to the source. If we break that path, the flow of electrons stops, and we no longer get energy from our circuit, and the device no longer has power.
In a home electrical circuit, the same voltage is applied across each light or appliance, but each of these loads draws a different amount of current, according to its power requirements.
The Intriguing Balance of Electric Charges in Atoms
You may want to see also
Explore related products
Alternating and direct current circuits
Electric circuits are the path for transmitting electric current. They include a device that provides energy to the charged particles that make up the current, such as a battery or generator, and devices that use the current, like lamps or electric motors.
There are two types of electric current: direct current (DC) and alternating current (AC). Direct current comes from sources like batteries and only flows in one direction. In other words, the voltage and the direction of the current are always constant. In contrast, alternating current, which comes from power plants, is characterised by a flow of charge that changes direction periodically. This results in the voltage level also reversing along with the current. AC is used to deliver power to homes and offices.
In a direct current circuit, the electric charge (current) only flows in one direction. This is in contrast to an alternating current circuit, where the current pulsates back and forth many times a second. In an alternating current circuit, the direction of the current is constantly changing, which can lead to a delay or advance in the current flowing to the load relative to the voltage behaviour. On the other hand, direct current circuits have a constant voltage and current direction, resulting in no advance or delay in the circuit. All the electricity passes through the load in a direct current circuit because the current always flows in a constant direction.
In a home electrical circuit, the same voltage is applied across each light or appliance, but each of these draws a different amount of current according to its power requirements. A number of similar batteries connected in parallel provides a greater current than a single battery, but the voltage remains the same.
How Much Electricity Does Roku TV in Standby Mode Use?
You may want to see also
Explore related products
Series and parallel circuits
Electric circuits are a path for transmitting electric current. They include a device that gives energy to charged particles, such as a battery or generator, and devices that use current, like light bulbs or electric motors.
A direct-current (DC) circuit carries a current that flows in only one direction, while an alternating-current (AC) circuit carries a current that pulsates back and forth many times a second, as in most household circuits. AC usually comes from a power plant, while DC comes from a source with two terminals, like a battery.
Parallel circuits, on the other hand, have multiple paths for current flow, with all components connected across each other, forming exactly two electrically common nodes. The voltage is the same across each component in a parallel circuit, but the current gets dropped or separated for each path. In a parallel circuit, each component has its own circuit, so if one breaks, the others will still function.
An example of a series circuit is the former lighting system in electric multiple-unit trains, where a number of bulbs were connected in series, with a resistor to drop the remaining voltage. In contrast, a number of similar batteries connected in parallel provides greater current than a single battery, but the voltage remains the same.
Classifying Sensors: DoD's Electro-Optical and Seismic Methods Explained
You may want to see also
Explore related products
Voltage and current
An electric circuit is a pathway for transmitting electric current. It includes a device that provides energy to the charged particles that make up the current, such as a battery or generator, and devices that use the current, like light bulbs or electric motors.
In simpler terms, voltage can be understood using the analogy of a water tank. The water in the tank represents the charge, and the pressure at the end of a hose attached to the tank represents the voltage. The more water in the tank, the higher the charge and the greater the pressure (voltage) at the end of the hose.
Current, on the other hand, is the rate of flow of electric charge. It is the rate at which electrons move through a circuit. The SI unit of electric current is the ampere, often abbreviated as "amp." One ampere is the amount of current when there is a flow of one coulomb of charge passing through a cross-section in one second.
Ohm's Law states that electrical current is proportional to voltage and inversely proportional to resistance. Therefore, when voltage increases, so does the current, assuming the resistance in the circuit remains constant.
In a home electrical circuit, each light or appliance draws a different amount of current according to its power requirements, but the voltage remains the same. Connecting similar batteries in parallel provides a greater current than a single battery, but the voltage stays the same.
Direct current (DC) flows in a single direction, while alternating current (AC) constantly switches directions. Batteries provide direct current, while alternating current comes from power plants.
Texas Electricity Rates: A Costly Surge?
You may want to see also
Explore related products
Conductors and resistors
In an electric circuit, conductors are materials that allow electric current to flow through them. This is because the outermost electrons in their atomic structure can move freely from one atom to another. As these electrons carry a negative charge, they are repelled by a negative charge and attracted by a positive charge. Applying a voltage between the two ends of a conductor causes an 'electron drift' from negative to positive, creating an electric current.
Conductors are made of high-conductivity materials, such as metals, especially copper, aluminium, and some alloys. For example, aluminium is commonly used as a conductor in power distribution cables. This is because, although it is not as good a conductor as copper, it is much lighter. Silver is an even better conductor than copper, but due to its high cost, it is only used in very small amounts.
Resistance is the ability to oppose the flow of electric current. The resistance of a conductor depends on various factors, including its length, cross-sectional area, and the material it is made of. For instance, a long, thin copper wire has higher resistance than a short, thick copper wire. Resistors are made of a wide variety of materials, depending on factors such as the desired resistance, the amount of energy the resistor needs to dissipate, precision, and costs.
Resistors oppose the flow of electric current, and electrical energy is required to push the current through the resistance. This electrical energy is then dissipated as heat. This process is called Joule heating, or ohmic heating. The dissipation of electrical energy is often undesired, especially in the case of transmission losses in power lines. However, in some cases, this effect is used advantageously. For example, when the temperature-dependent resistance of a component is used intentionally, the component is called a resistance thermometer or thermistor.
Electric Credit Unions: Ozark's Financial Powerhouse
You may want to see also
Frequently asked questions
An electric circuit is a closed-loop or path that forms a network of electrical components where electrons can flow.
The components of an electric circuit include a power source, conductors, a switch, and a load. The power source is typically a battery, the conductors are made of copper wires, the switch is used to open or close the circuit, and the load is the device that uses the electricity to perform a task, such as a light bulb or a motor.

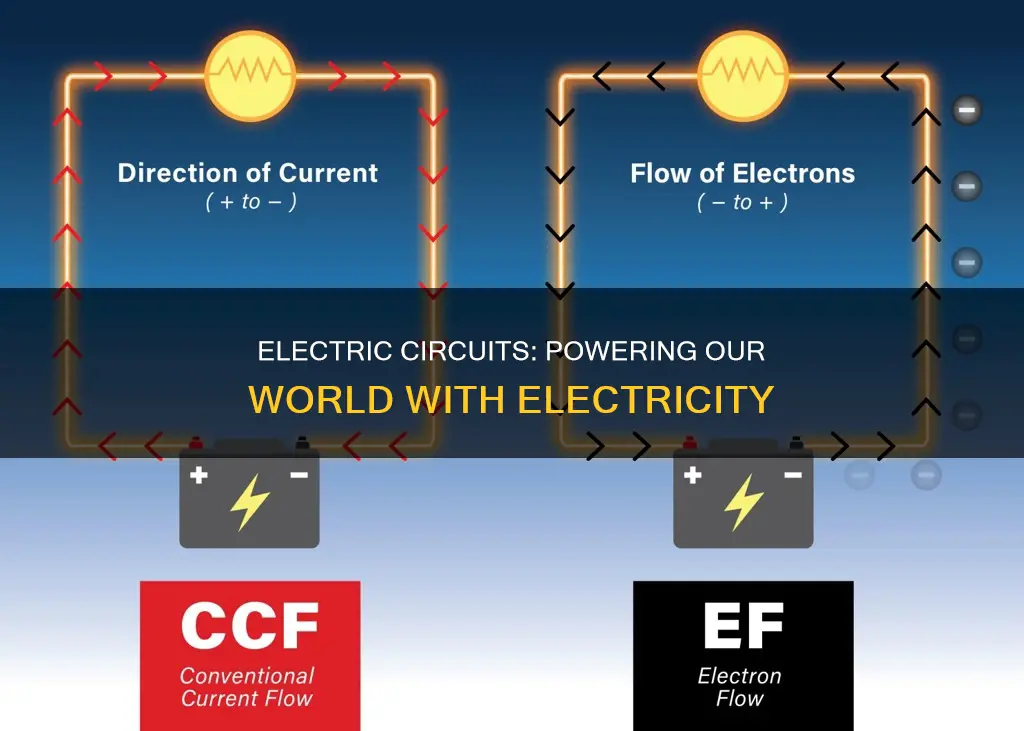

An electric circuit works by allowing electrons to flow from the negative terminal of a power source, through the load, and back to the positive terminal of the power source. The circuit must be closed or complete for the electrons to move.
There are several types of electric circuits, including direct-current circuits, alternating-current circuits, series circuits, and parallel circuits. Direct-current circuits carry current in one direction, while alternating-current circuits pulsate back and forth. Series circuits have one path for the current to flow through each component, while parallel circuits have branches that divide the current.
