Electric brakes are a common type of trailer brake that uses electromagnets to activate the brakes when the driver applies brakes on the towing vehicle. This type of brake system provides ease of braking, safety, and control. Electric brake controllers are required for electric trailer brakes to function, as they regulate the amount of braking power by sending a signal to the brake actuator. The controller uses electricity from the tow vehicle to apply power to the trailer brakes, and the amount of power is determined by the trailer's gain setting, which is based on the trailer and load size. The process of how electricity reaches the trailer brakes involves an electrical connection on the trailer that plugs into the connector on the vehicle, creating a complete circuit. Electric brakes are preferred over surge brakes due to their lower cost, ease of maintenance, and immediate braking response, ensuring a smooth towing experience.
| Characteristics | Values |
|---|---|
| How it works | An electrical connection on the trailer plugs into the connector on the vehicle. Electrical wires run from the trailer connector to each brake on the axle, creating a complete circuit. |
| When the driver steps on the brakes, a current is sent to the brake control in the vehicle, which then sends a current back to the trailer to activate the brakes. | |
| In an electric trailer brake system, an electromagnet is used to activate the brakes when the driver applies the brakes on the towing vehicle. | |
| A brake controller is required for electric trailer brakes to work. The controller uses electricity from the tow vehicle to apply a specific amount of power to the trailer brakes. | |
| Proportional brake controllers provide smooth stops and efficient braking by applying power in proportion to the vehicle's momentum. | |
| Advantages | Electric trailer brakes improve safety and control when braking. |
| They decrease the chances of not being able to stop quickly in an emergency and causing extra wear and tear on the tow vehicle's brakes and tires. | |
| Electric brakes are easy to install and have lower maintenance requirements compared to hydraulic surge brakes. | |
| They are also more cost-effective in the long run due to simpler maintenance. | |
| Electric brake controllers offer flexibility, as they can be used with various tow vehicles without modification. | |
| They provide a smooth and stress-free journey, minimising jerks and enhancing comfort. | |
| Electric brakes can be installed on only one axle of the trailer, depending on the weight being towed and applicable state laws. | |
| Disadvantages | Electric trailer brakes require a controller, adding to the overall cost and complexity of the system. |
| They rely on an electrical connection to the vehicle, which can be affected by wiring issues or other technical problems. | |
| Electric brakes may not be suitable for all types of trailers or towing situations, and some states may have specific requirements for their use. |
Explore related products
What You'll Learn
Electric brakes require a brake controller
There are two main types of brake controllers: time-delay and proportional or inertia-based. Time-delay controllers operate on simple electrical principles, applying an increasing amount of power over time when the driver presses the brake pedal. Proportional controllers, on the other hand, apply the brakes in the trailer with the same force as the brakes in the towing vehicle. They use electrical circuits called accelerometers to sense changes in momentum and apply power to the trailer brakes in proportion to the vehicle's momentum. This provides smooth and efficient braking, especially when towing on a hill.
When towing a trailer with electric brakes, it is important to ensure that the trailer wiring harness is plugged into the towing vehicle. During setup, it is recommended to park the vehicle and trailer on a level surface in a safe, open area with ample stopping distance. The next step is to allow the brake controller to calibrate, and then adjust the trailer gain based on the trailer and load size. For larger trailers, a higher gain setting is required, while smaller trailers may need a lower setting to avoid brake lockup.
By using a brake controller, the driver can enhance safety and control when braking. It allows the driver to activate and monitor trailer brake activity from the cab of the vehicle, providing a smooth towing experience.
Electric Bass and Batteries: What's the Connection?
You may want to see also
Explore related products
The controller uses electricity from the tow vehicle
Electric trailer brakes require a brake controller to function. The controller uses electricity from the tow vehicle to apply power to the trailer brakes. This power is supplied through an electrical connection that plugs into the connector on the vehicle. This connection is typically a 7-pin connector, although 4-pin connectors are also available. The trailer wiring harness must be plugged into the vehicle, and the brake controller may need to be calibrated.
The brake controller regulates the amount of braking power applied to the trailer brakes. This is known as the trailer gain, which is the maximum amount of stopping force for the trailer. The controller uses electrical circuits and trailer gain settings to determine the appropriate amount of power. Some controllers use an accelerometer to sense changes in momentum and apply power proportionally, resulting in smooth and efficient braking. This is especially useful when towing on a hill, as the controller adjusts the power based on the incline.
The trailer gain setting depends on the trailer and load size. Larger trailers require a higher gain setting, while a lower setting is suitable for smaller trailers to prevent brake lockup. It is important to refer to the manufacturer's specifications and test the trailer brakes to adjust the gain setting accordingly.
Electric brake controllers offer several benefits, including enhanced safety and control when braking. They are easy to install, with many modern vehicles featuring "plug and play" connectors for standard electric brake controllers. Additionally, they provide precise braking presets, allowing users to adjust to different weights and road conditions.
In summary, electric trailer brake controllers utilise electricity from the tow vehicle to regulate the braking power applied to the trailer brakes. This ensures a smooth and safe towing experience, especially when navigating hills or managing different load sizes. With proper calibration and gain settings, electric trailer brakes can effectively assist in bringing a tow vehicle and trailer to a complete stop.
Exploring Chime Types: Mechanical or Electric?
You may want to see also
Explore related products
Electricity magnetises the brake magnet
Electric brakes are an innovative solution that harnesses the principles of electromagnetism to slow down or stop moving objects. They are designed to be used with a brake controller, which uses electricity from the tow vehicle to supply a specific amount of power to the trailer brakes. The brake controller wiring is connected to the tow vehicle and is programmed to activate the trailer brake system when the brake pedal is pressed.

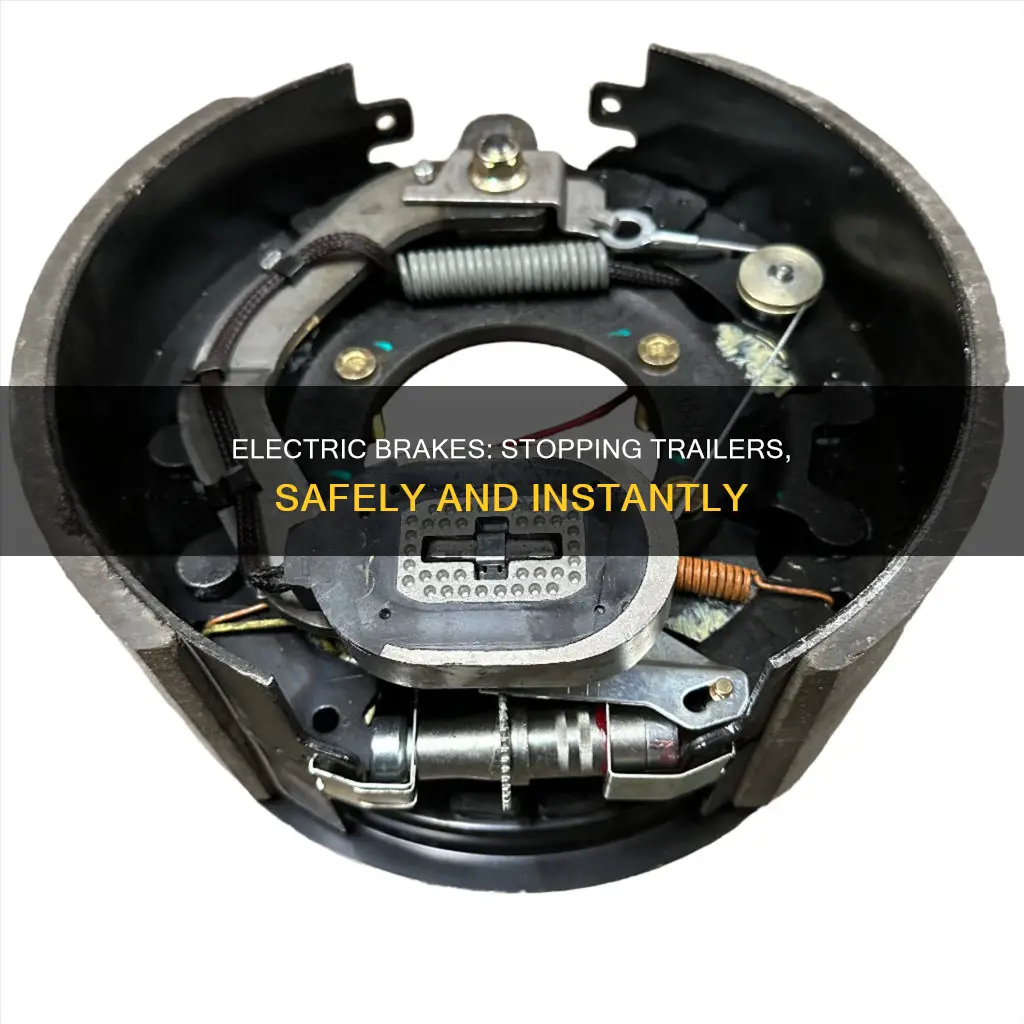

Electric brakes consist of a magnet in the backing plate with two conductor wires that connect directly to the trailer wiring. When electricity is turned on, it magnetises the brake magnet. The magnet is attracted to the drum face, and when it makes contact, the resulting friction causes it to rotate. This rotation moves the actuating arm, pushing the shoes out against the drum. The shoes are made with a special material that resists the heat caused by friction. When the shoes press against the inside of the drum, they prevent the hub and wheel from spinning.
The brake controller regulates the amount of power supplied to the trailer brakes by using electrical circuits and trailer gain settings. The trailer gain is the maximum stopping force for the trailer, and it is determined by the trailer and load size. Larger trailers require a higher gain setting, while a lower gain setting is used for smaller trailers to avoid brake lockup. The brake controller can also be adjusted based on the load type and road conditions.
In addition to their use in trailers, electric brakes are also used in various other applications. They are commonly found in roller coasters and high-speed trains, providing a smooth and controlled stop. Electric brakes are also used in industrial machinery, allowing precise control over the speed of rotating components, and in exercise equipment to adjust resistance levels.
Repairing Your Electric Kettle: A Step-by-Step Guide
You may want to see also
Explore related products
The trailer wiring harness must be plugged into the vehicle
Electric trailer brakes are the most common type of trailer brakes. They use an electromagnet to activate the brakes when the driver applies the brakes in the towing vehicle. This type of braking system requires a brake controller to work. The controller sends a signal to the brake actuator, which then applies the brakes on the trailer. This ensures safety and control when braking.
When using electric brakes, it is essential that the trailer wiring harness is plugged into the vehicle. The trailer wiring harness is necessary for safely connecting the taillights, turn signals, brake lights, and other electrical systems. It serves as the link between the vehicle brakes and the trailer brakes.
There are different types of trailer wiring harnesses available, each with a different number of pins. The most commonly used type is the 4-way flat connector, which has four wires with straightforward functions. The green wire is for the right turn signal and brake lights, the yellow wire is for the left turn signal and brake lights, the brown wire is for the taillights, and the white wire is for the ground. Other types of connectors include the 5-way, 6-way, and 7-way RV blade connectors.
When plugging in the trailer wiring harness, it is important to ensure that the connector type on the vehicle matches the connector type on the trailer. If they do not match, adapters are available to ensure compatibility. It is also crucial to verify that the correct wires are tapped into and that the wiring harness connectors are securely plugged into the correct vehicle connectors. This can be done using a circuit tester.
Converting Polar to Rectangular Coordinates: A Simple Guide
You may want to see also
Explore related products
Electric brakes are safer than surge brakes
Electric brakes are the most common type of trailer brake system. They are activated by an electromagnet when the driver applies the brakes in the towing vehicle. This type of brake system offers more ease when braking compared to surge brakes. Electric brakes can be adjusted for the load being carried and can be manually applied if necessary. They also offer better performance on slopes and rough terrain.
Electric brakes provide a smooth and efficient braking experience. They use electrical circuits and trailer gain settings to regulate the amount of braking power. The trailer gain is the maximum amount of stopping force for the trailer. It is set based on the trailer and load size. During setup, the vehicle and trailer brake systems are connected, and the brake controller is calibrated. This calibration allows the electric brake system to apply a proportional amount of force to the trailer brakes when the driver presses the brake pedal. This ensures a smooth towing experience, especially when braking on a hill.
Surge brakes, on the other hand, are a hydraulic braking system that uses the trailer's own weight and momentum to activate the brakes. They do not require a brake controller or an electrical connection to the vehicle. While surge brakes may be easier to install and are self-contained, they do not offer the same level of consistent braking performance as electric brakes. Electric brakes allow for more precise control over the braking force, making them a safer option.
In addition, electric brakes have the advantage of being adjustable. They can be set to suit different roads and loads, such as when towing a full versus empty trailer. This adjustability enhances safety and control when braking. Furthermore, electric brakes are compatible with multiple tow vehicles without requiring dashboard modifications, making them a flexible and convenient choice.
Medicaid Coverage for Electric Wheelchairs in Arizona
You may want to see also
Frequently asked questions
Electric brakes use electricity from the tow vehicle to apply a specific amount of power to the trailer brakes. They use electrical circuits and trailer gain settings to regulate the amount of braking power.
If your trailer has a 4-pin connector on the tongue, it does not have electric brakes. Electric brakes are usually located on the axles of the trailer and you can check by looking underneath or outside the trailer by looking at the rims.
Firstly, make sure your vehicle and trailer are parked on a level surface. Then, plug the trailer wiring harness into your vehicle. Finally, allow the brake controller to calibrate.
Yes, electric trailer brakes do not work without a brake controller. The brake controller acts as a link between your vehicle brakes and the brakes on your trailer.
To check if your trailer's electric brake system is working, you can pull the plastic pin from the switch box with a pair of pliers. Then, slowly move the tow vehicle forward. If the brakes lock up, the breakaway battery is charged and the system is working.
