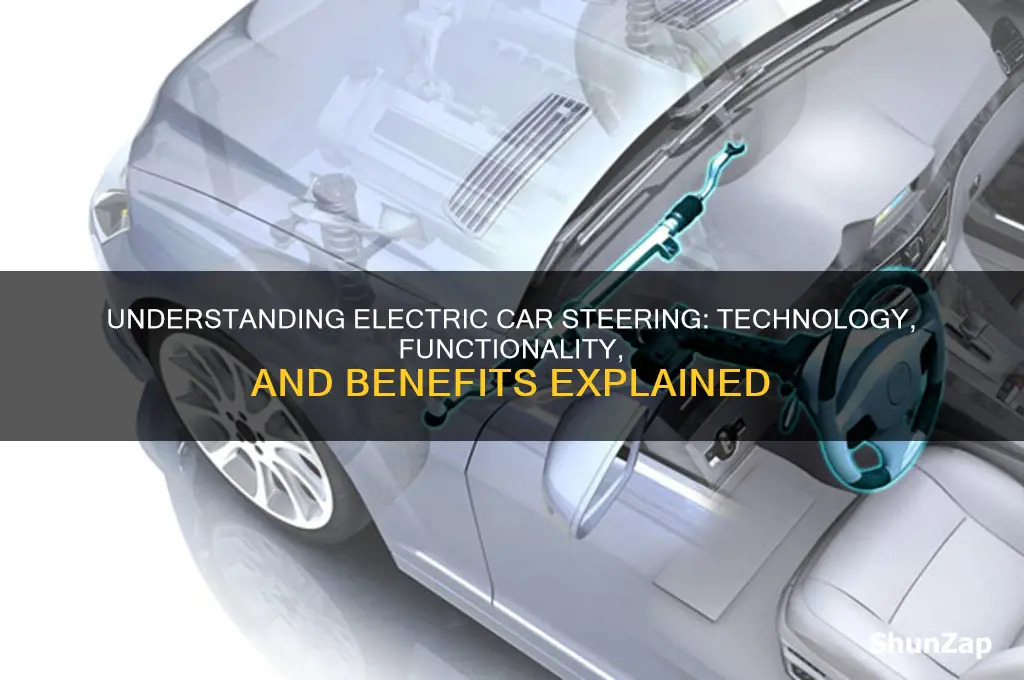

Electric car steering systems, often referred to as Electric Power Steering (EPS), operate by using an electric motor to assist the driver in turning the wheels, replacing the traditional hydraulic systems found in conventional vehicles. Unlike hydraulic systems, which rely on a pump driven by the engine, EPS systems are more efficient and responsive, as they only activate when the steering wheel is turned. The electric motor is controlled by a sophisticated electronic control unit (ECU) that monitors inputs such as vehicle speed, steering angle, and torque to adjust the level of assistance provided. This ensures smoother and more precise steering at low speeds while reducing assistance at higher speeds for better stability and control. Additionally, EPS systems contribute to improved fuel efficiency and reduced emissions by eliminating the constant energy drain of a hydraulic pump, making them a key component in the design of modern electric vehicles.
| Characteristics | Values |
|---|---|
| Steering System Type | Electric Power Steering (EPS) or Steer-by-Wire (SbW) |
| Power Source | Electricity from the vehicle's battery |
| Components | Electric motor, control module, sensors, steering column, rack, and pinion |
| Operation Principle | Motor assists steering effort based on driver input and vehicle speed |
| Assist Level | Variable; adjusts based on speed (more assist at low speeds, less at high) |
| Feedback Mechanism | Torque sensor detects driver input; motor provides resistance for feedback |
| Energy Efficiency | More efficient than hydraulic systems; no constant engine power required |
| Weight | Lighter than hydraulic systems |
| Maintenance | Fewer moving parts; reduced maintenance compared to hydraulic systems |
| Integration with ADAS | Seamlessly integrates with advanced driver-assistance systems (e.g., lane keep assist) |
| Redundancy | Backup systems in Steer-by-Wire to ensure safety in case of failure |
| Customization | Adjustable steering feel (e.g., comfort, sport modes) |
| Environmental Impact | Reduced emissions due to lower energy consumption |
| Cost | Generally higher upfront cost but lower long-term maintenance costs |
| Safety Features | Includes fail-safe mechanisms and diagnostics |
| Compatibility | Works with all-electric and hybrid vehicles |
| Future Trends | Increasing adoption of Steer-by-Wire in autonomous vehicles |
Explore related products
What You'll Learn
- Electric Power Steering Basics: Overview of EPS system components and their functions in electric vehicles
- Sensor Role in Steering: How sensors detect driver input and adjust steering assistance accordingly
- Motor Assistance Mechanism: The electric motor's role in providing precise steering support and feedback
- Energy Efficiency in EPS: How EPS systems optimize power usage to enhance electric vehicle range
- Safety and Redundancy: Fail-safe mechanisms in EPS to ensure steering control during system failures
Electric Power Steering Basics: Overview of EPS system components and their functions in electric vehicles
Electric Power Steering (EPS) systems have become a cornerstone of modern electric vehicles (EVs), offering improved efficiency, responsiveness, and driver assistance features compared to traditional hydraulic systems. At its core, EPS replaces the hydraulic pump driven by the engine with an electric motor, eliminating the constant parasitic loss associated with hydraulic systems. This motor is typically mounted on the steering column or directly on the steering rack, providing assistance only when needed, which aligns with the energy-efficient design philosophy of EVs. The system is controlled by an Electronic Control Unit (ECU), which processes inputs from various sensors to determine the appropriate level of steering assistance.
The primary components of an EPS system include the electric motor, torque sensor, vehicle speed sensor, and the ECU. The torque sensor is a critical component that measures the force applied by the driver on the steering wheel. This input is sent to the ECU, which calculates the required assistance based on factors like vehicle speed and steering angle. The electric motor then delivers the necessary torque to the steering mechanism, either through a column-assist or rack-assist setup. In column-assist systems, the motor is attached to the steering column, while in rack-assist systems, it is mounted directly on the steering rack, providing more direct assistance.
Vehicle speed sensors play a vital role by adjusting the level of power assistance based on the car's speed. At lower speeds, such as during parking or maneuvering, the system provides maximum assistance to reduce steering effort. At higher speeds, assistance is reduced to enhance road feel and stability, ensuring precise control for the driver.
Another key component is the ECU, which acts as the brain of the EPS system. It continuously monitors inputs from the torque sensor, vehicle speed sensor, and other sensors like the yaw rate and lateral acceleration sensors in more advanced systems. The ECU uses this data to modulate the electric motor's output, ensuring smooth and responsive steering. Additionally, the ECU enables integration with advanced driver-assistance systems (ADAS), such as lane-keeping assist and automatic parking, by providing precise control over steering inputs.
The electric motor in an EPS system is designed for efficiency and reliability. Brushless DC motors are commonly used due to their high efficiency, low maintenance, and compact size. These motors are powered by the vehicle's battery pack, with the ECU managing power consumption to minimize energy usage. Unlike hydraulic systems, which require constant power to operate the pump, EPS motors only draw power when steering assistance is needed, contributing to the overall energy efficiency of EVs.
In summary, the EPS system in electric vehicles is a sophisticated integration of mechanical and electronic components working together to provide seamless steering assistance. The torque sensor, electric motor, vehicle speed sensor, and ECU are the core elements that ensure the system operates efficiently and responsively. By eliminating the inefficiencies of hydraulic systems and enabling advanced driver-assistance features, EPS aligns perfectly with the goals of electric vehicle design, offering both performance and sustainability. Understanding these components and their functions provides insight into how electric car steering works and why it is a key feature of modern EVs.
