Electricity is generated in power plants using fossil fuels or renewable resources such as coal, natural gas, wind, solar, biomass, and hydropower. After electricity is generated, it goes through three stages before reaching your home: generation, transmission, and distribution. First, transformers increase the voltage of the electrical current so that it can be transmitted over long distances efficiently. Then, transmission lines carry the high-voltage electricity to substations, which further increase the voltage. Finally, distribution lines carry the electricity from substations to homes, where smaller transformers lower the voltage again to make it safe for use. The electricity then passes through a meter that measures usage and travels through wires inside the walls to power outlets and switches.
| Characteristics | Values |
|---|---|
| Electricity Generation Sources | Fossil fuels (natural gas, coal, oil), nuclear, renewable energy (hydro, solar, wind, wave energy, marine, biomass) |
| Electricity Generation Process | Power stations use fuel sources to power turbines, converting kinetic energy into electrical current and voltage |
| Transmission | High-voltage electricity travels through transmission lines and substations to cover long distances efficiently |
| Distribution | Distribution lines carry electricity from substations to homes, businesses, and schools |
| Voltage Transformation | Transformers increase or decrease voltage depending on the transmission stage; voltage is lowered for safe use in homes |
| Final Delivery | Electricity enters homes via service wires, passes through meters, and travels through internal wiring to power outlets and switches |
| Power Grid | The National Grid ensures safe transportation and balance between supply and demand of electricity and gas |
| Carbon Transition | The power grid faces the challenge of accommodating the shift towards low-carbon and renewable energy sources |
Explore related products
What You'll Learn
Power generation at stations/plants
Power generation begins at stations or plants, where electricity is brought into existence via fossil fuels or renewable resources. Fossil fuels include natural gas, coal, and oil, while renewable resources include wind, solar, hydropower, and geothermal energy. These resources are used to power large spinning turbines, which are connected to generators that convert kinetic energy into electrical current via magnetic fields, thus producing voltage (electricity). Power stations will normally produce electricity at around 25,000 volts, but this voltage needs to be increased for efficient transmission over long distances.
Transformers are used to increase the voltage of the electrical current. At the substation, large transformers further ramp up the voltage to extremely high levels (around 115,000-500,000 volts). This high voltage allows the electricity to be transmitted over long distances without losing too much power. Huge steel towers and lines carry this high-voltage electricity, but it still needs to undergo a step-down process to be safe for household use.
The voltage is lowered at switching stations or substations before being distributed through neighbourhood distribution lines. Transformers play a crucial role in reducing the voltage to safer levels for local distribution. Once the electricity leaves the substation, it enters the distribution power lines, heading towards its final destination—your home.
Understanding the Height of Electrical Towers
You may want to see also
Explore related products

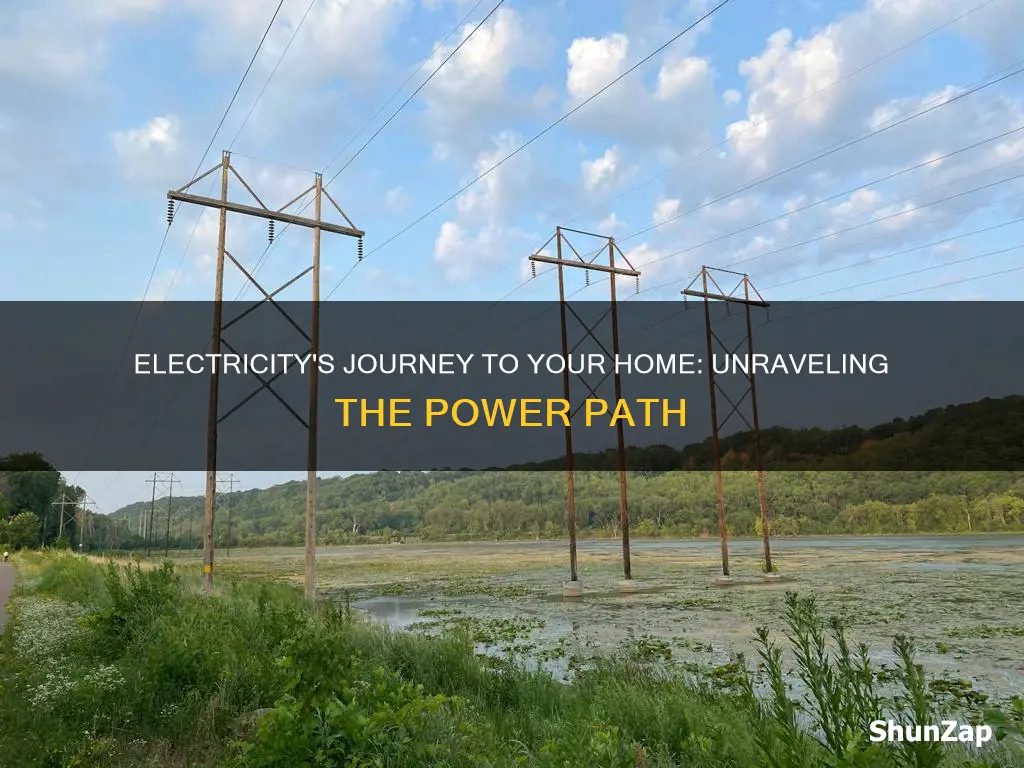

Transmission lines and substations
Once electricity is generated at a power plant, it travels through transmission lines to substations, and then to distribution lines that carry electricity to homes, businesses, and schools. Transmission lines carry high-voltage electrical currents across the country.
Transmission lines are part of a transmission network that facilitates the bulk movement of electricity from a generating site to an electrical substation. This network is distinct from the local wiring between high-voltage substations and customers, known as electric power distribution. The transmission and distribution networks form part of electricity delivery, known as the electrical grid.
Electricity is transmitted at high voltages to reduce the losses produced by strong currents. Transmission lines use either alternating current (AC) or direct current (DC). The voltage level is changed with transformers. The voltage is stepped up for transmission and then reduced for local distribution.
Substations are integral to the national electricity grid, enabling electricity to be transmitted at different voltages, securely and reliably. They contain equipment that helps electricity transmission and distribution systems run smoothly, including protection equipment that detects and clears faults in the network.
Substations also convert electricity into different voltages, which is necessary for transmission across the country and distribution to local neighbourhoods, homes, businesses, and buildings. Transformers within substations ramp up the voltage to extremely high levels (115,000-500,000 volts) for efficient transmission. The electricity is then stepped down at switching stations/substations before being distributed through neighbourhood lines.
Electric Blue Acaras: Breeding Patterns and Cycles Explored
You may want to see also
Explore related products
Voltage reduction
The process of electricity reaching our homes can be broken down into three stages: generation, transmission, and distribution. Electricity is generated in power stations, where large spinning turbines convert kinetic energy into electrical current. These turbines are powered by wind, coal, natural gas, hydropower, or other renewable resources.
The voltage of the electrical current is then increased by transformers to enable it to travel long distances efficiently. This high-voltage electricity is carried by transmission lines, often stretched across huge distances by large steel towers.
Additionally, voltage reduction may have varying effects on different types of loads. For instance, lowering the voltage to resistive elements in water heaters will increase the time needed to heat water to the desired temperature. On the other hand, increasing the voltage may lead to higher power demands from these resistive loads, resulting in increased costs for customers.
In summary, voltage reduction is an essential step in ensuring electricity is safely distributed to our homes and managing emergency situations or peak demand. However, it is important to consider the potential short-term nature of energy savings and the possibility of increased aggregate load demand.
Sharpening Electric Hedge Trimmers: Easy DIY Guide
You may want to see also
Explore related products
Distribution to neighbourhoods
Once electricity reaches your neighbourhood, it passes through a smaller pole-top transformer to reduce the voltage and make it safe for homes, offices, and businesses. This process is known as the "step-down process". In rural areas, for instance, smaller substations are used to reduce the voltage to around 33,000 volts, while in urban areas, the voltage is typically lowered to between 11,000 and 33,000 volts.
After the voltage reduction, electricity is distributed through neighbourhood distribution lines. These distribution lines carry electricity from substations to houses, businesses, and schools. The electricity then enters your home through a service wire called the "service drop". If the service is underground, it is routed through a meter box to monitor electricity usage. For overhead services, it is connected via the "weather head", the point of contact between your facilities and the electrical company.
The meter box serves as a safety mechanism in case power needs to be cut off for maintenance or emergencies. It also divides electricity into circuits for each area of your house. These circuits are essential for electricity to flow. When you turn on a light switch, you close the circuit, allowing electricity to flow through the light and back into the wire. Finally, electricity travels through wires inside the walls to power outlets and switches, ready to power your devices and appliances.
Electric Long-Haul Trucks: Diesel Power or Green Energy?
You may want to see also
Explore related products
Wiring and metering in homes
Once electricity reaches your home, it passes through a service wire connected to your home, known as the 'service drop'. If the service is underground, it will run through a meter box, which allows the power company to monitor your electricity usage. Overhead services will be tied in via the 'weather head', the point of contact between your facilities and the electrical company, and will then also run through the meter. The meter records your electricity usage and allows the power company to bill you for the correct amount.
From the meter box, a wire is run into your home's breaker box, which supplies electricity to various circuits, wiring, and outlets throughout your home. This is also known as the main circuit breaker or main service panel. The main circuit breaker is designed to handle the large load of the main feeder wires bringing electrical power to the house, and for this reason, it is the largest breaker in the box for amperage rating. Older homes may have a main breaker rated as low as 60 amps, but it is more common for a main breaker to be rated for 100 amps or more.
The breaker box contains a network of circuit breakers running from top to bottom. These are usually numbered and mapped for convenience, with odd-numbered breakers on the left and even-numbered breakers on the right. There is usually a single larger circuit breaker located in the centre of the panel, but it can also be at the top, bottom, or end of the panel depending on the installation.
The electricity is then divided into circuits for each area of your house. It then moves through wires in the walls to power outlets and switches, where you can operate your lights and appliances.
Electric Callboy Singers: Gay or Straight?
You may want to see also
Frequently asked questions
Electricity is an essential energy source that powers our homes, allowing us to perform everyday activities like turning on the lights, using electronic devices, and cooking.
Electricity is generated at power stations or power plants, which use various fuel sources such as fossil fuels (e.g., coal, natural gas) or renewable energy sources (e.g., wind, solar, hydroelectric).
Electricity travels through a complex infrastructure. After being generated, it goes through transmission lines or power grids, which carry high-voltage electricity over long distances. Then, substations and transformers are used to step down the voltage to safe levels for local distribution. Finally, it reaches your home through a service wire or drop and is recorded by a meter that tracks your usage.
Once electricity enters your home, it passes through a breaker box or switchboard, which divides it into circuits for different areas. It then travels through wires inside the walls to power outlets and switches, where you can use it to operate your lights and appliances.
Electricity flows in closed circuits or loops. When you turn on a switch, you close the circuit, allowing electricity to flow through your device and back into the wire, completing the loop.
