The production of electric car batteries is a complex and multi-step process that involves the extraction, refinement, and assembly of various raw materials. It begins with mining and processing metals such as lithium, cobalt, nickel, and manganese, which are essential components of the battery's cathode and anode. These materials are then combined with other elements, such as graphite and copper, to create the battery's electrodes. The manufacturing process continues with the assembly of individual cells, where the electrodes are separated by a porous membrane and immersed in an electrolyte solution, allowing for the flow of ions and the generation of electricity. After assembly, the cells are tested, packaged, and integrated into battery modules, which are then installed in electric vehicles, powering the next generation of sustainable transportation.
Explore related products
What You'll Learn
- Raw Material Extraction: Mining lithium, cobalt, nickel, and other key battery components sustainably
- Cathode & Anode Production: Manufacturing electrode materials with precise chemical compositions for efficiency
- Electrolyte Preparation: Creating conductive solutions to facilitate ion movement between electrodes
- Cell Assembly: Layering electrodes, separators, and electrolytes into individual battery cells
- Pack Integration: Combining cells, adding cooling systems, and ensuring safety for vehicle use
Raw Material Extraction: Mining lithium, cobalt, nickel, and other key battery components sustainably
The production of electric car batteries begins with the extraction of critical raw materials, a process that must be approached with sustainability at its core. Lithium, a cornerstone of lithium-ion batteries, is primarily sourced from brine pools in salt flats (e.g., South America’s "Lithium Triangle") or hard rock mining (e.g., Australia). Sustainable extraction involves minimizing water usage in brine operations, as traditional methods can deplete local water resources. Innovations like direct lithium extraction (DLE) technologies reduce environmental impact by using less water and accelerating extraction times. Additionally, recycling lithium from end-of-life batteries is gaining traction, reducing the need for new mining and closing the material loop.
Cobalt, another vital component, is predominantly mined in the Democratic Republic of Congo (DRC), where ethical and environmental concerns are significant. Sustainable cobalt extraction focuses on eliminating child labor and improving mining conditions through certifications like the Responsible Cobalt Initiative. Companies are also exploring cobalt-light or cobalt-free battery chemistries to reduce dependency on this resource. Recycling cobalt from old batteries and electronics is another sustainable strategy, though it currently faces scalability challenges due to limited infrastructure.
Nickel, essential for high-energy-density batteries, is mined through open-pit or underground methods, primarily in countries like Indonesia and the Philippines. Sustainable nickel extraction emphasizes reducing carbon emissions by transitioning to renewable energy-powered mining operations and minimizing deforestation. The shift toward using nickel-rich chemistries (e.g., NMC 811) in batteries increases efficiency but requires higher-purity nickel, driving demand for more sustainable refining processes.
Other key materials, such as graphite (for anodes) and manganese, also require sustainable extraction practices. Graphite mining, often associated with environmental degradation in China, is being improved through stricter regulations and the development of synthetic graphite alternatives. Manganese, mined in countries like South Africa and Gabon, benefits from sustainable practices like rehabilitation of mined lands and reduced chemical usage in processing.
To ensure sustainability across all mining operations, transparency and traceability are crucial. Blockchain technology is being employed to track the origin of materials, ensuring they are ethically sourced. Governments and industry leaders are also investing in research to develop less resource-intensive battery chemistries and improve recycling technologies. By prioritizing sustainable extraction methods, the electric vehicle industry can reduce its environmental footprint and ensure a stable supply chain for the growing demand for batteries.
When Will Electric Cars Be Affordable for the Average Buyer?
You may want to see also
Explore related products
Cathode & Anode Production: Manufacturing electrode materials with precise chemical compositions for efficiency
The production of cathodes and anodes is a critical step in manufacturing electric car batteries, as these electrode materials directly influence the battery's performance, energy density, and lifespan. Cathodes are typically made from lithium metal oxides, such as lithium nickel manganese cobalt oxide (NMC) or lithium iron phosphate (LFP), while anodes are commonly composed of graphite or silicon-based materials. The manufacturing process begins with sourcing high-purity raw materials, which are then carefully mixed in precise chemical ratios to achieve the desired composition. For instance, NMC cathodes require a specific ratio of nickel, manganese, and cobalt to optimize energy density and stability. This mixing process is often carried out in a controlled environment to prevent contamination, ensuring the final product meets stringent quality standards.
Once the raw materials are mixed, they undergo a series of processes to form the electrode materials. For cathodes, the mixture is typically calcined at high temperatures (often above 700°C) to create a crystalline structure that enhances ionic conductivity. This step is crucial for achieving the desired electrochemical properties. Similarly, anode materials like graphite are treated through processes such as graphitization, where raw materials are heated to extremely high temperatures (up to 3000°C) in an inert atmosphere to align the carbon layers, improving electrical conductivity and lithium-ion storage capacity. Precision in temperature control and duration during these treatments is essential to avoid defects that could degrade battery performance.
After the active materials are prepared, they are coated onto a current collector, usually a thin foil of aluminum for cathodes and copper for anodes. The coating process involves mixing the active material with binders and solvents to create a slurry, which is then evenly applied to the foil using techniques like doctor blade or slot-die coating. The coated foil is dried to remove solvents and then compressed to achieve the desired thickness and density. This step ensures good adhesion between the active material and the current collector, facilitating efficient electron transfer during battery operation.
Quality control is paramount throughout cathode and anode production. Manufacturers employ techniques such as X-ray diffraction (XRD) and inductively coupled plasma mass spectrometry (ICP-MS) to verify the chemical composition and crystalline structure of the materials. Particle size distribution and morphology are also analyzed using scanning electron microscopy (SEM) to ensure uniformity, which is critical for consistent battery performance. Any deviations from the specified parameters can lead to reduced efficiency, capacity fade, or even safety issues, underscoring the need for meticulous attention to detail in every stage of production.
Finally, the produced cathodes and anodes are assembled into battery cells, where they are paired with a separator and electrolyte to complete the electrochemical system. The precision in manufacturing these electrode materials directly impacts the overall efficiency and reliability of the electric car battery. Advances in material science and manufacturing techniques continue to drive improvements in cathode and anode production, enabling higher energy densities, faster charging times, and longer lifespans for electric vehicle batteries. As the demand for electric vehicles grows, optimizing these processes will remain a key focus for the industry.
Ford's Electric Vehicles: Exploring the Future of Driving
You may want to see also
Explore related products
Electrolyte Preparation: Creating conductive solutions to facilitate ion movement between electrodes
The process of electrolyte preparation is a critical step in manufacturing electric car batteries, particularly lithium-ion batteries, which are the most common type used in electric vehicles (EVs). The electrolyte serves as the medium through which lithium ions move between the anode and cathode during charge and discharge cycles. Its primary function is to facilitate this ion movement while preventing direct electrical contact between the electrodes, which would cause a short circuit. The preparation of the electrolyte involves several precise steps to ensure optimal conductivity, stability, and safety.
The first step in electrolyte preparation is the selection and mixing of solvent components. Most lithium-ion batteries use a mixture of organic solvents, such as ethylene carbonate (EC), dimethyl carbonate (DMC), and diethyl carbonate (DEC). These solvents are chosen for their ability to dissolve lithium salts, maintain a stable liquid phase over a wide temperature range, and support ion mobility. The ratio of these solvents is carefully controlled to balance viscosity, conductivity, and thermal stability. For example, EC provides high dielectric strength but is viscous, while DMC and DEC reduce viscosity and enhance ion mobility.
Once the solvent mixture is prepared, the next step is the addition of lithium salts, with lithium hexafluorophosphate (LiPF₆) being the most commonly used. This salt dissociates into lithium ions (Li⁺) and hexafluorophosphate anions (PF₆⁻) in the solvent, enabling the flow of lithium ions between the electrodes. The concentration of the lithium salt is critical, typically ranging from 0.8 to 1.5 M (molar), to ensure sufficient ion conductivity without compromising the electrolyte’s stability. The salt and solvent mixture is then stirred or agitated to achieve a homogeneous solution.
After the electrolyte solution is prepared, it undergoes purification to remove impurities that could degrade battery performance or safety. This often involves filtration to eliminate particulate matter and, in some cases, vacuum treatment to remove dissolved gases. The purified electrolyte is then stored in a controlled environment to prevent contamination by moisture or other impurities, as even trace amounts of water can react with the lithium salts and degrade the electrolyte.
Finally, the electrolyte is introduced into the battery cell during assembly. This is done in a dry room environment with strictly controlled humidity levels to avoid any moisture contamination. The electrolyte fills the pores of the separator, a porous membrane that allows ion passage while physically separating the anode and cathode. Once the electrolyte is in place, the battery is sealed, and the cell undergoes formation cycling to stabilize the electrode-electrolyte interfaces, ensuring optimal performance and longevity. Proper electrolyte preparation is thus essential for the efficiency, safety, and durability of electric car batteries.
Should Electric Cars Be Mandatory? Pros, Cons, and Future Implications
You may want to see also
Explore related products
Cell Assembly: Layering electrodes, separators, and electrolytes into individual battery cells
The process of cell assembly is a critical step in manufacturing electric car batteries, where the core components—electrodes, separators, and electrolytes—are meticulously layered to form individual battery cells. This stage begins with the preparation of the electrodes, typically made of lithium-metal oxides for the cathode and graphite for the anode. These electrode materials are coated onto thin metal foils, usually aluminum for the cathode and copper for the anode, in a precise and uniform manner. The coating process is highly controlled to ensure optimal thickness and consistency, as this directly impacts the cell's performance and energy density. Once coated, the electrode sheets are dried and calendared to enhance density and adhesion, preparing them for the next steps.
After electrode preparation, the assembly moves to layering the components. The process starts with a cathode sheet, followed by a separator, then an anode sheet, creating a sandwich-like structure. The separator is a critical component, typically made of a microporous polymer, which allows lithium ions to pass through while preventing electrical contact between the electrodes to avoid short circuits. This layering is done with extreme precision in a cleanroom environment to minimize contamination, as even microscopic particles can degrade battery performance. The stacked layers are then wound tightly into a cylindrical or flat shape, depending on the battery design, forming the core of the cell.
In some cases, especially for pouch or prismatic cells, the electrodes and separators are stacked in a repeating sequence rather than wound. This stacking method involves alternating layers of cathodes, separators, and anodes, ensuring proper alignment and minimal gaps. The stacked assembly is then enclosed in a pouch or fitted into a rigid case, depending on the battery format. Regardless of the method, the goal is to maximize the surface area of the electrodes while maintaining structural integrity and minimizing internal resistance.
Once the electrodes and separators are layered, the electrolyte is introduced. The electrolyte, a lithium salt dissolved in an organic solvent, is injected into the cell to fill the pores of the separator and coat the electrode surfaces. This step is crucial as the electrolyte facilitates the movement of lithium ions between the electrodes during charge and discharge cycles. The cell is then sealed to prevent leakage and contamination, ensuring the electrolyte remains contained within the cell. Proper sealing is essential to maintain the chemical stability and safety of the battery.
Finally, the assembled cell undergoes initial formation cycles, where it is charged and discharged under controlled conditions to activate the electrode materials and stabilize the electrolyte. This process helps to form a solid electrolyte interface (SEI) layer on the anode, which is vital for long-term performance and safety. After formation, the cell is tested for capacity, voltage, and internal resistance to ensure it meets quality standards. The completed cells are then grouped into modules and packs, integrated with battery management systems, and installed into electric vehicles, ready to power sustainable transportation.
Exploring 1963 Home Electrical Systems: Wiring, Outlets, and Innovations
You may want to see also
Explore related products

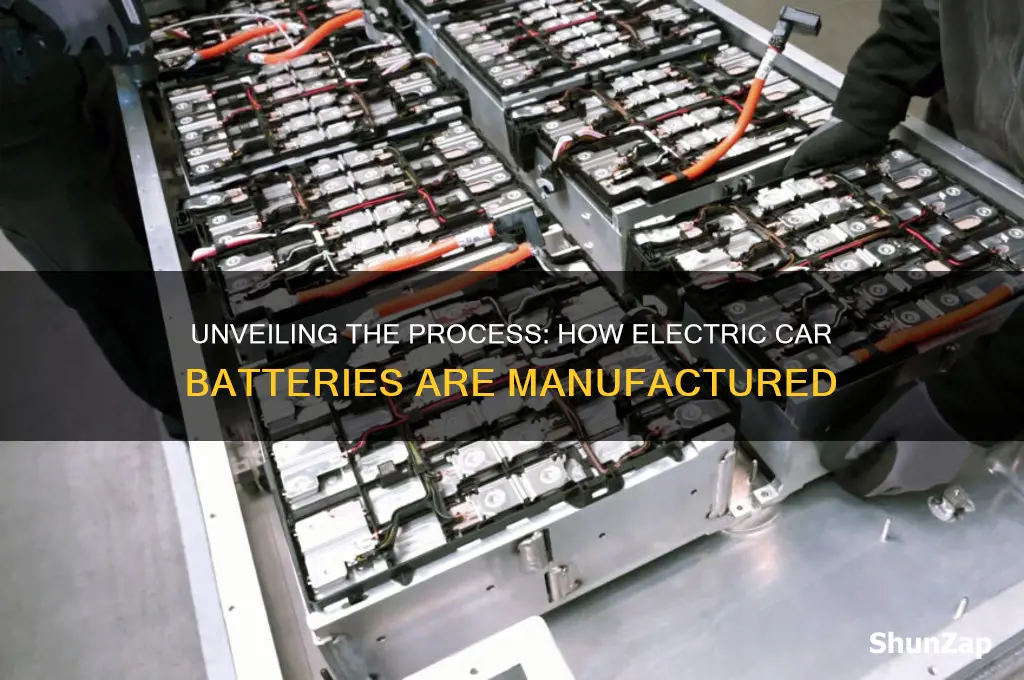

Pack Integration: Combining cells, adding cooling systems, and ensuring safety for vehicle use
Pack integration is a critical phase in electric vehicle (EV) battery manufacturing, where individual battery cells are combined into a functional unit ready for vehicle use. This process involves meticulous assembly, ensuring the cells work harmoniously while maintaining safety and performance. The first step is combining cells into modules, which are then assembled into the final battery pack. Cells are typically arranged in series and parallel configurations to achieve the desired voltage and capacity. For instance, a 400V battery pack might consist of 96 cells in series, each contributing 3.7V. These cells are interconnected using nickel or copper busbars, which minimize resistance and ensure efficient energy flow. Precision in alignment and connection is vital to prevent hotspots and uneven energy distribution.
Once the cells are combined, cooling systems are integrated to manage thermal performance, a critical aspect of battery longevity and safety. Liquid cooling is the most common method, where coolant flows through channels or plates between cell modules. These cooling plates are often made of aluminum for efficient heat transfer. The coolant absorbs heat generated during charging and discharging, maintaining the battery within its optimal temperature range (typically 20°C to 40°C). In some designs, phase-change materials or air cooling systems are used, though less common due to lower efficiency. The cooling system is connected to the vehicle’s thermal management system, ensuring consistent performance across various climates and driving conditions.
Safety is paramount during pack integration, as lithium-ion batteries pose risks of thermal runaway and fire if mishandled. Safety features such as fuse links, venting mechanisms, and battery management systems (BMS) are incorporated. The BMS monitors cell voltage, temperature, and state of charge, disconnecting the battery if anomalies are detected. Additionally, the pack is encased in a robust housing, often made of steel or aluminum, to protect against physical damage. Insulating materials are used to prevent short circuits, and pressure relief valves are installed to release gases in case of internal cell failure. Crashworthiness is also considered, with designs ensuring the battery remains intact during collisions.
The final step in pack integration involves testing and validation to ensure the battery meets performance and safety standards. Each pack undergoes rigorous testing, including vibration, thermal cycling, and overcharge/overdischarge tests. These tests simulate real-world conditions to verify the pack’s durability and reliability. Once validated, the battery pack is ready for installation in the vehicle, where it will power the electric drivetrain. Pack integration thus bridges the gap between individual cells and a fully functional, vehicle-ready energy storage system, combining engineering precision with safety-focused design.
Slovakia's Electrical Plug Type: A Comprehensive Guide for Travelers
You may want to see also
Frequently asked questions
Electric car batteries, typically lithium-ion batteries, are made from key materials including lithium, cobalt, nickel, manganese, graphite, and copper. Lithium serves as the anode, while a combination of nickel, manganese, and cobalt (NMC) or other compounds forms the cathode. Graphite is often used for the anode, and copper and aluminum are used for current collectors.
The assembly process involves layering or stacking the cathode, anode, and separator materials, which are then immersed in an electrolyte solution. These layers are tightly wound into a coil (cylindrical batteries) or stacked (prismatic or pouch batteries). The assembly is then placed into a metal or polymer casing, sealed, and connected to terminals for electrical contact.
The electrolyte in an electric car battery is a conductive solution that allows lithium ions to move between the cathode and anode during charging and discharging. It acts as a medium for ion transport while preventing direct electrical contact between the electrodes, which would cause a short circuit. Common electrolytes include lithium salts dissolved in organic solvents.
