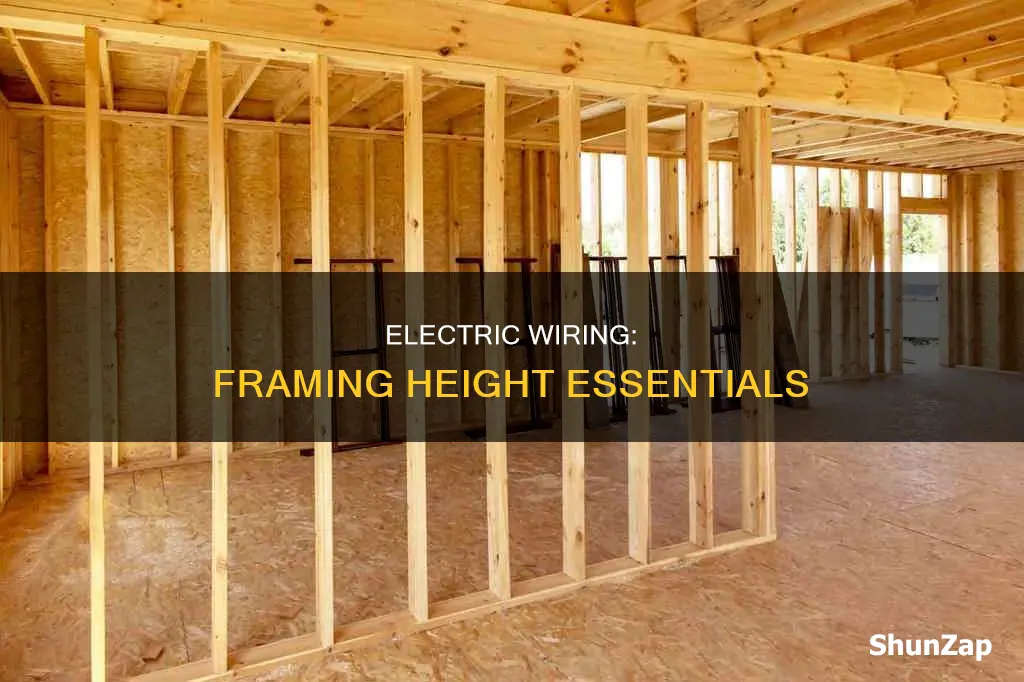

Framing electrical work requires careful planning and execution to ensure it is safe and functional. It involves running electrical cabling, typically Romex, through drilled holes in walls and framing. Wall holes for outlets should be drilled at approximately knee height, while light switches are typically mounted 42-48 from the floor. Electrical boxes for receptacles are usually placed 16 high from the floor, though some prefer 12. When framing, it's essential to protect electrical cabling from physical and electrical damage, using staples, cable ties, or similar fittings every 4.5 feet. Before closing the ceiling, it's crucial to consider the placement of outlets and lighting fixtures, such as attic lighting, closet lighting, and under-cabinet lighting. Electrical panels can be framed and hidden with a cabinet door or a backlit poster.
Explore related products
What You'll Learn
Receptacles are typically mounted 16 high, but some prefer 12
The height at which electrical receptacles are placed off the ground varies. While the National Electrical Code does not specify a minimum or maximum vertical height for receptacles, it does mandate that they be spaced so that no point on the wall is more than 6 feet from a plug. This requirement usually applies to horizontal directions only, but some electricians interpret it to mean that no receptacle should be higher than 66 inches above the floor unless there is another one below it.
In the United States, the Americans with Disabilities Act (ADA) requires that receptacles be no lower than 15 inches and no higher than 48 inches above the finished floor. This is to ensure that structures are suitable for occupancy by disabled persons. The ADA height requirements also apply to bathrooms.
In Canada, the centre of the receptacle box must be at least 14 inches above the floor, while in California, the bottom of the box must be at least 15 inches above the floor, with a maximum height of 48 inches to the top of the box.
Some electricians prefer to place receptacles at a minimum height of 18 inches to the top of the box and a maximum height of 48 to 54 inches for easy access. This is especially important for GFCI receptacles, which should be placed at a height that is convenient for building occupants to reach and reset if they trip off.
When it comes to specific types of receptacles, such as those dedicated to appliances or floor receptacles, the height requirements may vary. For example, receptacles dedicated to a specific appliance do not count as required receptacles and may have different height placements.
Overall, while there may be a common preference for mounting receptacles 16 inches off the ground, some electricians prefer to place them at 12 inches or even lower to comply with ADA requirements or for convenience.
Electrical Faults: A House Fire Waiting to Happen
You may want to see also
Explore related products
Light switch mounting heights are 42-48 from the floor
When framing electrical work, it is important to consider the placement of light switches to ensure both convenience and accessibility. While there is no universal rule for the correct light switch height, it is typically mounted 42 to 48 inches from the floor to the centre of the electrical box. This standard measurement is based on the comfort and ease of access for most individuals when sitting or standing.
However, it is important to note that the optimal height for a light switch can vary depending on the specific needs and characteristics of the users and the room. For example, in a child's room or for adults of a more petite stature, a lower height may be preferable, ranging from 20 to 36 inches from the floor. Similarly, for individuals who use wheelchairs, a recommended height is between 36 and 42 inches to ensure accessibility without causing strain.
In rooms with countertops, such as kitchens or craft rooms, the standard height for light switches is typically reduced to 40 inches. This adjustment allows for a comfortable reach while avoiding any interference with higher-up obstructions like cabinetry. Additionally, when installing light switches in bathrooms, it is crucial to maintain a safe distance from water sources to prevent electrical accidents.
To achieve the desired height for a light switch, the process involves measuring the specified distance from the floor and marking the spot on the wall. The next steps include cutting out an opening in the drywall, installing an old-work box, and feeding the electrical wire through before securing the light switch in place. Proper framing and protection of electrical cabling are also essential to ensure safety and functionality.
Attaching Electric Fence Gate Handles: A Step-by-Step Guide
You may want to see also
Explore related products
Countertop receptacles are 6 above countertops
When installing electrical outlets, it is essential to consider the height, spacing, and clearance to ensure functionality, safety, and compliance with regulations. While there might not be strict height restrictions in the code, certain guidelines and recommendations exist for installing countertop receptacles, ideally 6 inches above the countertop.
Firstly, the minimum distance between the countertop surface and the receptacle bottom is crucial. Keeping receptacles 6 to 10 inches above the countertop is advisable to prevent liquid spills and splashes during countertop cleaning and to facilitate convenient appliance plugging. This height range ensures that the outlets are neither too close to the counter, increasing the risk of exposure to liquids, nor too high, making it inconvenient for plugging appliances.
Secondly, the maximum distance above the countertop to the receptacle top should also be considered. While there is no specific height restriction, installing receptacles too high, jammed tightly under overhead cabinets, can be impractical and unsightly due to dangling wires. A common maximum height recommendation is 20 inches above the countertop, ensuring convenience and a neat appearance.
Additionally, it is worth noting that spacing and access requirements, such as a maximum horizontal distance of 6 feet between receptacles, should be considered to ensure compliance and accessibility. Furthermore, fire clearance requirements dictate that receptacles should not be placed directly over a stove or burner for safety reasons.
It is important to consult local regulations, such as the National Electrical Code, to ensure compliance with specific requirements for countertop receptacles. These regulations may dictate the minimum number of receptacles needed based on the length of the countertop, ensuring that electrical access is readily available throughout the counter space.
AC Serviceman: Electrical Surge Culprits and Prevention Tips
You may want to see also
Explore related products
Drill holes for cables to run horizontally through joists
Drilling holes for cables to run horizontally through joists is a common part of electrical rough-in work. It is important to note that joists with a metal structural web should not be drilled through as this can weaken the wooden chord.
Firstly, it is important to check for any obstructions on the other side of the joist. This can include metal pipes, crossbeams, or other cables. Drilling through an obstruction can cause significant damage, so it is recommended to use a flashlight or a stud finder to check for any potential obstacles.
When drilling holes for cables, it is crucial to follow these guidelines to ensure safety and maintain the structural integrity of the joists:
- Keep the hole at least 2 inches away from the top and bottom of the joist if it is a dimensional lumber joist.
- The hole size should not exceed one-third the depth of the joist. For example, for a 2x12 joist, the maximum hole size is 3-3/4 inches in diameter.
- Drill holes anywhere along the length of the joist, but maintain a distance of at least 6 inches from any end or load-bearing wall if it is an I-joist.
- For I-joists, holes up to 4 inches in diameter can be drilled in the middle, away from the ends and load-bearing walls.
- Maintain a distance of at least twice the diameter of the largest hole between adjacent holes.
- Use a heavy-duty right-angle drill with a 1" bit for drilling the holes.
- Use metal reinforcing plates (nailing plates) where the drilled hole is less than 1 1/4" from the outside edge of a joist. Nailing plates are required over all notches.
Additionally, when pulling the cable through the drilled holes, it is important to follow these best practices:
- Pulling cable is more efficient with two people: one feeding the cable and the other pulling.
- Avoid sharp bends in the cable to prevent damage to the outer sheathing and insulation. The radius of the curve of any bend should not be less than five times the diameter of the cable.
- Secure the cable to the framing every 4-1/2 feet using staples, cable ties, straps, hangers, or similar fittings.
- Flat cables can be installed on top of each other and fastened with one staple, ensuring that the flat sides of the cables are against the framing member.
Electrical Fires in Homes: Causes and Prevention Tips
You may want to see also
Explore related products
Protect cables from physical and electrical damage
When installing electrical cables, it is crucial to protect them from physical and electrical damage to ensure the safety of people and property. Here are some ways to achieve that:
Preventing Physical Damage
Physical damage to cables can occur during installation or after completion. To prevent damage during installation, it is important to use the right tools and techniques. When pulling cables through wood or metal framing, use a protective sheathing around the cable to avoid scratches and damage. In addition, use the correct size of drill bits and be cautious when drilling through metal studs to avoid potential short circuits.
After installation, physical damage can still occur. To prevent this, ensure that cables are properly supported and secured. Use staples, cable ties, straps, hangers, or similar fittings to fasten cables to the framing every 4.5 feet. Proper fastening will also prevent sagging or unnatural bends, reducing the risk of broken cables.
Preventing Electrical Damage
Electrical damage can lead to hazardous situations, including fires and explosions. To prevent electrical damage, always use the correct length of cable to avoid creating unnecessary loops or tangles, which can cause overheating and insulation damage. Use cable ties to organise and secure cables, but be careful not to overtighten them, as this can affect signal transmission and cable performance.
Additionally, separate runs of cable are required for bedroom outlets to provide Arc-fault Circuit Interrupter (AFCI) protection. This protection is also necessary for any other circuits with specific requirements, such as GFCI breakers.
Using Cable Covers and Conduits
One effective way to protect cables is by using cable covers or conduits made from rigid metals or plastic PVC. These covers act as mechanical protection, reducing the risk of damage from external factors. They are particularly useful when cables are exposed and more susceptible to damage.
By implementing these measures, you can effectively protect electrical cables from physical and electrical damage, ensuring the safety and functionality of your electrical systems.
Fixing a Three-Way Electric Switch: DIY Guide
You may want to see also
Frequently asked questions
Receptacles are commonly mounted 16" high from the floor to the centre of the electrical box. Some people prefer a height of 12". Wall holes drilled at about knee height will also be suitable for outlets.
Electrical cabling must be properly supported and protected from physical and electrical damage. Running electrical cabling usually involves using Romex cabling. Holes should be drilled in walls to run the wire, and cable must be fastened to the framing every 4-1/2 feet.
You can frame your wall so that it protrudes out past the front of the electrical box, allowing you to hang something over the hole. Alternatively, you can remove the cover/front plate, frame around the electrical panel, install the drywall, and put the cover back on.
It is difficult to predict where you want everything, so it is recommended to do a walkthrough with an experienced electrician. External outlets are difficult to predict, but consider where you might want to place your grill or if you need outlets near gutter and downspouts for heating tape.
You should ask the electrician about options for running ethernet cables in the future. If you plan to sell your home, consider necessary wiring such as fixture-less electrical boxes in the ceiling and wiring for a bedroom, wet bar/kitchenette, and full bath. Also, consider getting recommendations from a reputable supply house for electricians who specialize in remodelling installs.
