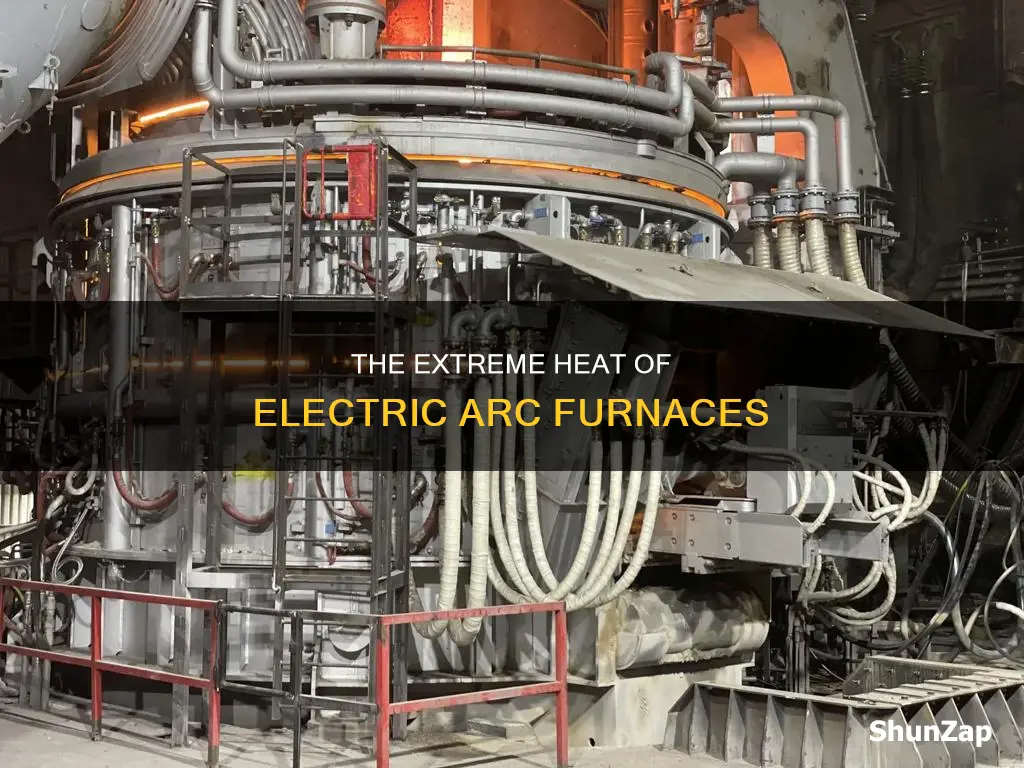

Electric arc furnaces (EAFs) are used in the steel industry to melt scrap material for the production of new steel. They can reach temperatures of up to 3500°C, with the electric arc furnace technology enabling efficient handling to avoid heat loss and maintain consistency. The high temperatures are generated by the electric arc, which forms between the electrodes and the charge to be heated, with carbon or graphite electrodes creating arcs at two points. This intense heat melts and refines scrap metal, primarily steel, and the molten metal can then be used for various industrial purposes.
Explore related products
What You'll Learn
Electric arc furnaces can reach temperatures of 3000°C or 5400°F
Electric arc furnaces can reach incredibly high temperatures, with estimates placing them at around 3000°C or 5400°F. This intense heat is generated by creating a high voltage between the electrodes, which produces an electric arc that melts the raw materials within the furnace. This process is used to melt down scrap metal, primarily steel, and recycle it into new steel products.
The temperature of an electric arc furnace can be controlled to a certain extent, allowing operators to melt raw materials without losing much energy or time. This control is achieved by varying the arc length and voltage, with higher voltages and longer arcs resulting in increased power and temperature. The flexibility of electric arc furnaces allows for the production of different types of metals and graphite-based products, as well as the ability to rapidly start and stop the furnace to vary production according to demand.
The electrodes used in electric arc furnaces are typically made of carbon or graphite, which has a higher melting point than steel at around 3600°F. These electrodes are automatically raised and lowered by a positioning system, which may use electric winch hoists or hydraulic cylinders. The regulating system maintains a constant current and power input during the melting process, even as the scrap metal moves and melts underneath the electrodes.
Electric arc furnaces are widely used in steelmaking and offer energy efficiency and flexibility in steel production. They are preferred over blast furnaces due to their environmental friendliness, as they do not emit large amounts of carbon and reduce the use of fossil fuels. Overall, electric arc furnaces are an important technology for efficiently producing steel and other metal products while minimizing energy consumption and environmental impact.
Electric Skateboards: UK Laws and Regulations
You may want to see also
Explore related products
They are used to melt scrap metal
Electric arc furnaces (EAFs) are used to melt scrap metal, primarily scrap steel. Scrap metal is delivered to a scrap bay, where it is loaded into large buckets called baskets, with "clamshell" doors for a base. The scrap basket is then taken to the melt shop, where the roof is swung off the furnace, and the furnace is charged with scrap from the basket. Charging is a dangerous operation, as the falling metal releases a lot of potential energy, and any liquid metal in the furnace may be displaced, causing a fireball if the furnace is hot.
Once the scrap is in the furnace, the roof is swung back over, and the electrodes are lowered onto the scrap. An arc is struck, and the electrodes bore into the top layer of the scrap. Initially, lower voltages are used to protect the roof and walls from excessive heat and damage. Once the electrodes reach the heavy melt at the base of the furnace, the voltage can be increased, lengthening the arcs and increasing the power to the melt, forming a molten pool more rapidly.
Oxygen is blown into the scrap, combusting or cutting the steel, and providing additional heat. The scrap-charging and meltdown process can be repeated as many times as necessary to reach the required heat weight. Once the temperature and chemistry are correct, the steel is tapped out into a preheated ladle by tilting the furnace. A few tonnes of liquid steel and slag may be left in the furnace to form a "hot heel", which helps preheat the next charge of scrap metal.
Preserving Food in Pre-Electricity Times: Ancient Techniques Unveiled
You may want to see also
Explore related products
They are more environmentally friendly than blast furnaces
Electric arc furnaces (EAFs) are more environmentally friendly than blast furnaces. They are a type of melting furnace used in the steel industry for steelmaking, with the main raw material of scrap metal melted by electrical energy. EAFs are more flexible than blast furnaces, which cannot vary their production much and can remain in operation for years. In contrast, EAFs can be rapidly started and stopped, allowing steel mills to vary production according to demand.
EAFs are also more environmentally friendly because they are powered by electricity and recycled scrap metal, resulting in a lower carbon emission and less energy-intensive process. According to the Steel Manufacturers Association (SMA), EAF steelmakers produce up to 75% less carbon emissions than traditional blast furnace steelmakers. This makes EAFs one of the greenest and most sustainable solutions for steelmaking. They are also more efficient in terms of the energy required for the process, as their operation requires mostly electricity, reducing the consumption of non-renewable resources.
Furthermore, EAFs can be seamlessly integrated with digital and automation tools, such as the Melt Expert from Primetals Technologies, which allows for accurate reproduction of a specific melting process by controlling the electrodes based on production data. This level of control contributes to the overall efficiency and environmental friendliness of the process.
The use of EAFs also has positive environmental impacts beyond carbon emissions. For example, Optimus Steel, an EAF steel producer, highlights how they can transform scrap cars into new items used in daily life or as part of new automobiles. This reduces the need for raw materials and promotes recycling, further contributing to the sustainability and environmental benefits of EAF steelmaking.
Overall, EAFs offer a more environmentally friendly alternative to blast furnaces in the steel industry due to their reduced carbon emissions, energy efficiency, integration with digital technologies, and ability to recycle and repurpose raw materials.
Electric Permits in Chicago: A Guide to Getting Started
You may want to see also
Explore related products
They require large amounts of electrical power
Electric arc furnaces (EAFs) require large amounts of electrical power. They use electricity to generate a high-intensity electric arc that produces extreme heat, melting the raw materials inside the furnace. The temperature inside an electric arc furnace can reach up to around 3,000°C (5,400°F) or even 3,500°C when using electrodes like carbon or graphite.
To create the electric arc, a high initial voltage is applied, ionizing the air between the electrodes and creating a conductive path. This process requires a significant amount of electrical energy to generate the high voltage and maintain the arc. The power input can be regulated by varying the arc length, allowing for control over the temperature of the furnace.
The amount of power required by an EAF is significant, with some requiring up to 60 MW of power. This high power consumption leads many companies to schedule their operations to take advantage of off-peak electricity pricing. By running the furnaces during off-peak hours, such as at night, they can reduce their electricity costs.
The high power consumption of EAFs is a result of the intense heat and high temperatures required to melt and refine scrap metal, especially steel. The electric arc furnace technology enables efficient handling, minimizing heat loss and maintaining consistency in the melting process. The precise control of temperature and the ability to adjust it according to the type of steel being produced contribute to the effectiveness of EAFs.
Overall, the large amounts of electrical power required by electric arc furnaces are necessary to generate the high-intensity electric arcs that produce extreme heat for melting and refining various materials, especially steel. The ability to control and adjust the temperature allows for the production of high-quality steel products while minimizing energy loss and reducing operational costs.
Chicago's Electrical Trade: Licensed to Practice?
You may want to see also
Explore related products
They are used in the production of steel
Electric arc furnaces are used in the production of steel, playing a crucial role in converting iron ore or scrap metal into steel products. These furnaces utilize high-voltage electric arcs to generate intense heat, melting the raw materials and facilitating the steel-making process. The process begins with the loading of the furnace with the desired raw materials, which can include iron ore, iron pellets, or scrap metal, along with various fluxing agents. The intense heat generated by the electric arcs, often exceeding 3500°F (1927°C), melts the raw materials, creating a molten mixture.
The electric arc furnace provides a flexible and efficient method for steel production. Its ability to reach extremely high temperatures allows for the melting of a diverse range of raw materials, including recycled scrap metal, making it an environmentally friendly option. The precise control of temperature and heating time ensures the optimal conditions for steelmaking. Additionally, the electric arc furnace's design enables efficient energy transfer, with the electric arcs providing a direct and concentrated heat source, minimizing energy loss.
During the steel-making process, the electric arc furnace is also used for refining the molten metal. Various chemical reactions occur within the furnace, allowing for the removal of impurities and the adjustment of the molten mixture's composition. Through the injection of oxygen, carbon, and other elements, the molten metal's chemistry is carefully manipulated to achieve the desired steel grade. This refining process is critical for ensuring the final product meets the required specifications and standards.
The intense heat generated by the electric arcs also facilitates the removal of unwanted impurities. As the temperature rises, certain impurities, such as sulfur and phosphorus, are
Untangle Your Cords: Simple Hacks to Prevent Twists
You may want to see also
Frequently asked questions
An electric arc furnace can reach temperatures of up to 3500°C. The electric arc furnace uses electricity to generate a high-intensity electric arc, which produces extreme heat.
Electric arc furnaces are used in steelmaking, recycling scrap metal, and producing high-quality steel products. They are also used to melt down scrap material to be used in the production of new steel.
The electrodes in an electric arc furnace are usually made of graphite because it is a good conductor and has a high melting point of around 3600°F, which is higher than the melting point of steel.
