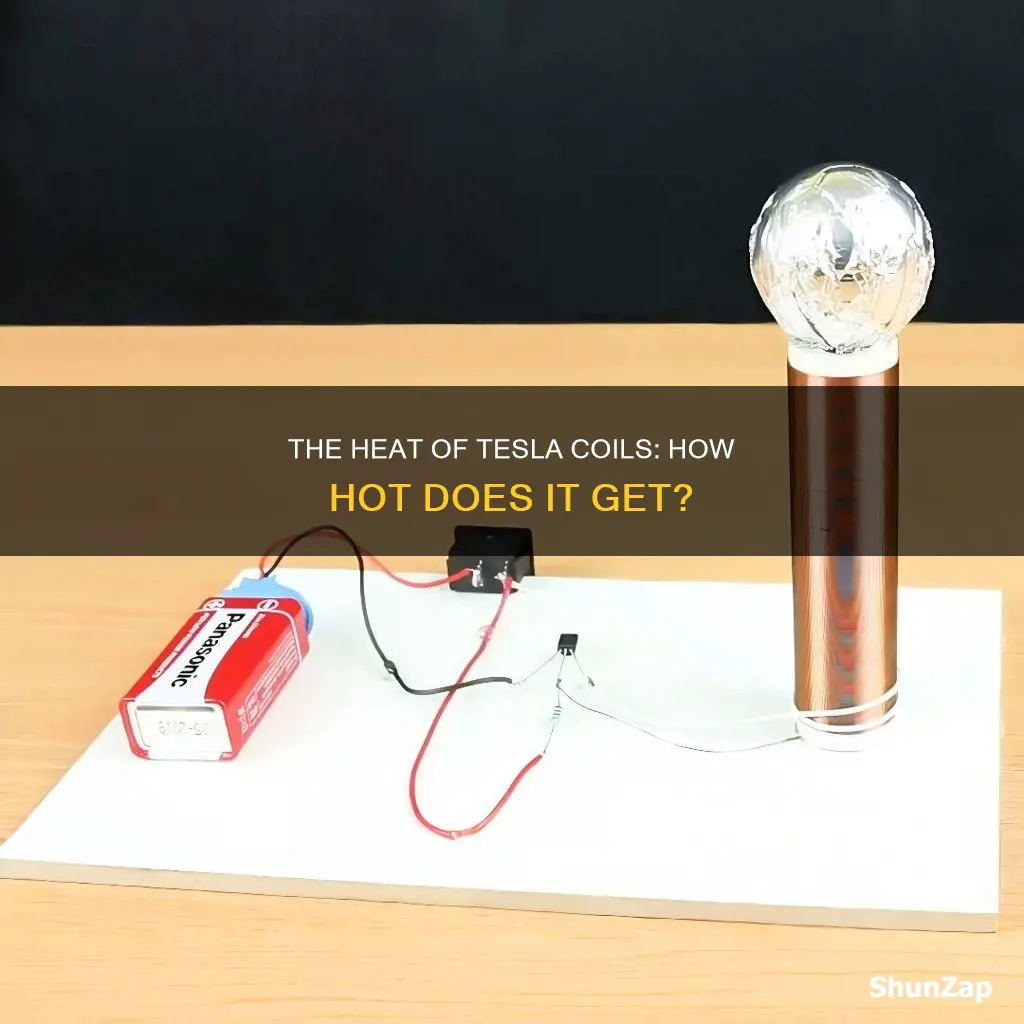

The Tesla coil, an invention of Nikola Tesla, is an electrical resonant transformer circuit that produces high-voltage, low-current, high-frequency alternating current electricity. The coil's design allows it to generate very high voltages, often exceeding a million volts, which can result in considerable heat generation. The repetitive pulsing of the coil at rates of 50-500 times per second leads to incremental growth in the leader, causing the discharges to become hotter with each pulse. While the coil itself doesn't typically reach extremely high temperatures, the discharge electrode can get very hot as the plasma is concentrated at a single point. The heat generated by the Tesla coil is a result of the high voltages and rapid pulsing, making it an intriguing and powerful electrical phenomenon.
| Characteristics | Values |
|---|---|
| Definition | A radio frequency oscillator that drives an air-core double-tuned resonant transformer to produce high voltages at low currents |
| Inventor | Nikola Tesla |
| Use | Wireless transfer of electricity |
| Output Voltage | 50 kilovolts to several million volts |
| Alternating Current Output Frequency | 50 kHz to 1 MHz |
| Repetitive Pulsing Rates | 50-500 times per second |
| Temperature at the point of discharge | Very hot |
Explore related products
What You'll Learn
Plasma 'leaders' and 'streamers'
A Tesla coil is a radio frequency oscillator that drives an air-core double-tuned resonant transformer to produce high voltages at low currents. The high-voltage radio frequency (RF) discharges from the output terminal of a Tesla coil pose a unique hazard not found in other high-voltage equipment. The nervous system is insensitive to currents with frequencies over 10–20 kHz, and as a result, no pain is felt, and experimenters often assume the currents are harmless.
As the secondary coil's energy and output voltage continue to increase, larger pulses of displacement current further ionize and heat the air at the point of initial breakdown. This forms a very electrically conductive "root" of hotter plasma, called a leader, that projects outward from the toroid. The plasma within the leader is considerably hotter than a corona discharge and is considerably more conductive. The leader tapers and branches into thousands of thinner, cooler, hair-like discharges called streamers. The streamers transfer charge between the leaders and the toroid to nearby space charge regions. The displacement currents from countless streamers all feed into the leader, helping to keep it hot and electrically conductive.
The streamers look like a bluish 'haze' at the ends of the more luminous leaders. Tuning can be adjusted to achieve the longest streamers at a given power level, corresponding to a frequency match between the primary and secondary coil. Capacitive "loading" by the streamers tends to lower the resonant frequency of a Tesla coil operating under full power.
Tesla coils can produce output voltages from 50 kilovolts to several million volts for large coils. The alternating current output is in the low radio frequency range, usually between 50 kHz and 1 MHz. Plasma is very useful for electromagnetic experiments as it will easily react with fields and can alter the phase of electromagnetic waves passing through it.
Strategically Moving Your Electric Reclining Sofa
You may want to see also
Explore related products
Alternating current
The temperature of the electricity in a Tesla coil can vary depending on several factors, including the design of the coil, the input voltage, and the surrounding environment. While the temperature of the electricity itself is challenging to measure directly, we can discuss the heat generated by the high-frequency alternating current in a Tesla coil system.
The heat generated in a Tesla coil system is primarily due to the resistance of the coil's components to the flow of AC. As the current passes through the coil, it encounters resistance, which causes the energy to be converted into heat. This resistance is present in the wire itself, as well as in the skin effect, which refers to the tendency of high-frequency AC to flow closer to the surface of the wire, thereby increasing the effective resistance.
The heat generated in the coil can be significant, and proper cooling methods are necessary to prevent damage to the coil and its components. Oil cooling, for example, is a common method used in Tesla coil systems to dissipate the heat generated by the AC. The oil circulates through the coil, absorbing and carrying away the heat, thus preventing excessive temperature buildup.
Additionally, the spark gap in a Tesla coil system can also contribute to heat generation. As the high-voltage AC arcs across the spark gap, the rapid heating and subsequent cooling of the air can lead to plasma formation, resulting in a bright, luminous display. This process involves a substantial amount of heat generation, further contributing to the overall temperature rise in the system.
In summary, while the exact temperature of the electricity in a Tesla coil may not be easily measurable, the heat generated by the high-frequency alternating current is a critical aspect of the coil's operation. Proper thermal management is essential to ensure the safe and efficient functioning of the Tesla coil system.
High-End PC Electricity Consumption: How Much Does it Cost?
You may want to see also
Explore related products
Voltage and energy transfer
A Tesla coil is an electrical transformer that uses high-frequency alternating current (AC) to increase voltage. The coil was invented by Nikola Tesla in 1891 and allows for the wireless transfer of electricity.
The coil consists of two parts: a primary coil and a secondary coil, each with its own capacitor. The power source is connected to the primary coil, which acts like a sponge, soaking up the charge. The capacitor in the primary coil stores energy in the form of an electric field. The primary coil must be able to withstand the massive charge and huge surges of current, so it is usually made of copper, a good conductor of electricity.
The capacitor in the primary coil builds up charge until it breaks down the air resistance in the spark gap, which is the gap of air between the two electrodes that generates the spark of electricity. The current then flows out of the capacitor down the primary coil, creating a magnetic field. This magnetic field collapses quickly, generating an electric current in the secondary coil. The voltage zipping through the air between the two coils creates sparks in the spark gap.
The secondary coil has many more windings than the primary coil, which helps to achieve the increase in voltage. The secondary coil also contains a capacitor, which builds up extremely high voltage. The resulting high voltage creates a strong magnetic field, which causes arcs of electricity to flow from the Tesla coil to nearby objects.
The energy transfer process from the primary coil to the secondary coil happens repetitively at typical pulsing rates of 50-500 times per second, depending on the frequency of the input line voltage. At these rates, the discharge channels do not get a chance to fully cool down between pulses, so newer discharges build upon the hot pathways left by previous discharges. This causes incremental growth of the discharge on each successive pulse.
Avoid Electric Pole Hazards: Stay Away, Stay Safe
You may want to see also
Explore related products
Coil discharge points
A Tesla coil is a radio frequency oscillator that drives an air-core double-tuned resonant transformer to produce high voltages at low currents. The two coils are not tied together with a conductor; instead, electricity is run through the primary coil, creating a magnetic field that creates an electrical current in the secondary coil, at a much higher voltage. The secondary coil has many more windings than the primary coil, allowing it to achieve a higher voltage.
The high voltage in the secondary coil results in a strong magnetic field that causes arcs of electricity to flow from the Tesla coil to nearby objects. These lightning-like discharges can even flow to people, but this is usually only dangerous if the person has a pacemaker or other medical device that could be affected.
The Tesla coil's output voltage increases during each voltage pulse, ionizing the air next to the high-voltage terminal and causing corona, brush discharges, and streamer arcs to break out from the terminal. This occurs when the electric field strength exceeds the dielectric strength of the air, about 30 kV per centrimeter. The electric field is greatest at sharp points and edges, so air discharges start at these points on the high-voltage terminal.
The discharge electrode will get very hot as most of the plasma is concentrated at a single point. The plasma within the leader is hotter than a corona discharge and is more conductive, with properties similar to an electric arc. The leader then tapers and branches into thousands of thinner, cooler, hair-like discharges called streamers. These streamers transfer charge between the leaders and the toroid to nearby space charge regions.
Some entertainment coils have a sharp "spark point" projecting from the torus to start discharges. If the maximum voltage point occurs below the terminal, along the secondary coil, a discharge (spark) may break out and damage or destroy the coil wire, supports, or nearby objects.
Electric Sleep: Androids' Dreams and the Big Screen
You may want to see also
Explore related products
Coil configurations
The heat generated by a Tesla coil depends on several factors, including the coil configuration. The configuration of the coils plays a crucial role in determining the efficiency and characteristics of the energy discharge. Here are some common coil configurations used in Tesla coils:
Single-Resonance Configuration: In this configuration, the primary coil is connected in series with the capacitor, forming an LC circuit. The secondary coil is then connected to the LC circuit, with the top terminal left open. This configuration results in a high voltage, high-frequency oscillation that is ideal for creating long sparks and high-frequency experiments. The heat generated in this configuration is relatively low, as the focus is on creating high-voltage discharges.
Dual-Resonance Configuration: This setup involves two sets of resonant circuits, one at a low frequency and the other at a higher frequency. This configuration allows for more control over the output and can result in higher voltages and longer sparks. The heat generated can be more efficiently managed due to the ability to fine-tune the resonance points.
Magnifier Configuration: This configuration uses a single capacitor to feed both the primary and secondary coils. The primary coil is usually short, with few turns, while the secondary coil has many turns and is often air-core. This setup can produce extremely high voltages and is commonly used for experimental purposes. The heat generated can be significant due to the high voltages involved, and proper cooling methods are often employed to manage the temperature.
Spark-Gap Configuration: This setup utilizes a spark gap to control the discharge of electricity between the coils. The spark gap acts as a switch, allowing for rapid pulses of high-voltage electricity to jump across the gap, creating a spark. The heat generated in this configuration is focused on the spark gap, which can become quite hot due to the repeated arcing of electricity.
Solid-State Configuration: Solid-state Tesla coils use electronic switches instead of spark gaps to control the flow of electricity. These switches, often made of silicon or germanium, allow for precise control over the timing and duration of the electrical discharges. This configuration generates less heat compared to spark-gap methods because the switches have lower resistance, resulting in reduced thermal losses. Solid-state Tesla coils are known for their efficiency and ability to produce complex waveforms.
Powering Food Trailers: Electric Sources and Setup
You may want to see also
Frequently asked questions
The electricity from a Tesla coil can get very hot. The coil's energy and output voltage increase, ionizing and heating the air, forming a "root" of hot plasma.
A Tesla coil is a radio frequency oscillator that produces high voltages at low currents. It was designed by Nikola Tesla in 1891.
Tesla coils can produce output voltages from 50 kilovolts to several million volts for large coils.
A Van de Graaff generator produces static electricity, while a Tesla coil produces current electricity with flowing charges.
A Tesla coil creates an electric field that pushes electrons through the light bulb, causing it to light up without being plugged in.
