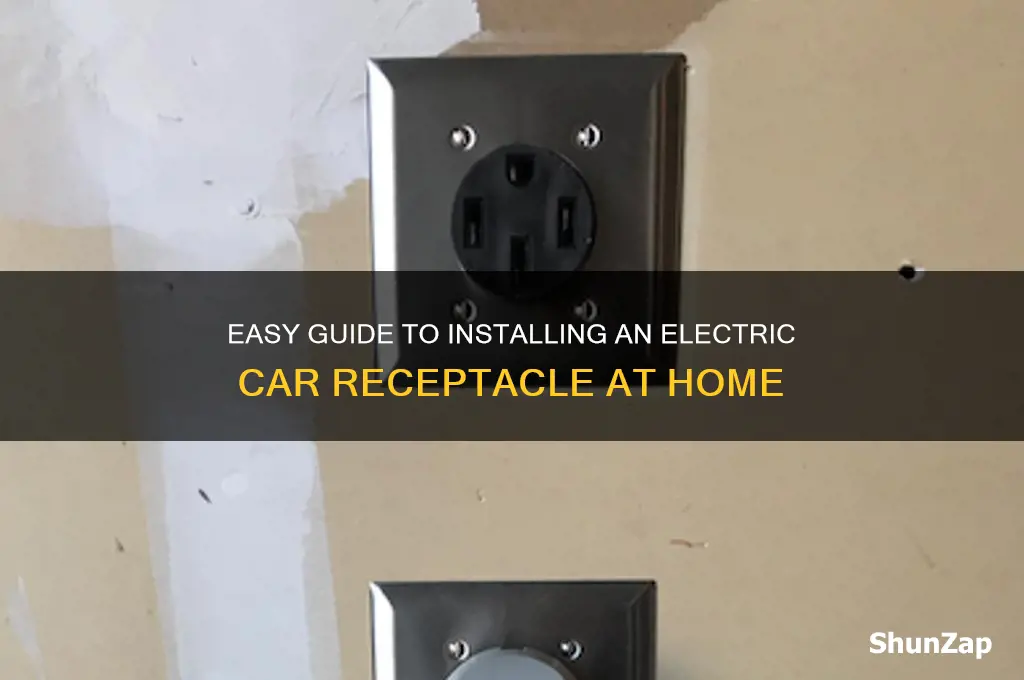

Installing a receptacle for an electric car, often referred to as an EV charging station, is a crucial step for electric vehicle owners to ensure convenient and efficient home charging. The process typically involves selecting the appropriate charging level—Level 1 (120V) or Level 2 (240V)—based on your vehicle’s requirements and charging speed needs. Level 2 chargers are more common for home installations due to their faster charging times. The installation requires careful planning, including choosing a suitable location near your parking area, ensuring the electrical panel can handle the additional load, and possibly upgrading the wiring or circuit breaker. It’s highly recommended to hire a licensed electrician to ensure compliance with local codes and safety standards, as improper installation can pose risks. Once installed, the receptacle will allow you to charge your electric vehicle overnight or during downtime, making it a practical and eco-friendly addition to your home.
| Characteristics | Values |
|---|---|
| Location | Near parking space, preferably in a garage or carport. |
| Electrical Requirements | Dedicated circuit with specific amperage (e.g., 30A or 50A). |
| Outlet Type | NEMA 14-50 (common for Level 2 charging) or hardwired charging station. |
| Voltage | 240V (North America) for faster charging. |
| Charging Level | Level 2 (240V) for home installations; Level 1 (120V) is slower. |
| Permits Required | Local electrical permit may be needed; check with municipality. |
| Installation Cost | $500–$1,500 (varies based on wiring, labor, and equipment). |
| Charging Speed | Adds 12–80 miles of range per hour (depends on charger and vehicle). |
| Equipment Needed | Charging station, wiring, circuit breaker, and mounting hardware. |
| Professional Installation | Recommended for safety and compliance with electrical codes. |
| Compatibility | Ensure charger is compatible with your electric vehicle (e.g., J1772 plug). |
| Weatherproofing | Outdoor-rated receptacle or charging station if installed outside. |
| Smart Features | Optional: Wi-Fi connectivity, scheduling, and energy monitoring. |
| Safety Standards | Must meet UL or ETL certification for electrical safety. |
| Warranty | Varies by manufacturer (typically 3–5 years for charging stations). |
| Maintenance | Periodic inspection of wiring and connections for wear or damage. |
Explore related products
What You'll Learn
- Choose the Right Charger: Determine charging speed, compatibility, and power requirements for your electric vehicle model
- Select Installation Location: Pick a spot near your parking area with easy access to electrical wiring
- Gather Tools & Materials: Collect circuit breakers, conduit, wiring, and a compatible charging station unit
- Install Electrical Circuit: Hire an electrician to set up a dedicated 240V circuit for the charger
- Mount & Connect Charger: Secure the charging station and connect it to the electrical supply safely
Choose the Right Charger: Determine charging speed, compatibility, and power requirements for your electric vehicle model
Selecting the appropriate charger for your electric vehicle (EV) is a critical step in ensuring efficient and safe charging. The first factor to consider is charging speed, which is typically categorized into three levels. Level 1 chargers use a standard 120-volt household outlet and deliver about 2–5 miles of range per hour, suitable for overnight charging. Level 2 chargers operate on 240 volts, providing 12–80 miles of range per hour, ideal for daily use. Level 3 chargers, or DC fast chargers, supply 40–100 miles of range in just 20 minutes but require specialized equipment and are often found in public charging stations. Your choice depends on your daily driving needs and how quickly you want to recharge.
Compatibility is another non-negotiable aspect. Not all chargers work with every EV model. For instance, Tesla vehicles come with a proprietary connector, while most other EVs use the J1772 standard for Level 2 charging. Some newer models support CCS (Combined Charging System) or CHAdeMO for DC fast charging. Check your vehicle’s manual or consult the manufacturer to confirm which connectors are compatible. Using an incompatible charger can damage your vehicle or render it unusable, so this step is crucial.
Understanding your EV’s power requirements is equally important. Each vehicle has a maximum charging rate, measured in kilowatts (kW), which dictates how much power it can accept. For example, a Nissan Leaf may accept up to 6.6 kW on Level 2, while a Chevrolet Bolt can handle up to 7.7 kW. Installing a charger with a higher power output than your car can handle is unnecessary and costly. Conversely, a charger with insufficient power will limit your charging speed. Match the charger’s output to your vehicle’s capabilities for optimal performance.
A practical tip is to consider future-proofing your installation. If you plan to upgrade to a faster-charging EV in the coming years, invest in a charger with higher power capacity and compatible connectors. This approach saves you from replacing the entire setup later. Additionally, consult a certified electrician to ensure your home’s electrical system can handle the load, especially for Level 2 chargers, which may require a dedicated circuit.
In summary, choosing the right charger involves balancing charging speed, compatibility, and power requirements with your specific EV model. By carefully evaluating these factors, you can ensure a seamless and efficient charging experience tailored to your needs.
