Grounding an RV is essential for safety, as it provides a path for stray electricity to return to the ground. While a ground rod is commonly used for grounding, it is not necessary for an RV. Instead, the RV's electrical ground depends on the green ground conductor in the shore power cord, which connects to the service panel's neutral/ground bonding point. This conductor is officially known as the EGC (Equipment Grounding Conductor). If your RV doesn't have a designated ground screw, you can connect a ground wire to a bare metal part of the electrical panel or use the RV's chassis for grounding. It is important to note that the RV's neutral wire should not be bonded to the ground to avoid shock hazards. Understanding the grounding system in your RV is crucial to ensure a safe and enjoyable experience while on the road.
Explore related products
What You'll Learn
The importance of grounding an RV
Grounding an RV is of utmost importance, and there are several reasons why it should be done. Firstly, grounding provides a safe path for stray electricity to travel into the earth, preventing electrical faults and potential hazards. Without proper grounding, electricity can stray where it shouldn't, and a broken ground wire can lead to dangerous situations.
Grounding an RV is essential to protect against electrical faults and ensure the safety of its occupants. A proper grounding system allows stray electricity to return to its source safely. If an RV is not grounded, electricity may find an alternative path, which could include a person touching the frame or skin of the RV, resulting in a potentially fatal electric shock.
Grounding also helps to prevent a hot skin condition in RVs. A hot skin condition occurs when there is a live wire with worn insulation or another problem that allows electricity to stray. A broken ground wire prevents the stray electricity from returning to its source, and the RV's frame or skin becomes energized. Touching the frame while standing on the ground can result in an electric shock as the body becomes the path for the stray electricity.
Additionally, grounding is crucial for RVs made of fibreglass, as they are not safe from lightning strikes. While it is challenging to ground a moving RV, it is essential to implement grounding measures once the RV is parked. Proper grounding can protect the RV and its occupants from potential lightning strikes, reducing the risk of accidents or injuries.
Furthermore, grounding helps to reduce noise problems and improve electrical connections. It serves as a common reference point for electrical devices attached to the RV, minimizing issues with ground loops and poor connections. Grounding also provides a point of reference for safety mechanisms, such as Ground Fault Interrupters (GFIs), which protect against electric shocks.
In conclusion, grounding an RV is of paramount importance for several reasons. It ensures the safety of its occupants by preventing electrical faults and providing a safe path for stray electricity. Grounding protects against lightning strikes, reduces noise problems, and enhances electrical connections. By implementing proper grounding measures, RV owners can maintain a safer and more reliable electrical system during their travels.
A Beginner's Guide to Operating GE Dishwashers
You may want to see also
Explore related products
What does it mean for an RV to be grounded?
Grounding an RV is essential for safety, as it provides a path for stray electricity to return to the earth safely. This process is also known as "earthing".
An RV is grounded when the green ground conductor in the shore power cord, also known as the EGC (Equipment Grounding Conductor), is properly connected to the service panel's neutral/ground bonding point. This connection ensures that any stray electricity has a safe path to follow, preventing electrical shocks or other hazardous situations.
It is important to note that a ground rod is not necessary to ground an RV. While some people use ground rods, they are not very effective because the earth is not an excellent conductor of electricity. Instead, the RV's electrical ground relies on the green ground conductor in the shore power cord.
To ensure proper grounding, it is crucial to maintain shore power cords and related components, such as dogbone adapters and extension cords. Additionally, when parked, it is recommended to connect the RV to an electrical connection, as this provides grounding through the connection itself. If no electrical connection is available, a ground wire can be connected to the RV's electrical panel or chassis, providing a path for electricity to flow into the earth.
In summary, grounding an RV means establishing a safe path for stray electricity to return to the earth. This is achieved through proper connections, maintenance of shore power cords, and, when parked, utilizing electrical connections or ground wires to ensure a secure path for electrical currents.
Carmen and Dave: How They Met
You may want to see also
Explore related products
Grounding methods that do not require a ground rod
An RV's electrical ground is dependent on the green ground conductor in the shore power cord being properly connected to the service panel's neutral/ground bonding point. This ground conductor is technically called the EGC (Equipment Grounding Conductor) and provides a grounding path for fault currents.

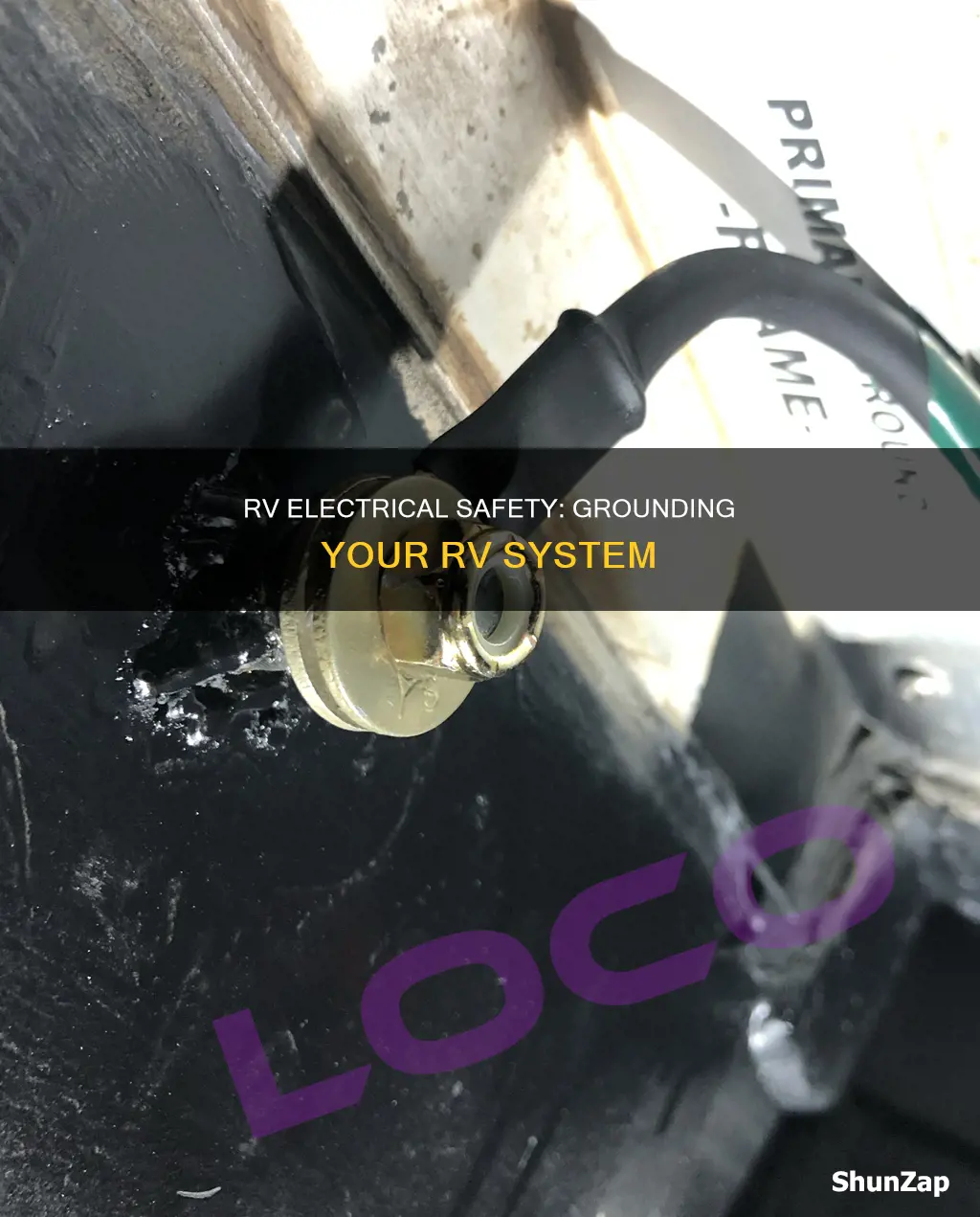

The ground wire of the shore power cordset is connected (bonded) to the RV's chassis on one side and the power company's service panel Neutral/Ground bonding point on the other side. This connection does not require a ground rod and is what protects the RV from lightning strikes.
If you are parked and hooked up to an electrical connection in an RV park, you are grounded via that connection. If not, you will need to ground the RV yourself. You can do this by connecting a ground wire to a specific screw in the RV's electrical panel, if it has one. If not, you can attach a ground strap or other grounding aid to a bare metal part of the panel and connect it to a ground wire. If the electrical panel is not conducive to grounding, the RV's chassis can be used as a ground.
Another method of grounding is to connect to a piece of rebar that is connected to the rebar in the foundation of your home. This is considered by some inspectors to be the best home ground system.
Portland General Electric: An App-Enabled Future?
You may want to see also
Explore related products
Grounding methods that use a ground rod
Ground rods are not necessary for RV electrical grounding. In fact, a ground rod is a poor grounding method since the earth is not a great conductor of electricity. While it is conductive enough to deliver a shock, it is not sufficient to trip a circuit breaker in the event of a line-to-chassis short circuit.
However, ground rods can be used for lightning protection in off-grid RV systems. In such cases, two 8-foot ground rods should be driven into the ground, spaced a minimum of 6 feet apart, and connected using 8 AWG copper wire. The wire should then be terminated to the neutral bus bar at the main disconnect panel.
It is important to note that the ground wire does not terminate with the metal trailer; instead, it terminates inside the main electrical panel. This distinction is crucial to ensure the safety and effectiveness of the grounding system.
Additionally, when using ground rods for lightning protection, it is essential to consult relevant electrical codes and seek guidance from qualified professionals to ensure compliance with local regulations and safety standards.
Preparing for an Electric Grid Failure: A Step-by-Step Guide
You may want to see also
Explore related products
Safety precautions and concerns
Grounding an RV's electrical system is crucial for safety, and it's important to understand the potential risks and how to mitigate them. Here are some safety precautions and concerns to keep in mind:
Firstly, it's essential to recognize the difference between a hot-skin condition and a properly grounded RV. A hot-skin condition occurs when there is a live wire with worn insulation or a broken "ground" wire, allowing electricity to stray. This can result in electric shocks if you touch the RV's frame or skin while standing on the ground, as your body becomes the path for the stray electricity. Therefore, regularly inspect your RV for worn or damaged insulation and ensure that the ground wire is intact.
Secondly, contrary to popular belief, an RV does not require a ground rod to be "grounded." The green conductor in the power cord, known as the Equipment Grounding Conductor (EGC), provides the necessary grounding path. Ground rods are not very effective because the earth beneath us is not an excellent conductor of electricity. Instead, focus on ensuring that the EGC is properly connected to the service panel's neutral/ground bonding point.
Additionally, pay close attention to the shore power cords and adapters. Maintain them properly, and never use damaged cords or connectors as they can cause electrical problems and safety hazards. Keep your RV's electrical ground connection secure and properly bonded to the RV's chassis and the power company's service panel.
Furthermore, be cautious when dealing with inverter systems. While some inverters allow neutral-to-ground bonding, always refer to the manufacturer's instructions for safety. In most cases, allowing the inverter's AC output to float is the default safe condition.
Finally, understand the concept of a frame ground and an earth ground. A frame ground provides a common reference for electrical devices, reducing noise problems and ground loops. On the other hand, an earth ground is necessary when connecting to grid power. It serves as a safety measure, providing a path for electricity to complete a circuit back to the power company in the event of an issue.
Remember, electricity is powerful, and safety should always come first. Consult with qualified electricians or electrical engineers if you have any doubts or concerns about your RV's electrical system grounding.
How to Manually Override Electric Recliners
You may want to see also
Frequently asked questions
The RV’s electrical ground is dependent on the green ground conductor in the shore power cord being properly connected to the service panel’s neutral/ground bonding point. The ground wire of the shore power cordset is connected (bonded) to the RV’s chassis on one side and the power company’s service panel on the other.
Grounding provides a path for stray electricity to travel into the dirt. This is important for safety, as it allows electricity to complete a circuit back to the main power company.
No, your RV does not require a ground rod to be grounded. The ground rod is a poor grounding method because the dirt beneath our feet is not a great conductor of electricity.
A bad ground can cause a hot skin condition. This occurs when there is a live wire with worn insulation or another problem that allows electricity to stray where it shouldn't, and a broken "ground" wire prevents the electricity from getting back to its source.
If your RV does not have a designated ground screw, look for a part of the panel that is bare metal and attach a ground strap or other grounding aid. Connect it to the bare metal and to a ground wire.
