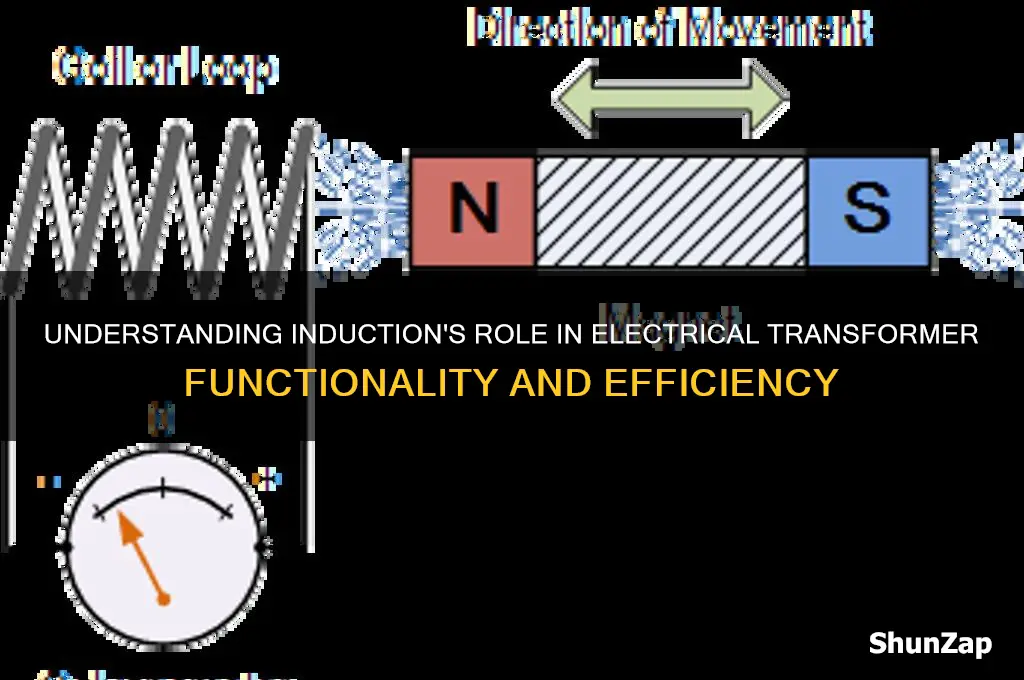

Induction plays a fundamental role in the operation of an electrical transformer, which is a critical device for voltage transformation in power systems. Transformers rely on the principle of electromagnetic induction, where a changing magnetic field in one coil induces a voltage in another coil. When an alternating current flows through the primary winding, it generates a varying magnetic field, which then links with the secondary winding, inducing a voltage according to Faraday's law of induction. This process allows transformers to efficiently step up or step down voltage levels while maintaining the transfer of electrical energy between different parts of the power grid, making them indispensable in electricity distribution and transmission.
| Characteristics | Values |
|---|---|
| Principle of Operation | Electromagnetic Induction |
| Primary Function | Transfers electrical energy between two or more circuits through a magnetic field |
| Induced Voltage | Proportional to the rate of change of magnetic flux (Faraday's Law: ( V = -N \frac{d\Phi} )) |
| Core Material | High magnetic permeability materials (e.g., silicon steel, ferrite) |
| Frequency Range | Typically 50 Hz or 60 Hz (power transformers), but can vary for specialized applications |
| Efficiency | High, typically 95-99% for power transformers |
| Types of Induction | Mutual Induction (between primary and secondary coils), Self-Induction (within a single coil) |
| Magnetic Flux | Alternating current in the primary coil creates a changing magnetic field, inducing voltage in the secondary coil |
| Turns Ratio | ( \frac{V_}{V_} = \frac{N_}{N_} ), where ( N ) is the number of turns |
| Applications | Power distribution, voltage regulation, isolation, and impedance matching |
| Losses | Core losses (hysteresis and eddy currents), copper losses (I²R losses in windings) |
| Cooling Methods | Air cooling, oil cooling, forced cooling (for high-power transformers) |
| Insulation | High-voltage insulation materials (e.g., enamel, paper, oil) to prevent short circuits |
| Size and Weight | Varies widely; small for electronics, large for power grids (e.g., 500+ tons for high-voltage transformers) |
| Standards | IEEE, IEC, NEMA for design, testing, and safety |
| Lifespan | Typically 20-30 years with proper maintenance |
Explore related products
![Transformer Principles and Applications by Otto Taylor, Jim Overmyer, Ron Michaelis. (Amer Technical Pub,2006) [Hardcover]](https://m.media-amazon.com/images/I/21qozhtmjeL._AC_UY218_.jpg)
What You'll Learn
- Electromagnetic Induction Basics: Faraday's law explains how changing magnetic fields induce voltage in transformer coils
- Primary and Secondary Coils: Induction transfers energy between coils via mutual magnetic flux linkage
- Core Material Role: Ferromagnetic cores enhance induction efficiency by concentrating magnetic flux
- Step-Up/Step-Down Induction: Coil turns ratio determines voltage transformation through induced EMF
- Induction Losses: Eddy currents and hysteresis reduce efficiency due to unwanted induction
Electromagnetic Induction Basics: Faraday's law explains how changing magnetic fields induce voltage in transformer coils
Transformers are the unsung heroes of electrical power distribution, silently stepping up or down voltage levels to ensure efficient transmission and safe usage. At the heart of their operation lies electromagnetic induction, a phenomenon elegantly described by Faraday's law. This principle states that a changing magnetic field induces an electromotive force (EMF) or voltage in a nearby conductor. In transformers, this conductor is typically a coil of wire, and the changing magnetic field is generated by alternating current (AC) flowing through another coil.
Understanding the Core Mechanism
Imagine a primary coil connected to an AC source. As the current alternates, the magnetic field it produces expands and collapses rhythmically. This fluctuating field then passes through a laminated iron core, which guides the magnetic flux to a secondary coil. According to Faraday's law, the rate of change of magnetic flux through the secondary coil induces a voltage across its terminals. The key here is the frequency of the AC supply—higher frequencies result in faster changes in magnetic flux, thereby inducing higher voltages. For instance, a 60 Hz AC supply in household transformers ensures consistent voltage induction, enabling devices to operate reliably.
Practical Application and Efficiency
Transformers are designed to maximize this induction process. The number of turns in the primary and secondary coils determines the voltage transformation ratio, governed by the equation \( \frac{V_s}{V_p} = \frac{N_s}{N_p} \), where \( V \) is voltage and \( N \) is the number of turns. For example, a step-up transformer with 1,000 turns in the primary coil and 10,000 turns in the secondary coil will increase the voltage tenfold. However, efficiency is critical; energy losses occur due to core heating (eddy currents) and resistance in the coils. To mitigate this, transformer cores are made of thin, insulated laminations, and high-conductivity materials like copper are used for the windings.
Real-World Implications and Safety
Electromagnetic induction in transformers is not just theoretical—it powers homes, industries, and entire cities. For instance, high-voltage transmission lines use step-up transformers to reduce current and minimize energy loss over long distances. At the consumer end, step-down transformers lower the voltage to safe levels, typically 120V or 240V. Safety is paramount; improper use or faulty transformers can lead to electrical hazards. Always ensure transformers are rated for the intended load and operate within specified temperature limits, usually between -40°C and +50°C.
Innovations and Future Trends
Modern advancements are pushing the boundaries of transformer design. Smart transformers, equipped with sensors and IoT capabilities, monitor performance in real time, optimizing energy distribution. Additionally, solid-state transformers, which replace traditional copper coils with semiconductor switches, offer higher efficiency and faster response times. These innovations leverage Faraday's law while addressing contemporary challenges like renewable energy integration and grid stability. As technology evolves, the principles of electromagnetic induction remain the cornerstone of transformer functionality, ensuring their relevance in an increasingly electrified world.
Powering Your Home: Can Concept 2 Rowers Generate Electricity?
You may want to see also
Explore related products
Primary and Secondary Coils: Induction transfers energy between coils via mutual magnetic flux linkage
Electrical transformers rely on the principle of mutual induction to transfer energy between their primary and secondary coils. When an alternating current flows through the primary coil, it generates a continuously changing magnetic field. This dynamic field induces a voltage in the secondary coil through magnetic flux linkage, enabling efficient power transmission across different voltage levels.
Consider the process as a dance of magnetic fields. The primary coil acts as the initiator, creating a magnetic flux that expands and collapses with the alternating current. This flux "links" with the secondary coil, cutting through its turns and inducing an electromotive force (EMF) according to Faraday’s law of electromagnetic induction. The number of turns in each coil determines the voltage transformation ratio, ensuring the secondary coil outputs the desired voltage level. For instance, a step-up transformer with fewer primary turns than secondary turns increases voltage, while a step-down transformer does the opposite.
Practical applications highlight the importance of coil design. In power distribution systems, transformers with thousands of primary and secondary turns efficiently step down high-voltage electricity (e.g., 11,000V) to safer household levels (120V or 240V). Conversely, in electronic devices like chargers, smaller transformers with fewer turns adapt voltage for specific components. To maximize efficiency, engineers use high-permeability core materials like silicon steel to concentrate magnetic flux and minimize energy loss.
A critical caution involves the frequency of the alternating current. Induction in transformers works optimally at the frequency for which they are designed, typically 50Hz or 60Hz for power grids. Operating a transformer at significantly different frequencies can reduce efficiency or damage the device. For example, using a 60Hz transformer in a 50Hz system may lead to overheating due to increased core losses. Always match the transformer’s frequency rating to the application to ensure safe and effective operation.
In summary, the interplay between primary and secondary coils via mutual magnetic flux linkage is the cornerstone of transformer functionality. By understanding this process, engineers and technicians can design, select, and maintain transformers tailored to specific energy transfer needs. Whether stepping up voltage for long-distance transmission or stepping it down for consumer use, the principles of induction remain central to modern electrical systems.
Using Dry Powder Extinguishers on Electrical Fires: Safe or Risky?
You may want to see also
Explore related products
Core Material Role: Ferromagnetic cores enhance induction efficiency by concentrating magnetic flux
The efficiency of an electrical transformer hinges on its ability to maximize magnetic induction, the process by which a changing magnetic field generates an electromotive force in a conductor. At the heart of this process lies the core material, specifically ferromagnetic cores, which play a pivotal role in enhancing induction efficiency. These cores, typically made from materials like silicon steel or nickel-iron alloys, are engineered to concentrate magnetic flux, ensuring that the magnetic field generated by the primary coil is effectively transferred to the secondary coil with minimal loss.
Consider the analogy of a river flowing through a narrow channel versus a wide, shallow basin. In the narrow channel, the water’s flow is concentrated, resulting in higher velocity and energy transfer. Similarly, a ferromagnetic core acts as the narrow channel for magnetic flux, guiding and intensifying the magnetic field lines. This concentration reduces the reluctance (magnetic resistance) of the core, allowing more of the magnetic field to link with the secondary coil. Without such a core, the magnetic field would disperse into the surrounding air, leading to significant energy loss and reduced transformer efficiency.
To illustrate, a transformer with an air core (non-magnetic) might achieve an induction efficiency of only 10-20%, whereas one with a ferromagnetic core can reach efficiencies upwards of 95%. This dramatic difference underscores the importance of core material selection. Silicon steel, for instance, is widely used due to its high permeability (ability to conduct magnetic flux) and low hysteresis loss (energy dissipated as heat during magnetic reversal). For specialized applications, such as high-frequency transformers, nickel-iron alloys are preferred for their superior permeability and lower core loss at higher frequencies.
When designing or selecting a transformer, engineers must balance core material properties with application requirements. For instance, a transformer in a power distribution system might prioritize low core loss and high permeability, while a transformer in a compact electronic device might emphasize size and weight constraints. Practical tips include ensuring the core is properly laminated to reduce eddy currents (circulating currents that cause energy loss) and selecting a core with a permeability suited to the operating frequency of the transformer.
In conclusion, the role of ferromagnetic cores in transformers is indispensable. By concentrating magnetic flux, these cores maximize induction efficiency, minimize energy loss, and ensure the reliable operation of transformers across a wide range of applications. Understanding the properties and selection criteria of core materials empowers engineers to design transformers that meet specific performance needs while optimizing cost and efficiency.
Using an Electric Screwdriver to Tackle Stubborn Bolts: Tips and Tricks
You may want to see also
Explore related products
Step-Up/Step-Down Induction: Coil turns ratio determines voltage transformation through induced EMF
The coil turns ratio in a transformer is the linchpin of voltage transformation. This ratio, defined as the number of turns in the primary coil divided by the number of turns in the secondary coil, directly determines whether a transformer steps up or steps down voltage. For instance, a transformer with a primary coil of 100 turns and a secondary coil of 200 turns will double the voltage, while reversing the turns ratio would halve it. This principle, rooted in Faraday’s law of electromagnetic induction, ensures that the product of voltage and current remains constant across coils, preserving energy transfer efficiency.
To illustrate, consider a step-up transformer used in power transmission. High-voltage transmission lines minimize energy loss over long distances, so a transformer with a 1:5 turns ratio converts 2,000 volts at the power plant to 10,000 volts for transmission. Conversely, a step-down transformer at the consumer end, with a 10:1 turns ratio, reduces the voltage to a safe 120 volts for household use. This adaptability highlights the critical role of the coil turns ratio in tailoring voltage levels to specific applications.
Designing transformers requires precision in selecting the coil turns ratio. Engineers must account for factors like core material, frequency, and load requirements to ensure optimal performance. For example, a transformer with a 2:3 turns ratio will step down voltage by 1.5 times, but if the core material saturates at high flux densities, efficiency drops. Practical tips include using high-permeability cores like silicon steel to enhance induction and ensuring the turns ratio aligns with the desired voltage transformation to avoid energy wastage.
A comparative analysis reveals the efficiency trade-offs in step-up versus step-down transformers. Step-up transformers, with higher secondary turns, often face challenges like increased leakage flux and core losses. Step-down transformers, while simpler, must handle higher currents, necessitating thicker conductors to minimize resistive losses. Understanding these nuances allows engineers to balance voltage transformation needs with practical constraints, ensuring transformers operate reliably in diverse environments, from industrial complexes to residential neighborhoods.
In conclusion, the coil turns ratio is not just a theoretical concept but a practical tool for controlling voltage levels in transformers. By mastering this ratio, engineers can design systems that efficiently transmit and distribute electrical power, bridging the gap between high-voltage generation and low-voltage consumption. Whether stepping up voltage for long-distance transmission or stepping it down for safe household use, the turns ratio remains the cornerstone of induction-based voltage transformation.
Faulty Water Heaters: Electricity Consumption and Cost Concerns Explained
You may want to see also
Explore related products
Induction Losses: Eddy currents and hysteresis reduce efficiency due to unwanted induction
Electrical transformers rely on electromagnetic induction to transfer energy between coils, but this process isn’t perfectly efficient. Two primary culprits—eddy currents and hysteresis—steal power through unwanted induction, converting it into heat and reducing overall performance. Understanding these losses is crucial for designing transformers that minimize waste and maximize output.
Consider eddy currents, circular flows of electrons induced in the transformer’s core by the alternating magnetic field. These currents generate heat, effectively dissipating energy that could otherwise contribute to the desired power transfer. To combat this, transformer cores are constructed from thin, insulated laminations. By increasing the resistance between layers, laminations disrupt the flow of eddy currents, reducing their magnitude. For instance, silicon steel laminations, typically 0.35 to 0.5 millimeters thick, are commonly used in power transformers to limit these losses.
Hysteresis, another efficiency thief, arises from the core material’s magnetic properties. As the magnetic field alternates, the core’s magnetic domains lag behind, requiring energy to realign. This energy loss is proportional to the frequency of the alternating current and the core material’s hysteresis loop area. Materials with narrow hysteresis loops, like grain-oriented silicon steel, are preferred for transformer cores. For example, a core made from this material can reduce hysteresis losses by up to 70% compared to conventional steel.
Minimizing induction losses isn’t just about material selection—it’s also about design. Operating transformers at lower frequencies reduces both eddy current and hysteresis losses, though this isn’t always practical. In high-frequency applications, such as switch-mode power supplies, ferrite cores are often used due to their lower hysteresis and eddy current losses at higher frequencies. Additionally, proper cooling systems are essential to dissipate the heat generated by these losses, ensuring the transformer operates within safe temperature limits.
In summary, while induction is the lifeblood of transformer operation, eddy currents and hysteresis exploit it to degrade efficiency. Through strategic material choices, lamination techniques, and thoughtful design, engineers can mitigate these losses, ensuring transformers perform optimally in their intended applications. Whether in a high-voltage power grid or a compact electronic device, addressing these losses is key to harnessing induction’s full potential.
Using US Electric Shavers in Spain: Compatibility and Voltage Guide
You may want to see also
Frequently asked questions
Induction is the fundamental principle that allows a transformer to transfer electrical energy between two or more coils. When an alternating current flows through the primary coil, it creates a changing magnetic field, which then induces a voltage in the secondary coil through electromagnetic induction.
Electromagnetic induction occurs when the alternating current in the primary coil generates a fluctuating magnetic field. This changing magnetic field links with the secondary coil, causing electrons in the secondary coil to move, thus inducing an electromotive force (voltage) in the secondary winding.
A core, typically made of ferromagnetic material, is used to enhance induction by providing a low-reluctance path for the magnetic field. This concentrates the magnetic flux, increasing the efficiency of energy transfer between the primary and secondary coils.
No, induction in a transformer requires alternating current (AC) to function. DC produces a constant magnetic field, which does not induce a voltage in the secondary coil. Transformers rely on the changing magnetic field produced by AC to operate effectively.
