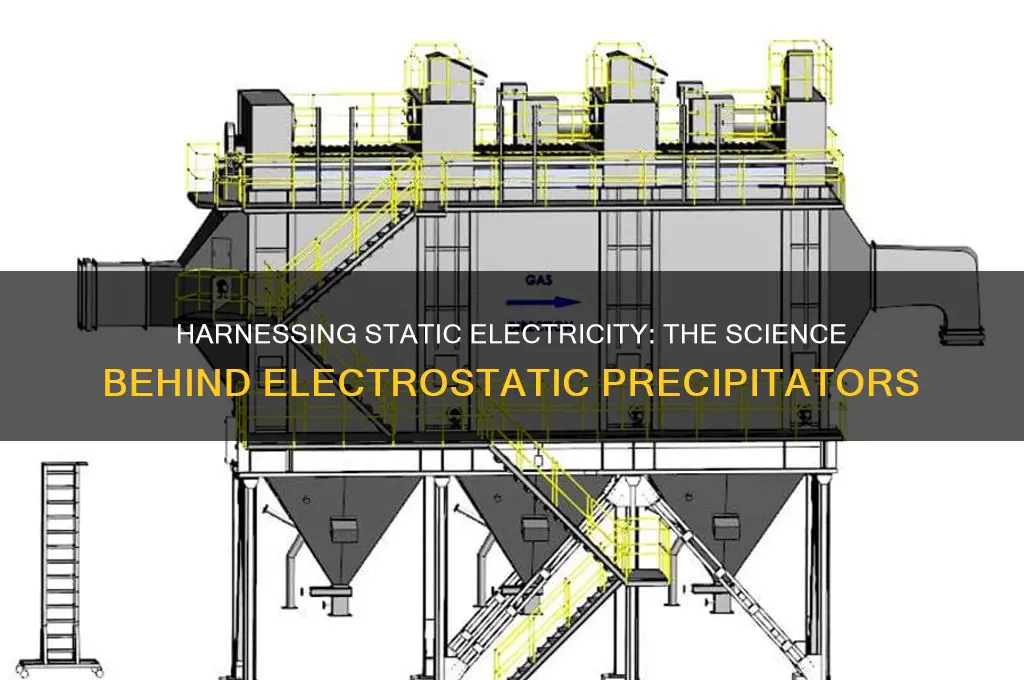

Static electricity plays a crucial role in the operation of electrostatic precipitators (ESPs), which are highly efficient devices used to remove particulate matter from industrial exhaust gases. In an ESP, a high-voltage electric field is applied to charge the particles in the gas stream, causing them to become ionized. As the charged particles pass through a series of oppositely charged collector plates, they are attracted and deposited onto the plates due to the electrostatic force. This process effectively separates the particulate matter from the gas, allowing clean air to be released into the atmosphere. The use of static electricity in ESPs ensures a high collection efficiency, making them widely employed in industries such as power generation, cement production, and chemical manufacturing to control air pollution and comply with environmental regulations.
| Characteristics | Values |
|---|---|
| Principle | Utilizes static electricity to remove particulate matter from industrial exhaust streams. |
| Process | 1. Charging: Particles in the gas stream are charged by passing through a high-voltage wire or electrode (corona discharge). 2. Collection: Charged particles are attracted to oppositely charged collector plates. 3. Cleaning: Collected particles are periodically removed from the plates (rapping, shaking, or vibrating). |
| Efficiency | High efficiency in removing fine particulate matter (PM2.5 and PM10), typically >99%. |
| Applications | Widely used in industries such as power plants, cement factories, steel mills, and chemical plants to control air pollution. |
| Power Consumption | Relatively low, typically 10-100 kWh per 1000 m³ of gas treated. |
| Maintenance | Requires regular cleaning of collector plates and inspection of high-voltage components. |
| Environmental Impact | Significantly reduces particulate emissions, contributing to improved air quality and compliance with environmental regulations. |
| Limitations | Less effective for removing gaseous pollutants or very small particles (<0.1 μm); may require additional treatment methods. |
| Types | Single-stage: Simple design with one charging and collecting section. Two-stage: Enhanced efficiency with separate charging and collecting zones. |
| Material Compatibility | Collector plates are often made of materials resistant to corrosion and high temperatures, such as stainless steel or aluminum. |
| Cost | Initial investment can be high, but operational costs are relatively low compared to other air pollution control technologies. |
Explore related products
What You'll Learn
- Particle Charging Mechanism: How high-voltage electrodes ionize gases, charging particles for collection in the precipitator
- Collection Plate Design: Role of oppositely charged plates in attracting and capturing charged particles efficiently
- Corona Discharge Process: Generation of ions through corona discharge to charge particles in the gas stream
- Efficiency Factors: Impact of gas flow rate, voltage, and particle size on precipitator performance
- Applications in Industry: Use in power plants, cement factories, and incinerators to control air pollution
Particle Charging Mechanism: How high-voltage electrodes ionize gases, charging particles for collection in the precipitator
High-voltage electrodes in an electrostatic precipitator (ESP) play a pivotal role in the particle charging mechanism, a process critical to the device's ability to remove particulate matter from gas streams. These electrodes, typically operating at voltages ranging from 10,000 to 100,000 volts, create an intense electric field that ionizes the surrounding gas. When a high voltage is applied, electrons are accelerated to velocities sufficient to collide with gas molecules, knocking off additional electrons and creating a cascade of ions. This phenomenon, known as gas ionization, transforms neutral gas molecules into positively and negatively charged ions. The efficiency of this process depends on factors such as the voltage applied, the gas composition, and the electrode geometry. For instance, sharp electrode points or edges enhance the electric field strength, promoting more effective ionization.
The ionized gas acts as a medium for charging particles that pass through the ESP. As particles enter the electric field, they collide with the ions, gaining or losing electrons depending on the polarity of the ions. Negatively charged ions transfer electrons to particles, giving them a negative charge, while positively charged ions attract electrons from particles, leaving them positively charged. This charging process is highly dependent on the particle's composition and size. For example, smaller particles with higher surface-to-volume ratios tend to charge more efficiently due to increased collision frequency with ions. Practical ESP designs often incorporate multiple electrode stages to ensure thorough particle charging, especially in industrial applications where particle sizes and compositions vary widely.
One of the key challenges in this mechanism is ensuring uniform particle charging, as unevenly charged particles can reduce collection efficiency. To address this, ESPs often employ a combination of high-voltage discharge electrodes and grounded collecting plates. The discharge electrodes, typically thin wires or rods, are responsible for ionizing the gas, while the collecting plates attract the charged particles. The distance between the electrodes and plates, known as the electrode gap, is critical and usually ranges from 10 to 20 centimeters to optimize ionization and particle collection. Additionally, the gas flow rate must be carefully controlled to allow sufficient residence time for particles to charge and migrate to the collecting plates.
A comparative analysis of ESP designs reveals that corona discharge electrodes are more effective than other ionization methods, such as glow discharge, due to their ability to produce a higher density of ions at lower power consumption. Corona discharge occurs when the electric field around the electrode exceeds the breakdown voltage of the gas, leading to a localized ionization region. This method is particularly efficient in charging submicron particles, which are often difficult to capture using mechanical filtration methods. For instance, ESPs equipped with corona discharge electrodes are widely used in coal-fired power plants to remove fly ash particles as small as 0.1 microns, achieving collection efficiencies of up to 99%.
In conclusion, the particle charging mechanism in an ESP hinges on the ability of high-voltage electrodes to ionize gases, creating a medium for charging particles. This process, driven by corona discharge, is highly efficient and adaptable to various industrial applications. By optimizing electrode design, voltage levels, and gas flow conditions, ESPs can achieve exceptional particle removal rates, making them indispensable in air pollution control systems. Practical tips for maximizing ESP performance include regular maintenance of electrodes to prevent sparking and ensuring uniform gas distribution to enhance ionization efficiency. Understanding these specifics allows operators to harness the full potential of static electricity in particle collection.
Do Desk Calculators Consume Electricity When Not in Use?
You may want to see also
Explore related products
$21.75
Collection Plate Design: Role of oppositely charged plates in attracting and capturing charged particles efficiently
Oppositely charged collection plates are the unsung heroes of electrostatic precipitators, silently orchestrating the capture of charged particles with precision. These plates, typically made of metal and positioned parallel to each other, create a powerful electric field that attracts and traps particulate matter. The key lies in their polarity: one set of plates carries a positive charge, while the other carries a negative charge. This polarity difference generates a strong electrostatic force that pulls charged particles toward the plates, effectively removing them from the gas stream. For instance, in industrial applications, collection plates are often spaced 10 to 20 centimeters apart to optimize particle capture while minimizing energy consumption.
Designing collection plates for maximum efficiency requires careful consideration of several factors. Plate spacing, for example, must balance particle capture and airflow resistance. Too close, and airflow is restricted; too far, and particle collection suffers. Additionally, the material and surface area of the plates play a critical role. Smooth, conductive materials like stainless steel or aluminum are preferred, as they enhance charge retention and ease cleaning. Regular maintenance, such as periodic rapping or vibration to dislodge accumulated particles, ensures the plates remain effective. In power plants, where electrostatic precipitators handle large volumes of fly ash, plates are often designed with corrugated surfaces to increase surface area and improve particle retention.
The efficiency of collection plates is not just about their design but also their integration within the electrostatic precipitator system. The charging zone, where particles receive an electrical charge, must be optimized to ensure particles are adequately ionized before reaching the plates. For example, in a typical electrostatic precipitator, the charging zone uses corona wires operating at voltages between 30,000 and 70,000 volts to ionize particles effectively. Once charged, particles are drawn to the oppositely charged plates with a force proportional to the electric field strength. This process highlights the symbiotic relationship between the charging mechanism and the collection plates, where each component relies on the other for optimal performance.
A comparative analysis of collection plate designs reveals the importance of adaptability. In smaller-scale applications, such as kitchen ventilation systems, compact plate designs with finer spacing are used to capture grease and oil particles efficiently. In contrast, large industrial systems, like those in cement plants, employ robust plates with wider spacing to handle high volumes of coarse dust. This adaptability underscores the need for tailored designs that address specific particle sizes, gas flow rates, and operational conditions. For instance, in pharmaceutical manufacturing, where fine particulate control is critical, plates are often coated with non-stick materials to prevent particle re-entrainment.
In conclusion, the role of oppositely charged collection plates in electrostatic precipitators is both fundamental and multifaceted. Their design, material, and integration within the system determine the efficiency of particle capture. By optimizing plate spacing, surface area, and maintenance practices, operators can maximize the performance of electrostatic precipitators across diverse applications. Whether in a small kitchen exhaust or a large industrial facility, the principles of collection plate design remain consistent: attract, capture, and retain charged particles efficiently. This precision engineering ensures cleaner air and safer environments, demonstrating the power of static electricity in practical applications.
Electric Motors in Hydraulic Power Units: Are They Universal?
You may want to see also
Explore related products
Corona Discharge Process: Generation of ions through corona discharge to charge particles in the gas stream
The corona discharge process is a critical mechanism in electrostatic precipitators, leveraging static electricity to efficiently remove particulate matter from gas streams. At its core, this process involves the generation of ions through a high-voltage discharge, which then charges the particles in the gas, enabling their subsequent collection. This method is widely used in industrial applications, such as power plants and manufacturing facilities, to control air pollution and ensure compliance with environmental regulations.
Mechanism and Operation
Corona discharge occurs when a strong electric field is applied between two electrodes, typically a high-voltage wire (discharge electrode) and a grounded plate (collecting electrode). When the electric field exceeds a certain threshold, it ionizes the surrounding gas, primarily air, producing a mixture of positive and negative ions. These ions collide with particles in the gas stream, transferring their charge and making the particles susceptible to electrostatic attraction. The charged particles are then drawn toward the collecting electrode, where they adhere and can be removed, effectively cleaning the gas.
Key Parameters and Optimization
To maximize efficiency, several factors must be carefully controlled. The voltage applied to the discharge electrode is critical, typically ranging from 10,000 to 70,000 volts, depending on the application. The spacing between electrodes and the gas flow rate also play significant roles, as they influence the uniformity of ion distribution and particle charging. For example, in coal-fired power plants, optimal electrode spacing is often between 10 to 20 cm, while gas flow velocities are maintained at 1 to 3 meters per second. Regular maintenance, such as cleaning the collecting plates to prevent particle buildup, is essential to sustain performance.
Practical Considerations and Challenges
While effective, the corona discharge process is not without challenges. One common issue is back corona, where the electric field reverses due to particle accumulation, reducing efficiency. This can be mitigated by periodic rapping or vibration of the collecting plates to dislodge accumulated particles. Additionally, the presence of moisture or certain chemicals in the gas stream can interfere with ionization, necessitating pre-treatment or specialized electrode materials. For instance, silicon carbide or stainless steel electrodes are often used in corrosive environments to enhance durability.
Applications and Impact
The corona discharge process is a cornerstone of modern air pollution control, with applications extending beyond industrial settings. For example, it is used in kitchen ventilation systems to capture grease particles and in pharmaceutical manufacturing to maintain sterile environments. Its ability to handle high gas volumes and capture submicron particles makes it particularly valuable in addressing fine particulate matter (PM2.5), a major health concern. By integrating this technology into existing systems, industries can achieve up to 99% particle removal efficiency, significantly reducing environmental and health impacts.
In summary, the corona discharge process exemplifies the practical application of static electricity in electrostatic precipitators, offering a reliable and efficient solution for particle removal. Through careful optimization and maintenance, this method continues to play a vital role in improving air quality and sustainability across diverse sectors.
Electric Carts in England: Usage, Popularity, and Environmental Impact
You may want to see also
Explore related products
![Anti Static Wrist Strap, 11" Anti Static Wristband Grounding Bracelet with Alligator Clip and Extendable Long Cable, Fits Wrist Circumference " 6" to 8.5". [Regular Size]](https://m.media-amazon.com/images/I/61y9HWWmbmL._AC_UY218_.jpg)
Efficiency Factors: Impact of gas flow rate, voltage, and particle size on precipitator performance
The efficiency of an electrostatic precipitator (ESP) hinges on a delicate interplay between gas flow rate, applied voltage, and particle size. Each factor exerts a distinct influence, demanding careful consideration for optimal performance.
Imagine a river carrying sand: a gentle flow allows sand to settle, while a torrent scatters it. Similarly, gas flow rate dictates the residence time of particles within the ESP. Slower flow rates grant particles more time to be charged and collected on the plates, enhancing efficiency. However, excessively low flow rates can lead to re-entrainment, where collected particles are dislodged and recirculated. Conversely, high flow rates reduce collection efficiency as particles spend less time in the electric field.
Ideal flow rates typically range from 1 to 3 meters per second, but this varies depending on particle characteristics and ESP design.
Voltage acts as the driving force behind particle charging and collection. Higher voltages generally increase the electric field strength, leading to more efficient particle charging and stronger attraction to the collection plates. However, there's a limit. Excessive voltage can lead to corona discharge instability, generating ozone and potentially damaging the ESP. Finding the optimal voltage requires balancing charging efficiency with energy consumption and equipment longevity. Typical operating voltages range from 10,000 to 70,000 volts, with careful monitoring and adjustment crucial for peak performance.
Particle size presents a unique challenge. Smaller particles, due to their lower mass and higher charge-to-mass ratio, are generally easier to capture. However, their lower inertia makes them more susceptible to re-entrainment. Larger particles, while less prone to re-entrainment, require higher voltages for effective charging due to their lower charge-to-mass ratio.
To maximize efficiency, consider a multi-stage ESP design, where larger particles are captured in initial stages with lower voltages, while finer particles are targeted in subsequent stages with higher voltages. This staged approach optimizes collection efficiency across a wide range of particle sizes.
Understanding the intricate dance between gas flow rate, voltage, and particle size is paramount for maximizing ESP efficiency. By carefully tailoring these factors to the specific application, operators can achieve optimal particle removal, ensuring cleaner air and a more sustainable future.
Electric Blankets and Air Mattresses: Safe Pairing or Risky Combo?
You may want to see also
Explore related products
Applications in Industry: Use in power plants, cement factories, and incinerators to control air pollution
Electrostatic precipitators (ESPs) harness static electricity to capture particulate matter from industrial exhaust streams, playing a critical role in air pollution control across power plants, cement factories, and incinerators. In power plants, ESPs are installed downstream of boilers to remove fly ash, a byproduct of coal combustion. These particles are charged as they pass through a high-voltage electric field, then collected on oppositely charged plates. Efficiency rates of up to 99.9% are achievable, significantly reducing emissions of harmful pollutants like sulfur dioxide and nitrogen oxides. For instance, a 500 MW coal-fired power plant can capture over 200 tons of fly ash daily using ESPs, preventing respiratory hazards and environmental degradation.
In cement factories, ESPs address dust emissions from kilns, mills, and coolers, where particulate matter is generated during raw material grinding and clinker production. The fine cement dust, if released unchecked, poses health risks to workers and nearby communities. ESPs in this context operate at voltages ranging from 30,000 to 100,000 volts, ensuring efficient particle charging and collection. A typical cement plant ESP can handle gas flow rates of 1.5 million cubic meters per hour, maintaining dust concentrations below regulatory limits of 50 mg/m³. Regular maintenance, including rapping systems to dislodge collected dust, is essential to prevent re-entrainment and ensure continuous operation.
Incinerators, particularly waste-to-energy facilities, rely on ESPs to control emissions of dioxins, furans, and heavy metals. These pollutants are generated during the combustion of municipal solid waste and medical waste. ESPs in incinerators are designed to handle high temperatures and corrosive gases, often incorporating specialized materials like stainless steel or corrosion-resistant coatings. For example, a modern incinerator ESP can reduce dioxin emissions to levels below 0.1 ng/m³, meeting stringent environmental standards. Pre-filters and activated carbon injection systems are sometimes integrated to enhance ESP performance, particularly for volatile organic compounds.
Comparatively, ESPs offer advantages over fabric filters in high-temperature applications, as they are less prone to blinding and do not impose significant pressure drop penalties. However, their effectiveness depends on factors like particle size, gas composition, and moisture content. In power plants, for instance, ESPs are less efficient for particles smaller than 1 micron, necessitating additional measures like wet scrubbers. In cement factories, ESPs must be designed to handle abrasive dust, while in incinerators, they must withstand acidic gases. Tailoring ESP design to specific industrial conditions ensures optimal performance and compliance with air quality regulations.
To maximize ESP efficiency, operators should monitor key parameters such as gas flow rate, particle charge, and plate cleanliness. In power plants, periodic inspection of electrodes and insulators prevents sparking and arcing, which can reduce effectiveness. In cement factories, adjusting rapping frequency based on dust load prevents plate blinding. For incinerators, continuous monitoring of dioxin levels ensures compliance with emission standards. By integrating ESPs into comprehensive pollution control strategies, industries can achieve sustainable operations while safeguarding public health and the environment.
Electrical Impedance Protection: A New Pathogen Detection Method?
You may want to see also
Frequently asked questions
An electrostatic precipitator (ESP) is a device used to remove particulate matter from industrial exhaust gases. It uses static electricity to charge particles in the gas stream, which are then attracted to and collected on oppositely charged plates.
In an ESP, high-voltage electrodes create an electric field that ionizes the gas molecules, imparting a charge to the particles. These charged particles are then drawn to collector plates with an opposite charge.
The main components are the discharge electrodes (which generate the electric field), collector plates (where charged particles are deposited), and a power supply to maintain the high voltage required for ionization.
Industries such as power plants, cement manufacturing, and steel production use ESPs to control air pollution. They are effective in removing fine particulate matter, such as soot, ash, and dust, from exhaust gases.
ESPs are highly efficient in removing particulate matter, can handle large gas volumes, and have low operating costs. They also reduce environmental impact by minimizing the release of harmful particles into the atmosphere.
