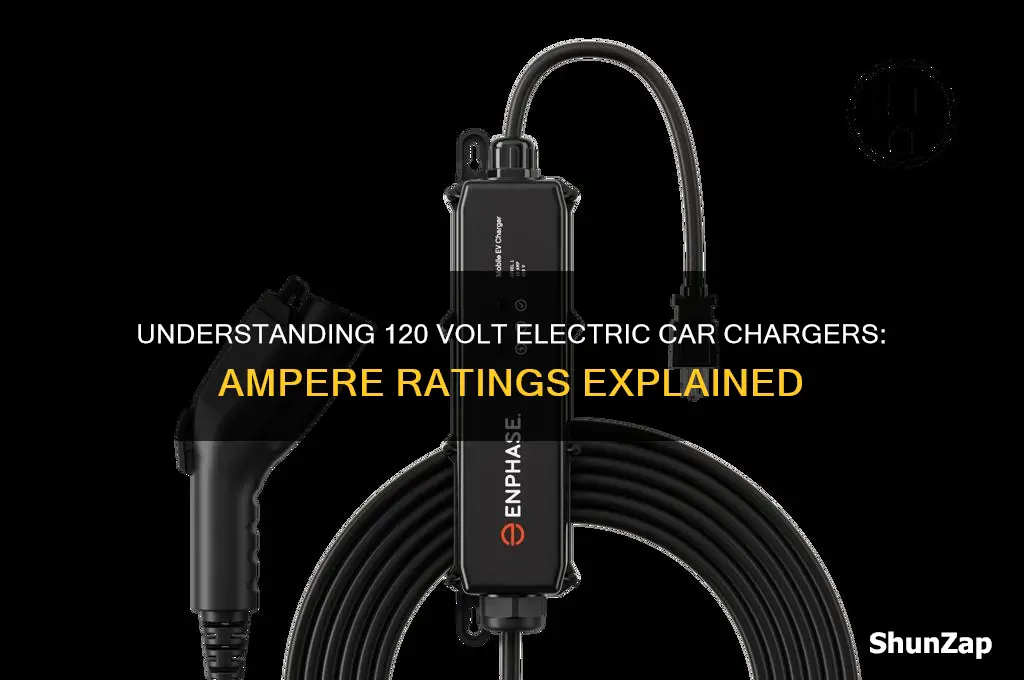

When discussing 120-volt electric car chargers, understanding the amperage is crucial for determining charging speed and compatibility with your vehicle. Typically, Level 1 chargers, which operate on a standard 120-volt household outlet, deliver between 8 to 12 amps, translating to approximately 1.4 to 2.0 kilowatts of power. This results in a charging rate of about 3 to 5 miles of range per hour, making it suitable for overnight charging or vehicles with smaller battery capacities. However, the actual amperage can vary depending on the charger's design, the vehicle's onboard charger, and the circuit's capacity, so it’s essential to consult your car’s manual or a professional to ensure safe and efficient charging.
Explore related products
What You'll Learn
- Standard Level 1 Charging: 120V outlets provide 8-12 amps, offering 3-5 miles of range per hour
- Amp Limitations: Most 120V chargers cap at 12-15 amps due to household circuit limits
- Charging Speed: 120V chargers are slow, adding 2-5 kW of power to the battery
- Plug Compatibility: NEMA 5-15 or 5-20 plugs are commonly used for 120V charging
- Safety Considerations: Avoid overloading circuits; use dedicated 15-20 amp circuits for safe charging
Standard Level 1 Charging: 120V outlets provide 8-12 amps, offering 3-5 miles of range per hour
Electric vehicle (EV) owners often rely on Level 1 charging as a convenient, entry-level option, utilizing standard 120V household outlets. These chargers typically draw between 8 to 12 amps, translating to a modest 3 to 5 miles of range added per hour of charging. This method is ideal for drivers with short daily commutes or those who have ample time to charge overnight. For instance, a driver traveling 30 miles daily could fully replenish their battery in 6 to 10 hours, making it a practical solution for many.
While Level 1 charging is accessible and requires no additional installation, its slow pace necessitates strategic planning. To maximize efficiency, plug in your EV as soon as you arrive home, ensuring it’s ready by morning. Avoid using high-draw appliances on the same circuit during charging to prevent overloading. For example, charging in a garage with a dedicated outlet minimizes the risk of tripping breakers. This approach ensures consistent, uninterrupted charging without disrupting household power usage.
Comparatively, Level 1 charging pales next to Level 2 or DC fast charging, which deliver significantly faster results. However, its simplicity and cost-effectiveness make it a viable option for specific use cases. Renters or those without access to higher-voltage chargers find Level 1 particularly useful. It’s also an excellent backup for emergencies, such as when public chargers are unavailable. Understanding its limitations and strengths allows EV owners to integrate it effectively into their charging routine.
To optimize Level 1 charging, consider your vehicle’s battery size and daily driving needs. For example, a compact EV with a 40 kWh battery and a 150-mile range can fully charge in 30 to 50 hours. Pairing this method with regenerative braking and eco-driving habits can further extend efficiency. Additionally, monitor your EV’s charge status via mobile apps to avoid overcharging, which can degrade battery health over time. Small adjustments like these transform Level 1 charging from a last resort into a reliable, everyday tool.
Best Electric Ukulele Strings: Choosing the Perfect Set for Your Sound
You may want to see also
Explore related products
Amp Limitations: Most 120V chargers cap at 12-15 amps due to household circuit limits
Electric vehicle (EV) owners often turn to Level 1 chargers, which operate on a standard 120V household outlet, for their convenience and accessibility. However, these chargers come with inherent limitations, primarily due to the constraints of residential electrical systems. Most 120V chargers are capped at 12 to 15 amps, a restriction directly tied to the capacity of typical household circuits. Exceeding this limit risks overloading the circuit, potentially causing tripped breakers, damaged wiring, or even fire hazards. This cap translates to a charging rate of approximately 1.4 to 1.9 kilowatts, which adds about 3 to 5 miles of range per hour of charging. While this may suffice for low-mileage drivers or as a backup option, it highlights the need for understanding the practical limits of Level 1 charging.
The 12-15 amp cap isn’t arbitrary—it’s a safety measure rooted in the National Electrical Code (NEC), which limits standard household circuits to 80% of their rated capacity. For a 15-amp circuit, this means a maximum continuous load of 12 amps, while a 20-amp circuit allows up to 16 amps. Since most EV chargers are designed to work on 15-amp circuits, they are typically limited to 12 amps to ensure compliance and safety. Upgrading to a 20-amp circuit could theoretically allow for a 16-amp charger, but this requires professional electrical work and may not significantly improve charging speed due to the inherent limitations of 120V systems. For those seeking faster charging, a Level 2 charger operating on 240V is often the more practical solution.
From a practical standpoint, the 12-15 amp limit means Level 1 charging is best suited for specific scenarios. It’s ideal for plug-in hybrid vehicles (PHEVs) with smaller battery capacities or for EV owners who drive fewer than 30 miles per day. For example, charging a Nissan Leaf with a 40 kWh battery overnight at 12 amps would add approximately 36 miles of range, assuming 8 hours of charging. However, for long-range EVs like a Tesla Model 3 with a 60 kWh battery, Level 1 charging becomes impractical, as it would take over 40 hours to fully recharge. Understanding these limitations helps EV owners plan their charging strategies effectively, balancing convenience with the need for faster options when necessary.
Persuasively, while the 12-15 amp cap may seem restrictive, it serves as a reminder of the importance of aligning charging solutions with individual needs. For those who rely on their EVs for daily commutes or occasional trips, investing in a Level 2 charger—which can deliver up to 80 amps on a 240V circuit—is a worthwhile upgrade. Not only does this reduce charging times significantly, but it also future-proofs your home for higher-capacity EVs. Meanwhile, Level 1 chargers remain a valuable tool for emergencies or as a supplementary option, especially in multi-vehicle households. By recognizing the limitations of 120V charging and planning accordingly, EV owners can maximize efficiency without compromising safety or convenience.
Mini Electric Review: Is This Compact EV Worth Your Investment?
You may want to see also
Explore related products
Charging Speed: 120V chargers are slow, adding 2-5 kW of power to the battery
120V electric car chargers, often referred to as Level 1 chargers, are the slowest charging option available for electric vehicles (EVs). These chargers typically operate at 12 amps, delivering a modest 2-5 kW of power to the battery. To put this into perspective, a 120V charger adds approximately 3-5 miles of range per hour of charging, depending on the vehicle’s efficiency. For drivers with short daily commutes or ample overnight charging time, this may suffice. However, for those needing a quicker turnaround, the limitations of 120V charging become apparent.
Consider a scenario where an EV owner relies solely on a 120V charger to replenish a depleted 60 kWh battery. At 3 kW (a common output for these chargers), it would take roughly 20 hours to achieve a full charge. Even a partial charge to add 50 miles of range would require 10 hours. This slow pace underscores why 120V chargers are best suited for emergency use or as a backup, rather than a primary charging solution.
The inefficiency of 120V chargers stems from their reliance on standard household outlets, which are not designed for high-power applications. While convenient—since nearly every home has a 120V outlet—these chargers lack the capacity to meet the demands of modern EVs, which often have batteries exceeding 50 kWh. For comparison, a Level 2 charger operating at 240V and 32 amps can deliver 7.7 kW, cutting charging times in half or more.
Despite their limitations, 120V chargers have a place in the EV ecosystem. They are ideal for drivers with predictable, short-distance needs or those without access to higher-power charging infrastructure. To maximize efficiency, EV owners using 120V chargers should plug in their vehicles as soon as they return home, ensuring the battery is topped up by morning. Additionally, using a dedicated circuit for charging can prevent overloading household electrical systems.
In conclusion, while 120V chargers are slow, adding only 2-5 kW of power, they remain a practical option for specific use cases. Understanding their limitations and optimizing their use can make them a viable, if not ideal, charging solution for certain EV drivers. For those seeking faster charging, however, upgrading to a Level 2 charger is a worthwhile investment.
Diagnose and Fix Battery Drains in Your Car's Electrical System
You may want to see also
Explore related products
Plug Compatibility: NEMA 5-15 or 5-20 plugs are commonly used for 120V charging
NEMA 5-15 and 5-20 plugs are the unsung heroes of 120V electric vehicle (EV) charging, offering a familiar and widely accessible solution for topping up your battery at home or on the go. These plugs, commonly found in North American households, are rated for 15 and 20 amps, respectively, making them suitable for Level 1 charging—the slowest but most convenient charging option for EVs. While they may not deliver the rapid charging speeds of higher-voltage systems, their compatibility with standard household outlets ensures that EV owners always have a fallback option.
Analyzing the Amperage
A NEMA 5-15 plug, rated at 15 amps, provides approximately 1.8 kW of power (120V × 15A), translating to about 5 miles of range per hour of charging. For occasional use or overnight top-ups, this is often sufficient. However, if you need slightly more power, a NEMA 5-20 plug, rated at 20 amps, delivers 2.4 kW, adding roughly 6-7 miles of range per hour. The key difference lies in the plug’s prong configuration: the 5-20 has a T-shaped neutral prong, while the 5-15 has a straight one. This small detail ensures the higher-amp plug is used safely in compatible outlets.
Practical Tips for Compatibility
Before plugging in, verify your EV’s charging cable is equipped with a NEMA 5-15 or 5-20 connector. Most Level 1 chargers come with a 5-15 plug, but adapters to 5-20 are available for those with dedicated 20-amp circuits. Always check your home’s electrical panel to ensure the outlet is on a dedicated circuit to avoid overloading. For public charging, these plugs are often found in parking garages, hotels, or workplaces, offering a slow but steady charge while you go about your day.
Comparing the Trade-offs
While NEMA 5-15 and 5-20 plugs are convenient, they’re not without limitations. Their low amperage means longer charging times, making them less ideal for daily reliance. For instance, fully charging a 60 kWh battery would take over 30 hours with a 5-15 plug. However, their ubiquity and ease of use make them a reliable backup. If you’re planning a road trip, these plugs can be lifesavers, as they’re far more common than high-power charging stations in remote areas.
Takeaway for EV Owners
Understanding NEMA 5-15 and 5-20 plugs empowers you to make the most of 120V charging. For daily drivers, consider upgrading to a 240V Level 2 charger for faster speeds, but keep these plugs in your toolkit for emergencies or travel. Always prioritize safety by using dedicated circuits and avoiding daisy-chaining appliances on the same outlet. With this knowledge, you’ll navigate the EV charging landscape with confidence, ensuring your vehicle stays charged wherever you go.
Are Battery Electric Vehicles More Cost-Effective Than Traditional Cars?
You may want to see also
Explore related products
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
Safety Considerations: Avoid overloading circuits; use dedicated 15-20 amp circuits for safe charging
Electric vehicle (EV) owners often rely on 120-volt outlets for Level 1 charging, a convenient but slow method that typically draws 12 to 16 amps. While this seems straightforward, the real challenge lies in ensuring the circuit can handle the load without overheating or tripping breakers. A standard household circuit is rated for 15 or 20 amps, but sharing it with other appliances can quickly lead to overloading. For instance, a 12-amp EV charger on a 15-amp circuit leaves only 3 amps for other devices—a margin too slim for safety.
To mitigate risks, dedicate a 15-20 amp circuit exclusively to your EV charger. This ensures the circuit isn’t competing with toasters, microwaves, or vacuum cleaners, which can draw 8 to 12 amps each. A dedicated circuit also prevents nuisance tripping, which occurs when the total load exceeds the circuit’s capacity. For example, a 20-amp circuit allows for a 16-amp charger (80% of the circuit’s rating, as per the National Electrical Code) while leaving a buffer for minor fluctuations.
Overloading circuits isn’t just an inconvenience—it’s a fire hazard. When a circuit carries more current than it’s designed for, the wiring heats up, potentially melting insulation or igniting nearby materials. According to the U.S. Fire Administration, electrical distribution systems are the third leading cause of home fires. By using a dedicated circuit, you eliminate the risk of overloading and ensure the wiring remains within safe temperature limits.
Practical tips include hiring a licensed electrician to install the dedicated circuit, as DIY work can void warranties or violate local codes. Use a charger with built-in safety features like ground fault protection and thermal monitoring. Regularly inspect the outlet and cord for signs of wear, such as discoloration or a burning smell. Finally, avoid daisy-chaining extension cords or power strips, which can introduce additional failure points.
In summary, while 120-volt EV chargers are accessible, their safety hinges on proper circuit management. A dedicated 15-20 amp circuit isn’t just a recommendation—it’s a necessity to protect your home, vehicle, and family. By prioritizing this simple yet critical step, you ensure efficient, worry-free charging for years to come.
Best Places to Buy Pre-Owned Electra Bikes: A Comprehensive Guide
You may want to see also
Frequently asked questions
Most 120-volt electric car chargers (Level 1) draw between 8 and 16 amps, depending on the vehicle and charger configuration.
No, standard 120-volt household outlets are typically rated for 15 or 20 amps, but Level 1 chargers usually operate at 8-16 amps to avoid overloading the circuit.
Charging times vary, but a 120-volt charger delivering 12 amps provides about 3-5 miles of range per hour, making it slower than higher-voltage chargers.
Yes, a 120-volt charger is safe to use with a standard household outlet, provided the circuit is not overloaded and the outlet is in good condition.
No, the amps are limited by the charger’s design and the vehicle’s onboard charger. For faster charging, a higher-voltage (240-volt) Level 2 charger is required.
