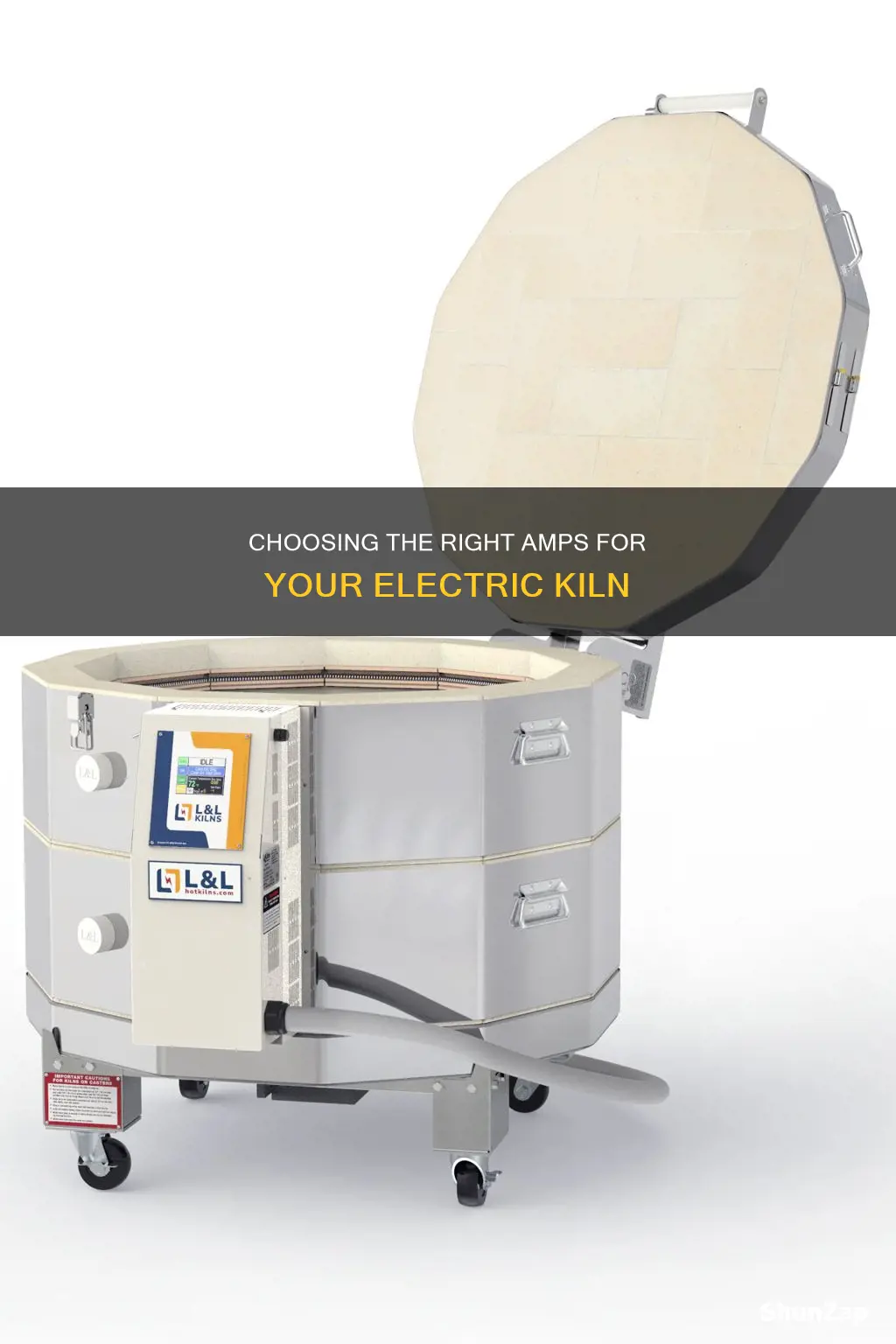

Electric kilns are known for their high electricity requirements, which can be costly. The amount of electricity required by a kiln depends on its size and design. Smaller kilns that operate on a 120-volt standard household outlet typically draw between 1.5 and 1.8 kilowatts, while a medium-sized kiln will draw around 5 kW or 8 kW. Larger kilns require a 240-volt supply, which is not usually available in residential settings. In addition to voltage, kilns also have specific amperage requirements. Amperage refers to the amount of electricity available in a home, with newer homes having around 200 amps available and older homes only having 100 amps. To determine the amperage requirements of a kiln, one must refer to the electrical data plate attached to the side of the control box.
| Characteristics | Values |
|---|---|
| Amperage | 30, 40, 50 amps or more |
| Plug | 6-30, 10-30 |
| Receptacle | 6-30 |
| Breaker | 60 amps |
| Circuit breaker | 20-25% greater than the amperage required on the kiln |
| Kilowatt rating | 1.5 kW |
| Voltage | 208 V, 240 V, 120 V |
| Wire size | Larger wire size than the default size suggested by electricians |
Explore related products
What You'll Learn
Kiln wiring and power supply
The wiring and power supply for an electric kiln can be a complex process, and it is important to ensure that your electrical supply will complement the electrical requirements of your kiln. Here is a guide to help you understand the process:
- Voltage and Amperage Requirements: Before installing a kiln, you need to consider both the voltage and amperage requirements. Most kilns operate on either 208 volts or 240 volts. The amperage requirements can vary, with 208 V and 240 V kilns designed for 30, 40, or 50 amps or more. It is important to note that kilns drawing more than 48 amps typically do not come with plugs and must be wired directly into your power supply.
- Single-Phase vs. Three-Phase: Single-phase power is commonly found in residential applications, while three-phase power is typically used in commercial or industrial settings. A single-phase kiln will run on both single and three-phase power supplies, but a three-phase kiln will only run on a three-phase power supply. If you have three-phase power, you can choose between a single or three-phase kiln.
- Circuit Breaker: The designated circuit breaker in your electrical panel must be 20-25% greater than the amperage required by the kiln. For example, a 48-amp kiln would need a 60-amp breaker. This allows for short surges in power without tripping the breaker or blowing the fuse.
- Wire Size and Gauge: The wire size and gauge are important considerations. Kiln manufacturers often specify a larger wire size than the default size suggested by electricians. Additionally, as the amperage increases, the diameter of the wire must also increase (larger diameter = smaller gauge). Consult with your electrician to determine the correct gauge wire for your kiln's amperage requirements.
- Plug and Receptacle Compatibility: Ensure that the plug on the kiln matches the receptacle. If they do not match, you may need to change the plug or the receptacle. Always be cautious when making these changes, as using a lower-rated plug or receptacle than the circuit's amperage can be dangerous.
- Available Amperage: Calculate the available amperage for your kiln by subtracting the total amperage of your existing breakers from the total amperage available. If you want an exact calculation, you need to consider the amp draw of all appliances running simultaneously with the kiln.
- Location and Power Supply: Consider the location of your kiln and the power supply available. Residential areas typically have single-phase power, while commercial buildings often have three-phase power. Consult an electrician to determine the specific power supply requirements for your location.
In summary, it is essential to consult with a licensed electrician and follow the manufacturer's recommendations to ensure safe and proper wiring and power supply for your electric kiln.
Choosing the Right Electrical Cable Sizes in the UK
You may want to see also
Explore related products
Amperage and voltage
The amperage requirements of a kiln also depend on its size. Smaller kilns that operate on a 120-volt standard household outlet typically draw between 1.5 and 1.8 kilowatts, while a medium-sized kiln will draw around 5 to 8 kilowatts. Larger kilns, such as those used in commercial settings, may require a 240-volt supply, which is not commonly available in residential homes.
When purchasing a kiln, it is essential to match the kiln's voltage and amperage requirements to your electrical system. Most electric kilns are wired for 240-volt or 208-volt power systems, which are typically found in residential settings. Industrial buildings and schools usually have 208-volt service. Test kilns may be wired for 120 volts and are compatible with either 208-volt or 240-volt systems.
It is also important to note that the plug on the kiln must match your receptacle. If they don't match, you may need to change the plug or the receptacle, being careful not to put a plug or receptacle that is lower-rated than the amperage the circuit is expected to carry. Additionally, the diameter of the wire used in the circuit will depend on the number of amps being pulled, with larger diameters required for higher amperage.
In summary, when considering an electric kiln, it is crucial to understand the amperage and voltage requirements of the kiln and ensure that your electrical system can accommodate those needs. Consulting with a licensed electrician is always recommended to ensure a safe and proper installation.
Fixing Fogging Issues in Your Electric Fireplace
You may want to see also
Explore related products
Kiln size and design
When selecting an electric kiln, it is essential to consider its size and design. The kiln's size should be chosen based on the type of items you intend to fire. For instance, smaller kilns, such as those measuring 9 by 11 inches, are ideal for firing beads, doll parts, and other small items. On the other hand, larger kilns, such as those measuring 18 by 18 inches or 23 by 27 inches, are more suitable for pottery and larger pieces. The 23 by 27-inch kiln is the most popular size, accommodating a good number of plates and bowls or taller pots.
The design of the kiln is another crucial aspect. You can choose between a single-piece kiln and a sectional kiln. A single-piece kiln offers the advantage of seamless stainless steel construction, reducing heat loss. However, it may be challenging to move and repair. Sectional kilns, on the other hand, are easier to transport and repair, as they can be easily disassembled. Nevertheless, they may experience slightly higher heat loss due to the absence of stainless steel at the joints.
Additionally, the kiln's design should consider the heating elements used. Common element types include metal sheathed elements, open coil wire elements, heavy gauge wire and strip, and silicon carbide heating rods. The type of element chosen depends on the intended usage and furnace dimensions. For example, pottery kilns typically heat from the sides, while commercially designed kilns for glass often have elements in the roof.
When selecting a kiln, it is also important to match its power requirements with your power supply. Kilns have different voltage and amperage requirements, and an electrician can help ensure your setup is safe and compatible. For example, a 208 V or 240 V kiln may require 30, 40, or 50 amps or more. Kilns with higher amperage requirements may need to be wired directly into your power supply instead of using a plug.
Finally, consider the shape of the kiln, which can be rectangular, round, or oval. This choice depends on the items you intend to fire, ensuring they fit properly.
Electric Blankets: Costly Comfort or Efficient Warmth?
You may want to see also
Explore related products
Circuit breakers
The average electric kiln typically requires a minimum power supply of 240 volts and 30-50 amps, depending on the model. Some kilns may require more amperage, with 240 V kilns designed for 30, 40, 50, or more amps.
When selecting a kiln, it is crucial to consider the available voltage and amperage in your home. Most newer homes have around 200 amps available, while older homes may only have 100 amps. To determine the available amperage for your kiln, subtract the total amperage of your existing breakers from the total amperage available.
To ensure safe and proper usage of your kiln, it is essential to follow these guidelines:
- Verify that your wiring can handle the power requirements of the kiln. If not, you may need to hire an electrician to install a new circuit.
- Ensure that the plug on the kiln matches the receptacle. If they don't match, you may need to change the plug or the receptacle.
- Consult the kiln manufacturer's literature for specific instructions and recommendations.
- Check the designated circuit breaker in your electrical panel. It should be 20-25% greater than the amperage required by the kiln. For example, a 48-amp kiln typically needs a 60-amp breaker.
- If your kiln draws 48 amps or more, it must be wired directly into your power supply, as kilns with such amperage do not come with plugs.
- Always use a circuit with the same voltage and equal or higher amperage rating than what the kiln requires. Using a lower rating may result in constantly tripped breakers or blown fuses, leading to potential safety hazards.
- When using higher amperage, the diameter of the wire in the circuit must also increase. An electrician can advise on the correct gauge wire to use.
By following these guidelines and consulting with a licensed electrician if needed, you can safely and effectively use an electric kiln, ensuring a consistent power supply for your creative endeavours.
Electric Vehicle Charging: Do Hotel Garages Offer 110V Outlets?
You may want to see also
Explore related products
Electricians
First and foremost, safety is paramount. Electricians must exercise caution when dealing with electric kilns to prevent electrical hazards. It is recommended to consult with a licensed electrician and involve them in the process before purchasing a kiln. They can test the electrical service and advise on the voltage and amperage requirements for the kiln. This is especially important as kilns have a reputation for requiring large amounts of electricity, and improper installation can lead to costly consequences.
When it comes to amperage, the available amperage in a residence varies. Newer homes typically have around 200 amps, while older homes may only have 100 amps. To determine the available amperage for a kiln, subtract the total amperage of existing breakers. For precision, consider the amp draw of all appliances that will be used simultaneously with the kiln. If there is any uncertainty, it is best to consult an electrician.
Matching the kiln's plug to the receptacle is essential. If they don't match, it may be necessary to change either the plug or the receptacle. However, caution must be exercised to ensure that the circuit can handle the required amperage. For kilns drawing more than 48 amps, direct wiring into the power supply is usually necessary, bypassing the use of plugs.
The wire size and gauge are also important factors. Kiln manufacturers often recommend larger wire sizes than standard. The diameter of the wire in the circuit is directly proportional to the amperage being pulled. Electricians should select the appropriate gauge based on standard guidelines, but for unique situations, such as long circuits, they may need to adjust the gauge accordingly.
Lastly, voltage requirements differ between residential and commercial settings. Residential electrical services are typically 240 volts, while industrial buildings and schools often use 208-volt systems. Electricians should ensure that the kiln's voltage matches the electrical system. Fluctuations in voltage can impact the kiln's performance and the lifespan of its heating elements.
In conclusion, electricians play a vital role in selecting and installing electric kilns. By following these guidelines and consulting with clients about their needs, electricians can ensure safe and proper kiln installations, matching voltage, phase, and amperage requirements to avoid electrical issues and optimize kiln performance.
Electric Fireplaces vs Space Heaters: Pros, Cons, and Efficiency
You may want to see also
Frequently asked questions
Electric kilns are wired for 240-volt or 208-volt power systems. Kilns that draw more than 48 amps do not come with plugs and must be wired directly into your power supply.
Locate the electrical data plate attached to the side of the kiln's control box to find its volt, phase, amp, and watt capacities.
The cost of firing a kiln depends on the size and design of the kiln, as well as the cost of energy in your region. Smaller kilns that operate on a 120-volt standard household outlet will typically draw between 1.5 and 1.8 kilowatts.
Single-phase kilns are typically found in residential settings, while three-phase kilns are used in commercial/industrial applications.
Yes, it is recommended that you consult a licensed electrician to install your electric kiln and ensure that your electrical system can support it.
