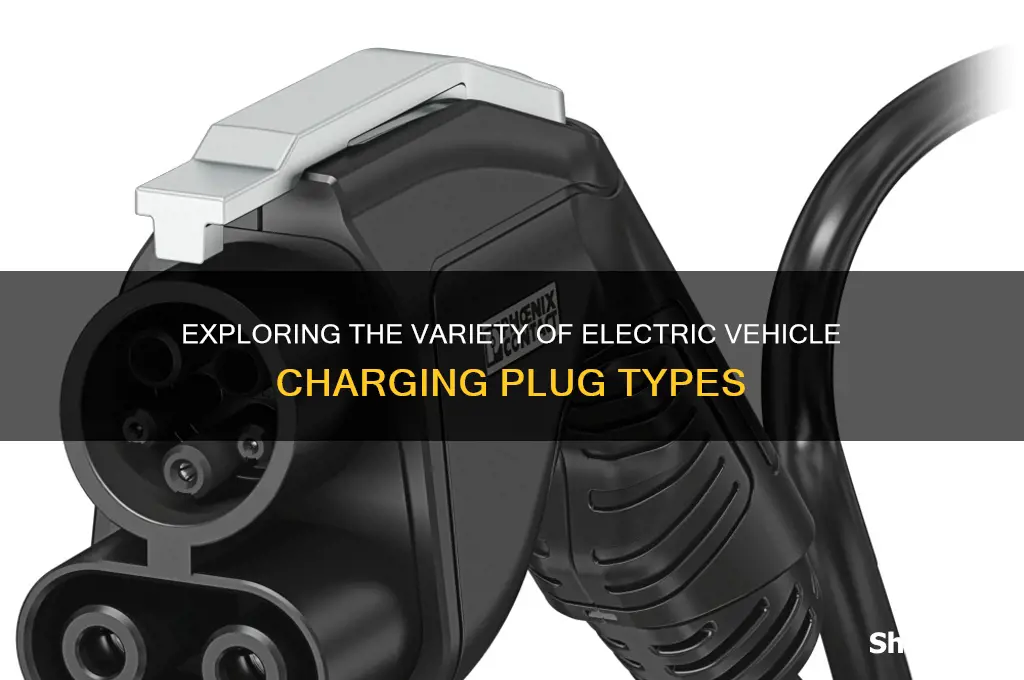

The world of electric vehicles (EVs) has rapidly expanded, bringing with it a variety of charging standards and plug types that can confuse even the most tech-savvy consumers. Currently, there are several different charging plugs for electric cars, primarily categorized into three main types: Type 1 (SAE J1772), Type 2 (Mennekes), and CCS (Combined Charging System), with additional standards like CHAdeMO for fast charging. These variations depend on the region, vehicle manufacturer, and charging speed requirements, making it essential for EV owners to understand which plugs are compatible with their vehicles and the infrastructure available in their area. This diversity in charging plugs highlights both the global adoption of EVs and the ongoing efforts to standardize charging solutions for a seamless driving experience.
| Characteristics | Values |
|---|---|
| Number of Standardized Charging Connectors | 4 |
| Type 1 (SAE J1772) | Primarily used in North America and Japan for AC charging up to 7.4 kW. |
| Type 2 (Mennekes) | Standard in Europe for AC charging up to 22 kW; also used globally. |
| CCS (Combined Charging System) | Combines Type 2 with DC fast charging capability (up to 350 kW); widely used in Europe and North America. |
| CHAdeMO | DC fast charging standard (up to 100 kW) primarily used by Japanese manufacturers like Nissan and Mitsubishi. |
| Tesla Connector | Proprietary connector used by Tesla vehicles for both AC and DC charging (up to 250 kW). |
| GB/T (China) | Standard in China for AC and DC charging (up to 250 kW); not widely used outside China. |
| Total Unique Plugs (Including Regional Variants) | 6 |
| Most Common Global Standards | Type 2, CCS, CHAdeMO, Tesla Connector |
| Regional Dominance | Type 2/CCS in Europe, Type 1/CCS in North America, GB/T in China, CHAdeMO in Japan. |
| Emerging Trends | Increased adoption of CCS globally, phase-out of CHAdeMO in favor of CCS. |
Explore related products
What You'll Learn
- Type 1 vs Type 2 Connectors: Differences in design, compatibility, and usage regions for AC charging
- CCS vs CHAdeMO Standards: Comparison of DC fast-charging protocols and their global adoption
- Tesla Supercharger Network: Proprietary charging system, exclusivity, and adapter compatibility
- Domestic vs Public Charging Plugs: Variations in plug types for home versus public stations
- Future Plug Standards: Emerging technologies and potential universal charging solutions
Type 1 vs Type 2 Connectors: Differences in design, compatibility, and usage regions for AC charging
Electric vehicle (EV) charging connectors are not one-size-fits-all. Among the various types, Type 1 and Type 2 connectors stand out for AC charging, each with distinct designs, compatibility profiles, and regional preferences. Understanding these differences is crucial for EV owners navigating public charging stations or planning home charging setups.
Design and Functionality: Type 1 connectors, also known as SAE J1772 connectors, feature a five-pin design, with four pins for power and one for communication. This design allows for single-phase AC charging, typically up to 7.4 kW. In contrast, Type 2 connectors, also known as Mennekes connectors, have a more versatile seven-pin design, enabling both single-phase and three-phase AC charging, with power levels ranging from 3.7 kW to 22 kW. The additional pins in Type 2 connectors facilitate faster charging and support for higher power levels, making them a preferred choice for many modern EVs.
Compatibility and Vehicle Support: Type 1 connectors are predominantly used in North America and Japan, where they are the standard for AC charging. Many early EV models, such as the Nissan Leaf and Chevrolet Volt, are equipped with Type 1 inlets. However, Type 2 connectors have gained widespread adoption in Europe, Australia, and New Zealand, becoming the de facto standard for AC charging in these regions. Most European EV manufacturers, including Volkswagen, BMW, and Renault, design their vehicles with Type 2 inlets, ensuring compatibility with the local charging infrastructure.
Regional Usage and Infrastructure: The choice between Type 1 and Type 2 connectors often depends on regional regulations and infrastructure development. In North America, Type 1 connectors dominate the AC charging landscape, with over 80% of public charging stations equipped with this type. In contrast, Europe has seen a rapid expansion of Type 2 charging infrastructure, with many countries mandating its use in new charging station installations. As of 2023, there are approximately 250,000 Type 2 charging points across Europe, compared to around 50,000 Type 1 charging points in North America.
Practical Considerations for EV Owners: When traveling or purchasing an EV, it's essential to consider the compatibility of your vehicle's inlet with the local charging infrastructure. For instance, a European EV with a Type 2 inlet may require an adapter to charge at a Type 1 station in North America. Conversely, a North American EV with a Type 1 inlet may not be compatible with Type 2 stations in Europe without an adapter. To avoid inconvenience, EV owners should research the charging standards in their destination countries and invest in suitable adapters if necessary.
Future Trends and Standardization: As the global EV market continues to grow, there is a push towards standardization of charging connectors to simplify infrastructure development and enhance user experience. The Combined Charging System (CCS), which combines AC Type 2 connectors with DC fast-charging capabilities, is gaining traction as a universal standard. However, Type 1 connectors are likely to remain prevalent in North America and Japan for the foreseeable future, while Type 2 connectors will continue to dominate AC charging in Europe and other regions. By understanding the differences between Type 1 and Type 2 connectors, EV owners can make informed decisions about their charging needs and contribute to the widespread adoption of electric mobility.
Does Leaving Your Car Window Open Drain Electricity?
You may want to see also
Explore related products
CCS vs CHAdeMO Standards: Comparison of DC fast-charging protocols and their global adoption
The electric vehicle (EV) charging landscape is fragmented, with multiple plug types and standards complicating interoperability. Among these, the CCS (Combined Charging System) and CHAdeMO standards dominate DC fast-charging, yet their differences in design, capabilities, and adoption highlight a critical divide in the industry. Understanding these protocols is essential for EV owners, manufacturers, and infrastructure developers navigating the global shift to electric mobility.
Technical Differences and Capabilities
CCS, developed by a consortium including European and U.S. automakers, combines AC and DC charging in a single connector, supporting up to 350 kW. Its modular design allows for future upgrades, making it adaptable to evolving EV technology. CHAdeMO, pioneered by Japanese manufacturers like Nissan and Mitsubishi, uses a dedicated DC connector with a maximum output of 400 kW in its latest version (CHAdeMO 3.0). While CHAdeMO offers higher power potential, its separate AC/DC ports and larger physical size make it less streamlined than CCS. For instance, charging a Nissan Leaf (CHAdeMO) versus a Volkswagen ID.4 (CCS) requires different infrastructure, despite both being fast-charging-capable EVs.
Global Adoption and Market Dynamics
CCS has emerged as the dominant standard in Europe and North America, backed by policy mandates and widespread infrastructure deployment. The European Union’s requirement for CCS compatibility in all new EV charging stations and Tesla’s adoption of CCS adapters in North America have accelerated its growth. CHAdeMO, however, maintains a stronghold in Japan and parts of Asia, where early EV adoption favored its technology. In regions like Norway, CCS accounts for over 90% of fast-charging stations, while Japan’s CHAdeMO network exceeds 10,000 units. This geographic split underscores the influence of regional policies and early market entrants on standard adoption.
Interoperability Challenges and Future Outlook
The divide between CCS and CHAdeMO creates practical challenges for EV drivers, particularly in regions with mixed infrastructure. For example, a CHAdeMO-equipped vehicle cannot charge at a CCS-only station without an adapter, which is often unavailable or inefficient. Efforts to bridge this gap include bi-standard chargers (supporting both CCS and CHAdeMO) and initiatives like the CHAdeMO-CCS adapter project. However, the long-term trend favors CCS due to its broader industry support and integration with emerging technologies like vehicle-to-grid (V2G) systems. Manufacturers like Toyota, historically a CHAdeMO advocate, are now transitioning to CCS for their global EV lineup, signaling a potential consolidation around the latter standard.
Practical Considerations for EV Owners
When purchasing an EV, verify its charging compatibility and the availability of fast-charging stations along your frequent routes. For CCS-equipped vehicles, apps like PlugShare or ChargePoint provide real-time station locations and availability. CHAdeMO users should prioritize routes with established networks, particularly in Asia. If traveling internationally, research adapter options or plan routes with bi-standard chargers. For long-term planning, consider the standard’s growth trajectory: CCS’s dominance in major markets suggests greater future-proofing, while CHAdeMO remains viable in specific regions.
In the battle of CCS vs CHAdeMO, the former’s versatility and industry backing position it as the likely global standard, but CHAdeMO’s legacy ensures its relevance in key markets. As the EV ecosystem evolves, understanding these protocols empowers stakeholders to make informed decisions in a rapidly changing landscape.
Reduce Mustang Electric Fan Speed: Tips and Tricks for Optimal Performance
You may want to see also
Explore related products
Tesla Supercharger Network: Proprietary charging system, exclusivity, and adapter compatibility
The Tesla Supercharger Network stands as a testament to the company’s commitment to vertical integration, offering a proprietary charging system designed exclusively for Tesla vehicles. Unlike standardized charging connectors such as CCS (Combined Charging System) or CHAdeMO, Tesla’s Superchargers use a unique plug, creating a closed ecosystem. This exclusivity ensures seamless compatibility and high-speed charging for Tesla owners but also raises questions about interoperability in the broader EV landscape. While Tesla has made strides in opening its network to non-Tesla vehicles in some regions, the proprietary nature of its system remains a defining feature.
For Tesla owners, the Supercharger Network provides unparalleled convenience, with over 50,000 Superchargers globally, strategically placed along highways and in urban areas. These chargers deliver up to 250 kW of power, enabling vehicles like the Model S Plaid to recover up to 200 miles of range in just 15 minutes. However, this efficiency comes with a trade-off: non-Tesla EV owners cannot access the network without an adapter, and even then, compatibility is limited. Tesla’s decision to maintain a proprietary system highlights its focus on controlling the user experience, from vehicle design to charging infrastructure.
Adapters have emerged as a partial solution to bridge the gap between Tesla’s proprietary system and other EVs. Tesla offers a CCS Combo 1 adapter for its North American vehicles, allowing access to third-party CCS chargers. Conversely, non-Tesla owners can use a Tesla-to-CCS adapter to utilize Superchargers, though this requires additional hardware and may not support the full charging speed. These adapters, while functional, underscore the fragmentation in EV charging standards and the challenges of achieving universal compatibility.
From a strategic perspective, Tesla’s proprietary approach has both advantages and drawbacks. On one hand, it fosters brand loyalty by offering a seamless, high-performance charging experience exclusive to Tesla owners. On the other hand, it risks alienating potential customers who prioritize interoperability and may opt for vehicles compatible with more widely accepted standards like CCS. As the EV market evolves, Tesla’s decision to gradually open its network suggests a recognition of the need for greater collaboration, even as it maintains its proprietary edge.
For EV owners navigating this landscape, understanding Tesla’s Supercharger Network and its compatibility nuances is essential. Tesla drivers benefit from a robust, dedicated charging infrastructure, while non-Tesla owners should invest in adapters or plan routes around non-proprietary charging stations. As the industry moves toward standardization, Tesla’s proprietary system serves as a case study in the balance between innovation, exclusivity, and interoperability. Whether this approach remains sustainable in the long term will depend on how Tesla adapts to growing calls for a unified charging ecosystem.
Are Spark Plugs Electrical? Understanding Their Role in Your Car
You may want to see also
Explore related products
Domestic vs Public Charging Plugs: Variations in plug types for home versus public stations
Electric vehicle (EV) owners quickly learn that not all charging plugs are created equal, especially when comparing domestic and public charging options. At home, most drivers opt for Level 2 chargers, which use either the J1772 connector in North America or the Type 2 connector in Europe. These plugs are designed for slower, overnight charging and are compatible with nearly all EVs sold in their respective regions. Public charging stations, however, often feature a wider variety of plug types, including CCS (Combined Charging System) and CHAdeMO for fast DC charging. This disparity highlights the need for standardization as EV adoption grows.
Consider the practical implications for drivers. If you own a Tesla, for instance, you’ll encounter Tesla’s proprietary connector at their Supercharger stations, which requires an adapter for non-Tesla EVs. Public stations frequently offer multiple plug types to accommodate diverse vehicles, but this variety can lead to confusion. Domestic charging, on the other hand, is straightforward—install a compatible wall charger, and you’re set. The key takeaway? While home charging prioritizes simplicity and compatibility, public charging demands flexibility and awareness of your vehicle’s specific needs.
From an analytical perspective, the difference in plug types reflects the distinct purposes of domestic and public charging. Home chargers focus on convenience and cost-effectiveness, delivering 3.7 to 7.7 kW, ideal for daily replenishment. Public stations, particularly DC fast chargers, prioritize speed, offering up to 350 kW but requiring more complex connectors to handle high power levels. This duality underscores the trade-off between accessibility and performance in EV infrastructure.
For those navigating this landscape, here’s a practical tip: invest in a portable adapter kit that includes CCS, CHAdeMO, and Type 2 connectors. This ensures compatibility across most public stations, especially when traveling. Additionally, familiarize yourself with your EV’s charging port specifications—knowing whether your vehicle supports AC or DC charging can save time and frustration. As the industry moves toward unified standards like the NACS (North American Charging Standard), staying informed will remain crucial for seamless charging experiences.
In conclusion, the variation in plug types between domestic and public charging stations is a reflection of their distinct roles in the EV ecosystem. While home charging emphasizes simplicity and compatibility, public charging demands versatility and speed. By understanding these differences and preparing accordingly, EV owners can navigate the charging landscape with confidence, ensuring they’re always powered up for the road ahead.
Ford's Electric Vehicle Future: Discontinuation Decision Explored
You may want to see also
Explore related products
Future Plug Standards: Emerging technologies and potential universal charging solutions
The current landscape of electric vehicle (EV) charging plugs is fragmented, with multiple standards like CCS, CHAdeMO, and Tesla’s proprietary connector dominating regional markets. This diversity creates inefficiencies for drivers, manufacturers, and infrastructure developers. However, emerging technologies are paving the way for a more unified future. One such innovation is the Combined Charging System (CCS) 2.0, which supports higher power levels (up to 1 megawatt) and bidirectional charging, enabling EVs to not only draw power but also feed it back into the grid. This advancement positions CCS as a frontrunner for a universal standard, particularly in Europe and North America.
Another transformative technology is wireless charging, which eliminates the need for physical plugs altogether. Companies like WiTricity and Momentum Dynamics are developing systems that allow EVs to charge simply by parking over a pad embedded in the ground. While still in its infancy, wireless charging could revolutionize public and home charging infrastructure, reducing wear and tear on physical connectors and streamlining the user experience. However, widespread adoption will depend on standardization and cost reductions, as current systems are significantly more expensive than traditional wired solutions.
A third area of innovation is plug-and-charge technology, which automates the payment and authentication process for EV charging. By integrating secure communication protocols into charging connectors, drivers can simply plug in their vehicle without needing to swipe a card or use an app. This technology, already supported by the ISO 15118 standard, enhances convenience and could accelerate the transition to a universal charging ecosystem. Its success hinges on interoperability between charging networks and vehicle manufacturers, a challenge that industry consortia are actively addressing.
Despite these advancements, achieving a truly universal charging solution requires global collaboration. Regional preferences and existing investments in specific standards create inertia, but initiatives like the CHAdeMO-CCS interoperability agreement demonstrate progress. Policymakers and industry leaders must prioritize harmonization efforts, ensuring that emerging technologies are designed with compatibility in mind. For instance, the European Union’s mandate for all new EVs to support CCS by 2025 sets a precedent for other regions to follow.
In practical terms, EV owners can future-proof their purchases by prioritizing vehicles with CCS compatibility and staying informed about local charging infrastructure developments. Businesses investing in charging stations should consider modular designs that can accommodate wireless or plug-and-charge upgrades. As the industry converges on a few dominant standards, early adopters of these technologies will be well-positioned to lead the transition to a more efficient, user-friendly EV ecosystem. The path to universality is clear, but it requires collective action and forward-thinking strategies.
Do Cars Need Electricity? Exploring Modern Vehicle Power Requirements
You may want to see also
Frequently asked questions
There are three main types of charging plugs for electric cars: Type 1 (SAE J1772), Type 2 (Mennekes), and CCS (Combined Charging System). Additionally, Tesla uses its proprietary connector, and CHAdeMO is another common standard, primarily used by Japanese manufacturers.
No, compatibility depends on the plug type and the charging station. Most stations in Europe use Type 2, while North America primarily uses Type 1. Fast-charging stations often support CCS or CHAdeMO, but adapters can sometimes be used for cross-compatibility.
Tesla vehicles come with an adapter that allows them to use non-Tesla charging stations with Type 2 or CCS connectors. However, Tesla Superchargers are exclusive to Tesla vehicles unless adapters are provided for non-Tesla EVs in certain regions.
