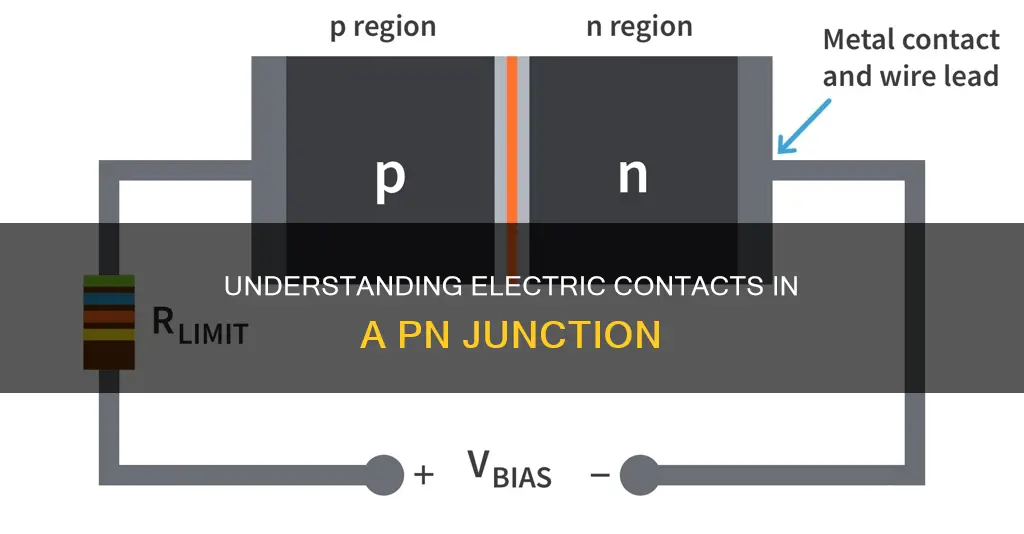

A p–n junction is a combination of two types of semiconductor materials, p-type and n-type, in a single crystal. The n (negative) side contains freely moving electrons, while the p (positive) side contains freely moving electron holes. Connecting the two materials creates a depletion region near the boundary, allowing electric current to pass through the junction in only one direction. This property makes the p–n junction extremely useful in modern semiconductor electronics. The number of electric contacts in a p–n junction is two, with one contact on each side of the junction.
| Characteristics | Values |
|---|---|
| Definition | A p–n junction is a combination of two types of semiconductor materials, p-type and n-type, in a single crystal |
| P-type | Positive side with an excess of holes |
| N-type | Negative side with an excess of electrons |
| Formation | Doping one side of a single semiconductor piece to be n-type and the other side to be p-type |
| Diffusion | Movement of holes from the p-side to the n-side, and electrons from the n-side to the p-side |
| Drift | Movement of electrons from the p-side to the n-side due to the electric field |
| Biasing | Three conditions: zero bias, forward bias, and reverse bias |
| Forward bias | Positive terminal connected to the p-type, negative terminal connected to the n-type |
| Reverse bias | Negative terminal connected to the p-type, positive terminal connected to the n-type |
| Applications | Rectifiers, Zener diodes for voltage regulation, switches in complex circuits, photodiodes, LEDs |
| Electrical conductivity | Between that of a conductor and an insulator; decreases with increasing temperature |
| Built-in voltage | Typically around 0.6V |
Explore related products
What You'll Learn
P-type and N-type semiconductor materials
A p–n junction is a combination of two types of semiconductor materials, p-type and n-type, in a single crystal. The "n" (negative) side contains freely moving electrons, while the "p" (positive) side contains freely moving electron holes. The p-type and n-type semiconductor materials are simply semiconductors, such as silicon (Si) or germanium (Ge), with atomic impurities. The process of purposefully introducing these impurities to materials is called doping, and semiconductors with impurities are referred to as "doped semiconductors". The type of impurity present determines the type of semiconductor.
The difference between N-type and P-type semiconductors is the primary material used to create the chemical reaction during doping. Depending on the material used, the outer orbital will have either five or three electrons, making one negatively charged (N-type) and the other positively charged (P-type). Phosphorus or arsenic are the materials added to create an N-type semiconductor. These have five electrons in their outer orbital, while the crystal has four. This means that one electron has nothing to bond with, so it moves around freely, increasing the flow of electrical current through the silicon. On the other hand, P-type semiconductors have gallium or boron added as a catalyst, both of which only have three electrons in their outer orbitals. Adding these materials results in 'holes' being formed in the silicon atoms' valence band, making the electrons mobile.
When the N-type semiconductor and P-type semiconductor materials are first joined together, a very large density gradient exists between both sides of the PN junction. This results in some of the free electrons from the donor impurity atoms migrating across the junction to fill up the holes in the P-type material. This charge transfer of electrons and holes across the PN junction is known as diffusion. The width of these P and N layers depends on how heavily each side is doped with acceptor density NA and donor density ND, respectively. This process continues back and forth until the number of electrons that have crossed the junction creates a large enough electrical charge to repel or prevent any more charge carriers from crossing over.
In forward bias, the p-type is connected with a positive electrical terminal and the n-type is connected with a negative terminal. Electrons can easily flow through the junction from n to p but not from p to n, and the reverse is true for positive charge carriers (electron holes). When the p–n junction is forward-biased, charge carriers flow freely due to the reduction in energy barriers seen by electrons and holes. When the p–n junction is reverse-biased, however, the junction barrier (and therefore resistance) becomes greater and charge flow is minimal.
The End of Electricity: Apocalypse Survival Guide
You may want to see also
Explore related products
Electric current flow in one direction
A p–n junction is a combination of two types of semiconductor materials, p-type and n-type, in a single crystal. The "n" (negative) side contains freely moving electrons, while the "p" (positive) side contains freely moving electron holes. The p–n junction is extremely useful in modern semiconductor electronics.
When the p–n junction is forward-biased, charge carriers flow freely due to the reduction in energy barriers seen by electrons and holes. In forward bias, the p-type is connected with a positive electrical terminal and the n-type is connected with a negative terminal. The built-in electric field at the p–n junction and the applied electric field are in opposite directions. This results in a less resistive and thinner depletion region. The depletion region’s resistance becomes negligible when the applied voltage is large. In silicon, at the voltage of 0.6 V, the resistance of the depletion region becomes completely negligible, and the current flows across it unimpeded.
The forward bias causes a force on the electrons, pushing them from the N side toward the P side. With forward bias, the depletion region is narrow enough that electrons can cross the junction and inject into the p-type material. However, they do not continue to flow through the p-type material indefinitely, because it is energetically favorable for them to recombine with holes. The average length an electron travels through the p-type material before recombining is called the diffusion length, and it is typically on the order of micrometers. Although the electrons penetrate only a short distance into the p-type material, the electric current continues uninterrupted because holes (the majority carriers) begin to flow in the opposite direction.
The transfer of electrons and holes back and forth across the p–n junction is known as diffusion. The width of these P and N layers depends on how heavily each side is doped with acceptor density NA, and donor density ND, respectively. This process continues back and forth until the number of electrons that have crossed the junction has a large enough electrical charge to repel or prevent any more charge carriers from crossing over the junction.
The p–n junction diode is one of the simplest semiconductor devices around, and it has the electrical characteristic of passing current through itself in one direction only.
Calculating Electrical Usage: Understanding Mass Consumption
You may want to see also
Explore related products
Diffusion of electrons and holes
A p-n junction is formed by combining two types of semiconductor materials, p-type and n-type, in a single crystal. The "n" (negative) side contains freely moving electrons, while the "p" (positive) side contains freely moving electron holes. When these two materials are connected, a depletion region is created near the boundary as the free electrons fill the available holes, allowing electric current to pass through the junction in only one direction. This combination of p-type and n-type semiconductors is the simplest case of a semiconductor electronic device, and it is known as a diode.
Now, let's delve into the diffusion of electrons and holes in the p-n junction:
When the p-type and n-type materials are joined, a diffusion process occurs due to the concentration gradient across the p and n sides. This diffusion involves the movement of electrons and holes across the p-n junction. Electrons from the n-type material migrate to the p-type material, filling the holes created by the absence of electrons in the p-type material. Simultaneously, holes from the p-type material move to the n-type material, combining with the free electrons present there. This exchange of electrons and holes leads to the formation of an electric field at the junction.
The diffusion process results in the creation of space-charge regions on both sides of the junction. On the n-type side, the diffusion of electrons to the p-type side leaves behind positively charged donor ions, forming a positive space-charge region. Conversely, on the p-type side, the diffusion of holes to the n-type side creates negatively charged acceptor ions, resulting in a negative space-charge region. These space-charge regions contribute to the formation of the depletion region near the junction.
The electric field generated by the space-charge regions opposes the further diffusion of charge carriers. This opposition leads to a state of equilibrium, where the potential difference across the junction prevents the flow of charge carriers, maintaining electrical neutrality. The width of the depletion region and the strength of the electric field depend on the doping levels of the p-type and n-type materials.
The diffusion of electrons and holes is essential for the functioning of the p-n junction diode. It allows for the flow of current in one direction, from the p-type to the n-type material, and creates the potential barrier that rectifies the current-voltage characteristics of the diode. The diffusion process is also influenced by the forward bias or reverse bias condition of the p-n junction. In forward bias, the depletion region is narrow, allowing electrons to cross the junction, while in reverse bias, the depletion region widens, hindering the flow of charge carriers.
Braun Electric Toothbrushes: What Powers Their Performance?
You may want to see also
Explore related products
Forward and reverse bias
A p-n junction diode is a combination of two types of semiconductor materials, p-type and n-type, in a single crystal. The "n" (negative) side contains freely moving electrons, while the "p" (positive) side contains freely moving electron holes. The p-n junction diode can be forward-biased or reverse biased, depending on the voltage potential connections.
Forward biasing occurs when the voltage across a diode permits the natural flow of current. In this case, the p-type is connected with a positive electrical terminal and the n-type is connected with a negative terminal. This reduces the strength of the potential barrier of the electric field across the potential, allowing current to flow more easily across the junction.
Reverse biasing, on the other hand, denotes a voltage across the diode in the opposite direction, which does not produce any significant flow of current. During reverse biasing, the voltage potential connections are reversed, with the positive terminal connected to the n-type material and the negative terminal connected to the p-type material. This increases the potential barrier, impeding the flow of charge carriers and causing the diode to act as an insulator or open circuit.
Zero bias is a third condition where there is no external voltage potential applied to the diode, and the diode exhibits electrically neutral behaviour.
The forward and reverse biasing conditions give the diode the ability to function as two separate components. The application of these biases can be used to change alternating current (AC) into direct current (DC) and for electronic signal control.
The Evolution of Trains: Diesel vs. Electric Power
You may want to see also
Explore related products
![WD-40 Specialist Contact Cleaner Spray, 11 oz. [6-PACK]](https://m.media-amazon.com/images/I/91BFits2CDL._AC_UY218_.jpg)
Applications in electronics
PN junctions are integral to modern semiconductor electronics. In its simplest form, a PN junction is a diode, allowing current to pass through it in one direction only. This is achieved by connecting the P-type and N-type semiconductors to a circuit.
The diode can be forward-biased or reverse-biased. In the forward-biased state, the positive terminal is connected to the P-type, and the negative terminal is connected to the N-type. This state allows for the free flow of charge carriers due to reduced energy barriers. This is used in LED lighting applications and as a voltage-controlled oscillator in varactors. In the reverse-biased state, the junction barrier increases resistance, and the charge flow is minimal.
More complex circuit components can be created by combining P-type and N-type semiconductors in different ways. For example, the bipolar junction transistor (BJT) is a semiconductor in the form of NPN or PNP. These semiconductors can be combined on a single chip to create integrated circuits.
The PN junction diode can also be used as a rectifier in electric circuits. When a forward biasing voltage is applied to the diode, the depletion layer becomes thin and narrow, creating a low impedance path and allowing high currents to flow. This is known as the "knee" point, where the diode can conduct infinite current and, therefore, resistors are used to limit the current flow.
Additionally, the PN junction diode can be used in voltage-stabilizing circuits. When a sufficiently high reverse bias voltage is applied, the diode's PN junction overheats and fails due to the avalanche effect, causing a short circuit. By using a series-limiting resistor, this effect can be utilized to produce a fixed voltage output across the diode, resulting in what is known as a Zener Diode.
The Evolution of Electric Fans: From Humble Beginnings to..
You may want to see also
Frequently asked questions
A PN junction is a combination of two types of semiconductor materials, P-type and N-type, in a single crystal. The "P" side has an excess of holes, while the N-side has an excess of free-moving electrons.
PN junctions are formed by joining or fusing P-type and N-type semiconductor materials. The process of doping one side of a single semiconductor piece to be N-type and the other side to be P-type is commonly used.
In forward bias, the P-type is connected to the positive terminal, and the N-type is connected to the negative terminal. This results in a less resistive depletion region, allowing current to flow freely through the junction.
PN junctions have various applications in electronics, including rectifiers, voltage regulation in circuits using Zener diodes, and as switches to turn on and off small circuits within a larger circuit. They are also used in LEDs and photodiodes.
