Umair Gaines
Determining how many electrical devices can be safely connected to a single circuit is a complex task that depends on several factors. The number of outlets matters far less than what those outlets are used for. Each electrical device has a wattage requirement, and the total wattage draw of all devices connected to a circuit should not exceed the capacity of that circuit. This capacity is typically 15-20 amps for a common household circuit. Overloading a circuit can lead to issues such as dimming or flickering lights, warm electrical outlets, and even fire hazards. To prevent overloading, it is recommended to evaluate the power requirements of the devices and ensure that the circuit does not exceed 80% of its capacity. Additionally, certain appliances, such as dryers, dishwashers, and heaters, may require their own dedicated circuit. Proper planning, considering power requirements, and seeking professional advice can help ensure safe and efficient electrical connections in homes and other spaces.
Explore related products
What You'll Learn
- The number of outlets/devices is less important than their power usage
- Plan room-by-room, factoring in the number of devices and their wattage
- Large appliances like dryers may need their own circuit
- The number of outlets on a circuit varies by room and their function
- A circuit breaker shouldn't exceed 80% of capacity for safety
The number of outlets/devices is less important than their power usage
The number of electrical devices that can be plugged into a single circuit depends on the power requirements of those devices. Outlets themselves do not draw power, but when devices are plugged into them, they start transmitting electrical current.
The National Electrical Code's guidelines do not specify a limit to the number of outlets that can be installed on a single circuit. This is because the number of outlets matters less than what those outlets are used for. It is important to balance large and small devices, as larger appliances like dryers and dishwashers require their own circuit.
When planning your electrical layout, it is crucial to consider the wattage required by each device and calculate the remaining capacity of the circuit. This will help determine how many more outlets can be safely installed. For example, in a home office with low power demands, additional wall boxes can be installed without significantly impacting power consumption. On the other hand, high-power appliances like washing machines should have dedicated circuits.
To avoid overloading a circuit, it is recommended to stagger device usage and monitor the number of devices plugged into an outlet or extension cord. It is also important to know your circuit breaker's amperage rating to ensure you do not exceed it. By planning for realistic usage and understanding power requirements, you can ensure safe and efficient operation without solely focusing on the number of outlets or devices.
Electric Forest: Age Limit or Festival Fun for All?
You may want to see also
Explore related products
Plan room-by-room, factoring in the number of devices and their wattage
When planning the electrical layout of your home, it's essential to take a room-by-room approach and consider the number and type of electrical devices in each room, as well as their wattage requirements. This careful planning will ensure that your circuits can handle the electrical load and prevent issues like constant tripping of circuit breakers.
Let's start with the high-power consumption rooms, such as the kitchen and laundry room. These rooms typically have large appliances that require their own dedicated circuits. For instance, an electric range/oven, dishwasher, and garbage disposal should each have a dedicated 120/240-volt circuit. Similarly, a refrigerator and microwave need their own 120-volt circuits. In the laundry room, an electric dryer needs a dedicated 30-amp, 240-volt circuit, while a washing machine can be plugged into a 20-amp circuit.
Now, let's discuss standard living areas like the living room and bedrooms. These areas generally have lower power requirements and can be served by standard 120-volt 15-amp or 20-amp circuits. Lights and outlets in these rooms can often share the same circuit, but it's important to keep the lights and receptacles on different circuits to avoid issues like dimming lights when using high-power devices.
When it comes to bathrooms, electrical codes are very specific due to safety concerns. Ideally, bathrooms should have two circuits: a 20-amp circuit for receptacles and a 15-amp or 20-amp circuit for lighting. Vent fans with built-in heaters must be on dedicated 20-amp circuits, and all receptacles should have ground-fault circuit-interrupter (GFCI) protection.
Lastly, don't forget about special cases like outdoor receptacles, which must be on dedicated circuits. Also, consider the number of people in your household and their daily routines when estimating power needs. By taking a room-by-room approach and factoring in device wattage, you can ensure a safe and efficient electrical layout for your home.
Electric Wheelchairs: NHS Availability and Access
You may want to see also
Explore related products
Large appliances like dryers may need their own circuit
The number of electrical devices that can be plugged into a single circuit depends on the power requirements of those devices. Outlets themselves do not draw power, but when devices are plugged into them, they start transmitting electrical current. Therefore, it is important to consider the power requirements of the devices that will be plugged into a circuit.
Large appliances like dryers, washers, dishwashers, and refrigerators require a lot of energy and need a dedicated circuit. Electric dryers, for example, require a dedicated 20-amp, 220-volt circuit. This is because they have high-powered motors and heating elements that need a dedicated power source to prevent overloading the electrical system.
Additionally, certain areas of the home, like the laundry room, should have a dedicated circuit to handle the high energy requirements of these appliances. Similarly, the dining room might need a dedicated circuit, especially if it is adjacent to the kitchen, due to the higher power requirements of kitchen appliances.
It is important to follow safety guidelines when determining how many devices can be plugged into a circuit. The National Electrical Code (NEC) requires that large appliances and certain smaller ones operate on their own dedicated circuits to prevent fire hazards. It is recommended that no circuit exceeds 80% of its capacity for safe and efficient operation.
Electrical Design Certification: Steps to Success
You may want to see also
Explore related products
The number of outlets on a circuit varies by room and their function
The number of electrical devices that can be supported on a single circuit depends on the total power consumption of those devices, rather than the number of outlets. Outlets themselves do not draw power, and it is only when devices are plugged into them that they transmit an electrical current.
Therefore, the number of outlets on a circuit varies by room and their function. For example, in a home office, where the demand for electrical power is generally low, more wall boxes can be added without a significant impact on power consumption. Similarly, in areas with low electrical demands, such as bedrooms and attics, combining circuits can be practical, allowing for more outlets without increasing the electrical load.
On the other hand, power-intensive appliances like heaters, dryers, and dishwashers require a dedicated circuit to supply their power needs exclusively. This is also true for certain areas of the house, such as the dining room, if it is adjacent to high-demand areas like the kitchen.
The National Electrical Code's guidelines do not specify a limit to the number of outlets on a single circuit, but it is important to ensure that no circuit exceeds 80% of its capacity for safe and efficient operation. This means that the number of outlets on a circuit should be based on an estimation of the simultaneous power draw from all the devices that will be plugged in.
Additionally, it is worth noting that some devices, such as sump/sewage pumps, furnaces, and window air conditioners, are recommended to be on separate circuits.
Renting and Utilities: Who Pays for Oil and Electric?
You may want to see also
Explore related products

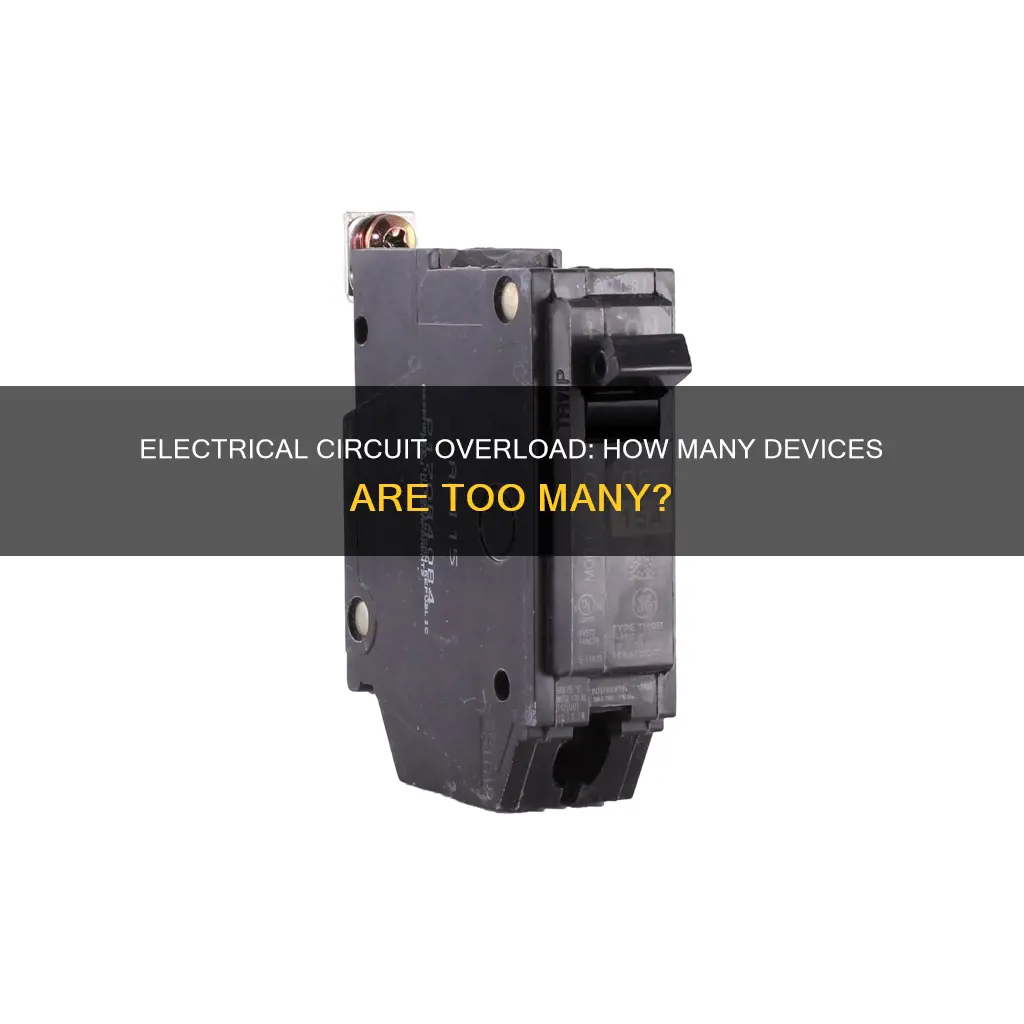

A circuit breaker shouldn't exceed 80% of capacity for safety
The number of electrical devices that can be plugged into a single circuit depends on the power requirements of the devices in question. The National Electrical Code's guidelines do not specify a limit to the number of outlets that can be installed on a single circuit. This is because the number of outlets matters less than what those outlets are used for.
When planning your electrical layout, it is important to evaluate the expected appliance usage and the electrical load they will produce. Large appliances like dishwashers, dryers, and heaters require a dedicated circuit that serves their power needs exclusively. On the other hand, in spaces with generally low power requirements, such as a home office, more wall boxes can be added without significantly impacting power consumption.
To ensure safe and efficient operation, it is recommended that a circuit breaker should not exceed 80% of its capacity. This is often referred to as the "80% rule". However, it is important to note that this is not a strict rule, but rather a shorthand term used by professionals. The actual capacity of a circuit breaker depends on the continuous load it can handle, which is the maximum current that can be sustained for three hours or more.
To accommodate continuous loads, a breaker must have an additional 25% capacity above the manufacturer's rating. This means that a 100% rated circuit breaker can handle the full rated current, while an 80% rated breaker would need to be sized up to accommodate the additional load. In practice, this often means selecting a larger and more expensive breaker to ensure safety.
Electricity Plans: Who Offers the Lowest Rates?
You may want to see also
Frequently asked questions
The number of devices you can connect to a single circuit depends on the power requirements of the devices. Devices with higher power requirements, such as heaters and dryers, will need an outlet to themselves, while devices with lower power requirements, such as lightbulbs or computers, can share an outlet with other devices. It's important to ensure that the total power requirements of all the devices connected to a circuit do not exceed the circuit's capacity.
Overloaded circuits can pose a risk of fire and electric shock. Signs of an overloaded circuit include dimming or flickering lights when appliances are turned on, warm electrical outlets or cords, and a burning smell coming from light switches or electrical outlets. If you notice any of these signs, it is important to address the issue immediately and, if necessary, call a professional electrician.
While there is no specific limit to the number of outlets that can be installed on a single circuit, it is important to ensure that the total power requirements of the connected devices do not exceed 80% of the circuit's capacity. In Ontario, the maximum number of devices (including outlets and lights) that can be connected to a circuit is 12. For circuits with fixed loads (lights only), there is no limit to the number of devices as long as the total power draw does not exceed 80% of the circuit's capacity.
To safely manage multiple electrical devices on one circuit, it is important to plan your electrical layout room-by-room and assess the power requirements of each device. You may need to dedicate certain circuits to specific high-power appliances, such as dishwashers, dryers, and washing machines. It is also recommended to label your circuit breaker switches to easily identify any issues and ensure safe and efficient operation.
