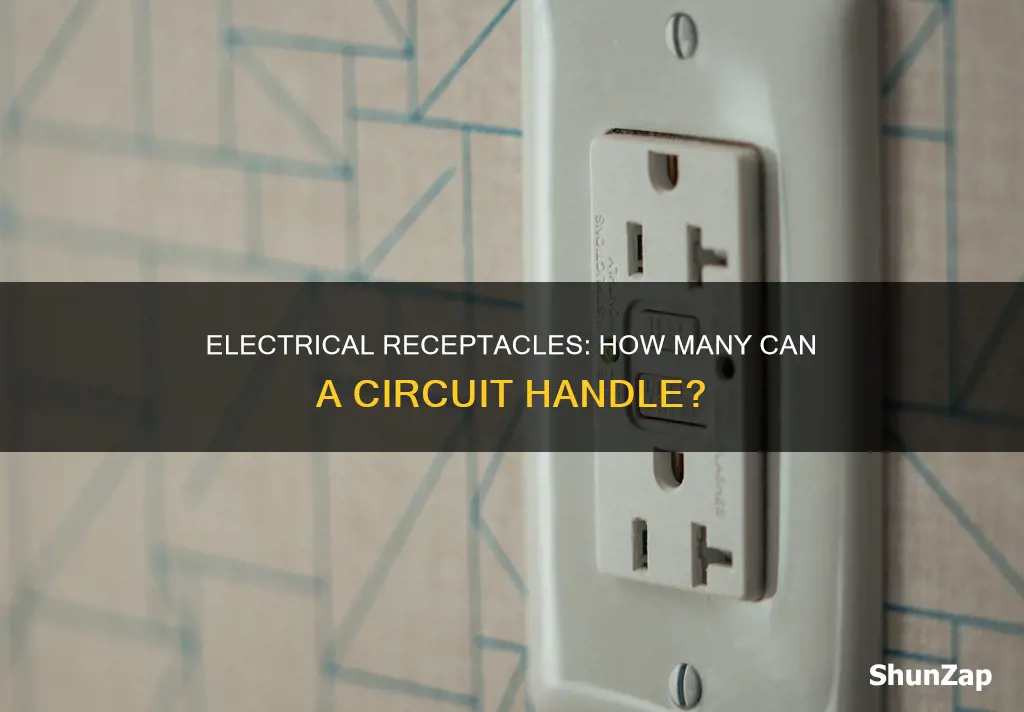

The number of electrical receptacles on a circuit depends on several factors, including the type of circuit, the electrical load, and the number and power requirements of the devices to be plugged in. While there is no fixed limit to the number of receptacles per circuit, overloading a circuit can lead to tripped breakers, electrical hazards, and even fires. To prevent overloading, it is recommended to use no more than 80% of a circuit's capacity, which translates to a maximum of 12 outlets on a 15-amp circuit and 16 outlets on a 20-amp circuit. Additionally, certain high-power appliances may require their own dedicated circuits. Understanding these factors is crucial for safely and efficiently planning the electrical layout of a home or office.
| Characteristics | Values |
|---|---|
| Number of outlets on a 15-amp circuit | Technically unlimited, but recommended maximum of 8-12 outlets |
| Number of outlets on a 20-amp circuit | Technically unlimited, but recommended maximum of 10-16 outlets |
| Considerations | Power-intensive appliances like heaters, dryers, and dishwashers require a dedicated circuit |
| Preventing overloads | Only use 80% of a circuit's capacity to account for power surges |
| Outlets per room | Bedrooms and hallways can have multiple outlets on one circuit, while dining rooms and specialty rooms may require dedicated circuits |
Explore related products
What You'll Learn
Rules for specific rooms
When it comes to electrical circuits, the number of receptacles allowed varies depending on the room and its specific requirements. Here are some rules to consider for specific rooms:
Kitchens
Kitchens are known to use the most electricity of any room in the house. To ensure safety and functionality, kitchens should have dedicated circuits for major appliances such as refrigerators and microwaves. It is recommended to have at least two 20-amp circuits for countertop outlets, with a dedicated circuit for each large appliance. For example, an electric range/oven requires its own 120/240-volt circuit, while the dishwasher and garbage disposal each need a dedicated 15-amp or 20-amp circuit.
Bathrooms
Bathrooms should have at least one 20-amp circuit for receptacles, separate from the lighting circuit. All receptacles in bathrooms must have Ground-Fault Circuit-Interrupter (GFCI) protection to prevent electrical hazards. Additionally, there should be at least one 120-volt receptacle within 3 feet of a sink's edge. If there are two side-by-side sinks, they can share a single receptacle between them.
Laundry Rooms
Laundry rooms that use electric dryers require a dedicated 30-amp, 240-volt circuit. If a gas dryer is used, a 20-amp circuit is sufficient. All laundry room receptacles must have GFCI protection to prevent electrical accidents.
Bedrooms and Hallways
In bedrooms and hallways, it is essential to optimise circuit use without overloading the system. Combining general-use receptacles in children's bedrooms with adjacent spaces like hallways or attics can help balance the load.
Home Offices
Home offices with low-amperage devices like small electronics may not need multiple circuits. However, a room with higher-power devices like computers and printers will require more dedicated circuits.
Living Rooms
Living rooms typically use standard 120-volt, 15-amp, or 20-amp circuits, similar to bedrooms and other living areas. Receptacles should be placed no more than 12 feet apart, and wall switches should be located near entry doors to control lighting or receptacles.
It is important to note that these are general guidelines, and local electrical codes and regulations may vary. Consulting with a licensed electrician and referring to specific regional requirements is essential before making any electrical installations or modifications.
Enduring Irma: Days Without Electricity
You may want to see also
Explore related products
Circuit breakers and overloading
An electrical circuit consists of wires, conductors, switches, and a circuit breaker, which is a safety device. A circuit breaker controls the electrical current and trips when the current in the circuit rises over the circuit breaker's safe threshold. This is to prevent further damage or fire.
A circuit becomes overloaded when the electricity passing through it exceeds the level of safety at which the appliances and devices work. Circuit overloads can be caused by loose or corroded wires and connections, which could be at the service panel circuit connections or a splice in a junction box from moisture or a missing wire nut.
There are several signs that indicate an overloaded circuit. These include flickering or dimming lights, a burning smell, buzzing or humming sounds, hot-to-the-touch outlets, or smoking receptacles. A frequently tripping circuit breaker is also a sign of an overloaded circuit.
To prevent overloading your circuits, it is recommended to use dedicated circuits for power-hungry electrical appliances. It is also important to consider the total current draw of power from the entire circuit and take note of how much power each outlet will require.
Additionally, it is important to avoid plugging too many heavy devices into one outlet, such as fridges, air fryers, and microwaves. Instead, spread out the load by using several different circuits for different appliances. Using surge protectors, such as power strips with built-in overload protectors, can also help prevent circuit overload.
Electricity's Solid Journey: Understanding Conductive Flow
You may want to see also
Explore related products
Wattage and power
Each circuit in a home is designed to handle a specific amount of current, typically 15 or 20 amps in the United States, running at 120 volts. To calculate the maximum power or wattage a circuit can handle, we multiply the amps by the volts. For example, a 15-amp circuit can provide 1,800 watts of power (15 amps x 120 volts), while a 20-amp circuit can provide 2,400 watts (20 amps x 120 volts).
However, it is important to follow the recommendation of using only 80% of a circuit's capacity for continuous loads. This means that a 15-amp circuit should be loaded up to a maximum of 12 amps or 1,440 watts, and a 20-amp circuit should not exceed 16 amps or 1,920 watts. This safety measure helps prevent overloading, which can trip breakers or create fire hazards.
When planning the electrical layout, it is crucial to consider the wattage requirements of the devices that will be plugged into each outlet. Large, power-intensive appliances such as heaters, dryers, washing machines, and refrigerators require significantly more wattage than devices like lightbulbs or computers. Therefore, it is advisable to install fewer outlets on circuits that will supply power to these high-wattage appliances.
Additionally, certain rooms, such as kitchens, bathrooms, laundry rooms, and garages, often have special requirements and may need dedicated circuits for specific appliances. For instance, the NEC mandates that kitchens should have at least two 20-amp circuits for countertop outlets, plus dedicated circuits for major appliances. Similarly, bathrooms should have at least one 20-amp circuit for outlets, separate from lighting. It is always recommended to consult with a licensed electrician to ensure safe and proper electrical installations.
Shower's Appliance or Electrical Classification: What's the Verdict?
You may want to see also
Explore related products
Outlet placement
Number of Outlets:
The number of outlets that can be safely installed on a single circuit depends on various factors, primarily the expected electrical load or demand. While there is no fixed maximum number, it is recommended to follow the "1.5 amps per outlet" rule of thumb. This means a 20-amp branch circuit can accommodate up to 13 outlets (20 divided by 1.5). However, if you plan to use mostly low-power devices like phone chargers or lamps, you can safely install more outlets. On the other hand, if you intend to use high-power appliances like space heaters or microwaves, you will need fewer outlets per circuit.
Room Considerations:
The placement of outlets should be tailored to the specific room and its intended use.
- Kitchens: Kitchens typically require more power due to the use of multiple appliances. It is recommended to have at least two 20-amp circuits for countertop outlets, with additional dedicated circuits for major appliances like refrigerators and microwaves. Outlets should be placed no farther than 48 inches apart to ensure easy access.
- Bathrooms: Bathrooms should have at least one 20-amp circuit for outlets, separate from lighting. Place a receptacle at least 3 feet from the outside edge of the sink basin, preferably above the countertop and to the side of the sink rather than directly behind it.
- Bedrooms: Bedrooms generally have lower energy consumption, so you can combine outlets on a single circuit. Consider placing outlets higher up to accommodate decorations or Christmas lights while keeping cords out of reach of children.
- Hallways: Hallways longer than 10 feet should have at least one electrical outlet, preferably at the midpoint.
- Home Offices: For areas with sensitive electronic equipment, consider dedicated circuits to ensure consistent power and prevent fluctuations.
Safety and Accessibility:
Proper outlet placement is essential for safety and convenience. Ensure that no point along the floor line of any wall space exceeds 6 feet from an outlet. This guarantees that appliances like lamps or televisions are never too far from a power source. Additionally, avoid relying on power strips or extension cords, which can create clutter and tripping hazards.
Future Plans and Backup Power:
When planning outlet placement, consider any future remodelling or expansion plans for the room. Additionally, if you have a backup generator or solar panels, factor this into your outlet placement design to ensure a cohesive power system.
Remember, while these guidelines provide a starting point, it is always best to consult with a professional electrician to ensure your outlet placement meets safety codes and is tailored to your specific needs.
Electric vs Manual Toothbrush: Which Cleans Better?
You may want to see also
Explore related products
Circuit planning
When planning the circuits for your home, there are several factors to consider. Firstly, it's important to understand the basics of electricity and how it is measured. Electricity is measured in three ways: amps, volts, and watts. Amps measure the amount of electrical current, volts measure the force of the electrical current, and watts measure the power of the electrical current.
In residential spaces, the standard voltage is 120 volts. Most homes have either 15-amp or 20-amp circuits. A 15-amp circuit can supply up to 1,800 watts of power (1,440 watts at 80% capacity), while a 20-amp circuit can supply up to 2,400 watts (1,920 watts at 80% capacity). It's important not to exceed 80% of the breaker's capacity to prevent overloading and tripping the circuit.
When planning your circuits, the key factor to consider is the expected electrical load, rather than a fixed number of outlets. This means understanding the types of devices that will be plugged into each circuit and their power requirements. Large, power-intensive appliances like heaters, dryers, and dishwashers require much more wattage than lightbulbs or computers. Therefore, it is recommended to install fewer outlets on circuits that supply power-intensive appliances.
To ensure safety and prevent overloading, certain rooms in the home should have dedicated circuits. For example, bathrooms and laundry rooms should have dedicated 20-amp circuits to accommodate heavy-use appliances. Kitchens may also require dedicated circuits for certain appliances like dishwashers and washing machines. Additionally, specialty rooms with sensitive electronic devices or specific power requirements may benefit from dedicated circuits.
Strategic placement of receptacles is also important. In children's bedrooms, for example, outlets can be positioned higher up to accommodate Christmas lights while keeping cords out of reach. It is also recommended to have multiple receptacles in certain rooms, such as the kitchen, to ensure power is maintained even if one breaker trips.
In summary, circuit planning involves understanding the power requirements of your appliances, strategically placing receptacles, and ensuring that power-intensive devices have dedicated circuits. By following these guidelines, you can create a safe and efficient electrical layout for your home.
Mounting Electric Fans: A Step-by-Step Guide for Your Radiator
You may want to see also
Frequently asked questions
While there is no direct rule on the number of outlets you can have on a 15-amp circuit, it is recommended that you do not exceed 1440 watts of power plugged into those outlets at one time. A good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker, which would mean a maximum of 8 or 12 outlets for a 15-amp circuit.
A 20-amp circuit can provide 1920 watts of power, but it is recommended that you only use 80% of that power to prevent overloading. Using the rule of thumb of 1 outlet per 1.5 amps, you can have a maximum of 10 or 16 outlets on a 20-amp circuit.
The number of electrical receptacles you need depends on the types of devices you will be plugging in and their power requirements. You should also consider the room and its energy consumption. For example, a kitchen with many high-power appliances will require a dedicated circuit.
