Electric furnaces are heating appliances that consist of an enclosed metal box containing a heating element and a blower fan. The heating element is made from a nickel-chromium alloy, which has high electrical resistance and slows down oxidation. The blower fan blows cool air over the heating element, forcing it into the ducts and heating the building. The number of heating elements activated depends on the amount of heat required. Electric furnaces have multiple heat strips, each of which can be controlled individually or in small groups by a sequencer.
| Characteristics | Values |
|---|---|
| Heating element | Spools of wire that have been tightly coiled together, made from a nickel-chromium alloy |
| Heating element rack | Comes in a prewired rack, designed to hold a specific type and size of heating element rack |
| Electric transformer | Lowers the incoming voltage (240 volts) to a voltage usable by the furnace’s control elements (often 24 volts) |
| Blower or blower fan | Motorized fan that blows cool air over the heating element, then forces that air into the ducts |
| Return air ducts | Pull unheated air from the building into the furnace |
| Filters | Remove unwanted airborne dust, fuzz and debris |
| Sequencers | Control when each heating element is turned off and on, ensuring the electrical load is evenly distributed |
| Thermostat | Controls when the heating elements and blower fan come on and off, switching them on when heat is demanded |
| Maintenance | Requires replacement of filters, fan motors and heating elements |
| Cost | $685 to $1,100, with installation costs ranging from $1,000 to $2,000 |
| Power consumption | Affected by home size, insulation quality, and thermostat settings |
| Safety | All electric resistance heating circuits have one or more safety devices to protect the system from overheating and overcurrent |
Explore related products
What You'll Learn
Heating element composition

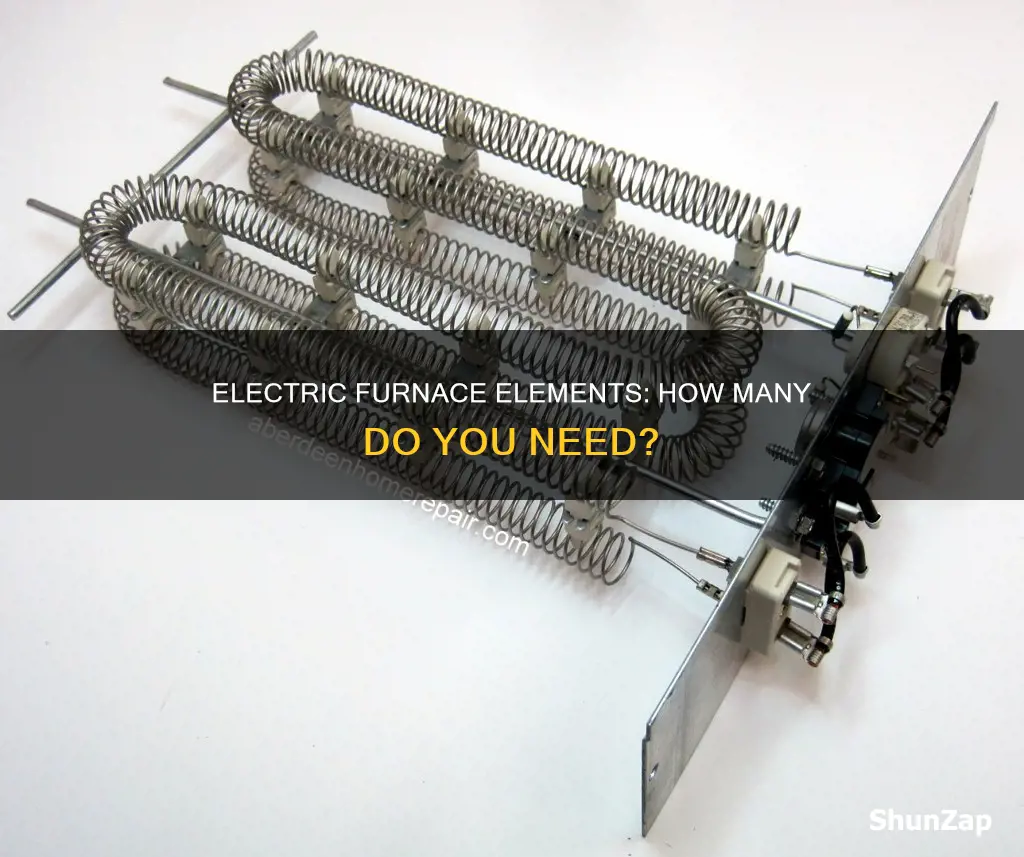

The heating element in an electric furnace is made up of spools of wire that have been tightly coiled together. The performance and operating life of a heating element depend on the properties of the material used for manufacturing it. The ideal material should have a high melting point and electrical resistance.
Nickel-Chromium (NiCr) Alloy is the most common material used for making heating elements. It has a high resistance, making it suitable for converting electrical energy into heat. When heated, the chromium in the alloy reacts with oxygen to form a protective layer of chromium oxide, which prevents oxidation and the heating element wire from burning out. NiCr heating elements can be used for continuous operation at temperatures of up to 1200°C.
Other materials used for heating elements include Nichrome, Iron-Chrome-Aluminium (FeCrAl) Alloy, Kanthal, Copper Nickel (CuNi) Alloy, Cupronickel, Platinum, and Molybdenum Disilicide (MoSi2).
Ceramic heating elements are also available, which are manufactured using resistance wire encased in a ceramic body. This type of heating element is more mechanically stable, corrosion-resistant, and protected from mechanical abrasion. The maximum operating temperature of ceramic heating elements depends on the type of ceramic used, with the highest being 800°C.
Silicon Carbide (SiC) heating elements are another option, which can operate at temperatures of up to 1500°C. They are known for their anti-oxidation, anti-corrosion, and long service life properties. SiC heating elements are commonly used in the platinum and gold industries, as well as in magnet manufacturing, the ceramic industry, and glass production.
Electrical License Transfer: Texas and Florida Reciprocity Explored
You may want to see also
Explore related products
Electric furnace maintenance
Electric furnaces are highly efficient at converting electricity into heat, but they can be expensive to operate. Regular maintenance is essential to keep your system running smoothly, prevent breakdowns, and save on energy costs. Here is a detailed guide to electric furnace maintenance:
Annual Professional Inspection
It is recommended to have a professional HVAC technician inspect and service your electric furnace at least once a year. They will have the expertise to identify and fix any issues with the heating elements, thermostat, ductwork, and other components. This annual inspection can help prevent unexpected breakdowns and costly repairs.
Cleaning and Replacing Air Filters
Electric furnaces collect dust, dirt, and debris over time. It is important to clean or replace the air filters regularly, typically every one to three months, as recommended by manufacturers. Dirty or clogged filters force the furnace to work harder, leading to higher energy consumption and reduced efficiency. Replacing filters can result in a 5-15% improvement in efficiency.
Cleaning Access Panels and Vacuuming Ducts
To maintain optimal performance, it is advisable to clean the access panels of your electric furnace twice a year, preferably in the spring and fall. Use a vacuum with a long attachment to remove any built-up dirt, dust, or debris. Additionally, vacuum the ducts once a month to prevent the accumulation of dust and ensure efficient airflow.
Maintaining the Heating Elements
The heating elements are crucial to the functioning of your electric furnace. Ensure they are in good condition and free from corrosion, cracks, or wear and tear. If you notice any issues, consult a professional for repair or replacement. Heating elements are typically made from a nickel-chromium alloy, which has high electrical resistance and resists oxidation.
Checking the Thermostat
The thermostat plays a pivotal role in controlling your heating system. Ensure it has fresh batteries and check for any signs of malfunction, such as an inability to maintain programmed settings or complete heating cycles. Use a multimeter to test the voltage across the thermostat's terminals. If there is no voltage or a very low reading, check for loose wiring, control panel issues, or dead batteries.
Inspecting the Ductwork
Leaky ductwork can lead to heat loss and reduced efficiency. Visually inspect the ductwork for any cracks or holes, and have them sealed immediately. Ensure that the joints are tight, and consider hiring a professional if you are uncomfortable making the repairs yourself.
Other Maintenance Tips
- Lower the thermostat slightly during colder months to reduce strain on the furnace.
- Regularly clean the fan and motor, wiping the fan blades with an anti-static cloth.
- If you have a humidifier attached to your furnace, clean and maintain it monthly to prevent mold and mildew growth.
- Keep an eye on safety devices like high-limit switches and fusible links, which protect the system from overheating and overcurrent.
Building an Electric State: A DarkRP Guide
You may want to see also
Explore related products
Electric furnace wattage
Electric furnaces are a great way to heat your home during the colder months. They are generally safe and efficient, but they can also be expensive to run, especially in larger homes or colder climates.
The wattage of an electric furnace typically ranges from 10,000 to 50,000 watts, depending on the model and size of the home. The average wattage for an electric furnace is around 20,000 watts, which is enough to heat a standard residential home. However, smaller homes under 1,200 square feet may only need 10,000-15,000 watts, while larger homes or those in cold climates may require more powerful furnaces in the 25,000-50,000-watt range.
The amount of electricity an electric furnace uses is also affected by how long it runs each day, the cost of electricity in your area, the insulation quality, and the thermostat settings. For example, a 2,400 square foot home using a modern high-efficiency electric furnace may use 18,000 watts for heating when the furnace is in use. On average, electric furnaces use about 26 kilowatt-hours of electricity per day and 182 kilowatt-hours per week.
To reduce the costs of running an electric furnace, you can consider installing solar panels or improving your home's insulation. Regular maintenance, such as replacing filters every 1-3 months, can also improve efficiency and help keep costs down. Additionally, investing in a programmable thermostat can help reduce heating when you're away or sleeping.
The heating element in an electric furnace is made of metal that is resistant to electricity, typically a combination of chromium and nickel. It involves spools of wire that are tightly coiled together, similar to what is found in a toaster but on a larger scale. When electricity passes through these coils, they resist the flow and heat up, and a blower fan inside the furnace then distributes the heated air through the ductwork.
Medicare Coverage for Electric Wheelchairs: What You Need to Know
You may want to see also
Explore related products
Electric furnace costs
Electric furnaces are a type of heating system that uses electricity to generate heat and provide warmth to homes and commercial spaces. They are often chosen for their efficiency, safety, and versatility, particularly in regions with mild to moderate winters. However, they typically cost more to operate than natural gas furnaces due to the higher price of electricity compared to natural gas.
The cost of an electric furnace varies depending on several factors. The unit itself can range from $800 to $4,500, with the most common price being around $5,000. Larger units tend to be more expensive. Additionally, labour costs for installation can range from $800 to $2,500. So, the total cost of purchasing and installing an electric furnace can be anywhere between $2,116 and $7,888, with most people paying around $5,002.
There are also additional costs to consider when installing an electric furnace. If it is your first electric furnace, you may need to hire an electrician to build a dedicated electrical circuit, which can cost between $500 and $2,000. Ductwork may also be required for heat distribution, costing $35 to $55 per linear foot, or $500 to $2,000 for an average single-family home. Obtaining a building permit can cost between $200 and $500, depending on your location.
The operating costs of an electric furnace can also vary. The price of running an electric furnace depends on its power, daily usage, and the local cost of electricity. Generally, the larger the home, the bigger the furnace required, and the higher the associated costs. Additionally, older furnaces tend to use more electricity than newer models, and maintaining your furnace regularly can improve efficiency and reduce energy costs.
To manage the operating costs of an electric furnace, you can invest in a programmable thermostat to reduce heating when you are away or sleeping. Single-stage electric furnaces are typically more affordable but offer less comfort control, while two-stage and modulating electric furnaces provide more energy efficiency and comfort options.
Finding a Retail Electric Supplier: ComEd's Guide
You may want to see also
Explore related products
Electric furnace safety
Electric furnaces are a safe and effective way to heat your home, but there are some important safety considerations to keep in mind. Firstly, it is crucial to ensure that your electric furnace is properly maintained and serviced regularly. Dirty filters, clogged parts, and worn-out elements can not only force your furnace to work harder and consume more energy but can also pose safety hazards. Replacing filters regularly, as recommended by manufacturers, is essential to maintaining the efficiency of your furnace and preventing potential issues. Additionally, yearly professional maintenance inspections can help identify problems before they lead to higher energy costs or unsafe conditions.
Another important safety feature of electric furnaces is the presence of safety devices that protect against overheating and overcurrent. High-limit switches can sense air temperature and automatically open the electrical circuit when overheating occurs. Some furnaces also have fusible links as a backup safety measure. These links melt when the heating coil temperature exceeds safe levels, protecting the circuit from potential damage. It is important to have these safety features checked regularly by a qualified technician to ensure they remain functional.
When using an electric furnace, it is crucial to be mindful of the potential for high power consumption and the associated costs. Electric furnaces can draw a significant amount of electricity, especially during extremely cold weather when the system may run continuously. This can lead to unexpectedly high electric bills, a phenomenon often referred to as "bill shock." To mitigate this, consider investing in a programmable thermostat, which can help reduce energy usage when you are away or sleeping. Additionally, maintaining proper insulation and regularly replacing filters can also contribute to more efficient energy usage.
Electric furnaces typically have multiple heating elements, and it is important to ensure that these elements are compatible with your specific furnace model. Heating elements are rated by their kW capacity and come in prewired racks. Replacing a heating element rack requires specifying the model and serial number of the furnace to ensure compatibility. Attempting to use incompatible heating elements can be unsafe and may damage your furnace. Always consult a trained expert when replacing or servicing any components of your electric furnace to ensure the continued safe operation of the unit.
Finally, it is worth noting that electric furnaces are generally safe due to the absence of hazardous components in the heating elements. The heating elements are made from metals resistant to electricity, typically a combination of chromium and nickel. This ensures that air passing over the heating elements remains safe and free from harmful substances. Regularly cleaning or replacing filters also contributes to maintaining healthy indoor air quality by capturing and removing airborne pollutants.
Electric Ovens: Pilot Lights and Modern Alternatives
You may want to see also
Frequently asked questions
The heating element in an electric furnace involves spools of wire that have been tightly coiled together. They are larger versions of what you can find in toasters.
There is always at least one heating element in an electric furnace, but many have multiple heating elements.
Once your thermostat sends an electric current to the coils, they will heat up. If there is a higher need for heat in your home, a higher number of heating elements will be activated.
Heating elements are made from metal that is resistant to electricity, typically a combination of chromium and nickel, or a nickel-chrome alloy.
