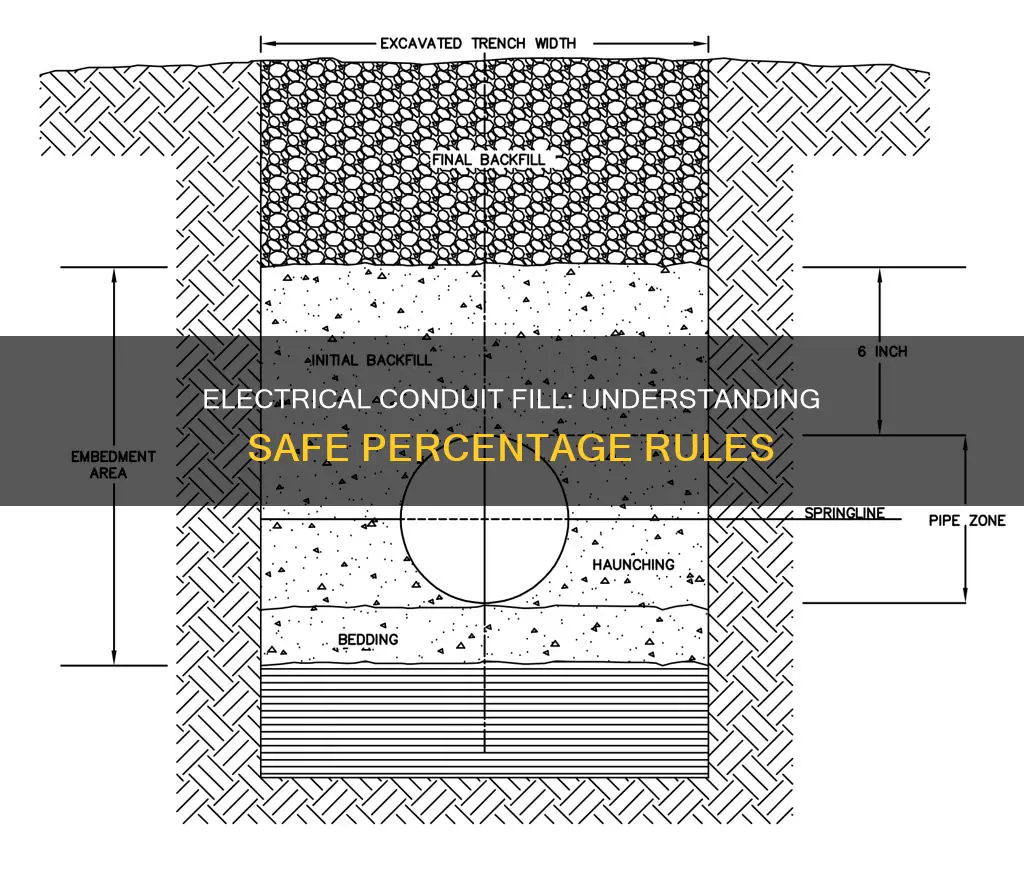

Electrical installations are complex, and ensuring safety and compliance is paramount. One of the critical factors to consider is conduit fill, which refers to the amount of space inside an electrical conduit occupied by cables. This fill is expressed as a percentage, indicating the ratio of the conduit's cross-sectional area to the total cross-sectional area of the enclosed cables. The National Electrical Code (NEC) provides specific limits on conduit fill to prevent overheating, mitigate fire risks, and maintain cable integrity. These regulations ensure adequate air circulation for heat dissipation and reduce mechanical stress during installation and operation. Accurate conduit fill calculations are essential for safety and efficiency, helping to avoid costly rectifications and potential hazards. The number of wires within a conduit and the materials used also influence the fill percentage, with factors such as insulation type, gauge, and conduit bends playing a role in determining the optimal fill.
| Characteristics | Values |
|---|---|
| Definition | Conduit fill is the percentage of the area inside an electrical conduit taken up by cables. |
| Importance | Conduit fill calculations ensure safety and efficiency in electrical installations. |
| Factors | The number of wires/cables, their gauge, insulation type, and the number of bends in the conduit all impact conduit fill. |
| Guidelines | The National Electrical Code (NEC) provides specific limits to prevent overheating, reduce fire risk, and maintain cable integrity. |
| Materials | Common conduit materials include HDPE, nylon, and PVC-coated metal, each with unique properties and applications. |
| Tools | Conduit fill calculators are available online to determine the correct fill percentage and conduit size for a given number and type of cables. |
Explore related products
What You'll Learn
Conduit fill calculators
There are several factors to consider when calculating conduit fill percentage. Firstly, you need to identify the number of cables that will be running inside the conduit, taking into account any future conductors that may need to be installed. All conductors, including ground wires, are included in this calculation. Additionally, the type of insulation used on these wires will impact the amount of space they take up inside the conduit. To determine the cross-sectional area of the wires, you can use the equation: 0.79 x (wire's diameter)².
The type of conduit and conductor materials is another important consideration. Different materials are suited to various settings, so selecting the appropriate combination of conduit and cable materials for the specific application is crucial. Common conduit materials include HDPE (high-density polyethylene), nylon, and PVC-coated metal, each offering unique advantages in terms of protection and resistance.
The number of bends in the conduit also affects the fill percentage. Conduits with more bends, especially 90-degree bends, can make it more challenging to pull conductors smoothly. Therefore, it is recommended to keep the number of bends to a minimum and, if necessary, consider using a larger conduit size to accommodate the desired number of cables safely.
Online conduit fill calculators, such as the ones provided by Southwire and conduitfillcalculator.com, offer a straightforward way to calculate conduit fill percentages. Users simply need to input the conduit type and size, along with the number and types of conductors, to obtain quick and easy results that comply with the US National Electrical Code (NEC) guidelines. These calculators also help users understand the concept of conduit fill and provide relevant information about conduits and their accessories.
Electrical Cycles: Understanding Frequency and Time
You may want to see also
Explore related products
Number of wires
The number of wires that can safely fit inside a conduit depends on several factors, including the type of conduit, the wire gauge, and the conduit size.
Conduit fill, or raceway fill, is the percentage of the conduit's cross-sectional area that is occupied by cables or wires. This fill percentage is crucial for complying with the National Electrical Code (NEC) requirements. Overfilling a conduit can lead to unsafe installations, costly rewiring, and damage to conductors and insulation. Therefore, it is essential to calculate the appropriate conduit fill to ensure safety and avoid additional expenses.
To determine the number of wires that can fit in a conduit, one must consider the conduit's inside diameter and the wire's outside diameter. The National Electrical Code (NEC) provides guidelines and charts to help calculate the maximum number of wires for different conduit types and wire gauges. For example, if you are using six wires with a total wire area corresponding to a 40% maximum fill percentage, you would need to choose a conduit size that accommodates this configuration, such as a 1-inch electrical metal tubing (EMT) conduit, which provides a 39% fill.
It is important to note that the number of bends in the conduit also impacts the fill percentage. Conduits with more bends, especially 90-degree bends, can make it challenging to pull conductors smoothly, affecting the overall fill. In such cases, it may be advisable to consider a larger conduit size to accommodate the desired number of wires safely.
Additionally, the type of wire used is a critical factor. For instance, THHN wires are only suitable for dry and damp locations and should not be used in wet conditions. By consulting the NEC book or using conduit fill calculators and charts, electricians can ensure they are using the appropriate number of wires for the specific conduit and application, thus maintaining safety and functionality in their electrical installations.
Creating a Nod Electric State in DarkRP
You may want to see also
Explore related products
Cable gauge and insulation
When pulling wire through a conduit, it is important to consider the cable gauge and insulation. The cable gauge refers to the thickness of the wire, which is measured in American Wire Gauge (AWG). The insulation type and thickness will also impact the overall diameter of the cable.
To ensure a safe and functional electrical installation, it is crucial to calculate the conduit fill percentage. This involves determining the number of cables or conductors that will be running inside the conduit, as well as considering any future expansions or additional conductors that may need to be installed. The type of insulation used on these wires is also a key factor. Some common insulation types include THHN, THWN, and non-metallic (NM) or Romex cables. However, it is important to note that the use of NM cables inside conduits may not be allowed in certain localities, as they take up more space and can easily exceed the fill limit.
The National Electric Code (NEC) provides guidelines for determining the appropriate conduit size based on the number and type of conductors, insulation type, and conduit material. The NEC book includes tables that specify the maximum number of wires that can be placed inside a conduit of a specific diameter and type. By referring to these tables, electricians can ensure that the conduit fill percentage does not exceed the safe limit.
Additionally, the number of bends in the conduit can impact the fill percentage and the ease of pulling conductors. Each bend in the conduit adds to the overall cross-sectional area of the conduit, affecting the total space available for cables. It is recommended to avoid excessive bends, especially at 90-degree angles, as they can make it more difficult to pull conductors smoothly and increase the chances of cable jamming.
When selecting the conduit and cable materials, it is important to consider the specific application and environmental factors. Different materials offer varying levels of resistance to UV damage, corrosion, and chemicals. For example, high-density polyethylene (HDPE) is a versatile plastic that is commonly used in houses to protect electrical cables and is highly resistant to UV damage. On the other hand, nylon conduits provide excellent protection against oil, abrasion, and solvents, making them suitable for machine and automotive manufacturing. PVC-coated metal conduits offer enhanced strength and are typically used in machine connections and factory wiring.
In summary, calculating the conduit fill percentage involves considering the cable gauge, insulation type, number of conductors, and conduit material. By following the guidelines provided in the NEC book and considering the specific application requirements, electricians can ensure a safe and functional electrical installation while avoiding issues such as cable jamming and conduit overload.
Electric Recliner Troubleshooting: Manual Close Guide
You may want to see also
Explore related products
Bends in the conduit
The number of bends in a conduit impacts the correct fill percentage. The greater the number of bends, the more challenging it is to smoothly pull conductors. If your conduit is already filled to its maximum allowable limit, it may be best to purchase a conduit one or two sizes larger. This additional cost can save time and prevent broken pull cords and damaged wires.
The National Electrical Code (NEC) guidelines state that the maximum fill percentage for a conduit with one wire is 53%, for two wires it is 31%, and for three or more wires, it is 40%. These percentages assume that there are two 90-degree bends in the conduit run. If there are more than two 90-degree bends, the percentage fill should be decreased by 15% for each additional bend. For example, a conduit with three wires and three 90-degree bends would have a maximum fill percentage of 40% minus 15% for the third bend, resulting in a new maximum fill of 25%.
It is important to note that the 15% reduction rule for each additional bend beyond two bends is based on experience rather than a formal requirement. The NEC guidelines do not specifically address the impact of bends on fill capacity or cumulative bends. However, it is still a good idea to consider this rule of thumb to ensure that your conduit fill is not too tight.
Payflex FSA: Electric Toothbrush Coverage and Your Options
You may want to see also
Explore related products
Conduit and conductor materials
Conduit fill percentage is an important consideration when planning electrical installations. The number of wires inside a conduit impacts the safety and durability of the installation. To calculate the conduit fill percentage, one must identify the number of cables to be run inside the conduit, taking into account any future conductors and allowing enough space for them. The insulation type and wire gauge are also factors in determining the cross-sectional area of the wires within the conduit.
Conduits themselves are available in a variety of materials, each with its own advantages and optimal use cases. Some common conduit materials include:
- High-Density Polyethylene (HDPE): HDPE is a versatile plastic that is popular for forming conduits in houses and protecting electrical and telecommunications cables. It is highly resistant to UV damage, corrosion, and chemicals.
- Nylon: Nylon conduits offer excellent resistance to oil, abrasion, and solvents, along with good weather protection. They are commonly used in machine and automotive manufacturing.
- PVC-Coated Metal: These conduits combine the strength of a metal base with the protection of PVC coating. They are typically used in machine connections and factory wiring.
- Galvanized Rigid Conduit (GRC): GRC is a thick-walled steel tubing made using a hot-dip galvanization process to prevent corrosion. It provides excellent protection for electrical wiring but can be heavy and challenging to work with.
- Intermediate Metal Conduit: This type of conduit has a thinner wall than GRC, making it easier to work with and more cost-effective. It still offers strong protection for wires and cables.
- Electrical Non-Metallic Tubing (ENT): ENT is a lower-cost alternative to metal conduits and is capable of protecting wires and cables from abrasions. It is suitable for internal installations, including residential and commercial applications, but should not be exposed to high temperatures or direct sunlight.
- Rigid PVC Conduit: Similar to ENT, rigid PVC conduit offers protection from abrasion and light damage at a lower cost compared to metal. Schedule 80 has a thicker wall, while Schedule 40 is more flexible.
- Liquid-Tight Conduit: This type of conduit is suitable for areas where wires need protection from moisture and splashing water, such as boatyards, cranes, and service entrances.
- Aluminum: Aluminum conduit is lightweight and easier to move and handle than steel conduit. It can be threaded and bent using tools and may serve as a grounding conductor in specific applications. However, it is weaker and more susceptible to galvanic corrosion if improperly installed.
- Fiberglass Conduit: Fiberglass conduit is strong, lightweight, and corrosion-resistant. It is a low-weight, high-strength solution with flame-retardant and low-smoke properties. It is ideal for applications where fire safety and corrosion protection are critical but may struggle in colder temperatures.
Conductors, on the other hand, are the metallic elements at the center of wires, known for their high conductivity. Common conductor materials include:
- Aluminum: Aluminum is a common conductor material due to its conductivity and affordability.
- Copper: Copper is another widely used conductor material, offering high conductivity and performance characteristics.
- High-Strength Alloys: These alloys are made from one or more metallic elements and are stronger in combination than alone. Silver-plated and nickel-plated conductors are common, offering enhanced conductivity, corrosion resistance, and wider operating temperature ranges. Tinned conductors are also used to improve water resistance, increase conductivity, and facilitate soldering.
When selecting conduit and conductor materials, it is important to consider the specific application, environmental factors, and performance requirements to ensure optimal safety and efficiency in electrical installations.
Exploring the Characters of Do Androids Dream of Electric Sheep?
You may want to see also
Frequently asked questions
Conduit fill is the percentage of the area inside an electrical conduit that is taken up by cables.
Conduit fill calculations ensure safety and efficiency in electrical installations. The National Electrical Code (NEC) and other regulatory guidelines provide specific limits on conduit fill to prevent overheating, reduce the risk of fire, and maintain cable integrity.
To calculate conduit fill, you need to identify the number of cables you want to run inside the conduit, considering any future conductors you need to install. You also need to determine the insulation types of these wires and their cross-sectional areas. Additionally, the conduit and conductor materials you use can impact the fill percentage.
