The electrical system in a car operates on a specific voltage range, typically around 12 volts for most modern vehicles. This voltage is supplied by the car's battery and regulated by the alternator, ensuring a consistent power supply to various components such as lights, radio, and engine control systems. However, the actual voltage can vary depending on factors like the engine's running state, battery health, and electrical load. When the engine is off, the voltage may drop slightly, while it can rise to around 13.5 to 14.5 volts when the engine is running and the alternator is charging the battery. Understanding these fluctuations is crucial for diagnosing electrical issues and maintaining the vehicle's overall performance.
| Characteristics | Values |
|---|---|
| Nominal Voltage (Standard Cars) | 12 Volts (DC) |
| Voltage Range (Operating) | 13.5 - 14.5 Volts (when running) |
| Voltage Range (Idle) | 12.6 - 13.5 Volts |
| Voltage Range (Cranking) | 9 - 10 Volts |
| Maximum Safe Voltage | Up to 16 Volts (briefly) |
| Electric Vehicles (EVs) | 300 - 800 Volts (DC) |
| Hybrid Vehicles | 12 Volts (DC) + High-Voltage Battery (e.g., 200-400 Volts) |
| Voltage Drop (Acceptable) | 0.5 - 1 Volt (across components) |
| Battery Voltage (Fully Charged) | 12.6 - 12.8 Volts |
| Battery Voltage (Discharged) | Below 12 Volts |
Explore related products
What You'll Learn
- Standard Car Voltage Range: Most cars operate between 12 to 14 volts when the engine is off
- Running Voltage Levels: Engine running increases voltage to 13.5 to 14.5 volts due to alternator charging
- Voltage Drop Causes: Low voltage (below 12V) indicates battery issues, alternator failure, or electrical system faults
- High Voltage Risks: Voltage above 14.5V can damage electronics, often caused by a faulty voltage regulator
- Hybrid/Electric Car Voltage: Hybrids and EVs use higher voltage systems (300-400V) for battery efficiency and performance
Standard Car Voltage Range: Most cars operate between 12 to 14 volts when the engine is off
Car electrical systems are designed to operate within a specific voltage range, and understanding this range is crucial for diagnosing issues and maintaining your vehicle. When the engine is off, most cars maintain a voltage between 12 to 14 volts at the battery terminals. This range is essential because it ensures the car’s electrical components, such as the radio, lights, and alarm system, remain functional even when the engine isn’t running. Falling below 12 volts can indicate a weak battery or parasitic drain, while exceeding 14 volts might suggest a faulty voltage regulator.

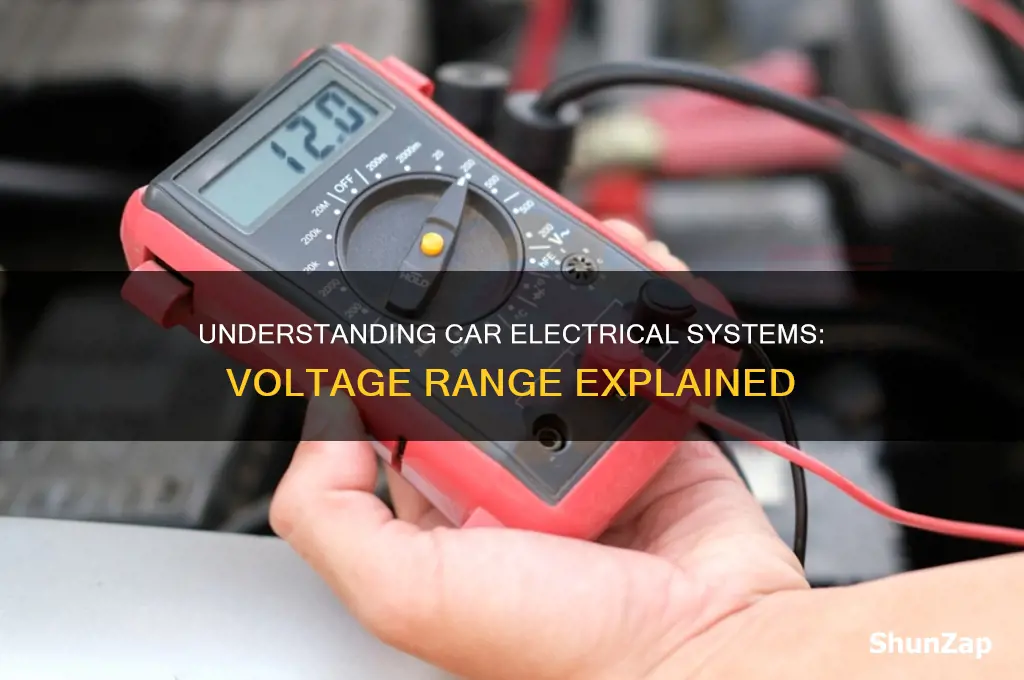

To measure this voltage, use a multimeter set to the DC voltage scale. Connect the red lead to the battery’s positive terminal and the black lead to the negative terminal. A reading within the 12 to 14-volt range confirms the system is operating correctly. If the voltage drops significantly when accessories are turned on, it may signal a battery nearing the end of its life. Regularly checking this voltage, especially in older vehicles, can prevent unexpected breakdowns and extend the life of your electrical system.
Comparatively, when the engine is running, the voltage typically rises to 13.5 to 14.5 volts due to the alternator charging the battery. This higher range ensures the battery stays charged while powering the vehicle’s electrical demands. If the voltage remains below 13 volts while the engine is on, the alternator might be failing. Conversely, a consistent reading above 14.5 volts could damage the battery and other components. Understanding these distinctions helps differentiate between a battery issue and an alternator problem.
For practical maintenance, keep an eye on voltage fluctuations during extreme weather. Cold temperatures can reduce battery efficiency, causing the voltage to drop, while excessive heat may accelerate battery drain. If your car frequently operates outside the standard voltage range, consult a mechanic to inspect the charging system. Investing in a portable battery tester or multimeter can empower you to monitor voltage levels proactively, saving time and money in the long run.
In summary, the 12 to 14-volt range when the engine is off is a critical benchmark for car electrical health. It reflects the battery’s state of charge and the system’s ability to sustain essential functions. By regularly checking this voltage and understanding its implications, you can address potential issues before they escalate, ensuring your vehicle remains reliable and safe.
Can Electric Cars Drift? Exploring EV Performance and Handling Limits
You may want to see also
Explore related products
Running Voltage Levels: Engine running increases voltage to 13.5 to 14.5 volts due to alternator charging
A car's electrical system is a delicate balance of power generation and consumption, and understanding the voltage fluctuations is crucial for maintaining optimal performance. When the engine is running, the alternator takes center stage, working tirelessly to replenish the battery's charge and power the vehicle's electrical components. This is where the voltage levels surge, typically reaching a range of 13.5 to 14.5 volts. This increase is a direct result of the alternator's charging process, which is essential for keeping the battery healthy and ensuring the car's electrical systems function correctly.
From an analytical perspective, this voltage range is a sweet spot for several reasons. Firstly, it ensures the battery receives a sufficient charge to maintain its capacity, typically around 75-85% of its total charge. This is crucial for preventing sulfation, a common issue where lead-acid batteries develop sulfate crystals on their plates, reducing their ability to hold a charge. By keeping the voltage within this range, the alternator helps extend the battery's lifespan, which is particularly important for modern vehicles with high electrical demands. For instance, a typical car battery operates at 12.6 volts when fully charged, and the alternator's output ensures it stays within the optimal range, even under heavy load.
To illustrate the importance of this voltage range, consider a scenario where a driver is using multiple electrical components simultaneously – headlights, air conditioning, and a high-powered sound system. The alternator must supply enough power to meet these demands while still charging the battery. If the voltage drops below 13.5 volts, the battery may not receive adequate charging, leading to premature failure. Conversely, if the voltage exceeds 14.5 volts, it can cause overcharging, which may damage the battery and other electrical components. This delicate balance highlights the precision required in modern automotive electrical systems.
For vehicle owners, monitoring the voltage levels can be a practical way to ensure their car's electrical system remains in good condition. A simple voltmeter or a multimeter can be used to measure the voltage at the battery terminals while the engine is running. If the reading consistently falls outside the 13.5 to 14.5-volt range, it may indicate an issue with the alternator, battery, or wiring. For example, a voltage reading of 12.5 volts might suggest a weak alternator or a faulty connection, while a reading of 15 volts could point to a malfunctioning voltage regulator. Regular checks, especially before long trips or in extreme weather conditions, can help identify potential problems early.
In comparison to other electrical systems, the automotive voltage range is relatively narrow but highly regulated. Household electrical systems, for instance, operate at a steady 120 or 240 volts, depending on the region, with little fluctuation. In contrast, a car's electrical system must adapt to varying loads and conditions, making the alternator's role in maintaining voltage stability even more critical. This adaptability is a testament to the sophistication of modern automotive engineering, where precision and reliability are paramount. By understanding and monitoring the running voltage levels, car owners can contribute to the longevity and efficiency of their vehicle's electrical system.
Which Building Type Consumes the Most Electricity Globally?
You may want to see also
Explore related products
Voltage Drop Causes: Low voltage (below 12V) indicates battery issues, alternator failure, or electrical system faults
A car's electrical system typically operates between 12 and 14 volts, with 12.6 volts being the standard resting voltage for a fully charged lead-acid battery. When voltage drops below 12 volts, it’s a red flag signaling deeper issues. This isn’t just a minor fluctuation—it’s a symptom of potential battery failure, alternator malfunction, or electrical system faults. Ignoring it can lead to sudden breakdowns, damaged components, or even safety hazards like stalling in traffic.
Diagnosing the Culprit: Battery Issues
Start with the battery, the heart of your car’s electrical system. A voltage reading below 12 volts at rest often indicates a weak or dying battery. Common causes include sulfation (crystal buildup on battery plates), corrosion on terminals, or simply age—most batteries last 3–5 years. Test the battery with a multimeter; if it holds less than 12.4 volts after a full charge, replacement is likely necessary. Pro tip: Clean terminals with a baking soda-water solution and a wire brush to ensure proper conductivity before jumping to conclusions.
Alternator Failure: The Silent Saboteur
If the battery checks out, the alternator is next in line. Responsible for recharging the battery and powering the electrical system while the engine runs, a failing alternator can cause voltage to plummet. Symptoms include dimming headlights, a whining noise under the hood, or a battery warning light. Use a multimeter to test voltage with the engine running; it should read 13.5–14.5 volts. Anything below 13 volts points to alternator trouble. Replacement is often the only fix, but catch it early to avoid being stranded.
Electrical System Faults: The Hidden Drain
Sometimes, the issue isn’t the battery or alternator but parasitic drains in the electrical system. Faulty wiring, a short circuit, or a component like a trunk light staying on can slowly drain the battery, causing low voltage. Perform a parasitic draw test by disconnecting the negative battery terminal and using a multimeter to measure current draw. A reading above 50 milliamps indicates a problem. Trace the issue by removing fuses one by one until the draw stops—this pinpoints the faulty circuit.
Preventive Measures: Stay Ahead of the Drop
Regular maintenance is key to avoiding voltage drops. Test your battery and alternator annually, especially before winter or summer extremes. Keep an eye on warning signs like slow cranking or flickering lights. For older vehicles, invest in a battery tender to maintain charge during inactivity. Lastly, avoid leaving accessories on when the engine is off—even a phone charger can drain a weak battery. Small habits can save you from big headaches down the road.
VW's Electric Car Investment: How Much Will They Spend?
You may want to see also
Explore related products
High Voltage Risks: Voltage above 14.5V can damage electronics, often caused by a faulty voltage regulator
A car's electrical system typically operates between 12 and 14.5 volts, a range that ensures the safe and efficient functioning of its components. However, when voltage exceeds 14.5V, it enters a danger zone that can compromise the integrity of sensitive electronics. This elevated voltage, often caused by a malfunctioning voltage regulator, poses a significant risk to the vehicle's electrical system. The voltage regulator is designed to maintain a steady output, but when it fails, the alternator can overcharge the battery, leading to excessive voltage levels.
Understanding the consequences of high voltage is crucial for vehicle maintenance. Electronics like the ECU (Engine Control Unit), infotainment systems, and LED lighting are particularly vulnerable. Prolonged exposure to voltages above 14.5V can cause overheating, component failure, or even permanent damage. For instance, a voltage spike of 16V or higher, even for a short duration, can fry delicate circuits, resulting in costly repairs. This risk is not theoretical; it’s a common issue in vehicles with aging or poorly maintained electrical systems.
Preventing high voltage damage starts with regular diagnostics. Use a multimeter to monitor the system voltage while the engine is running; it should remain within the 13.5–14.5V range. If readings consistently exceed this, inspect the voltage regulator and alternator. Replacing a faulty regulator is a straightforward fix, typically costing between $100 and $300, depending on the vehicle. Ignoring the issue, however, can lead to cascading failures, potentially costing thousands in repairs.
For DIY enthusiasts, caution is key when addressing high voltage issues. Always disconnect the battery before working on the electrical system to avoid shocks or short circuits. If unsure, consult a professional mechanic. Modern vehicles often have complex wiring harnesses and computer-controlled systems, making accurate diagnosis and repair essential. Regular maintenance, including checking the alternator’s output and the battery’s health, can prevent voltage spikes and extend the life of your car’s electronics.
In summary, voltage above 14.5V is a red flag that demands immediate attention. By understanding the risks, monitoring system voltage, and addressing issues promptly, drivers can protect their vehicles from costly damage. A well-maintained electrical system not only ensures reliability but also safeguards the advanced electronics that modern cars depend on.
Renting Electric Cars: A Step-by-Step Guide for Eco-Friendly Travel
You may want to see also
Explore related products
Hybrid/Electric Car Voltage: Hybrids and EVs use higher voltage systems (300-400V) for battery efficiency and performance
The electrical systems in traditional gasoline-powered cars typically operate at 12 volts, a standard that has been in place for decades. This voltage is sufficient for powering lights, radios, and other basic accessories, but it falls short for the demands of modern hybrid and electric vehicles (EVs). To achieve greater efficiency and performance, hybrids and EVs rely on significantly higher voltage systems, typically ranging from 300 to 400 volts. This jump in voltage is not arbitrary; it’s a critical engineering decision that directly impacts the vehicle’s ability to deliver power, extend range, and reduce energy loss during operation.
One of the primary reasons for the higher voltage in hybrids and EVs is the need to minimize energy loss during power transmission. At 12 volts, the current required to deliver the same amount of power would be much higher, leading to greater resistive losses in the wiring. By operating at 300-400 volts, these vehicles can use thinner, lighter cables while maintaining efficiency. For example, a 100-kilowatt electric motor running at 400 volts draws approximately 250 amps, whereas the same motor at 12 volts would require over 8,000 amps—an impractical and unsafe scenario. This higher voltage also enables faster charging times, as more power can be delivered to the battery without overheating the system.
From a practical standpoint, the higher voltage in hybrids and EVs requires specialized safety measures. Components like batteries, inverters, and charging systems are designed to handle these voltages, but they also incorporate insulation, cooling systems, and fail-safes to protect occupants and technicians. For instance, high-voltage systems are often color-coded (e.g., orange cables) to distinguish them from 12-volt systems, and vehicles are equipped with automatic shutdown mechanisms in case of accidents. If you’re working on a hybrid or EV, always disconnect the high-voltage battery first and use insulated tools to avoid electrical shocks.
Comparing hybrids and EVs to their gasoline counterparts highlights the trade-offs in voltage systems. While a 12-volt system is simpler and safer for low-power applications, it lacks the capacity for high-efficiency electric propulsion. Hybrids often use a dual-voltage approach, combining a 12-volt system for accessories with a 300-400 volt system for the electric motor. EVs, on the other hand, rely entirely on the high-voltage system, eliminating the need for a traditional alternator or starter motor. This design not only improves performance but also reduces maintenance, as there are fewer moving parts prone to wear.
In conclusion, the shift to 300-400 volt systems in hybrids and EVs is a cornerstone of their efficiency and performance. It addresses the limitations of 12-volt systems by reducing energy loss, enabling faster charging, and supporting powerful electric motors. However, this innovation comes with its own set of challenges, requiring robust safety measures and specialized knowledge for maintenance. As the automotive industry continues to evolve, understanding these voltage differences is essential for both consumers and technicians navigating the transition to electric mobility.
How Electric Cars Brake: Regenerative Braking Explained Simply
You may want to see also
Frequently asked questions
A car electrical system typically operates at 12 volts.
Yes, a car’s electrical system can vary between 11.5 and 14.5 volts, depending on whether the engine is running and the state of the battery.
A normal voltage for a car battery when the engine is off is between 12.6 and 12.8 volts when fully charged.
When the engine is running, the voltage should be between 13.7 and 14.7 volts, as the alternator charges the battery.
Most standard cars use a 12-volt system, but some heavy-duty vehicles like trucks or buses may use a 24-volt system. Always check the vehicle specifications before working on its electrical system.
