Duct sealing is an important maintenance task that can improve comfort and efficiency by preventing the escape of conditioned air and the ingress of contaminated outdoor air. While the frequency of replacing electrical duct seals depends on various factors, it is recommended that ducts be repaired or resealed after 5–10 years of use. The longevity of duct seals can range from a few months to several decades, depending on the sealing material, installation quality, and other factors. Duct putty, for example, is a common but problematic sealant that often fails to provide a reliable long-term solution. Other sealing materials, such as duct tape, foil tape, UL 181B tape, mastic, butyl tape, aerosol sealant, and Aeroseal, offer varying levels of durability and effectiveness. Preventative maintenance and regular inspections can help maximize the life of a duct seal and ensure the continued integrity of the ductwork.
| Characteristics | Values |
|---|---|
| Longevity of duct sealing | Depends on the sealing material and other factors. Can last 15 to 30 years. |
| Duct sealing materials | Duct tape, foil tape, clear UL 181B tape, mastic, butyl tape, aerosol sealant, duct putty, duct seal compound, silicone rubber |
| Duct tape properties | Available in different grades and tensile strengths, has a fiber-reinforced vinyl or polyethylene backing, and a rubber-based adhesive |
| Foil tape properties | Used with rigid duct systems, has a metal foil backing and an acrylic adhesive |
| Clear UL 181B tape properties | Thin polyester backing and an acrylic adhesive |
| Mastic properties | Wet adhesive applied with a brush, dries as a semi-rigid solid, available in different consistencies, can be used with mesh tape or reinforcing fibers |
| Butyl tape properties | Foil-backed, 0.38 to 1.3 mm butyl adhesive, conforms to irregular shapes |
| Aerosol sealant properties | Developed by Lawrence Berkeley National Laboratory, sticky vinyl polymer applied to duct leaks internally |
| Duct putty properties | Cheap, safe, easy to use, ubiquitous, thick and pliable, made of clay and water, variations include mastic or oil and wax blends, easy to work by hand |
| Duct seal compound properties | Seals conduit openings against drafts, dust, and moisture, protects terminal boxes, pot heads, and bushings from corrosive elements, deadens switch gear panel noise, dough-like compound, non-conducting, non-deteriorating, non-toxic, non-corrosive, non-staining, non-curable, temperature range: adheres at -20 °F to 350 °F |
| Silicone rubber properties | When applied properly, guarantees no leaks |
Explore related products
What You'll Learn
Duct sealing methods
Duct sealing is essential for optimal home comfort, health, and energy consumption while lowering utility bills. It can also prevent contaminated outdoor air from reducing indoor air quality.
There are several duct sealing methods available, each with its own advantages and disadvantages. Here are some of the most common and effective methods:
Tape
Duct sealing tape, also known as HVAC duct sealing tape or aluminum foil tape, is a quick and easy fix for leaky ducts. It can be found at any hardware store and is specifically rated for use on ducts, unlike cheaper plastic adhesive tape. When purchasing duct tape, look for tape that is heat-rated and has the Underwriters Laboratory (UL) label. Foil tape is also an option and can be used as a temporary fix, lasting a few years at most. However, tape tends to be more expensive and less durable in the long run.
Mastic
Mastic is a gooey substance that hardens after being applied to ducts. It is the best DIY choice for durability and cost-effectiveness. Water-based mastic duct sealant is the best option for easy cleanup, and it will last a long time. Mastic tape can be applied with a simple paintbrush or a caulk gun. When used properly, it can last 15 to 25 years. However, sealing ducts with mastic yourself can be tricky, especially in hard-to-reach areas or when there are hidden leaks.
Aeroseal
Aeroseal is a duct sealing method that uses a patented technology to pressurize the duct system while identifying and sealing every leak. A technician blocks all vents and registers to pressurize the system and then blows a material into the ductwork, sealing leaks in various areas. This method is non-invasive and does not require accessing ducts in hard-to-reach places. Aeroseal claims that its product has been stress-tested for up to 40 years in residential applications and provides a 10-year guarantee.
Other Methods
Other duct sealing methods include using duct putty, which is a cheap, safe, and easy-to-use product made of clay and water. However, duct putty has been known to fall short of expectations, resulting in expensive damage. Butyl tape is another option that can conform to irregular shapes. In experiments, butyl tape lasted for three months in aging tests. Clear UL 181B tape is traditionally applied in the factory or for ductwork assembled in the field, and it has lasted up to four months in experiments.
How Temperature Affects Electrical Flow and Speed
You may want to see also
Explore related products
How often ducts need repairs
Ducts need repairs from time to time, but how frequently this needs to happen depends on a variety of factors. Firstly, the quality of the sealing material and the effectiveness of the sealing method can impact the longevity of the duct sealing. High-quality sealing materials and proper sealing methods can yield good results for many years, with some seals lasting up to 15 to 30 years.
However, it's important to note that sealants tend to degrade over time, and new leaks can form as ductwork ages or shifts. As a result, duct sealing services may be required every 5 to 10 years to seal up leaks and restore air pressure to the ductwork. This is especially important if the ductwork hasn't been sealed in a while, as wear and tear can take a toll on the ductwork.
The type of sealant used can also affect how often repairs are needed. For example, duct putty, a commonly used sealant, has been known to fail as a long-term sealing solution due to improper application and the lack of instructions on how to properly seal a conduit. Other sealants, such as duct tape, foil tape, clear UL 181B tape, mastic, butyl tape, aerosol sealant, and Aeroseal, have varying levels of durability and effectiveness.
Additionally, ducts can incur damage from rodents chewing through the material and insulation, and the force of gravity pulling down on certain joints or areas of the ductwork. Regular maintenance and inspections can help identify these issues early on and prevent further damage.
Black or Red Chandeliers: Does Color Matter in Electricals?
You may want to see also
Explore related products
Common products used to seal ducts
The longevity of duct sealing depends on the sealing material and other factors. While a high-quality sealing material and effective sealing method can yield good results for many years, sealants tend to degrade over time.
Duct Tape
Duct tape is available in different grades and tensile strengths, featuring a fiber-reinforced vinyl or polyethylene backing and a rubber-based adhesive. It is usually silver or gray in colour. However, in testing, duct tape failed within seven days of the aging method, resulting in 20% to 70% leakage.
Foil Tape
Foil tape is used with rigid duct systems and features a metal foil backing with an acrylic adhesive.
Clear UL 181B Tape
This tape is traditionally applied in factories using a thin polyester backing and an acrylic adhesive. It is also used for ductwork assembled in the field. In experiments, samples of this tape lasted between one and four months in aging tests.
Mastic
Mastic is a wet adhesive that can be applied with a brush. When dry, it becomes a semi-rigid solid that effectively fills gaps. It is available in different consistencies and can be used with mesh tape or reinforcing fibers. Mastic is considered the best DIY choice for durability and cost-effectiveness, but it can be tricky to apply, especially in hard-to-reach areas.
Butyl Tape
Butyl tape is foil-backed and includes a 0.38 to 1.3 mm butyl adhesive. It can conform to irregular shapes, making it versatile for various duct sealing applications. In aging tests, butyl tape lasted for three months.
Aerosol Sealant
Developed by the Lawrence Berkeley National Laboratory, aerosol sealant is a sticky vinyl polymer applied to duct leaks internally. It performed similarly to other sealants in tests, lasting three months in an aging test and four months in a baking test.
Aeroseal
Aeroseal is a non-toxic, non-invasive duct sealing method where a material is blown into the ductwork by a professional. It coats small holes and cracks from the inside, minimising air loss in remote sections of ductwork. Aeroseal offers a 10-year guarantee and claims to have been stress-tested for up to 40 years in residential applications.

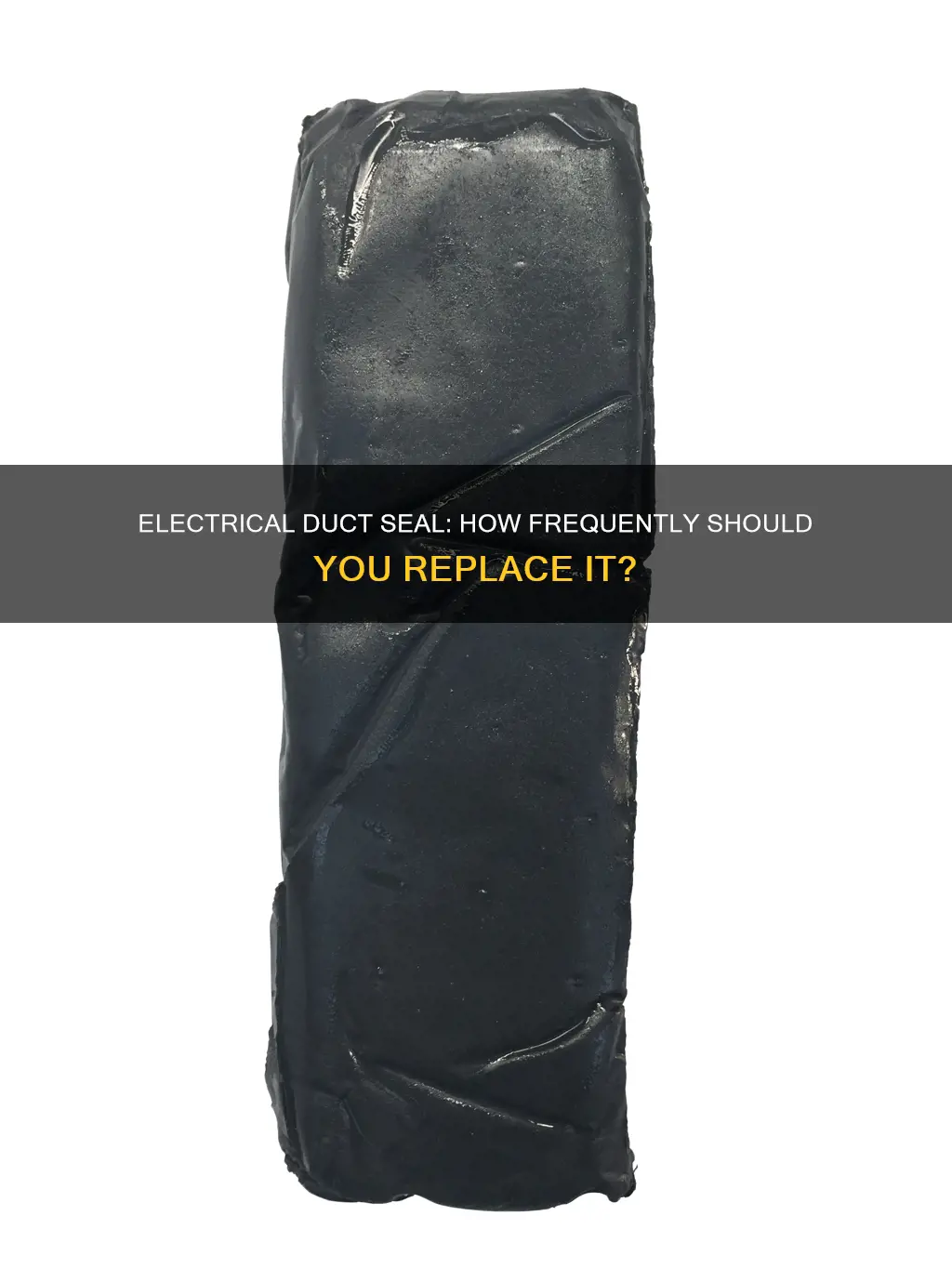

Duct Putty
Duct putty is a common product used to seal electrical and telecommunications conduits worldwide. It is made of clay and water, with variations including mastic or oil and wax blends. While it is cheap, safe, and easy to use, duct putty has been criticised for failing as a long-term sealant solution, with application difficulties and a lack of clear instructions.
Flex Seal
Flex Seal is a non-hazardous and non-toxic sealant that has been used by some homeowners to seal their ductwork. While it adhered well and created a solid seal, there is limited long-term data on its effectiveness, and it may not be water-based as recommended.
The Last Flights of the English Electric Lightning
You may want to see also
Explore related products
Effectiveness of duct putty
Duct putty is a cheap, safe, and easy-to-use sealant that is commonly used to seal electrical conduits worldwide. It is a non-hardening, non-toxic, and pliable compound designed to seal ductwork without a compressor or refrigerant. It is made of clay and water, with variations including mastic or oil and wax blends. The putty is flexible when cured and can be used to seal ducts, wires, and pipes. It boosts efficiency by protecting against moisture and preventing air intrusion.
While duct putty is a popular choice for sealing ducts, it has several shortcomings. Firstly, it is not a suitable long-term sealant solution. The application process is challenging, and the putty is very sticky and hard to manipulate, often resulting in an ineffective seal. Secondly, duct putty is not designed to seal conduits containing electrical or communications cables, despite often being marketed as such. This can lead to expensive damage and is therefore not recommended by specifiers and engineers.
To address these issues, it is important to consider alternative sealing methods or seek professional advice from an HVAC maintenance specialist. Duct sealing tape, mastic, butyl tape, aerosol sealant, and Aeroseal are some alternative materials and methods available. These options may provide more durable and effective seals, depending on the specific application and factors such as the sealant's physical properties and installation quality.
In conclusion, while duct putty is a commonly used sealant for ducts due to its convenience and affordability, it may not be the most effective or reliable option in the long term. It is crucial to consider the specific requirements of the sealing application and explore alternative methods or seek expert advice to ensure a durable and safe solution.
Open Fridge, Wasted Electricity: What's the Real Cost?
You may want to see also
Explore related products
Alternative sealants
While duct putty is the most common product used to seal electrical conduits, it often fails to meet expectations. Therefore, it is important to consider alternative sealants.
One alternative is Polywater's FST Foam Duct Sealant, a two-part, high-expansion foam duct sealing system. It is a closed-cell, foaming caulk that evenly flows around cables and in conduit spaces to create a strong, rigid, and robust seal. It is fire retardant, non-toxic, and meets electrical code requirements.
Another option is to use duct tape, which comes in various grades and tensile strengths and has a fiber-reinforced vinyl or polyethylene backing with a rubber-based adhesive. However, it is important to note that duct tape may not be as durable as other sealants, as some grades failed within 7-34 days in testing.
For rigid duct systems, foil tape with a metal foil backing and an acrylic adhesive can be used. Clear UL 181B tape, with its thin polyester backing and acrylic adhesive, is another option that has been traditionally applied in factories and for ductwork assembled in the field.
Mastic, a wet adhesive applied with a brush, is also an alternative. It dries into a semi-rigid solid that effectively fills gaps and can be used with mesh tape or reinforcing fibers.
Butyl tape, with its foil backing and butyl adhesive, is unique in its ability to conform to irregular shapes.
Lastly, aerosol sealants, such as the one developed by the Lawrence Berkeley National Laboratory, can be applied internally to duct leaks. This sticky vinyl polymer is an alternative to traditional duct sealing methods.
Mastering Electric Bass Tuning: A Step-by-Step Guide
You may want to see also
Frequently asked questions
There are various factors that impact the longevity of sealants. A high-quality sealing material and effective sealing method can yield good results for many years. Some duct seals can last 15 to 30 years. However, sealants tend to degrade over time, and new leaks can form as ductwork ages or shifts. Therefore, it is recommended to schedule duct sealing services or repairs every 5–10 years to maintain optimal performance.
Duct putty, a commonly used sealant, often falls short of expectations. It can be difficult to manipulate and may not provide an effective seal.
Alternative sealing methods include duct tape, foil tape, clear UL 181B tape, mastic, butyl tape, aerosol sealant, and Aeroseal.
Duct sealing involves sealing leaks and restoring air pressure to ductwork without replacing any sections. Duct repair is necessary when a section of the duct is broken or destroyed. Signs that your ducts need attention include leaks, reduced air quality, and damage caused by rodents or gravity acting on certain joints or areas.
