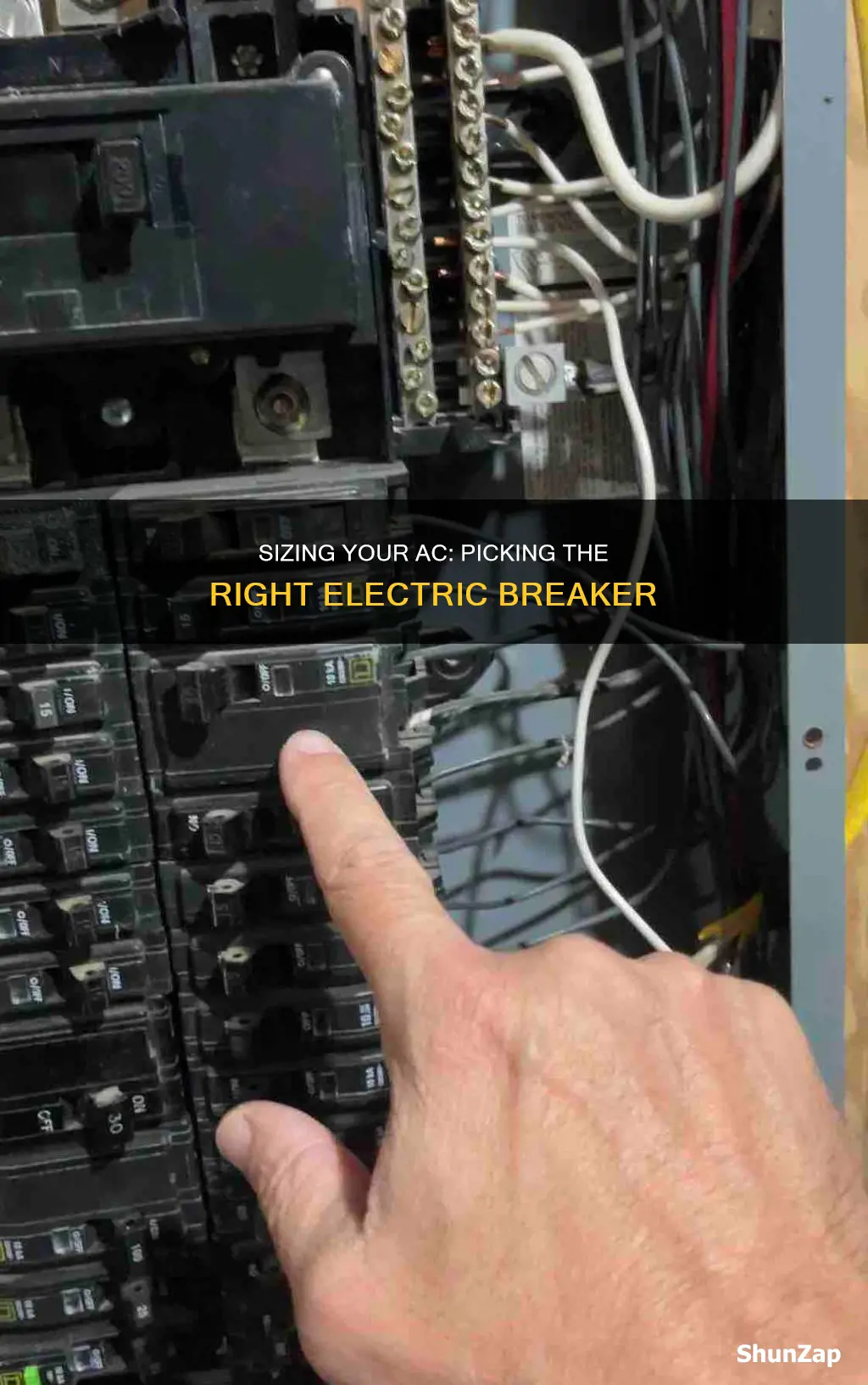

Properly sizing an air conditioner electric breaker is important to ensure the safety and efficiency of your cooling system. While there are standard guidelines, like those outlined in Table 310.15(B) (16) of the National Electric Code, determining the right circuit breaker size for an air conditioner requires considering both the minimum and maximum allowable sizes. This is because air conditioners have unique requirements due to their compressors containing thermal cutouts, which prevent damage to the units. As such, the minimum circuit ampacity, found on the compressor label, informs the minimum wire size needed to prevent nuisance tripping when the air conditioner first turns on. However, it's acceptable to have an oversized circuit breaker if the electrical disconnect has appropriately sized fuses.
Explore related products
What You'll Learn
Minimum circuit ampacity
The minimum circuit ampacity is typically indicated on the air conditioner's compressor unit label, along with the maximum fuse or circuit breaker size. This information is crucial for selecting the right wire size and ensuring safe and efficient operation. By consulting the label, installers can ensure that the circuit breaker is sized appropriately to prevent issues such as nuisance tripping when the air conditioner is turned on.
The minimum circuit ampacity also helps determine the minimum size of the circuit breaker. For example, if the minimum circuit ampacity is 14.9 amps, a 14-gauge copper wire is sufficient. However, if the ampacity is slightly higher, at 15.1 amps, a larger 12-gauge copper wire is required. This highlights the importance of precise calculations and following the manufacturer's specifications.
In some cases, the minimum circuit ampacity may not align with standard wiring charts. For instance, a circuit breaker rated for 34 amps typically requires an 8-gauge wire. However, in certain air conditioner data plates, the recommended wire size may be smaller, such as a 60-amp circuit breaker with an 8-gauge wire. This discrepancy is due to the unique characteristics of air conditioner compressors, which have thermal cutouts that prevent damage to the unit before the wires are affected.
It's worth noting that while simplified sizing charts are available, they may not always provide accurate information for air conditioners. The National Electric Code, specifically Table 310.15(B)(16), offers a comprehensive guide to sizing breakers and fuses. However, it includes numerous exceptions, making it challenging to determine the exact answer. Therefore, it is always advisable to refer to the information provided by the air conditioner manufacturer on the compressor unit label.
Converting Outboard: Electric Start Installation Guide
You may want to see also
Explore related products
Maximum fuse or circuit breaker size
When it comes to air conditioners, the maximum fuse or circuit breaker size is a crucial specification that needs to be followed for safety reasons. The manufacturer determines the appropriate breaker sizing math, and this information is printed on the compressor unit's label. This label provides the minimum circuit ampacity and the maximum fuse or circuit breaker size.
The maximum fuse or circuit breaker size for an air conditioner is typically indicated on the specification nameplate or data plate of the unit. This value is intended to protect the AC unit, as well as the electrical wiring and components. It is important to verify that the correct circuit wiring and breaker have been installed according to the specifications provided by the manufacturer. An oversized circuit breaker could lead to potential damage to the AC unit and the electrical wiring.
The maximum size indicated on the compressor label may not always align with the standard sizing charts used by electricians. For example, a data plate may specify a maximum breaker size of 60 amps, while the minimum wire size for the air conditioner is 8-gauge, which would typically call for a smaller circuit breaker. However, in this case, it is acceptable to have a circuit breaker that is oversized, as long as the electrical disconnect at the exterior has appropriately sized fuses.
It is worth noting that the wiring of the air conditioner unit still needs to be protected against internal shorts, even though the compressors and fan motors have internal overload protection. Therefore, it is important to follow the manufacturer's specifications for breaker sizing to ensure the wiring is adequately protected.
In summary, the maximum fuse or circuit breaker size for an air conditioner is a critical specification that should be adhered to during installation. By following the manufacturer's guidelines, you can ensure the safety and protection of the AC unit, wiring, and other electrical components. An oversized circuit breaker can lead to potential issues, so it is always best to consult a qualified electrician if you are unsure about the correct sizing.
Electric Razors: Better for Bikini Area?
You may want to see also
Explore related products
Preventing nuisance tripping
An air conditioner tripping the breaker is a common issue, especially during hot weather. This happens when the air conditioner pulls in more amps than the breaker is rated for. The circuit breaker trips to protect you from overcurrents that can damage equipment and cause fires. Constant tripping can be harmful and frustrating.
- Regular maintenance and timely repairs can help extend the life of your air conditioner and prevent tripping. It is recommended to have a qualified technician service your system once or twice a year, depending on your usage.
- Dirty condenser coils can cause the air conditioner to overheat and trip the breaker. Regular cleaning and tune-ups are necessary to keep the condenser coils in good condition.
- Dirty or clogged air filters can restrict airflow, causing the fan motor to work harder and draw more electricity, which can lead to an electrical short and tripping. Ensure your air filter is clean at all times.
- A dirty outside unit can also cause the breaker to trip due to drawing too much current. Get an AC technician to properly clean the outside unit.
- If your air conditioner has trouble starting, it may be pulling more electricity, causing the breaker to trip. Have an AC technician install a "hard start kit", which provides an extra electrical "jolt" to get the compressor motor running.
- If there was a recent storm or power outage, the circuit breaker might have been tripped by a one-time power surge.
- If the breaker trips immediately after resetting, there is likely a problem in the electrical system that requires professional attention.
Understanding Electric Potential Difference Calculations: A Simple Guide
You may want to see also
Explore related products
Overcurrent protection
Understanding Overcurrent Protection:
Sizing the Circuit Breaker:
When sizing the circuit breaker for an air conditioner, it is essential to refer to the information provided by the manufacturer. The compressor unit of an air conditioner should have a label or nameplate that specifies the minimum circuit ampacity (MCA) and the maximum fuse or circuit breaker size. The MCA indicates the minimum size of the wire connected to the air conditioner, ensuring it can handle the electrical load.
Compressor Startup Surge:
Air conditioner compressors experience a surge of electrical current when starting up. This surge is typically brief and not sufficient to overheat the wire. However, it can potentially trip a breaker. Modern air conditioners are designed with built-in overcurrent protection to accommodate this startup surge without tripping.
Exceptions to General Rules:
It is important to note that air conditioners and heat pumps are exceptions to the standard rules for breaker and wire size matching. The National Electric Code (NEC) and the International Residential Code (IRC) provide specific guidelines for these systems. The breaker size can exceed the ampacity of the connected wires without being considered a defect. This exception is due to the built-in overcurrent protection measures in air conditioners and heat pumps.
Choosing the Right Wire Size:
The wire size for an air conditioner should be chosen based on the MCA, as specified on the nameplate. Using the MCA, you can refer to the simplified charts provided by the NEC to determine the appropriate wire size. It is crucial to select a wire that can safely handle the electrical load of the air conditioner to prevent potential fire hazards.
In summary, ensuring proper overcurrent protection when sizing an air conditioner's electric breaker involves understanding the MCA, adhering to manufacturer recommendations, and being aware of the exceptions provided by the NEC and IRC for these specific systems. By following these guidelines, you can help ensure the safe and effective operation of your air conditioner.
Electric vs Acoustic Guitars: What's the Difference?
You may want to see also
Explore related products
Wire size
The wire size for an air conditioner depends on the size and requirements of the unit itself. The wire size is determined by the minimum circuit ampacity (MCA) of the unit. The MCA can be found on the nameplate or label of the air conditioner, which states the minimum and maximum circuit breaker size for the unit.
For example, if the MCA of an air conditioner is 28.2 amps, a 30-amp wire size is required. If the MCA is 14.9 amps, a 14-gauge copper wire is needed. If the MCA is 15.1 amps, a 12-gauge copper wire is required. If the MCA is 34 amps, an 8-gauge wire is necessary.
It is important to note that the wire size does not need to match the size of the circuit breaker for air conditioners. This is because air conditioner compressors contain thermal cutouts that prevent damage to the unit, and these would open before causing any issues for the wires. However, the circuit breaker must be large enough to support the MCA of the air conditioner.
Additionally, the wire size may depend on the length of the wire and the specific installation requirements. For instance, a 240V circuit is typically required for the condensing unit, and a 120V circuit for the furnace or air handler. It is recommended to consult with a qualified electrician or HVAC professional to ensure the proper wire size and circuit breaker are selected for a specific air conditioning unit.
What Voltage Do Electric Dryers Use? 120 or 240 Volts?
You may want to see also
Frequently asked questions
An oversized circuit breaker is the most common defect. This usually occurs when an air conditioner is replaced with a more efficient unit, but the circuit breaker in the panel is not replaced with a smaller one.
The right circuit breaker size is determined by considering both the minimum and maximum allowable sizes. The maximum size will be indicated on the compressor label.
No, it is not necessary to match the sizes. This is due to the inclusion of thermal cutouts in air conditioner compressors, which prevent damage to the units by opening before the wires are affected.
It is recommended to refer to the information printed on the label of the compressor unit, rather than relying solely on simplified sizing charts. The label provides the minimum circuit ampacity and maximum fuse or circuit breaker size.
If a wire is too small for a circuit breaker, it can pose a fire hazard. Circuit breakers are designed to protect wires from overheating, so proper sizing is crucial for safety.
