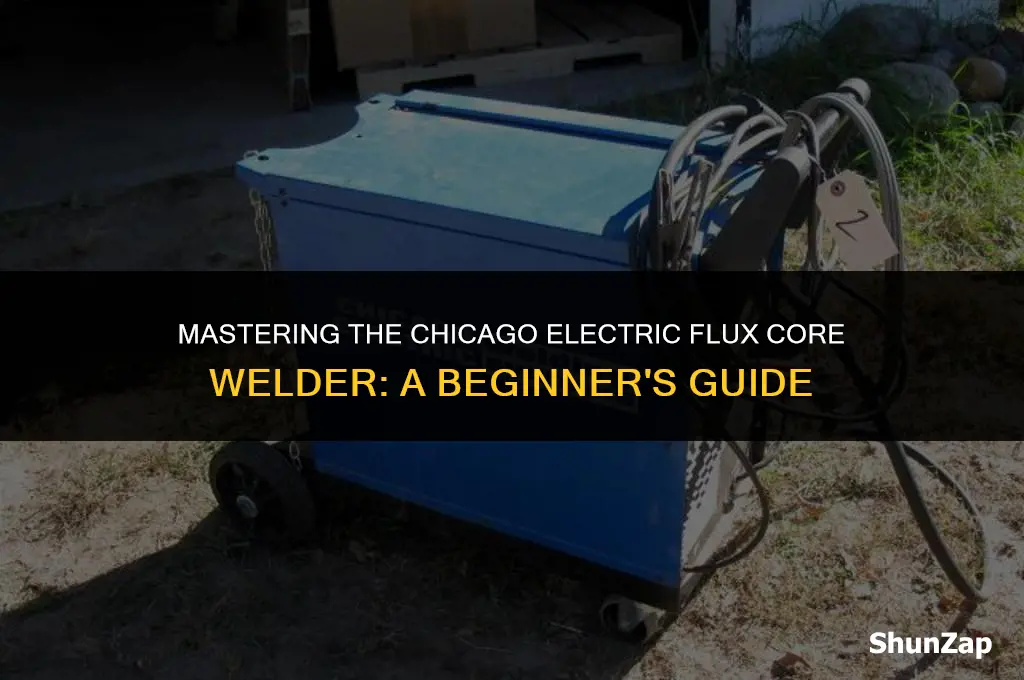

The Chicago Electric Flux Core Welder is a versatile and powerful tool designed for both professional and DIY welding projects. This type of welder uses a continuous wire feed and a flux-cored wire to create strong, clean welds on various metal surfaces. To operate this welder effectively, it's essential to understand its components, setup process, and safety precautions. First, ensure you have all the necessary safety gear, including a welding helmet, gloves, and protective clothing. Next, familiarize yourself with the welder's controls, such as the voltage and wire feed speed settings. Before starting, securely clamp the workpiece and ensure the welding area is free from debris and flammable materials. When ready, hold the welding gun at a 90-degree angle to the workpiece and squeeze the trigger to begin welding. Maintain a steady hand and consistent speed to achieve optimal results. Remember to take breaks to avoid overheating the welder and always follow the manufacturer's guidelines for maintenance and operation.
Explore related products
![ARCCAPTAIN 135A MIG Welder, 2025 Newest [Large LED Display] 110V Welder Flux Core MIG, Lift TIG, Stick, 3 in 1 Welding Machine Gasless MIG Welder Machine 110V, IGBT Inverter Welder with Synergy, 2T/4T](https://m.media-amazon.com/images/I/71-lu0pKzuL._AC_UL320_.jpg)
What You'll Learn
- Setup and Safety: Preparing the welder, ensuring proper ventilation, and wearing protective gear
- Flux Core Selection: Choosing the right flux core wire for the welding project
- Welding Techniques: Tips on maintaining a consistent arc and proper welding posture
- Troubleshooting: Common issues and solutions when using the Chicago Electric flux core welder
- Maintenance: Regular cleaning and upkeep to ensure the welder's longevity and performance
Setup and Safety: Preparing the welder, ensuring proper ventilation, and wearing protective gear
Before beginning any welding project with a Chicago Electric flux core welder, it is crucial to prioritize setup and safety. This involves preparing the welder, ensuring proper ventilation, and wearing the appropriate protective gear. By following these guidelines, you can minimize the risk of accidents and injuries, and ensure a successful welding experience.
Preparing the welder involves several key steps. First, inspect the welder for any damage or wear, and ensure that all components are securely fastened. Next, check the power cord and plug for any fraying or damage, and replace them if necessary. Then, select the appropriate welding wire for your project, and load it into the welder according to the manufacturer's instructions. Finally, adjust the welder's settings to match the requirements of your project, taking into account the thickness of the metal, the type of weld, and the desired penetration.
Proper ventilation is essential when welding, as it helps to remove harmful fumes and gases from the work area. When using a Chicago Electric flux core welder, it is recommended to work in a well-ventilated area, such as a workshop or garage with open windows and doors. If this is not possible, consider using a ventilation system or respirator to help remove fumes from the air. It is also important to keep the work area clean and free of clutter, as this can help to reduce the risk of fire and other hazards.
Wearing protective gear is critical when welding, as it helps to protect you from burns, sparks, and other injuries. When using a Chicago Electric flux core welder, it is recommended to wear a welding helmet with a shade that is appropriate for the type of welding you are doing. You should also wear welding gloves, a long-sleeved shirt, and long pants made of flame-resistant material. Additionally, consider wearing steel-toed boots and safety glasses for added protection.
By following these guidelines for setup and safety, you can help to ensure a successful and injury-free welding experience with your Chicago Electric flux core welder. Remember to always prioritize safety when working with power tools, and to consult the manufacturer's instructions for any specific guidance or recommendations.
