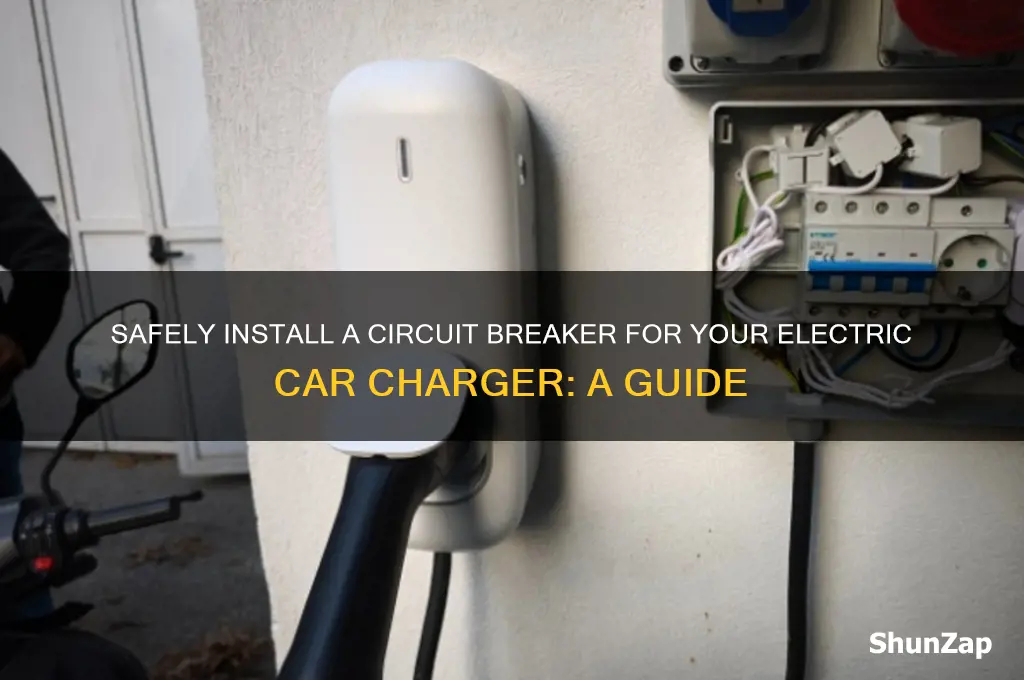

Adding a circuit breaker to an electric car charger is a crucial step in ensuring the safety and efficiency of your charging setup. Circuit breakers protect the electrical system from overloads and short circuits, which can occur due to faults in the charger, wiring, or the vehicle itself. To install one, you’ll need to select a circuit breaker with the appropriate amperage rating, typically matching the charger’s specifications. The process involves turning off the main power supply, locating the electrical panel, and connecting the circuit breaker to the dedicated circuit for the charger. Proper grounding and compliance with local electrical codes are essential to prevent hazards and ensure the system functions reliably. This installation not only safeguards your home’s electrical infrastructure but also extends the lifespan of your electric vehicle charger.
Explore related products
What You'll Learn
- Breaker Size Calculation: Determine charger amperage, match breaker size, ensure safety margin
- Panel Compatibility: Check panel capacity, upgrade if needed, ensure proper wiring
- Installation Location: Choose accessible, dry area, comply with local codes
- Wiring Requirements: Use correct gauge wire, follow NEC standards, avoid overheating risks
- Testing & Safety: Verify connections, test breaker functionality, ensure grounding is secure
Breaker Size Calculation: Determine charger amperage, match breaker size, ensure safety margin
Electric vehicle (EV) chargers draw significant current, making proper circuit breaker sizing critical for safety and functionality. The first step is determining the charger’s amperage rating, typically found on the device itself or in its manual. For example, a Level 2 charger might be rated for 32 amps, while a high-power unit could reach 50 amps or more. This value represents the maximum current the charger will draw under normal operation. However, relying solely on the charger’s rating is insufficient; you must also account for the vehicle’s charging capabilities, as some EVs can accept higher currents than the charger provides.
Once the charger’s amperage is known, selecting the appropriate breaker size involves applying the National Electrical Code (NEC) guidelines. The breaker should be rated at 125% of the continuous load to ensure it doesn’t trip prematurely. For instance, a 32-amp charger would require a breaker sized at 40 amps (32 × 1.25 = 40). This calculation prevents nuisance tripping while maintaining safety margins. It’s also essential to verify that the wiring and electrical panel can handle the breaker size, as undersized components can overheat or fail.
Safety margins are non-negotiable in EV charging installations. Overloading a circuit can lead to fires or damage to both the charger and the vehicle. To further safeguard the system, consider using a breaker with a slight buffer above the calculated size. For example, opting for a 50-amp breaker instead of a 40-amp one for a 32-amp charger provides additional headroom for voltage drops or minor fluctuations. This approach aligns with best practices in electrical engineering, prioritizing long-term reliability over minimal compliance.
Practical tips can streamline the process. Always consult a licensed electrician to ensure compliance with local codes and to address unique installation challenges. Use a clamp meter to verify actual current draw during operation, as real-world conditions may differ from theoretical calculations. Finally, label the breaker clearly to avoid confusion and ensure future maintenance is straightforward. Proper breaker sizing isn’t just about meeting standards—it’s about creating a robust, safe, and efficient charging infrastructure for your electric vehicle.
Choosing the Right Solder Bar for Electrical Applications: A Guide
You may want to see also
Explore related products
Panel Compatibility: Check panel capacity, upgrade if needed, ensure proper wiring
Before installing a circuit breaker for an electric car charger, assess your electrical panel's capacity. Most home panels are rated for 100 to 200 amps, but adding a Level 2 charger (typically 40–50 amps) can push the system to its limits. Calculate your current load by adding the amperage of all existing circuits. If the total exceeds 80% of your panel’s capacity, an upgrade is necessary to avoid overloading. For example, a 100-amp panel with 80 amps in use leaves no safe margin for a 40-amp charger.
Upgrading your panel is not just about increasing amperage; it’s also about ensuring compatibility with modern demands. Older panels, especially those with fuse-based systems or outdated breakers, may lack the capacity or safety features required for EV charging. A licensed electrician can evaluate whether your panel supports 240-volt circuits and recommend a replacement if needed. Upgrades typically cost $1,500 to $4,000 but are essential for long-term safety and functionality.
Proper wiring is the backbone of a safe installation. Use 8-gauge or 6-gauge stranded copper wire for a 40-amp circuit, ensuring it’s rated for high temperatures and compatible with your panel and charger. Avoid aluminum wiring due to its higher resistance and potential for overheating. The wiring must be securely connected to the new breaker and grounded according to local codes. Poor connections or undersized wires can lead to voltage drops, reduced charging efficiency, or fire hazards.
A common oversight is neglecting the panel’s physical space. Most panels have limited slots for breakers, and adding a 40- or 50-amp double-pole breaker may require removing existing ones or installing a subpanel. Subpanels, costing $500 to $1,000, provide additional capacity without replacing the main panel. Ensure the new breaker is compatible with your panel’s brand and model; mismatched breakers can void warranties or cause operational issues.
Finally, consult local building codes and utility requirements before proceeding. Some areas mandate permits for panel upgrades or EV charger installations, and inspections ensure compliance with safety standards. While DIY enthusiasts may attempt this, hiring a certified electrician guarantees the work meets legal and technical requirements. The investment in professional installation and panel upgrades ensures your EV charger operates safely and efficiently for years to come.
Eco-Friendly Alternatives to Electric Germination Mats for Seed Starting
You may want to see also
Explore related products
Installation Location: Choose accessible, dry area, comply with local codes
Selecting the right location for your electric vehicle (EV) charger’s circuit breaker is as critical as the wiring itself. Accessibility is paramount—place it in an area where you can easily reach it in case of emergencies or routine maintenance. Avoid cramped spaces or areas obstructed by furniture or equipment. For instance, installing the breaker near the main electrical panel or in a garage utility area ensures it’s both visible and reachable. This not only simplifies troubleshooting but also aligns with safety standards that require quick access to electrical controls.
Moisture is the enemy of electrical systems, making a dry installation area non-negotiable. Damp environments, such as basements prone to flooding or outdoor spaces without proper shielding, can corrode components and increase the risk of short circuits. If your only option is an exposed area, invest in a weatherproof enclosure rated for outdoor use. For indoor installations, ensure the space has adequate ventilation and is free from leaks. A dehumidifier can be a practical addition in humid climates to maintain optimal conditions.
Local building codes and electrical standards are not mere suggestions—they are legal requirements designed to protect your home and its occupants. Before finalizing the location, consult your area’s electrical code to ensure compliance. Common regulations include minimum clearance distances around the breaker (typically 30 inches in front and 12 inches on sides) and restrictions on installing electrical components in combustible areas. Failure to comply can result in failed inspections, fines, or even voided insurance claims in case of accidents.
Comparing indoor and outdoor installations highlights the trade-offs in location choice. Indoor setups offer protection from the elements but may limit accessibility if the space is cluttered or poorly lit. Outdoor installations provide easier access but require robust weatherproofing. For example, a garage installation strikes a balance, offering shelter while keeping the breaker within arm’s reach. Weigh these factors against your specific needs and environmental conditions to make an informed decision.
Finally, consider future-proofing your installation. As EV ownership grows, you may need to upgrade your charging system or add additional breakers. Choose a location with enough space to accommodate expansions, such as a wall with adjacent empty panels or a dedicated electrical subpanel. This foresight saves time and money down the line, ensuring your setup remains efficient and compliant as your needs evolve.
Volvo Electric Cars: Do They Qualify for Tax Credits?
You may want to see also
Explore related products
Wiring Requirements: Use correct gauge wire, follow NEC standards, avoid overheating risks
Selecting the correct gauge wire is the foundation of a safe and efficient electric vehicle (EV) charger installation. Wire gauge, measured by the American Wire Gauge (AWG) system, determines a wire’s current-carrying capacity. For most Level 2 EV chargers, which operate at 240 volts and deliver up to 40 amps, 6 AWG copper wire is the standard recommendation. This gauge ensures minimal voltage drop and supports the charger’s power demands without overheating. Using a thinner wire, like 8 AWG, risks excessive resistance, energy loss, and potential fire hazards. Always consult the charger manufacturer’s specifications, as some high-power units may require 4 AWG wire.
Adhering to the National Electrical Code (NEC) is non-negotiable for EV charger installations. NEC Article 625, which governs EV supply equipment, mandates specific wiring practices to ensure safety. For instance, the circuit must be protected by a dedicated breaker rated at 125% of the charger’s continuous load. If your charger draws 32 amps, a 40-amp double-pole breaker is required. Additionally, the NEC requires grounding and neutral conductors to match the size of the ungrounded conductors, ensuring proper fault protection. Failure to comply with these standards can void warranties, fail inspections, or create hazardous conditions.
Overheating is a silent threat in EV charger wiring, often caused by undersized wires, poor connections, or excessive bending radius. To mitigate this, maintain a minimum bending radius of 8 times the wire diameter during installation. Use high-temperature-rated insulation, such as THHN or THWN-2, to withstand heat generated under load. Regularly inspect connections for signs of discoloration or melting, which indicate overheating. Installing the charger in a well-ventilated area further reduces thermal stress on the wiring system.
A comparative analysis of wire materials highlights why copper is preferred over aluminum for EV charger installations. Copper’s higher conductivity allows for smaller-diameter wires to carry the same current as aluminum, saving space and cost. However, if aluminum is used due to budget constraints, increase the wire gauge by two sizes (e.g., use 4 AWG aluminum instead of 6 AWG copper) to compensate for its lower conductivity. Note that aluminum requires special connectors and torque specifications to prevent cold creep, a phenomenon where connections loosen over time due to thermal cycling.
In conclusion, wiring an EV charger demands precision and adherence to standards. Start with the correct gauge wire, follow NEC guidelines meticulously, and take proactive measures to prevent overheating. These steps not only ensure the charger operates efficiently but also safeguard your home from electrical hazards. Treat this installation as a critical electrical project, and when in doubt, consult a licensed electrician to verify compliance and safety.
Are Electric Cars Affordable? Cost Analysis and Budget-Friendly Options
You may want to see also
Explore related products
Testing & Safety: Verify connections, test breaker functionality, ensure grounding is secure
Before energizing your new electric vehicle (EV) charger circuit, meticulous testing and safety verification are paramount. Begin by inspecting all connections for tightness and integrity. Loose connections can lead to overheating, arcing, or even fires. Use a torque screwdriver to ensure terminal screws are tightened to manufacturer specifications—typically 20 to 25 inch-pounds for residential wiring. Visually inspect wire strands for fraying or damage, and confirm that wires are correctly inserted into the breaker and charger terminals, avoiding any pinching or exposed conductors.
Next, test the circuit breaker’s functionality to ensure it trips at the rated current. Use a non-contact voltage tester to confirm power is off before proceeding. Then, employ a load tester or high-current device (such as a portable heater) to draw current through the circuit. Gradually increase the load until it reaches the breaker’s rated amperage (e.g., 40A for a Level 2 charger). The breaker should trip within 5–10 seconds of exceeding its limit. If it fails to trip or trips prematurely, replace the breaker immediately—a faulty breaker compromises the entire system’s safety.
Grounding is the unsung hero of electrical safety, providing a fail-safe path for fault currents. Verify the grounding connection by measuring continuity between the charger’s ground terminal, the breaker panel’s grounding busbar, and the main grounding electrode (often a ground rod or water pipe). Use a multimeter set to the continuity or resistance mode; a reading of less than 1 ohm indicates a secure ground. If continuity is absent, inspect the grounding conductor for breaks, corrosion, or loose connections. A compromised ground increases the risk of electric shock and equipment damage during a fault.
Finally, perform a comprehensive system test under simulated charging conditions. Connect your EV to the charger and initiate a charging session while monitoring the circuit with a clamp meter. Observe current draw, ensuring it remains within the breaker’s rating and the charger’s specifications. Listen for unusual noises (e.g., buzzing or humming) and inspect the breaker panel and charger for signs of overheating. If any anomalies occur, disconnect power and troubleshoot before resuming operation. This final step ensures all components function harmoniously under real-world conditions.
By systematically verifying connections, testing breaker functionality, and ensuring secure grounding, you mitigate risks associated with electrical faults and equipment failure. These steps are not merely procedural—they are critical safeguards that protect both your EV and your home. Treat each test as a non-negotiable checkpoint, and consult a licensed electrician if uncertainties arise. Safety in EV charging infrastructure is not optional; it’s foundational.
Can Static Electricity Power Slot Car Movement? Exploring the Science
You may want to see also
Frequently asked questions
A circuit breaker is a safety device designed to protect electrical circuits from damage caused by excess current. For an electric car charger, a circuit breaker is necessary to prevent overheating, electrical fires, or damage to the charger and vehicle in case of a power surge or short circuit.
The correct circuit breaker size depends on the charger’s amperage rating. For example, a Level 2 charger typically requires a 40-60 amp breaker. Check the charger’s specifications or consult an electrician to ensure compatibility with your home’s electrical system.
Installing a circuit breaker for an electric car charger involves working with high-voltage electricity, which can be dangerous. It’s highly recommended to hire a licensed electrician to ensure the installation meets local codes and safety standards.
