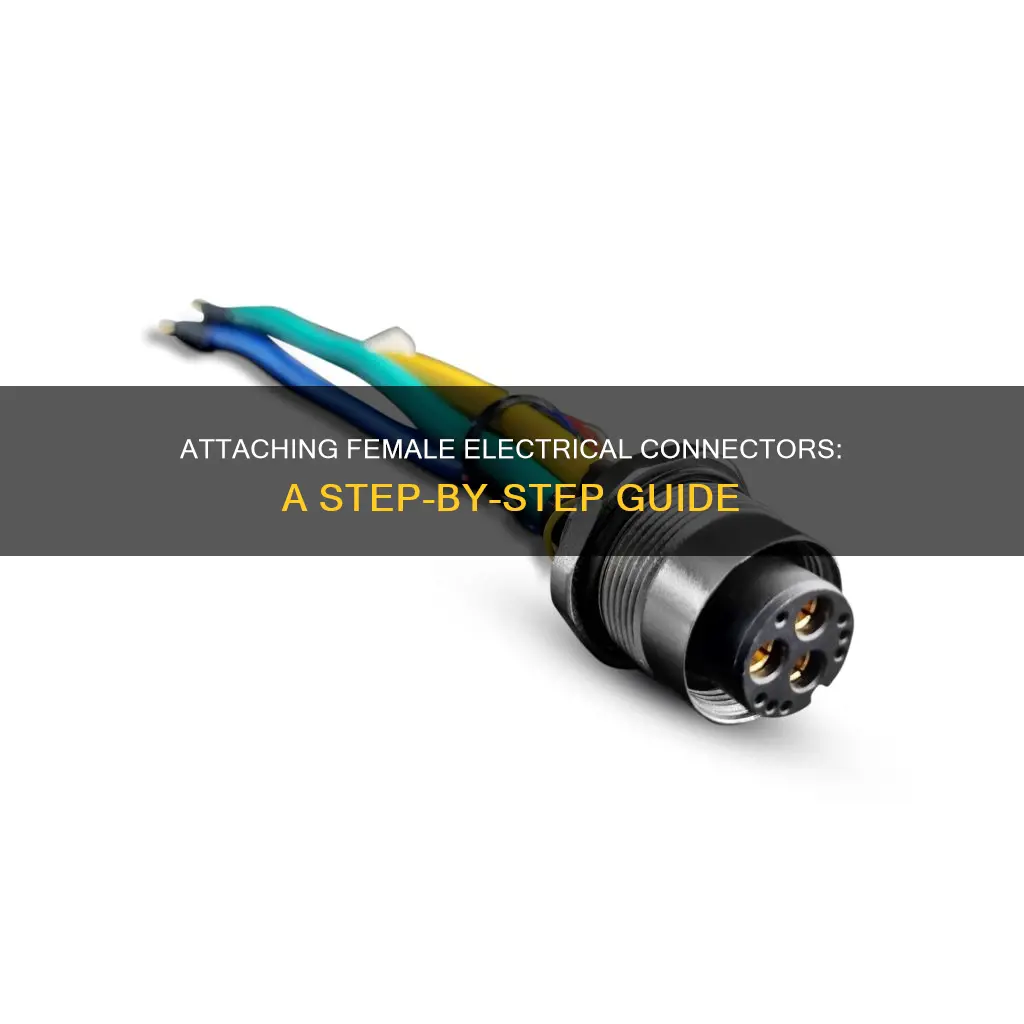

In electrical engineering, it is important to understand the gender of connectors and fasteners. The female connector is generally a receptacle that receives and holds the male connector. In the case of electrical connectors, alternative terms such as plug and socket or jack are used. The female connector is distinguished by its outward-facing protrusions and indentations, fitting outside of its male counterpart. Female connectors are often selected for fixed mounting on electronic equipment due to their resistance to damage and contamination. They are commonly found in USB cables, RCA connectors for video signals, and barrel connectors in consumer electronics. When attaching a female electrical connector, it is important to consider the mounting method, angle of connection, and mechanical attachment to ensure a secure and functional connection.
| Characteristics | Values |
|---|---|
| General Description | The female connector is a receptacle that receives and holds the male connector. |
| Alternative Terms | Plug and socket, jack. |
| Male Connector | The part bearing protrusions or fitting inside the other part. |
| Use Case | Female connectors are often selected for fixed mounting on electronic equipment because they are more resistant to damage or contamination due to their concealed or recessed electrical contacts. |
| Mount Types | Panel mount, free-hanging, board mount. |
| Angle Types | Straight or right-angle. |
| Attachment Types | Solder tab, surface mount, through hole. |
| Example | Female RCA connector for video signals. Typically, NTSC or PAL video signal connectors are yellow. |
Explore related products
What You'll Learn
Female USB-A connectors
Female connectors are often selected for fixed mounting on electronic equipment because they are more resistant to damage or contamination due to their concealed or recessed electrical contacts. This is particularly important for expensive electronic equipment, as a damaged connector can result in the equipment being scrapped. Additionally, female connectors can help enforce a sense of one-way directionality for electrical power transfer, as seen in electrical power distribution networks.
When working with female electrical connectors, it is important to be aware of the gender conventions. While the female connector is typically the receptacle, there may be variations or exceptions in certain contexts, such as plumbing or ductwork connections, where the gender designations may be less obvious or even reversed. Therefore, it is always essential to refer to the product specifications and images to ensure the correct connector is selected for the intended application.
Electric Brakes Installation on an S10: A Step-by-Step Guide
You may want to see also
Explore related products
Female RCA connectors
The process of attaching a female RCA connector involves connecting the centre of the RCA plug to the red wire and the outer part of the RCA plug to the black wire. The red wire should then be connected to the positive terminal of the speaker, while the black wire should be connected to the negative terminal.
It is important to note that shielded cabling is standard with RCA connectors, so if shielding is a requirement for your application, alternative options should be considered.
Staying Warm Before Electricity: Ancient Techniques for Cold Weather
You may want to see also
Explore related products
Female barrel connectors
The female connector is generally a receptacle that receives and holds the male connector. The gender of connectors is designated based on the presence of protrusions or indentations, with the connector bearing protrusions designated as male, and the one with indentations designated as female. In the case of electrical connectors, alternative terms such as "plug" and "socket" are sometimes used.
Electric Universe and Bible: Scientific Confirmation of Scriptures?
You may want to see also
Explore related products
Female D-subminiature connectors
D-sub connectors have gendered variants: parts with pin contacts are called male connectors or plugs, while those with socket contacts are called female connectors or sockets. The socket's shield fits tightly inside the plug's shield. The female D-sub connector body projects outward from the mounting plane of the chassis, and this protrusion could be erroneously interpreted as male. The suffixes M and F (for male and female) are sometimes used to denote gender, as well as the number of pins and shell size. For example, a female high-density D-subminiature connector with a size 1 shell can be named DE15F or DE15S. Both terms refer to the same connector but could be mistaken for different items.
D-subminiature connectors are commonly used in industrial products, with the DA-15 version being prevalent in rotary and linear encoders. They are also used in military, transportation, and outdoor commercial equipment, such as boating and remote weather stations. IBM PC-compatible computers tend to have male connectors at the device and female connectors at the modems. Early Apple Macintosh models used DE-9 connectors for RS-422 multi-drop serial interfaces, while later models use 8-pin miniature DIN connectors.
Electronic designers often select female jack connectors for fixed mounting on electronic equipment due to their durability and resistance to contamination. The recessed electrical contacts of female connectors make them less susceptible to damage or contamination.
Get TLC Electric Plates: Application Process Simplified
You may want to see also
Explore related products
Female jumper wire connectors
When working with female jumper wire connectors, it is important to consider the specific application and select the appropriate connector type. For example, the female barrel connector, also known as a "jack," is commonly used in low-cost consumer electronics and can be purchased in different mounting options, including PCB, cable, and panel mount.
To attach a female electrical connector, such as a female jumper wire connector, several methods can be employed:
- Crimping: Female pins can be crimped onto wires and then snapped into connector housings to create custom cables. This method allows for flexible connections and is commonly used in electronics projects.
- Soldering: Female connectors can be soldered onto wires or printed circuit boards (PCBs) to create more permanent connections.
- Plug-and-Play: Some female connectors come pre-attached to cables, allowing for convenient plug-and-play connections without the need for additional assembly.
It is important to consult the specific instructions and guidelines provided by the connector manufacturer to ensure proper handling, assembly, and safety precautions when attaching female electrical connectors.
Relocating Electrical Wall Sockets: A DIY Guide for Safe Moving
You may want to see also
Frequently asked questions
In electrical connections, the female connector is generally a receptacle that receives and holds the male connector. The female connector is the one with indentations, fitting outside the other connector.
Female connectors can be attached using a few methods, including soldering and crimping. For example, to create a female jumper wire connector, you can use female single-row pinheaders pitched at 2.54mm, separate them with a knife, and then solder wires to them. You can also use a crimp socket to attach a female connector by checking that it fits the header pin size and then crimping it onto a wire.
Some examples of female electrical connectors include the USB-A female connector, the female RCA connector, and the female barrel connector. Female connectors are often selected for fixed mounting on electronic equipment because they are more resistant to damage or contamination due to their concealed or recessed electrical contacts.
