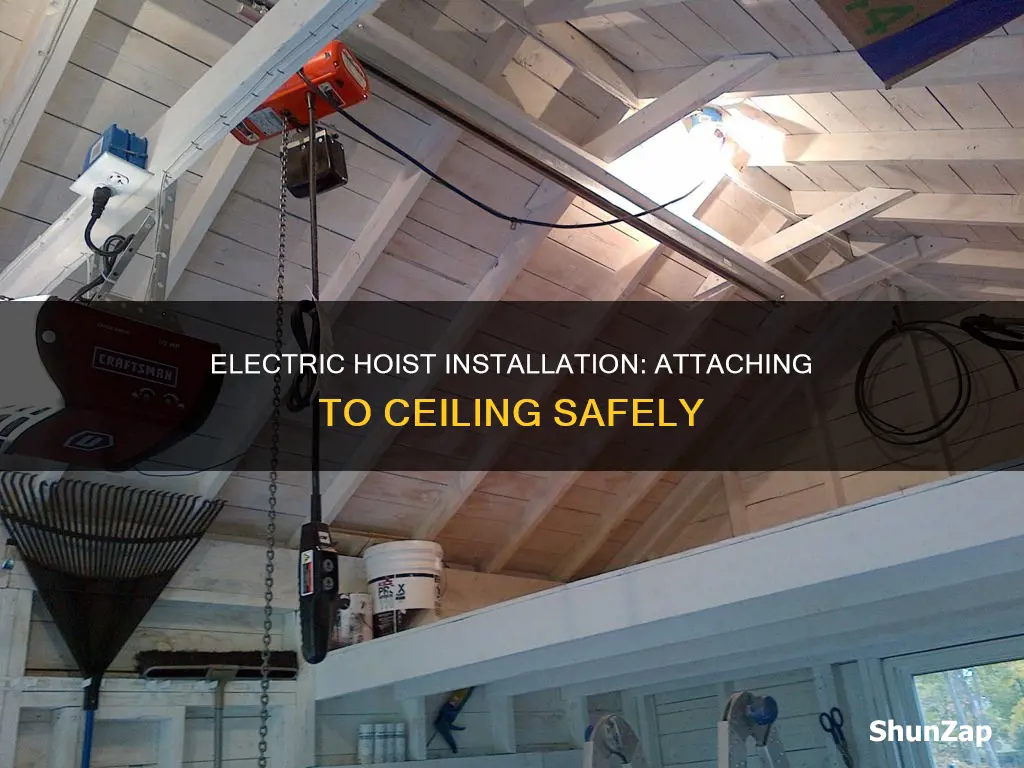

Electric hoists are powerful tools that can be used for a variety of tasks, such as lifting heavy objects or engines. Installing an electric hoist can be a challenging project, especially when it comes to ensuring the structure can support the load. The process involves determining a suitable location, adding support for the weight, using mounting brackets, and securing the hoist with bolts. It is important to consider the type of roof and ceiling structure, as well as access to the ceiling space, when planning the installation. Safety precautions must be prioritized to prevent accidents or structural damage.
Explore related products
![[Upgraded] 1700 lb Capacity 2PCS M10 Stainless Steel Pad Eye Hooks+2PCS 10MM Snap Hook + 8PCS Heavy Duty Screws for Hammock Hanging Kit, Swing Hanging, Wall/Ceiling Mount, Indoor & Outdoor](https://m.media-amazon.com/images/I/71vr3ooVzEL._AC_UY218_.jpg)
What You'll Learn
Ensure the ceiling is strong enough to support the hoist and its load
Before installing an electric hoist, it is crucial to ensure that your ceiling can withstand the weight of the hoist and its load. Here are some detailed steps and considerations to help you determine if your ceiling is strong enough:
First, determine the weight capacity of your electric hoist. Electric hoists come with different maximum weight capacities, typically ranging from 200 to 1000 lbs. Knowing the weight capacity of your hoist will help you understand the required strength of your ceiling structure.
Next, assess the material and design of your ceiling's structural support. Is it made of timber, steel, or concrete? Does it have trusses, joists, or rafters that can provide additional support? Understanding the composition and design of your ceiling structure will help you identify potential attachment points and determine if it can bear the load.
Now, consider the distribution of weight. It is essential to distribute the weight evenly across the ceiling. Look for ways to span multiple trusses or joists to avoid concentrating the load on a single point of attachment. One method is to use a strong back, typically a 2x4 nailed flat in the center to prevent horizontal bowing of the joists. You can also install additional support by adding 2x6 joists between the trusses or using galvanized C-channel or Unistrut, which is a heavy steel U-channel designed for hanging pipe and electrical devices.
Additionally, you can reinforce your ceiling by screwing an eye bolt or an I-bolt into the center of a 4x4 wooden block, which spans multiple trusses or beams. This method provides a secure attachment point for your hoist and helps distribute the weight.
If your ceiling is covered with sheetrock or drywall, you may need to cut a hole that spans multiple trusses. Install additional support beams or joists and secure them with wood screws or lag bolts. This will provide a stronger base for attaching your electric hoist.
Remember, if you have any doubts about the strength of your ceiling, it is always best to consult a professional or seek advice from a structural engineer. Safety should be the top priority when installing an electric hoist.
Electrical Tape on Skin: What Are the Health Risks?
You may want to see also
Explore related products
Use a mounting bracket to mark and drill holes for bolts
When installing an electric hoist, it is important to use the mounting bracket that comes with the hoist. This bracket will be placed on the outside of the joists, so you will need to mark the holes for the bolts by drilling straight through. Make sure the bracket is securely attached to the joists before lifting the hoist into position.
To begin, hold the mounting bracket up to the joists and use a pencil or marker to indicate where the holes for the bolts will be. It is important to ensure that the bracket is level and securely attached to the joists before drilling. Once you have marked the holes, you can begin drilling straight through the marked spots.
After you have drilled the holes, you can screw in the bolts and secure them with nuts on the other side. Make sure that the bolts are tight and that the bracket is firmly attached to the joists. You can use a screwdriver or a drill with a screwdriver attachment to tighten the bolts.
Now that the bracket is secure, you can lift the electric hoist into position. Line up the holes in the hoist with the bolts and secure it in place with the appropriate nuts or washers. Ensure that the hoist is securely attached to the bracket and that all connections are tight before plugging it into an electrical outlet and testing it.
It is important to note that the weight of the load you put on the hoist will also be placed on the joists of the truss system. Therefore, it is crucial to ensure that the joists can support the weight of the load plus the weight of the hoist itself. Most engineered trusses can handle excess loads of up to approximately 400 pounds. However, it is always best to consult a professional or refer to the manufacturer's instructions for your specific hoist model to ensure safe installation and usage.
Co-op's Wholesale Electricity: A Sustainable Energy Revolution
You may want to see also
Explore related products
Secure the bracket with bolts
When securing the bracket with bolts, it is important to follow a careful process to ensure the electric hoist is safely installed. Here is a detailed guide:
First, determine the location for the electric hoist, considering the load you plan to put on it. The hoist should be installed where it can span two or three trusses or joists to distribute the weight evenly. If you have an open ceiling, you can install joists between the trusses for added support. If your ceiling is covered, you will need to cut a hole that spans the trusses and secure the joists with screws.
Next, use the mounting bracket that comes with the electric hoist. Place the bracket on the outside of the joists, and mark the holes for the bolts. Drill straight through the marked holes. Screw in the bolts securely, ensuring they are tight and can bear weight.
After securing the bracket to the joists, you can lift the electric hoist into position. Secure the hoist to the bracket using the supplied bolts. Ensure that the hoist is firmly attached to the bracket before plugging it into an electrical outlet to test its functionality.
It is important to note that installing an electric hoist is an advanced project. If you are unsure about any part of the process, consult a professional or seek advice from a structural engineer to ensure the safety of your installation.
Additionally, consider the weight distribution and the capacity of the hoist. Most engineered trusses can handle excess loads of up to approximately 400 pounds. However, it is crucial to verify the capacity of your specific setup and ensure that the weight is distributed across multiple points of attachment to avoid concentrating the load on a single area.
Mastering the Art of Driving Diesel-Electric Locomotives
You may want to see also
Explore related products
Lift the hoist into position and secure with bolts
Once you have the mounting bracket secured to the joists, you can lift the electric hoist into position. Ensure that the hoist is securely attached to the bracket and then use the bolts supplied with the hoist to secure it in place.
It is important to make sure that the hoist is firmly attached to the bracket and the bolts are tightened securely. You can then plug the hoist into the nearest electrical outlet and test it to make sure it is functioning correctly.
If you have a covered ceiling, you may need to cut a hole that spans three trusses and is 2 feet wide. You can then cut and attach a joist to size between the trusses. Secure the joist with 3-inch wood screws and use joist hangers if possible. This will provide additional support for the weight of the hoist and the load it will carry.
When lifting the hoist into position, it is important to have assistance due to the weight of the hoist. Additionally, ensure that the hoist is securely attached to the bracket before tightening the bolts.
After the hoist is securely attached, you can test its functionality. It is important to ensure that the hoist is working correctly and can handle the load you intend to lift. Always refer to the manufacturer's instructions for guidance on installation, load capacity, and safe operation.
Folding Your Jetson Electric Scooter: A Step-by-Step Guide
You may want to see also
Explore related products
Plug the hoist into an electrical outlet
Once you have the electric hoist attached to the ceiling, it's time to plug it into an electrical outlet. This is a straightforward step, but it's important to ensure that the hoist is securely connected and functioning properly. Here are the detailed steps to follow:
Locate the Nearest Electrical Outlet:
Begin by identifying the nearest electrical outlet to the hoist's installation point. This outlet will provide power to the hoist, so it should be easily accessible and located close by.
Plug in the Hoist:
Take the power cord of the electric hoist and firmly insert it into the electrical outlet. Ensure that the connection is secure and that the plug is properly seated in the outlet.
Test the Hoist:
After plugging in the hoist, test its functionality. Operate the hoist according to the manufacturer's instructions to ensure it is working correctly. This may involve testing the hoist's lifting mechanism, adjusting its settings, and verifying its performance.
Ensure Proper Functioning:
Pay close attention to the hoist's performance during the test. Make sure that it lifts smoothly, responds to controls as expected, and handles the load effectively. If the hoist exhibits any unusual behaviour or malfunctions, stop using it immediately and check for any installation errors or potential issues.
Safety Precautions:
Always prioritise safety when working with electric hoists. Ensure that the electrical outlet is properly grounded and that the hoist's power cord is in good condition, with no signs of damage or wear. Avoid using extension cords unless absolutely necessary, and follow all manufacturer guidelines for safe operation.
By following these steps, you can safely and effectively plug your electric hoist into an electrical outlet, ensuring its readiness for various lifting tasks. Remember to consult the hoist's user manual for any specific instructions or precautions provided by the manufacturer.
Shopping for Electricity in Texas: A Guide
You may want to see also
Frequently asked questions
You will need to measure out the area and cut a hole that spans three trusses and is 2 feet wide. Cut a 2x6 joist to size and attach it between the trusses. Secure with 3-inch wood screws and joist hangers if possible. Install two more 2-foot-long 2x6s along the side of the end trusses where you attached the joists. Use the mounting bracket that comes with the hoist to mark the holes for the bolts, then drill straight through and secure with bolts.
If you cannot access the ceiling, you can consider supporting the hoist from the walls of the room. You can also use a self-supporting telescopic leg system like the Molift Gantry, which can be erected, dismantled, and moved easily.
If you have a ceiling lower than 8 feet, you may need to use a pulley system. You can mount the hoist to the wall and run a rope across to a pulley on the ceiling. You can also use a store-bought gambrel to save on height.
