Beatrice Lang
Branch circuits are an essential component of electrical supply in homes, and they are responsible for carrying electricity from the main power lines to various outlets and plugs throughout the house. These circuits are wired into an electrical panel, often located in a utility closet or back room, which acts as a circuit breaker box. The electrical panel is a critical safety feature, protecting against fires and other electrical hazards. Each branch circuit has its own circuit breaker, and they come in two main varieties: 120-volt and 240-volt branch circuits. These circuits can be further split into multiple runs, allowing for greater flexibility in outlet placement. When dealing with branch circuits, it's important to consider factors such as voltage limitations, conductor sizing, and the use of special receptacles like screw-and-clamp, which can accommodate multiple wires. In some cases, it may be necessary to consult a professional electrician to ensure safe and proper electrical panel installation and maintenance.
| Characteristics | Values |
|---|---|
| How electricity is produced | By spinning a turbine through the use of steam, wind, or other techniques |
| How electricity reaches homes | Through overhead power lines or underground cables |

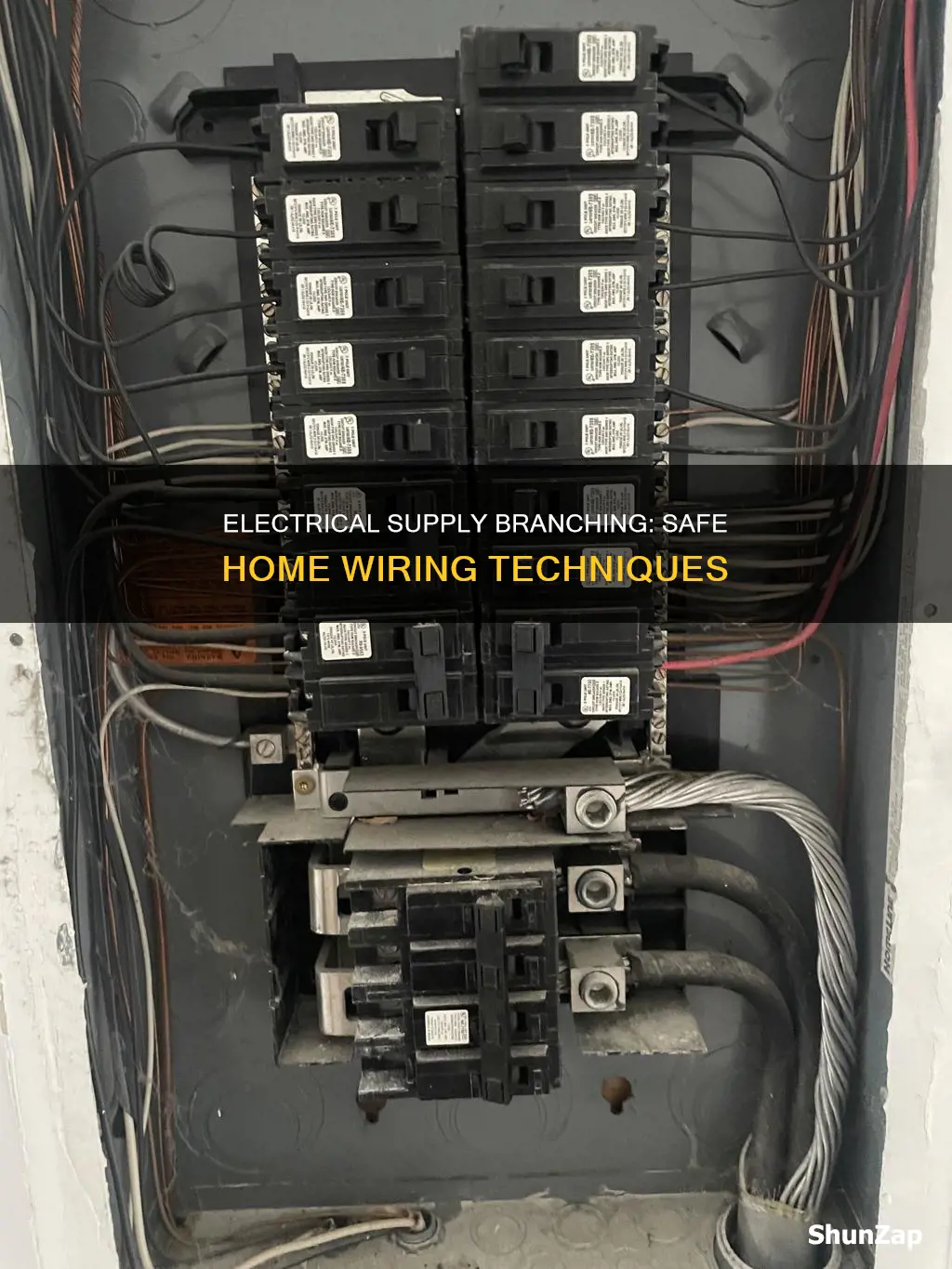

| How electricity is wired into a house | Via an electrical panel/circuit breaker box |
| Branch circuit voltage limitations | 120V for dwelling units, 277V for non-dwelling units |
| Branch circuit types | Dedicated appliance circuits (120V or 240V), multiwire branch circuits |
| Branch circuit wire sizing | Determined by OCPD, conductors must handle current supplied by OCPD |
| Overcurrent protection | Overcurrent protection device (OCPD) used to rate branch-circuit conductors |
| Grounding | Multiwire branch circuits require simultaneous disconnection of ungrounded conductors |
| Safety | Use high-power wires to prevent burnout, artificial grounding conductors increase safety |
| Connection to power transmission line | Conducted by the energy supply organization |
Explore related products
What You'll Learn
- Branching electrical supply to a house: overhead lines vs. underground cables
- How to connect a house input to an overhead power line?
- How to connect a house input to an underground cable power line?
- Splitting a single branch circuit into two runs
- Branch circuit requirements: air-conditioning and refrigeration equipment
Branching electrical supply to a house: overhead lines vs. underground cables
There are two methods of installing power lines that carry electricity to your house: overhead and underground. Overhead power lines are constructed by setting up utility poles in the desired location. These poles can be set up in nearly any type of terrain, even rocky or boggy areas, and are less expensive to build and maintain. Wires are then strung between the poles, and equipment like transformers, fuses, and reclosers are installed. Overhead power lines are also easier to locate and repair in the case of damage. However, they are more susceptible to extreme weather conditions, such as high winds, ice storms, and wildfires. They are also vulnerable to damage from trees and vegetation, and outages can occur if animals or branches come into contact with the lines.
Underground power lines, on the other hand, require digging a trench deep enough to keep the lines away from surface activities. In extremely rocky terrain, underground lines may not be feasible. The wires are then laid in the trench directly or placed in conduits for protection. Underground lines are more expensive to construct and maintain, and it is time-consuming and costly to locate and repair malfunctions. Underground lines are also vulnerable to damage from earthquakes and flooding. However, they offer better protection from wind, wildfires, and tree branches. They also reduce the risk of electrocution from downed lines and are considered more aesthetically pleasing.
The choice between overhead and underground power lines depends on various factors, including cost, appearance, reliability, maintenance, and future upgrade possibilities. Underground cables are more than ten times more expensive to produce due to their superior insulation, which must be resistant to soil, weather, and chemicals. They are also harder to replace and upgrade. Overhead power lines, on the other hand, are insulated only at the contact tower, making them a more cost-effective option.
In terms of safety, underground power cables are fully insulated, which helps prevent electrical shock. They are also shielded to prevent electromagnetic interference. Additionally, underground cables are considered better for the environment as they produce less noise and are involved in fewer accidents with forests and wildlife.
Are Electric Scooters Safe or Fire Hazards?
You may want to see also
Explore related products
$41.99 $43.99
$34.19 $39.99
How to connect a house input to an overhead power line
Connecting a house input to an overhead power line is a complex process that requires careful planning and execution. Here is a step-by-step guide on how to connect a house input to an overhead power line:
Firstly, it is important to understand the electrical service to your house. There are two types of overhead service drops: a mast service drop and a clevis service drop. The mast service drop consists of a weatherhead connected vertically to the conduit and the electric meter. The clevis refers to the connectors that fasten the conductors of the service drop to the side of the building. It is crucial to determine which type of service drop is supplying power to your house.
Before beginning any work, it is essential to consult with a qualified electrician or the local power company. They can provide guidance and ensure that all work is done safely and in compliance with local regulations. Depending on your location, you may need to obtain permits and inspections before proceeding.
Once you have a clear understanding of the electrical service and have consulted with the necessary professionals, you can begin planning the connection. Plot the shortest route with the fewest number of pipe bends from the overhead power line to your house. This route should comply with the National Electrical Code (NEC) rules, which specify burial depth and other important considerations. Ensure you have the necessary materials and wire, adding at least 10 feet extra to accommodate any unexpected needs.
The next step is to carefully install the wiring. Begin by test drilling a hole in your house to ensure there are no obstacles. Then, mark your route with chalk or marking paint. Dig a trench using the appropriate tools, being mindful of any underground utilities that may be present. Install the wiring according to the approved project plan, ensuring it is secure and properly grounded.
Finally, connect the wiring to the house input. This typically involves attaching the wires to the electrical meter or the connectors on the side of the building, depending on the type of service drop. Ensure that all connections are secure and properly insulated to prevent any safety hazards.
Connecting a house input to an overhead power line is a complex task that requires a good understanding of electrical systems and safety protocols. It is always recommended to consult with qualified professionals to ensure that the work is done correctly and safely.
Trees on Poles: Safe or Hazardous?
You may want to see also
Explore related products
How to connect a house input to an underground cable power line
Connecting a house input to an underground cable power line is a complex task that requires careful planning and execution. Here is a step-by-step guide to help you understand the process:
Planning:
Before beginning any work, it is essential to have a clear understanding of the project's scope and requirements. This includes determining the voltage (240V or 120V) and deciding whether to use the main circuit breaker panel or install a subpanel. Check your local electrical codes and consult a professional electrician to ensure compliance and safety.
Digging the Trench:
The first step in the installation process is to dig a trench. The depth and width of the trench will depend on the wiring you are using and the type of soil you have. If you have granular soil that is easy to dig, you may not need to install metal or plastic conduit for protection. However, if you encounter rocky soil, heavy clay, or tree roots, consider using a walk-behind trenching machine to minimize manual labour.
Installing the Conduit:
To protect the underground cable from physical damage, install a conduit. Common materials for the conduit include PVC, galvanized metal, or rigid electrical conduit. Ensure that the conduit meets the minimum depth requirements specified by your local electrical codes. The transition point from aboveground to underground must be protected with Schedule 80 PVC conduit to a depth of at least 18 inches.
Running the Cable:
Feed the cable through the conduit, ensuring it reaches from the electrical panel to the desired location. If connecting to an interior source, bore a hole through the wall directly above the end of the trench. Use a plastic conduit to cover the area from the bottom of the trench to the hole in the wall. A propane-powered heat gun can be useful for bending the conduit to conform to the foundation.
Final Connections:
Once the cable is in place, have a licensed electrician make the final wire connections at the main electrical panel. Ensure that all wires are securely contained inside the conduit as they pass through the walls of the house. Remember to follow local electrical codes and consult professionals for any guidance or assistance.
Underground cable installation is a complex and potentially hazardous task. Always prioritize safety and compliance with local regulations to ensure a successful and secure electrical connection.
Finding Buried Electrical Lines: Seattle's Essential Guide
You may want to see also
Explore related products
Splitting a single branch circuit into two runs
Firstly, it is important to understand the basics of branch circuits and the applicable regulations. The National Electrical Code (NEC) provides guidelines to ensure safe and proper wiring. One key factor is the overcurrent protection device (OCPD), which defines the circuit. It is crucial to size the conductors correctly, ensuring they can handle the current supplied by the OCPD. Voltage limitations, as outlined in the NEC, must also be considered. In dwelling units, the branch-circuit voltage cannot exceed 120V for luminaires or cord-and-plug-connected loads.
Secondly, when splitting a single branch circuit, it is essential to use the correct wiring and connections. For a 15-amp branch circuit, the UL standard specifies the use of 14 AWG solid copper wire. In the case of a 20-amp circuit with 12/2 Romex wiring, the junction box would be used to connect the three conductors, three grounds, and three neutrals with wire nuts, as described in a user's comment.
Thirdly, safety must be a top priority. When working with electricity, it is vital to follow best practices to prevent accidents. Ensure that the power is turned off before beginning any work. Additionally, consider the grounding of the circuit. In the case of a multiwire branch circuit, a device such as a multipole circuit breaker is necessary to protect the circuit and prevent over- or undervoltage, which could lead to fires or equipment destruction.
Finally, it is important to recognize your limitations. If the process seems too complex or dangerous, it is advisable to seek professional help. Engaging the services of a qualified electrician or contracting an energy supply organization can ensure that the work is done correctly and safely.
By following these steps and adhering to electrical safety guidelines, you can successfully split a single branch circuit into two runs.
Expand Your Electrical Service Business: Strategies for Success
You may want to see also
Explore related products
Branch circuit requirements: air-conditioning and refrigeration equipment
Branch circuits are an essential aspect of electrical supply, particularly when it comes to powering air-conditioning and refrigeration equipment in a house. Here are some detailed requirements to ensure safe and effective branch circuit installations for such equipment:
Motor and Compressor Requirements:
Air conditioning and refrigeration equipment often feature hermetic motors, which are sealed within the same housing as the compressor and operate in refrigerant. These motors have unique characteristics, and their branch circuit conductors, control equipment, and circuits must be protected against short circuits and ground faults. For single motor compressors, the short circuit and ground fault OCPD (Overcurrent Protection Device) should be sized at no more than 175% of the motor compressor current rating. If the starting current of the motor compressor requires a higher value, the next size larger OCPD can be used, up to 225% of the motor compressor current rating.
Rated-Load Current and Ampacity:
The rated-load current, as determined by the manufacturer, is crucial for sizing branch circuits. It serves as the starting point for calculating the required ampacity of branch-circuit conductors and the rating of electrical equipment. The branch circuits and disconnecting means must have an ampacity of at least 125% of the rated-load or branch-circuit selection current, whichever is larger, plus the full-load current of any additional loads, such as a fan motor.
Disconnecting Means:
The disconnecting means for air-conditioning equipment must be easily accessible and within sight of the equipment. It can be mounted on or within the equipment but should not obscure the equipment nameplate. The rated-load current value is essential for determining the rating or ampacity of the disconnecting means. For room air conditioners, an attachment plug and receptacle can serve as the disconnecting means, but they must be readily accessible and comply with specific requirements, such as being within 6 feet of the floor.
Wiring and Protection:
When it comes to wiring and protection, the relevant standards to refer to are NFPA 70, 2017, and Texas SFM Electrical Code 2023. These standards outline the requirements for branch circuits not exceeding 1000 volts AC and 1500 volts DC. A receptacle outlet rated for 125 volts and 15 or 20 amperes must be installed in an accessible location for servicing air-conditioning and refrigeration systems. This outlet should be positioned on the same level and within 25 feet of the equipment.
Nameplate Information:
Manufacturers of hermetic systems provide critical information on the equipment nameplate, including manufacturer details, current ratings, and other specifications. This information is essential for selecting the correct branch-circuit conductor size, type and rating of the overcurrent protection device, and size of the disconnecting means. Always refer to the nameplate to ensure compliance with the electrical requirements of the equipment.
By following these requirements and guidelines, you can ensure that the branch circuits for air-conditioning and refrigeration equipment in your house are properly sized, protected, and compliant with relevant standards.
Electric Train Setup: A Simple Guide to Hooking Up
You may want to see also
Frequently asked questions
Branch circuits are the individual circuits that connect to your 120 and 240-volt outlets. Each one has a circuit breaker at the start of the line.
There are four main types of branch circuits: dedicated appliance circuits, multiwire branch circuits, single-zone ductless branch circuits, and branch circuits with EGC attached to a different panel.
If you are connecting to an overhead power line, you can select the cleavage site on the nearest power line support or in the electrical switchboard of the house. If you are connecting to an underground cable power line, the electrical circuit principles are the same as for overhead lines, but the arrangement and mechanical connection of components differ.
You can use special receptacles called screw-and-clamp, which can accommodate four wires. You can also use two junction boxes to connect the wires to a short piece of wire that leads into the second box.
If you suspect that your electrical panel is malfunctioning, make sure to contact a professional electrician to take a look. Do not attempt to fix it yourself.
