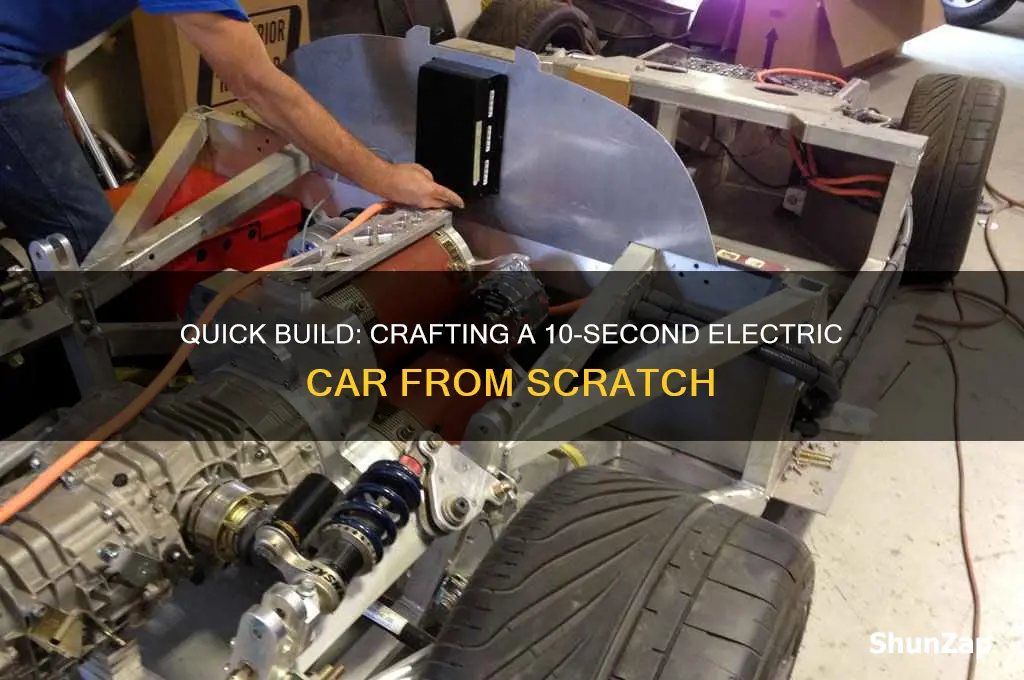

Building a 10-second electric car—a vehicle capable of accelerating from 0 to 60 mph in under 10 seconds—requires a blend of cutting-edge technology, precision engineering, and strategic component selection. At its core, such a project demands a high-performance electric motor, a robust battery system with rapid discharge capabilities, and a lightweight yet sturdy chassis to maximize power-to-weight ratio. Advanced battery management systems and regenerative braking can optimize efficiency, while aerodynamic design and tire selection enhance traction and reduce drag. Additionally, integrating a sophisticated motor controller and software tuning ensures precise power delivery and torque management. Whether for racing or innovation, constructing a 10-second electric car showcases the potential of electric propulsion and the intersection of creativity and technical expertise.
Explore related products
What You'll Learn
- Battery Selection: Choose high-capacity, lightweight lithium-ion batteries for optimal power and efficiency
- Motor & Gearbox: Select a high-torque electric motor paired with a durable, efficient gearbox
- Chassis Design: Build a lightweight, aerodynamic frame using aluminum or carbon fiber materials
- Power Management: Install a robust controller to regulate energy flow and prevent overheating
- Safety Features: Add roll cages, seat belts, and emergency cut-offs for driver protection
Battery Selection: Choose high-capacity, lightweight lithium-ion batteries for optimal power and efficiency
Lithium-ion batteries are the cornerstone of any high-performance electric vehicle, especially one aiming for a 10-second quarter-mile time. Their energy density—measured in watt-hours per kilogram (Wh/kg)—far surpasses that of lead-acid or nickel-metal hydride alternatives, delivering more power without the weight penalty. For instance, a modern lithium-ion battery can achieve 250-300 Wh/kg, compared to lead-acid’s 30-50 Wh/kg. This disparity translates directly into acceleration: lighter batteries mean less unsprung mass, allowing for quicker response to throttle input and more efficient energy transfer to the wheels.
Selecting the right lithium-ion battery involves balancing capacity, weight, and discharge rate. Aim for cells with a minimum capacity of 20-30 ampere-hours (Ah) per module, ensuring sufficient energy storage for sustained high-power output. Equally critical is the continuous discharge rating, typically measured in C-rates. A battery with a 30C rating can safely discharge 30 times its capacity in amperes, ideal for the intense, short-duration demands of drag racing. For a 10-second car, prioritize batteries rated at 20C or higher to avoid overheating and voltage sag under load.
Practical implementation requires careful configuration. Arrange batteries in series-parallel combinations to meet the voltage and current requirements of your motor system. For example, a 400V system might use 14s (14 cells in series) configurations, each delivering 3.6V per cell. Ensure the battery management system (BMS) is rated for high-discharge applications, with active cooling to maintain optimal operating temperatures. Mount batteries securely, using vibration-dampening materials to prevent damage during high-G launches.
Cost and safety cannot be overlooked. High-capacity lithium-ion batteries, such as those from manufacturers like LG Chem or Panasonic, can range from $200 to $500 per kilowatt-hour. While expensive, their longevity and performance justify the investment. Always adhere to safety protocols: use UL-certified cells, avoid physical damage, and monitor for signs of swelling or leakage. A single compromised cell can lead to thermal runaway, a risk mitigated by regular inspection and proper ventilation.
In summary, battery selection is a critical determinant of your electric car’s performance. High-capacity, lightweight lithium-ion batteries with appropriate discharge rates and robust management systems are non-negotiable for achieving a 10-second quarter-mile. By prioritizing energy density, discharge capability, and safety, you lay the foundation for a vehicle that combines speed, efficiency, and reliability.
Understanding Electrical Surges in Cars: Causes, Effects, and Prevention Tips
You may want to see also
Explore related products
Motor & Gearbox: Select a high-torque electric motor paired with a durable, efficient gearbox
Selecting a high-torque electric motor is the cornerstone of achieving a 10-second quarter-mile time. Torque, not just horsepower, determines off-the-line acceleration. Look for motors rated above 500 Nm (369 lb-ft) of continuous torque, with peak values exceeding 1000 Nm (738 lb-ft) for short bursts. Brushless DC (BLDC) or AC induction motors are ideal due to their efficiency and power density. For instance, a Tesla Model S Plaid uses a tri-motor setup delivering over 1,000 Nm, showcasing the potential of high-torque designs. Pairing this motor with a vehicle weighing under 1,500 kg (3,306 lbs) can yield the explosive acceleration needed for a 10-second run.
The gearbox is the unsung hero in this setup, translating raw motor power into usable wheel torque. A single-speed reduction gearbox with a ratio of 8:1 to 10:1 is optimal for electric drag cars, as it maximizes torque delivery without the complexity of multi-speed transmissions. Durability is critical; choose gearboxes rated for at least 500 kW (670 hp) to handle peak power outputs. Planetary gearboxes are preferred for their compactness and ability to handle high torque loads. Ensure the gearbox is oil-cooled to prevent thermal breakdown during high-stress runs.
When integrating the motor and gearbox, alignment and mounting precision are non-negotiable. Misalignment can lead to premature wear or failure under load. Use a rigid coupling to connect the motor and gearbox, ensuring zero backlash for instantaneous power transfer. Mount the assembly on a reinforced subframe to handle the extreme forces generated during acceleration. For DIY builds, consider using a pre-fabricated motor-gearbox assembly from manufacturers like Emrax or Siemens, which offer plug-and-play solutions for high-performance applications.
Cost and availability are practical considerations. High-torque motors and durable gearboxes can cost between $5,000 and $20,000, depending on specifications. Sourcing used or refurbished components from electric vehicle salvage yards can reduce costs significantly. However, always verify the condition and performance of second-hand parts through dyno testing or expert inspection. Balancing budget and performance is key to achieving a 10-second car without compromising reliability.
Finally, tuning the motor and gearbox for peak efficiency is essential. Use a motor controller with regenerative braking capabilities to recover energy during deceleration, improving overall efficiency. Program the controller to deliver a torque curve optimized for drag racing, with maximum torque available from 0 to 60 mph. Test the setup on a dyno to fine-tune gear ratios and power delivery, ensuring the motor operates within its optimal RPM range. With the right motor and gearbox combination, a 10-second electric car is not just a dream—it’s an achievable engineering feat.
Spotting Electric Vehicles: Key Signs to Identify a Car as Electric
You may want to see also
Explore related products
Chassis Design: Build a lightweight, aerodynamic frame using aluminum or carbon fiber materials
A lightweight chassis is the cornerstone of a 10-second electric car. Every kilogram shaved off translates to quicker acceleration and improved handling. Traditional steel frames are too heavy for this goal. Aluminum, with its strength-to-weight ratio roughly one-third that of steel, becomes a prime candidate. Consider a space frame design, where a network of triangular tubes forms a rigid yet lightweight structure. This design distributes stress efficiently, allowing for thinner walls and further weight reduction.
For the ultimate in lightness and stiffness, carbon fiber composites are unparalleled. While more expensive, their exceptional strength-to-weight ratio allows for incredibly thin, aerodynamic shapes. Imagine a monocoque chassis, where the body and frame are integrated into a single, seamless structure, minimizing weight and maximizing structural integrity.
However, carbon fiber's complexity demands expertise. Layup techniques, resin selection, and curing processes require precision. Aluminum, while less exotic, offers a more accessible path. Welding aluminum requires specific techniques and equipment, but the learning curve is less steep than carbon fiber composites.
Consider a hybrid approach, combining aluminum for the main structure with strategically placed carbon fiber components in high-stress areas. This balances weight savings with cost and manufacturing feasibility.
Aerodynamics are equally crucial. A sleek, streamlined shape reduces drag, allowing the electric motor to propel the car more efficiently. Incorporate smooth curves, minimize surface disruptions, and optimize airflow around wheels and underbody. Wind tunnel testing, while ideal, can be expensive. Utilize computational fluid dynamics (CFD) software for initial design iterations, refining the shape before physical prototyping.
Remember, the goal is not just a lightweight frame, but a lightweight, aerodynamic frame. Every design decision should consider both factors in tandem.
Do Electric Cars Use Antifreeze? Unraveling the Cooling System Mystery
You may want to see also
Explore related products
Power Management: Install a robust controller to regulate energy flow and prevent overheating
A 10-second electric car demands precision in power delivery. Every millisecond counts, and excessive heat is the enemy of both performance and safety. This is where a robust controller steps in as the unsung hero, orchestrating the delicate dance between battery, motor, and speed.
Imagine a symphony where the conductor ensures each instrument plays at the perfect volume and tempo. The controller acts similarly, regulating the flow of electricity to the motor, preventing surges that could lead to overheating and component failure.
Selecting the right controller is crucial. Look for one with a high amperage rating, capable of handling the peak current draw of your motor. For a 10-second car, this could easily exceed 500 amps. Opt for a controller with regenerative braking capabilities, allowing energy recapture during deceleration, further enhancing efficiency. Advanced controllers offer features like thermal management systems, actively monitoring temperature and adjusting power output to prevent overheating.
Some controllers even incorporate data logging, providing valuable insights into power usage and system performance, allowing for fine-tuning and optimization.
Installation requires meticulous attention to detail. Ensure proper grounding to minimize electrical noise and potential interference. Secure the controller in a well-ventilated area, allowing for adequate airflow to dissipate heat. Use high-quality, appropriately sized wiring to minimize resistance and voltage drop. Double-check all connections for tightness and security, as loose connections can lead to arcing and potential damage.
Think of the controller as the brain of your electric car's power system. It dictates how efficiently and safely your car accelerates, ensuring you cross the finish line in under 10 seconds without turning your vehicle into a molten mess. By investing in a robust controller and installing it correctly, you're not just building a fast car, you're building a reliable and controllable one.
Is Leasing a 30k Electric Car a Smart Financial Move?
You may want to see also
Explore related products
Safety Features: Add roll cages, seat belts, and emergency cut-offs for driver protection
Building a 10-second electric car demands extreme performance, but safety must never be compromised. A roll cage is the backbone of driver protection in high-speed vehicles. Constructed from high-strength steel or chromoly tubing, it forms a rigid shell around the cockpit, absorbing and redistributing impact forces during a crash. For a 10-second car, use 1.5-inch diameter tubing with wall thicknesses of 0.120 inches or greater, welded to the chassis at multiple points to ensure structural integrity. Follow NHRA or FIA guidelines for roll cage design, ensuring it extends forward to the firewall and rearward to the rear suspension mounts.
Seat belts are your second line of defense. A 5-point racing harness, rated for at least 5,000 pounds of force, secures the driver across the shoulders, waist, and between the legs, minimizing movement during sudden deceleration. Ensure the belts are anchored to the roll cage, not the vehicle body, using grade 8 bolts and backing plates to distribute stress. Adjust the straps to fit snugly, with the shoulder belts angled downward at 10-20 degrees from the centerline of the driver’s body. Regularly inspect for fraying, wear, or deformation, replacing them immediately if compromised.
Emergency cut-offs are critical for halting power in an instant. Install a battery disconnect switch within arm’s reach of the driver, capable of interrupting the high-current flow from the battery to the motor. Use a 200-amp continuous-duty switch for reliability. Pair this with a motor controller kill switch, activated by a pull cable or button, to shut down the propulsion system independently. Test both systems under load during pre-run checks to ensure instantaneous response.
Comparing these features to those in traditional dragsters highlights their necessity. While a 10-second electric car lacks the explosive fuel of a gas-powered vehicle, its instantaneous torque and potential for high-speed instability require equal, if not greater, safety measures. Roll cages in electric builds must account for battery placement, ensuring fire-resistant barriers between the driver and energy storage. Seat belts and cut-offs, however, serve the same purpose across both platforms: keeping the driver alive when milliseconds matter.
Finally, integrate these features early in the build process. A roll cage should be the first structural element installed, as it defines the cockpit layout and affects weight distribution. Seat belt anchors and emergency cut-off switches can then be positioned for optimal accessibility and functionality. By prioritizing safety from the outset, you not only protect the driver but also ensure compliance with racing regulations, allowing your 10-second electric car to perform at its peak without compromising integrity.
Unraveling the Science Behind Static Electricity: Principles Explained
You may want to see also
Frequently asked questions
The essential components include a high-performance electric motor, a robust battery pack (e.g., lithium-ion), a motor controller, a drivetrain (differential, axles), lightweight chassis, suspension, brakes, and a cooling system to manage heat dissipation.
To achieve a 10-second quarter-mile, the car typically needs between 500 to 1000 horsepower, depending on weight and aerodynamics. This translates to a motor capable of delivering 373 to 746 kW of power.
Key modifications include upgrading the suspension and brakes for high-speed stability, reinforcing the chassis for durability, installing a roll cage for safety, and adding a fire suppression system. Additionally, ensure proper battery management and thermal regulation to prevent overheating.
