Building a hot rod can be a complex and expensive endeavour, but with the right resources and planning, it can be a rewarding project. Before beginning, it is important to have a concrete plan and budget in place, as well as a basic understanding of automotive electrical systems. The first step is to decide on the type of hot rod you want to build and gather the necessary parts, which can be sourced from various places, including junkyards and online vendors. When it comes to electrical wiring, there are a variety of harnesses and kits available, and it is crucial to select one that is compatible with your hot rod and the electrical accessories you plan to install. Proper installation and safety measures, such as soldering connections and using wire ties and clamps, are also essential to ensure a functional and safe hot rod.
Explore related products
What You'll Learn
Wiring a hot rod from scratch
Planning and Preparation:
Before beginning any wiring work, it is crucial to have a clear understanding of your hot rod's electrical system. Create a detailed plan that outlines the location and function of each electrical component, such as lights, gauges, audio equipment, and the ignition system. This plan will guide your wiring process. Familiarize yourself with basic automotive electrical principles and consult resources such as wiring diagrams, how-to guides, and hot rod forums for valuable insights and tips.
Choose the Right Components:
Select a fuse block location that is easily accessible yet hidden from plain sight. Determine the correct size of the alternator based on the number of electrical items and their amperage draws. Ensure each component is fused accordingly for protection and properly placed away from heat sources. Consider the type of wiring harness you will use, whether it's a pre-made kit or a custom-built harness.
Installing the Wiring:
Begin by installing the fuse panel, following a step-by-step guide or seeking guidance from a professional. Use wire ties and clamps to keep the wiring tidy and secure, ensuring they are hidden behind panels for a neat finish. Utilize black corrugated conduit to protect the wires as they are pulled through the panels, and apply electrical tape to the ends of the wires to prevent snagging. Drill holes and use pull strings to feed the wires through the desired paths, ensuring they are securely fastened.
Testing and Finalizing:
Once all the components are wired, thoroughly test each connection to ensure proper functionality. Label each wire with its corresponding component for easy reference, especially when accessing them in tight or dark spaces. Consider whether to wrap the wiring harness with electrical tape or leave it unwrapped for potential future modifications. Finally, prime and sand the wiring paths, and apply the basecoat and clearcoat for a sleek finish.
Remember, wiring a hot rod from scratch requires careful planning, attention to detail, and adherence to electrical safety practices. Don't hesitate to seek advice from experienced hot rodders or professionals if you encounter any challenges or uncertainties.
Disconnecting Honda ATV Electrical Connectors: A Step-by-Step Guide
You may want to see also
Explore related products
Choosing the right fuse
For example, if your hot rod is equipped with a high-powered stereo, air conditioning, fuel injection, and other components, you may need a high-amperage alternator, such as a polished Power Master unit that can output 190 amps.
Additionally, consider the type of wiring kit you will be using. There are two basic types: one with wires running from the loads connected to the fuse panel, and another with wires attached to the fuse block and run to the loads. Choose the kit that best suits your hot rod's electrical needs.
Maxi fuses are the latest in overall circuit protection and are worth considering. They replace the old fusible links, which can restrict current flow, and they are easier to replace. Like most other fuses, they come in various amperage ratings, so select the one that matches your circuit's requirements.
Finally, when adding a wire to your fuse box, you can use an "add-a-fuse" piggyback-type fuse adapter, which allows you to pull the old fuse and replace it with a new double fuse that can accommodate the additional wire.
Electricity in Palmer Road, Eagle, Idaho: What's the Status?
You may want to see also
Explore related products
Using a wiring harness

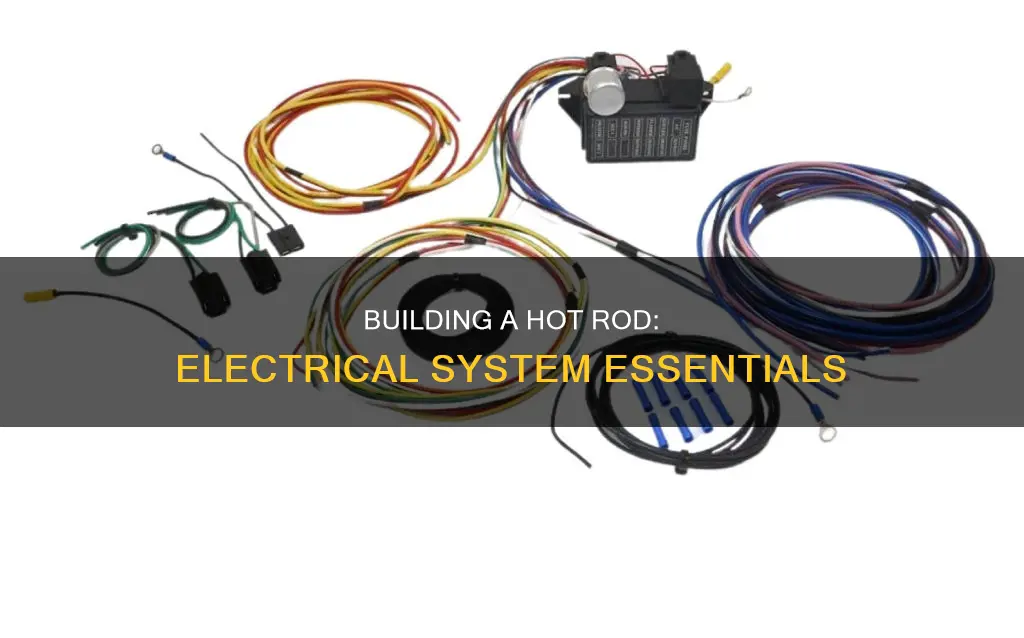

A hot rod wiring harness is a collection of wires that connects your hot rod's electrical devices and components to their primary power source. This includes your car stereo, lights, heater, and more. Most wiring harnesses comprise a fuse block and eight to 12 circuits.
