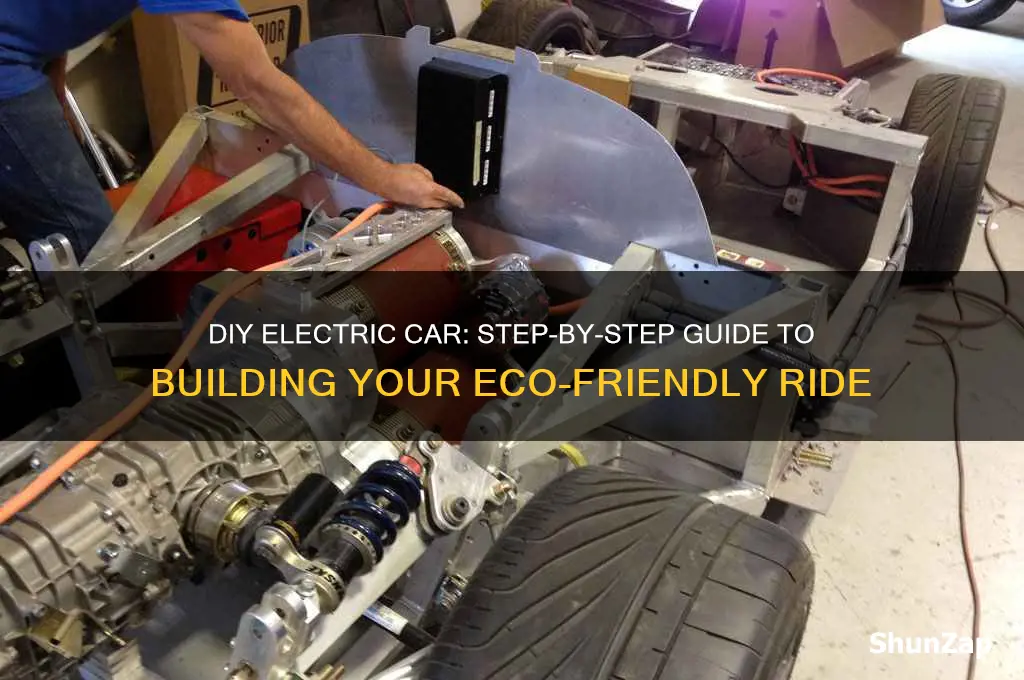

Building an electric car is an ambitious yet rewarding project that combines engineering, technology, and sustainability. It involves designing or modifying a vehicle to replace a traditional internal combustion engine with an electric motor, battery pack, and associated systems. Key steps include selecting a suitable donor vehicle or chassis, sourcing high-capacity lithium-ion batteries, integrating a powerful electric motor and controller, and ensuring proper wiring and safety features. Additionally, understanding regenerative braking, charging systems, and software for battery management is crucial. While challenging, constructing an electric car offers hands-on experience in green technology and contributes to reducing carbon emissions, making it a valuable endeavor for enthusiasts and environmental advocates alike.
Explore related products
$12.95
What You'll Learn
- Battery Selection: Choose high-capacity, efficient lithium-ion batteries for optimal range and performance
- Motor Integration: Install AC or DC motors with suitable power and torque for the vehicle
- Charging System: Set up Level 2 or DC fast chargers for quick and convenient recharging
- Power Electronics: Use inverters and converters to manage energy flow between battery and motor
- Chassis Modification: Adapt the frame to accommodate battery packs and electric drivetrain components
Battery Selection: Choose high-capacity, efficient lithium-ion batteries for optimal range and performance
When embarking on the journey of building an electric car, battery selection is arguably the most critical decision you’ll make. The heart of any electric vehicle (EV), the battery pack, determines the car’s range, performance, and overall efficiency. To achieve optimal results, focus on high-capacity, efficient lithium-ion batteries. Lithium-ion batteries are the industry standard for EVs due to their high energy density, long cycle life, and relatively low maintenance requirements. Unlike lead-acid or nickel-metal hydride batteries, lithium-ion batteries provide a superior balance of power and weight, making them ideal for electric vehicles.
When selecting lithium-ion batteries, prioritize high capacity, measured in kilowatt-hours (kWh). A higher kWh rating means the battery can store more energy, directly translating to greater driving range. For example, a 60 kWh battery pack will generally offer a range of 200-250 miles, while a 100 kWh pack can extend that to 350-400 miles. However, capacity alone isn’t enough—efficiency is equally important. Efficient batteries minimize energy loss during charge and discharge cycles, ensuring more of the stored energy is used to power the vehicle. Look for batteries with high charge/discharge efficiency ratings, typically above 90%, to maximize performance.
Another key factor in battery selection is energy density, which refers to how much energy a battery can store per unit of weight or volume. Higher energy density allows for a lighter and more compact battery pack, improving the vehicle’s overall efficiency and handling. Lithium-ion batteries, particularly those using advanced chemistries like NMC (Nickel Manganese Cobalt) or LFP (Lithium Iron Phosphate), offer excellent energy density. NMC batteries are known for their high energy density and power output, making them suitable for high-performance EVs, while LFP batteries are prized for their safety, longevity, and cost-effectiveness.
Thermal management is also a critical consideration when choosing lithium-ion batteries. These batteries perform best within a specific temperature range, and extreme heat or cold can degrade their performance and lifespan. Opt for batteries with built-in thermal management systems or design a cooling system for your battery pack to maintain optimal operating temperatures. This ensures consistent performance and prolongs the battery’s life, which is essential for long-term reliability.
Finally, consider the cost and availability of the batteries. While high-capacity, efficient lithium-ion batteries are an investment, they offer the best long-term value for an electric car. Research suppliers and compare prices, but avoid compromising on quality for cost savings. Additionally, check the availability of replacement cells or modules, as this will impact future maintenance and repairs. By carefully selecting high-capacity, efficient lithium-ion batteries, you’ll lay a solid foundation for an electric car that delivers exceptional range, performance, and durability.
Electric Vehicle Fires: A Yearly Concern?
You may want to see also
Explore related products
Motor Integration: Install AC or DC motors with suitable power and torque for the vehicle
When integrating motors into your electric vehicle (EV) project, the first critical decision is choosing between AC (Alternating Current) and DC (Direct Current) motors. AC motors, such as induction or permanent magnet synchronous motors, are commonly used in modern EVs due to their high efficiency, power density, and ability to handle high speeds. They are ideal for vehicles requiring smooth acceleration and regenerative braking. DC motors, on the other hand, are simpler and more cost-effective, making them suitable for smaller or budget-friendly EV projects. However, they generally offer lower efficiency and torque compared to AC motors. Assess your vehicle’s weight, desired performance, and budget to determine the best motor type.
Once you’ve selected the motor type, ensure it matches the power and torque requirements of your vehicle. Calculate the necessary power output based on factors like vehicle weight, desired top speed, and acceleration. Torque is equally important, as it determines the motor’s ability to move the vehicle from a standstill and climb inclines. Use the formula *Power (kW) = Torque (Nm) × RPM × 2π / 60* to relate torque, speed, and power. For example, a lightweight city car may require a motor with 30-50 kW and 150-200 Nm of torque, while a heavier SUV might need 100 kW or more with higher torque. Always choose a motor with slightly higher capabilities than your calculated needs to account for real-world inefficiencies.
Proper installation of the motor is crucial for safety and performance. Secure the motor to the vehicle’s chassis or drivetrain using a sturdy mounting system designed to handle vibrations and loads. Ensure alignment with the transmission or drivetrain components to avoid mechanical stress and inefficiency. For rear-wheel-drive setups, the motor is typically mounted near the rear axle, while front-wheel-drive or all-wheel-drive configurations require strategic placement to balance weight distribution. Use high-quality fasteners and consider adding dampening materials to reduce noise and vibration.
Electrical integration is another key aspect of motor installation. Connect the motor to the battery pack via a motor controller, which regulates power flow and ensures compatibility between the DC battery and AC motor (if applicable). Use appropriately sized cables and connectors to handle the motor’s current draw, typically in the range of 100-500 amps for EVs. Install fuses, circuit breakers, and thermal sensors to protect against overcurrent and overheating. Ensure all electrical components are weatherproof and compliant with safety standards.
Finally, test the motor integration thoroughly before driving the vehicle. Perform bench testing to verify the motor’s operation, checking for proper rotation, power delivery, and response to the controller. Conduct load testing to simulate driving conditions and ensure the motor can handle the required torque and speed. Once installed, perform a series of test drives in a controlled environment, gradually increasing speed and load to confirm performance, efficiency, and safety. Address any issues, such as overheating, unusual noise, or power inconsistencies, before regular use. Proper motor integration is foundational to building a reliable and efficient electric car.
Electric Vehicles: Eco-Friendly or Not?
You may want to see also
Explore related products
Charging System: Set up Level 2 or DC fast chargers for quick and convenient recharging
When setting up the charging system for your electric car, it's essential to prioritize convenience and speed. Level 2 chargers are a popular choice for home and public charging stations, offering a balance between cost and efficiency. These chargers operate at 240 volts and can deliver between 12 to 80 miles of range per hour of charging, depending on the vehicle and charger specifications. To install a Level 2 charger at home, you'll need a dedicated 40-amp circuit and a compatible charging station. Popular brands like ChargePoint, ClipperCreek, and Tesla offer Level 2 chargers with features such as Wi-Fi connectivity, scheduling, and energy usage tracking. Ensure your electrical panel can handle the additional load or upgrade it if necessary.
For DC fast chargers, the setup is more complex and typically reserved for commercial or public charging stations due to their high power requirements and cost. DC fast chargers bypass the onboard charger in the electric vehicle (EV) and deliver power directly to the battery, enabling charging speeds of up to 100-200 miles of range in 20-30 minutes. These chargers require a three-phase power supply and can draw up to 125 amps or more, necessitating robust electrical infrastructure. Installation involves working with local utilities and complying with regional electrical codes. Companies like ABB, EVgo, and Electrify America specialize in DC fast chargers, offering solutions for businesses and municipalities.
When choosing between Level 2 and DC fast chargers, consider your target audience and use case. For personal use, a Level 2 charger is often sufficient, providing overnight charging at home. For commercial applications or high-traffic areas, investing in DC fast chargers can attract EV drivers seeking quick top-ups. Additionally, ensure compatibility with multiple EV models by selecting chargers that support standard connectors like SAE J1772 (Level 2) and CCS or CHAdeMO (DC fast charging).
Proper installation and maintenance are critical for both Level 2 and DC fast chargers. Hire a certified electrician to handle the wiring and ensure compliance with safety standards. Regularly inspect the charging equipment for wear and tear, and keep software updated to benefit from the latest features and security patches. For public charging stations, consider implementing a user-friendly payment system and providing clear instructions for drivers.
Finally, plan for scalability and future-proofing your charging infrastructure. As EV adoption grows, demand for charging stations will increase. Install additional wiring and conduit during the initial setup to accommodate future chargers. Stay informed about advancements in charging technology, such as higher power levels or wireless charging, to keep your system relevant. By carefully selecting and setting up Level 2 or DC fast chargers, you can ensure a reliable and efficient charging experience for your electric car project.
Electric Vehicles and Oil: What's the Connection?
You may want to see also
Explore related products
Power Electronics: Use inverters and converters to manage energy flow between battery and motor
In the realm of electric vehicle (EV) construction, power electronics play a pivotal role in ensuring efficient energy management between the battery and the motor. The primary components responsible for this task are inverters and converters. An inverter's main function is to convert the direct current (DC) stored in the battery into alternating current (AC) required by the electric motor. This process is crucial, as most electric motors operate on AC power, whereas batteries store energy in DC form. When selecting an inverter, consider factors such as power rating, efficiency, and cooling requirements to ensure it can handle the demands of your specific electric car design.
Converters, on the other hand, are essential for managing the voltage levels between the battery and the inverter. Since batteries often operate at lower voltages, a boost converter can step up the voltage to match the inverter's input requirements. Conversely, a buck converter can reduce the voltage when necessary, ensuring the system operates within safe and efficient parameters. The choice between a boost or buck converter depends on the battery voltage and the inverter's input specifications. Implementing these converters effectively requires careful consideration of component sizing, switching frequencies, and thermal management to minimize energy losses.
The integration of inverters and converters into the power electronics system must prioritize efficiency and reliability. High-efficiency components reduce energy waste, extending the vehicle's range and improving overall performance. Additionally, the system should incorporate protective features such as over-voltage, over-current, and thermal protection to safeguard against potential failures. Utilizing advanced control algorithms, such as pulse-width modulation (PWM), can optimize the switching behavior of the inverter, ensuring smooth and efficient power delivery to the motor.
Another critical aspect is the synchronization between the inverter and the motor. The inverter must provide the correct frequency and amplitude of AC power to match the motor's requirements, which vary with speed and load. This synchronization is achieved through sophisticated control systems that monitor motor feedback and adjust the inverter output accordingly. Implementing field-oriented control (FOC) or direct torque control (DTC) algorithms can enhance the precision and responsiveness of the power electronics system, resulting in better vehicle performance and drivability.
Finally, the physical design and layout of the power electronics system are essential for optimal functionality. Components should be arranged to minimize electromagnetic interference (EMI) and ensure adequate cooling. Heat dissipation is a significant concern, as high-power inverters and converters generate substantial heat during operation. Incorporating heat sinks, fans, or liquid cooling systems can help maintain safe operating temperatures. Additionally, proper wiring and grounding practices are crucial to prevent electrical noise and ensure the longevity of the power electronics system in the demanding environment of an electric vehicle.
Electric Cars and Fire Safety: Separating Fact from Fiction
You may want to see also
Explore related products
Chassis Modification: Adapt the frame to accommodate battery packs and electric drivetrain components
When modifying the chassis to accommodate battery packs and electric drivetrain components, the first step is to assess the existing frame structure of the donor vehicle or base chassis. Measure the available space in the underbody, engine bay, and trunk area to determine the optimal placement for the battery packs and electric motor. The goal is to maintain a balanced weight distribution, ideally with the batteries positioned low and centered to improve stability and handling. Use a combination of 3D modeling software and physical measurements to visualize how the new components will fit without interfering with suspension, steering, or other critical systems.
Next, reinforce the chassis to handle the additional weight and stress of the electric powertrain. Electric vehicles (EVs) are typically heavier than their internal combustion engine (ICE) counterparts due to the battery packs. Strengthen the frame by adding gussets, cross braces, or additional steel/aluminum supports at key stress points, such as the firewall, rocker panels, and subframe mounts. Welding or riveting these reinforcements ensures structural integrity, especially if the original chassis was designed for a lighter ICE setup. Consult a structural engineer or use finite element analysis (FEA) tools to identify potential weak points before modification.
Design and fabricate custom battery mounts to securely hold the battery packs in place. These mounts should be made from lightweight yet sturdy materials like aluminum or composite panels to minimize added weight. Ensure the mounts include vibration dampening elements, such as rubber isolators, to protect the batteries from road shocks and extend their lifespan. The mounts must also comply with safety standards, allowing for easy removal of the batteries for maintenance or replacement. Secure the mounts to the chassis using high-strength bolts and ensure all connections are grounded to prevent electrical hazards.
Integrate the electric motor and inverter into the chassis by modifying the drivetrain tunnel or rear axle assembly. For rear-wheel-drive conversions, the motor can often be mounted directly to the existing differential or a new custom axle. In front-wheel-drive setups, the engine bay may need to be reconfigured to accommodate the motor and inverter while maintaining clearance for steering and suspension components. Use adaptive plates or custom brackets to align the motor with the driveshaft or axles, ensuring proper mesh and minimizing drivetrain losses.
Finally, route the high-voltage cables and cooling systems efficiently within the chassis. Plan the cable pathways to avoid sharp edges, moving parts, and excessive bending, which can damage the insulation. Incorporate cooling lines for liquid-cooled batteries or motors, ensuring they are securely clamped and insulated from other components. Test the entire setup for clearance during suspension travel and steering lock-to-lock to prevent interference. Once installed, conduct a thorough inspection and road test to verify that the modified chassis can safely and effectively support the electric drivetrain and battery packs.
Electric Cars and Pacemakers: Safety Concerns and Facts Explained
You may want to see also
Frequently asked questions
The essential components include an electric motor, battery pack, motor controller, charger, DC-DC converter, power inverter, regenerative braking system, and a vehicle frame or chassis.
Choose a battery based on energy density, capacity (kWh), voltage, charging time, and lifespan. Lithium-ion batteries are the most common due to their high energy density and efficiency.
AC induction motors and permanent magnet synchronous motors (PMSM) are popular choices. PMSM offers higher efficiency and torque, while AC induction motors are simpler and more durable.
Basic automotive and electrical skills are required, along with tools like wrenches, multimeters, and soldering equipment. Advanced projects may require welding and programming knowledge.
Follow safety protocols such as using insulated tools, wearing protective gear, ensuring proper grounding, and installing safety features like fuses, circuit breakers, and thermal management systems for the battery.
