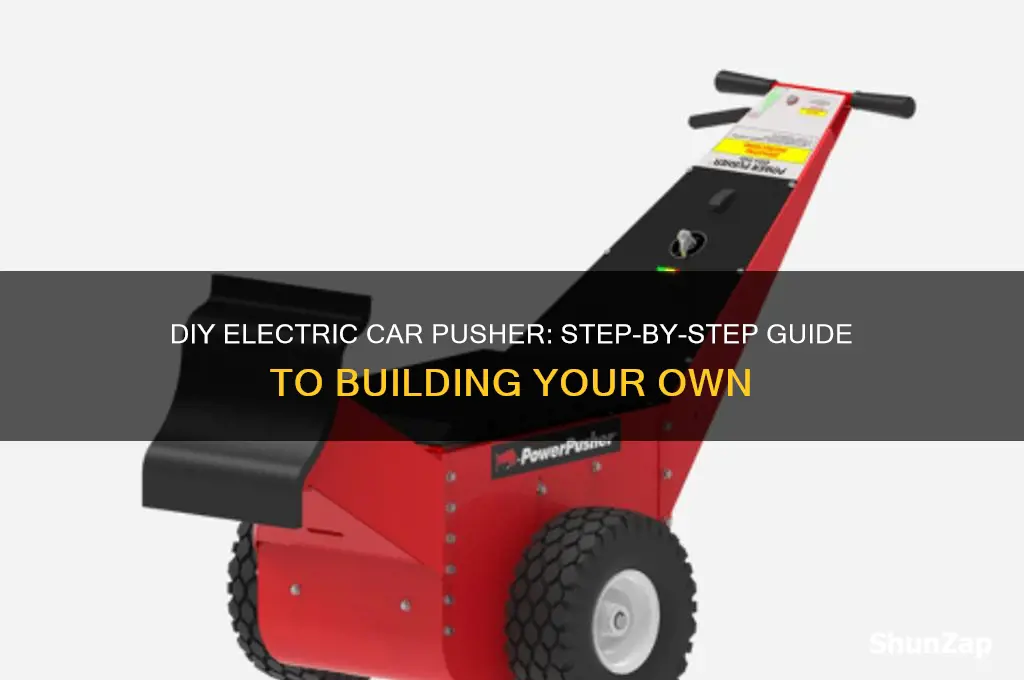

Building an electric car pusher, a device designed to assist in moving vehicles without starting the engine, is an innovative project that combines mechanical engineering, electrical systems, and sustainable technology. This device typically consists of a motorized platform that can be positioned under a car’s wheels, using electric power to propel the vehicle forward or backward. Key components include a robust electric motor, a rechargeable battery pack, a control system for precise movement, and a sturdy frame to handle the weight of the car. Constructing such a pusher requires careful planning, from selecting the right motor and battery to ensuring safety features like emergency stops and weight distribution mechanisms. Whether for personal use, automotive workshops, or eco-friendly transportation solutions, an electric car pusher offers a practical and energy-efficient alternative to traditional methods of moving vehicles.
Explore related products
What You'll Learn
- Motor Selection: Choose high-torque, efficient electric motor suitable for pusher application and vehicle weight
- Battery System: Select lithium-ion batteries with optimal capacity, voltage, and safety features for range
- Frame Design: Build lightweight, sturdy frame using aluminum or steel for durability and stability
- Control System: Integrate motor controller, throttle, and safety features for smooth operation
- Power Transmission: Design efficient drivetrain with gears or direct-drive for maximum power delivery
Motor Selection: Choose high-torque, efficient electric motor suitable for pusher application and vehicle weight
Selecting the right motor is the cornerstone of your electric car pusher project. High torque is non-negotiable, as it directly translates to the pusher's ability to move a vehicle, especially from a standstill or on inclines. Efficiency matters equally; an inefficient motor will drain your battery faster, limiting operational time. For a typical passenger car weighing around 3,000 to 4,000 pounds, a motor with a torque rating of 50 to 100 Nm is a good starting point. However, heavier vehicles or those requiring rapid acceleration may demand motors in the 100 to 200 Nm range. Always match the motor's power output to the vehicle's weight and intended use to avoid underperformance or unnecessary energy waste.
When evaluating motors, consider the trade-offs between brushed and brushless DC motors. Brushed motors are simpler and cheaper but less efficient and prone to wear. Brushless motors, while more expensive, offer higher efficiency, longer lifespan, and better torque-to-weight ratios. For a pusher application, brushless motors are generally the better choice due to their reliability and efficiency, especially under continuous load. Additionally, look for motors with a high power density, measured in kW/kg, to ensure compactness without sacrificing performance.
Another critical factor is the motor's speed-torque curve. A motor with a flat torque curve across a wide RPM range is ideal for pusher applications, as it provides consistent pushing force regardless of speed. This is particularly important for scenarios where the pusher needs to maintain steady pressure, such as moving a vehicle through a tight parking space or up a ramp. Motors with a steep torque drop-off at higher RPMs may struggle in these situations, leading to inefficiency or failure.
Practical tips for motor selection include consulting manufacturer datasheets for detailed performance metrics and seeking motors designed specifically for electric vehicle (EV) applications. Some motors come with integrated controllers, simplifying the build process but potentially limiting customization. If you're unsure, start with a motor slightly above your calculated requirements to account for real-world inefficiencies and unexpected loads. Finally, consider the cooling requirements of the motor, especially for prolonged use, as overheating can reduce efficiency and lifespan.
In conclusion, choosing the right motor involves balancing torque, efficiency, and application-specific needs. By prioritizing high torque, opting for brushless technology, and analyzing speed-torque curves, you can ensure your electric car pusher performs reliably under various conditions. Remember, the motor is the heart of your project—invest time in selecting one that aligns with your vehicle's weight and operational demands for optimal results.
