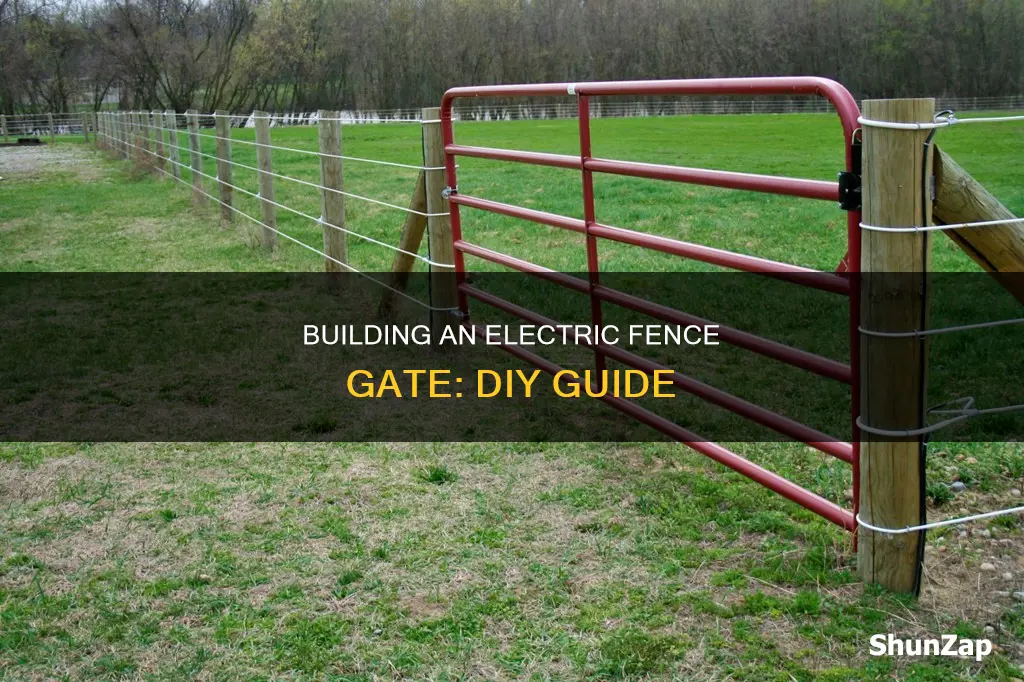

Electric fences are a useful tool for those who want to keep their livestock contained or keep wild animals and intruders out of their yard. They are simple to install and maintain, and can be an affordable option for those who need added security. When building an electric fence gate, it is important to consider the type of gate you will need, the materials required, and safety precautions to take. In this guide, we will cover everything you need to know about building an electric fence gate, from choosing the right energizer to installing the fencing and maintaining its functionality.
Explore related products
What You'll Learn
Planning gate openings
Firstly, determine the purpose of your electric fence and identify what you need to enclose or restrict access to. This could be a pasture, garden, or barn, and the type of animals you need to contain or restrict will influence your gate openings. For example, if you need to control both sheep and cattle, a single wire gate may not be sufficient, and you may require multiple wires or a different gate design altogether.
Next, consider the placement of your gate openings. Plan the locations of the gates to ensure easy access for people, animals, and equipment to the designated areas. Place gates in logical places so that livestock will willingly move through them. For instance, a central alley down the length of the property might provide the best access and ease of movement for animals.
When planning gate openings, it is essential to select the appropriate gate type. For openings along the perimeter, a more permanent gate type, such as a heavy metal gate, may be more suitable. On the other hand, for interior fences used to divide a large area into individual sections, a simpler gate opening, like a single wire attached to a gate handle, may be adequate.
Additionally, consider the number of gate handles and their installation. There should be one gate handle for each electrified wire. Gate handle kits are a convenient option for installing multiple handles. To ensure the fence remains electrified even when the gate is open, you may need to install an underground hookup wire to carry the electrical current under the gate opening.
Lastly, don't forget to plan the spacing of your fence posts and gates. Avoid placing posts too close together, and if you plan to space posts more than 40 feet apart, install stays along the wires for stability. Reinforce the posts near gate openings with braces, cement footings, or anchors to manage the additional stress.
Drilling Safely: How to Check for Wires
You may want to see also
Explore related products
Gate options and tools
There are multiple options for electric fence gates, and the type of gate you choose will depend on whether the gate needs to be electrified or not. If you opt for a non-electric gate, you can simply terminate and restart the fence around the gate, using underground or lead-out cable.
If you need an electrified gate, you can use a gate anchor, cut-out switch, or a gate kit. A gate kit, such as the electric bungee gate, is a convenient way to install gate handles. You will need one gate handle for every electrified wire, and these should be made from the same type of wire as the fence line.
For a durable option, consider a "spring gate", which uses a long spring with an insulated handle and hookups. These gates are quick and easy to install, but the spring is the weakest link and will eventually break due to frequent changes in shape.
If you need to control both sheep and cattle, a single wire gate will not be sufficient, and you will need to use multiple wires.
To install an electric gate, you will need the following tools:
- Reels for storing and tensioning poly wire and tape
- Crimp connections, a crimper, and crimps
- Fencing pliers for cutting, bending, and forming wire
- A payout spinner or spinning jenny for installing heavy high tensile wire
- Testers for measuring current and voltage
It is also important to consider the placement of your gate. Plan gate openings in locations where people, animals, and equipment need easy access to barns, stables, or pastures. Place gates in logical places so that livestock will willingly move through them. For openings along the perimeter, a more permanent gate type, such as a heavy metal gate, may be more suitable. For interior fences, a simpler gate opening, like a single wire attached to a gate handle, may be adequate.
Building Your Own Electric Rat Trap: A DIY Guide
You may want to see also
Explore related products
Grounding systems
To set up a grounding system, first locate an area of soil that contains good, conductive earth (not sandy or rocky). The grounding system should be within range of your fence energizer but at least 25 feet away from buildings with metal siding. Most fences will need two or three grounding rods, spaced about ten feet apart, near the beginning of the fence. Very dry or rocky soil may require additional ground rods. These rods are either six or eight feet high and are installed by pounding them into the ground. The tips are hardened steel, allowing them to split rocks if needed. Once the ground rods are installed, connect them to your energizer by running an insulated wire from your energizer to the nearest ground rod.
To ensure optimal performance, test your grounding system with a voltage tester during the driest and wettest periods of the year. During drier seasons, it may be necessary to upgrade your grounding system by adding more ground rods. Vegetation and other plant growth can also affect the circuit, so it is important to check your system frequently and make small changes as needed.
It is important to only use galvanized steel ground rods. Copper ground rods will react with galvanized steel wire, causing electrolysis and corrosion at the contact point. Non-galvanized steel rods, such as rebar, will rust, and rust is a poor electrical conductor. Ground rods should be at least six feet long and spaced at least ten feet apart, with good contact between the rod and the soil.
Smart Electric Meters: Lightning Surge Protectors?
You may want to see also
Explore related products
Using insulators
Insulators are crucial components of an electric fence gate, ensuring that electricity remains in the wires and does not travel through the posts into the ground. This is especially important when using wood or metal posts, as they require insulators to prevent electrical conduction. Non-conductive materials such as plastic or fibreglass posts do not necessitate the use of insulators.
When installing insulators, it is important to place them on the posts before running the wire between the posts. This ensures that the electricity is contained within the wires. Faults in the electric fence can occur when electricity escapes from the wires, which can be caused by various factors such as wet grass touching the wire or broken insulators. Therefore, it is essential to maintain and regularly inspect the insulators to ensure they are in good condition.
To further enhance the effectiveness of insulators, it is recommended to use a 20,000-volt underground hookup wire to carry the electrical current under the gate opening. This wire should be insulated to protect it from damage caused by rocks or other debris. By using an underground wire, you can ensure that the gate remains electrified even when it is open, maintaining the security of the fence.
Additionally, when using a gate handle, ensure that there is one handle for each electrified wire. This is an important safety measure to prevent accidentally electrifying adjacent gates or components. By following these guidelines and properly utilising insulators, you can effectively contain the electric current within the fence and maintain its functionality.
Van Life: Adding Electricity to Your Mobile Home
You may want to see also
Explore related products
Choosing an energizer
The energizer is a critical component of your electric fence gate, creating an electric pulse that travels through the fence. When choosing an energizer, consider the following:
Type of Energizer
The type of energizer you choose depends on several factors, including the length of your fence, the amount of vegetation touching the conductors, the type of fencing material, the types of animals you are trying to contain or exclude, and whether you have access to a 230-volt power source.
Mains-Powered Energizer
A mains-powered energizer is a good option if you have a consistent power source nearby. This type of energizer is located inside a building and does not use batteries, making it a low-cost option. However, make sure to place it away from the gate for convenience and to avoid any obstruction. Do not connect it to the electricity board earth, water pipes, or building stanchions.
Dry Battery-Powered Energizer
If you plan to move your electric fence frequently, a dry battery-powered energizer is a better choice. This type of energizer uses internal batteries like an ESB25 or ESB115 and is easy to relocate. They require no maintenance and typically last 4 to 6 months before needing replacement.
Wet Battery-Powered Energizer
For a permanent electric fence or one that is moved infrequently, consider a wet battery-powered energizer. This option provides long-lasting power but is less convenient to relocate.
Grounding System
A proper grounding system is essential to ensure the electric pulse can travel through the fence, the animal, and back into the energizer. As a minimum, your grounding system should consist of three 6' galvanized steel rods spaced 10' apart, connected by a wire to the energizer. Larger energizers or fences with more vegetation may require additional ground rods.
Electric Blue Jack Dempseys: Why Do They Lose Color?
You may want to see also
Frequently asked questions
The type of gate you choose depends on whether it needs to be electrified or not. If you want to electrify the gate, you can use a gate anchor, cut-out switch, or gate kit. Spring gates are also an option, which are quick and easy to install.
First, reinforce the gate with braces, cement footings, or anchors. Then, run a grounding wire from the charger to all the grounding posts. Install insulators on the posts and run the wire between them.
Plan gate openings in logical places where people, animals, and equipment need easy access. Place one gate handle for every electrified wire. Ensure that the fence remains electrified even when the gate is open by using an underground hookup wire to carry the electrical current.
