Electric fences are commonly used to restrict the movement of animals, and they require regular testing and maintenance to ensure they are functioning correctly. While there are various methods to test an electric fence, one common approach is to use an electric fence tester or voltmeter. These tools can detect voltage and help identify any issues with the fence's performance. This paragraph will discuss the process of building an electric fence tester, outlining the steps and considerations for creating a reliable testing device.
| Characteristics | Values |
|---|---|
| Tester type | Dedicated electric fence voltmeter, non-contact voltmeter, compass, blade of grass, neon tubes, electronic devices |
| Tester function | Detect voltage in electric fences |
| Tester cost | $30-$50 USD |
| Tester features | Handheld meter with a digital readout, metal prong on top, attached metal probe at the end of a wire |
| Tester use | Touch the metal prong to the charged wires, compare the voltage reading to the recommended voltage for your fence model |
| Tester location | Start at the section of the fence furthest from the charger, repeat the test every 100 ft (30 m) closer to the charger |
| Grounding | Identify the ground wire, stick the meter's probe into the soil if there isn't a ground wire |
| Voltage reading | Readings are often in thousands, a reading of 5.0 indicates 5000 volts |
| Low voltage result | Repeat the test closer to the charger to pinpoint the problem |
| No voltage reading | Check if the voltmeter is turned on, if it is, the fence has no charge |
| Tester impact | Drain some power from the fence |
Explore related products
What You'll Learn
Use a voltmeter or tester

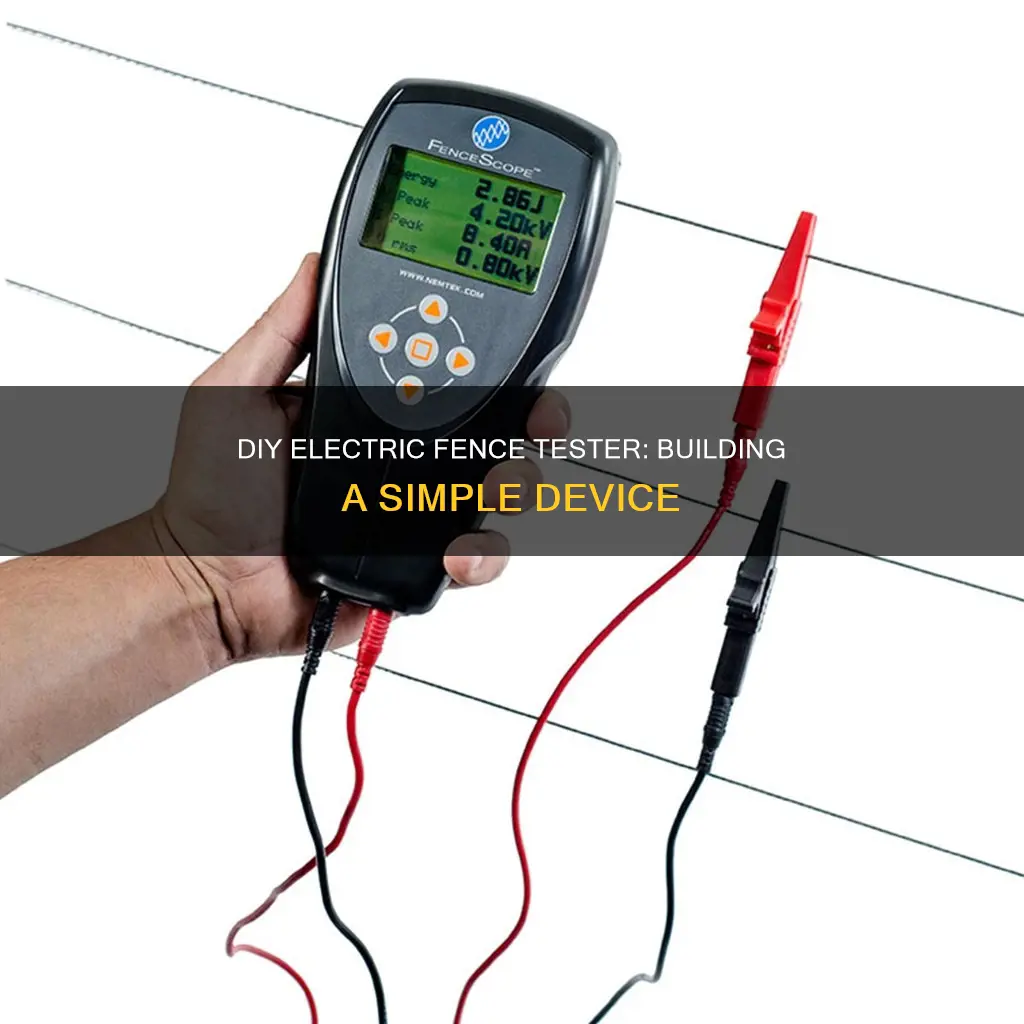

To build an electric fence tester, you can use a voltmeter or tester. This is a tool specifically designed to detect voltage in electric fences, making it the most reliable option. Most models include a handheld meter with a digital readout and a metal prong on top, with an attached metal probe at the end of a wire. This tool is worth investing in if you have an electric fence, costing around $30-$50 USD.
To use a voltmeter or tester, start by moving to the section of the fence furthest from the charger. The charger is usually a small box that provides electricity to the fence. If your fence model uses a ground wire, touch the probe to the ground wire or stick it into the soil. If there is no ground wire, simply stick the metal end of the probe several inches or centimeters deep into the soil. Ensure you are not touching the metal tip with your fingers during the test.
Next, touch the metal prong on the tester to one of the charged wires. The digital readout should give you a voltage reading. Compare this reading to the recommended voltage for your specific fence model. Repeat this test on each fence wire. The readings are often in the thousands, so a reading of 5.0, for example, indicates 5000 volts. If the reading is outside the recommended range, there is a problem with the fence, and it should be serviced.
If you do not get any reading, check if the voltmeter is turned on. If it is on and you still don't get a reading, it means the fence has no charge. To pinpoint the problem, repeat the test every 100 ft (30 m) closer to the charger. If you get a low voltage result, moving closer to the charger may help you identify where the issue is.
Sprinkler Controls: Power Source and Functionality Explained
You may want to see also
Explore related products
$69.99
Identify the ground wire
Identifying the ground wire is an important step in building an electric fence tester. An electric fence works by completing an electrical circuit when an animal touches it, and proper grounding is required to keep the fence working and in good condition. The electric current originates at the energizer, travels through the fence, passes through the animal's body, continues through the earth to the grounding rod, and then up the ground wire to the grounding terminal of the charger.
To identify the ground wire, start by locating the energizer, sometimes called the fence charger or fence box. This is usually a small box that provides electricity to the fence. Once you have located the energizer, look for a wire connected to it that is covered with a green knob. Remember, "green means ground," so this wire is likely the ground wire. If you cannot find a green knob, look for a wire connected to the ground terminal of the charger, as this will be the ground wire.
In some cases, the ground wire may be more challenging to identify, especially if it is not clearly marked or if there are multiple wires connected to the energizer. If you are unsure, you can contact the fence manufacturer or an electrician to properly identify the ground wire. It is also a good idea to have an expert check that your ground wire is connected properly, as poor grounding is a common cause of electric fence malfunctions.
Once you have identified the ground wire, you can use it as part of your electric fence tester. Touch the metal prong on the tester to the ground wire or stick the probe into the soil near the ground wire. Then, touch the prong to each charged wire on the fence. The digital readout on your tester should give you a voltage reading, which you can compare to the recommended voltage for your fence model.
Setting Up Electric Fence Energizers: A Step-by-Step Guide
You may want to see also
Explore related products
$19.99 $24.99
Touch the prong to the charged wire
To test an electric fence, you'll need to touch the prong of the tester to each charged wire. This is best done with a dedicated electric fence voltmeter, which will have a handheld meter with a digital readout, a metal prong on top, and an attached metal probe at the end of a wire.
Firstly, move to the section of the fence furthest from the charger, which is usually a small box that provides electricity to the fence. If your fence has a ground wire, touch the metal tip of the probe to it, or stick the probe into the soil if there isn't a ground wire. Keep the probe in place and touch the metal prong on the tester to one of the charged wires.
The digital readout should give you a voltage reading, which you can compare to the recommended voltage for your fence model. Repeat this test on each fence wire. The readouts are often in thousands, so a reading of 5.0, for example, indicates 5000 volts. If the reading is outside the recommended range, there is a problem with the fence. If you don't get any reading, check that you've turned the voltmeter on. If it is on, the fence has no charge.
Repeat the test every 100 ft (30 m) closer to the charger. If you get a low voltage result, moving closer to the charger may help you pinpoint the problem.
Keeping Chicks Warm: Alternative Methods to Electricity
You may want to see also
Explore related products
Compare the reading to the recommended voltage
Once you have your electric fence tester or voltmeter, you can begin to test your electric fence. Move to the section of the fence furthest from the charger—the charger is usually a small box that provides electricity to the fence. By checking the voltage at the furthest point from the charger, you can be confident that the proper voltage is running through the entire fence.
With the probe still touching the ground wire or stuck in the soil, touch the metal prong on the tester to one of the charged wires. The digital readout should give you a voltage reading. Compare this reading to the recommended voltage for your fence model. The recommended voltage for electric fences is typically between 2,000 and 10,000 volts, depending on the type of animals the fence is meant to control.
If the reading is above or below the recommended range for your fence, there is a problem with it and it should be serviced. If you get a low voltage result, you can try repeating the test closer to the charger to help pinpoint where the problem is. If you don't get any reading, check that you've turned the voltmeter on. If the meter is on and you're still not getting a reading, this means the fence has no charge.
It's important to regularly test your electric fence to ensure the voltage isn't too high or too low. If the voltage is too high, it could cause dangerous shocks to animals or humans who come into contact with the fence. If it's too low, animals could easily escape through the fence.
Finding Your Electric Provider: A Quick Guide to Energy Sources
You may want to see also
Explore related products
Repeat the test on each wire
Once you have properly installed an electric fence, regular testing of the fence wires is an important maintenance task. To test an electric fence, you can use a dedicated electric fence voltmeter, a non-contact voltmeter, or a compass. You can also use a screwdriver with a plastic handle, but it is important to never touch the metal of the screwdriver during the test.
To repeat the test on each wire, follow these steps:
Using a Voltmeter:
- Stand near the part of the fence farthest from the charger. The charger, usually a small box, provides electricity to the fence.
- Identify the ground wire by checking the fence manual or contacting the manufacturer. If there is no ground wire, stick the metal probe of the voltmeter into the soil.
- With the probe touching the ground wire or stuck in the soil, touch the metal prong on the tester to one of the charged wires.
- Read the voltage on the digital display of the voltmeter and compare it to the recommended voltage for your fence model.
- Repeat these steps for each wire on the fence, moving closer to the charger to find weak spots.
- If the reading is above or below the recommended range, there is a problem with the fence, and it should be serviced.
- If you get a low voltage result, repeat the test closer to the charger to help pinpoint the problem.
Using a Compass:
- Hold the compass within 2-3 inches (5.1-7.6 cm) of each wire on the fence.
- If the wire is charged, the compass arrow will vibrate due to the magnetic field created by the charge.
- Hold the compass near each wire for 10-30 seconds. Most electric fence chargers send pulses in these increments, which will be more noticeable on the compass.
Using a Plastic-Handled Screwdriver:
- Touch the screwdriver to each wire on the fence.
- Watch for an electric arc that will leap from the wire to the screwdriver.
- If you don't see an arc immediately, gently move the screwdriver along the wire for up to 30 seconds.
- If there is still no arc, the wire likely has no charge.
Regularly repeating the test on each wire of your electric fence will help ensure its proper functioning and allow you to identify and address any issues promptly.
Expand Your Electrical Business: Strategies for Growth
You may want to see also
Frequently asked questions
An electric fence tester is a device used to test the voltage of an electric fence. It typically consists of a handheld meter with a digital readout and a metal prong on top, connected to a metal probe that is inserted into the ground.
The metal probe of the tester is inserted into the ground near the electric fence, and the metal prong is touched to each charged wire. The digital readout then displays the voltage, which can be compared to the recommended voltage for the specific fence model.
Yes, there are simple testers that use neon tubes to indicate voltage, and more advanced electronic devices that measure and display the exact voltage reading. Some testers are designed to be left hanging on the fence for continuous monitoring.
It is possible to build a basic electric fence tester using a Kilovolt meter and resistors. However, it is important to prioritize safety and ensure that the tester is properly calibrated to provide accurate readings.
Always ensure the tester is functioning properly before use. When testing the fence, avoid touching the metal probe or prong with your fingers, as it can deliver an electric shock. It is also important to identify the ground wire correctly and ensure proper grounding to prevent malfunctions.
