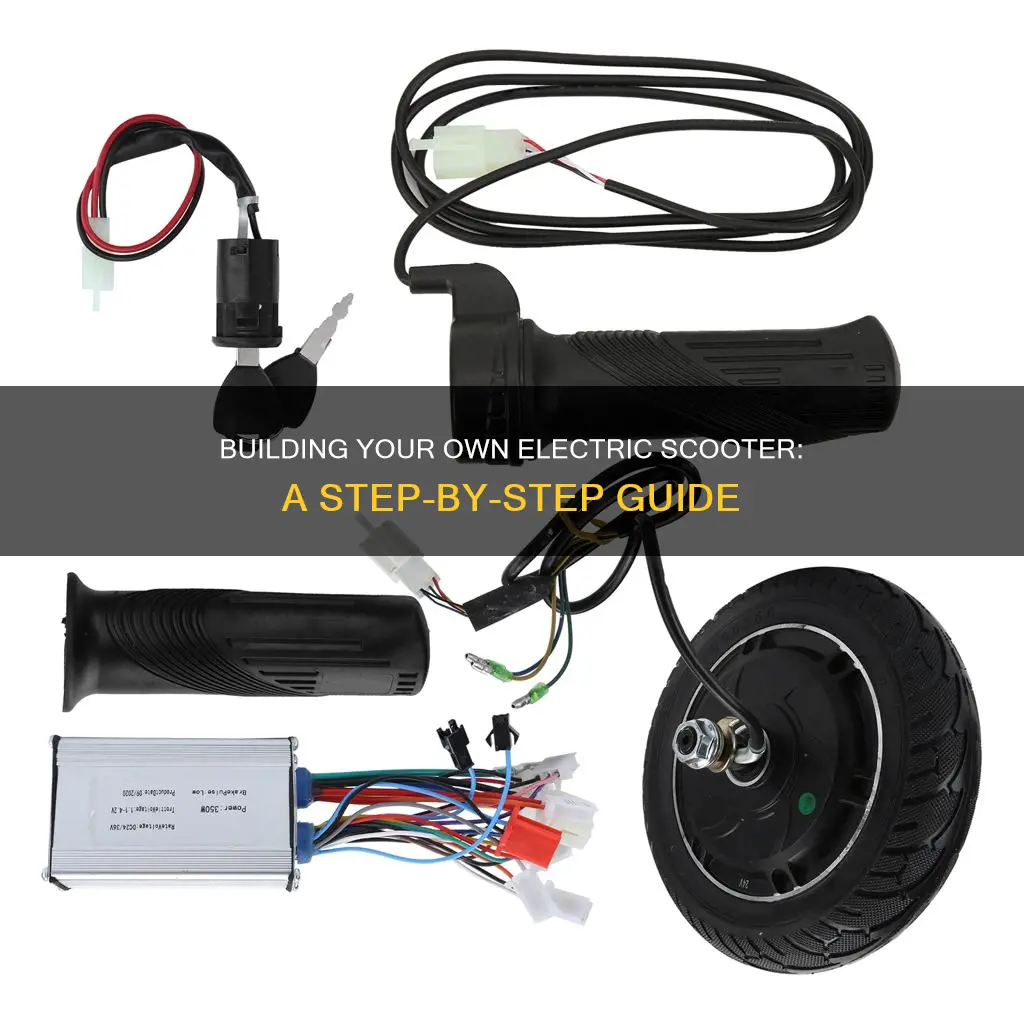

Building an electric scooter kit from scratch can be a daunting task, but with the right components and a step-by-step approach, it can be an enjoyable and rewarding project. The first step is to decide on the type of motor drive: belt/gear-driven or direct drive such as a hub motor. The next step is to choose the right battery for your scooter, considering factors such as capacity, size, voltage, and terrain. The controller, which manages the motor and other electronics, should be compatible with the chosen motor and battery. The scooter frame, forks, and handlebars may require metal fabrication skills and tools such as welding equipment and sheet metal tools. It is important to test the scooter thoroughly before use, checking the motor, brakes, and throttle to ensure smooth operation.
| Characteristics | Values |
|---|---|
| Purpose | Personalized, sustainable mode of transport for daily commute, weekend adventures, or just getting around the neighborhood |
| Building options | Building from scratch or electrifying an existing scooter |
| Required skills | Welding, working with sheet metal, knowledge of electronics |
| Required tools | CNC mill, plasma cutter, sheet metal tools |
| Parts | Frame, motor, fork, handlebars, wheels, sprockets, batteries, controller, cables, joints, seals, etc. |
| Motor options | Belt/gear-driven, direct drive, hub motor |
| Battery type | Lithium-ion (Li-ion) or LiPo |
| Battery characteristics | Capacity, size, voltage, weight, run time |
| Wheels | Air-filled or solid tires, various sizes |
| Terrain | Flat ground, hills, all-terrain |
| Testing | Motor, brakes, throttle, test ride |
Explore related products
What You'll Learn
- Choosing the motor type: hub, belt/gear-driven, or direct drive
- Selecting the right battery: lithium-ion batteries are recommended
- Wiring the scooter: connecting the motor, controller, and battery
- Attaching the motor to the frame: using a hub motor or chain-driven motor
- Testing the scooter: checking the motor, brakes, and throttle
Choosing the motor type: hub, belt/gear-driven, or direct drive
When building an electric scooter, there are two main types of motor drives to choose from: belt/gear-driven or direct drive, such as a hub motor. The type of motor you choose will depend on your specific needs and the terrain you plan to ride on.
Hub motors are part of the wheel itself and transfer power directly to the wheel. They are known for their high power-to-cost ratio and are relatively simple to mount on a turning axle. Hub motors usually have less torque than comparable belt-driven motors because they provide a direct 1:1 drive ratio without the ability to multiply torque through gear drives. This makes them more suitable for flat ground or mild inclines. Additionally, changing the wheels on a hub-driven scooter can be more challenging since the motor is contained within the wheel, limiting the options for wheel swaps.
Belt-driven motors, on the other hand, are externally mounted to the board or scooter frame separately from the wheels. They use a rubber belt to connect a gear on the motor shaft to a gear on the running wheel, similar to the way a bicycle chain connects the pedals to the rear wheel. Belt-driven motors offer the advantage of torque multiplication by changing the size of the drive gears, making them better suited for climbing steep hills or traversing rough terrain. They also typically offer more options for swapping out wheels. However, the presence of a gear drive can lead to a lower top speed compared to a similarly constructed hub-driven scooter.
Direct-drive motors, such as those found in hoverboards, can be a cost-effective option due to their mass production. They are also relatively simple to mount on a turning axle, making them a popular choice for DIY electric scooters.
When choosing a motor type, consider the terrain you will be riding on. If you plan to use your scooter on flat ground, a smaller motor may suffice. However, if you anticipate riding on hills or uneven surfaces, opt for a more powerful motor with higher torque to handle the inclines and varying terrain.
Simple Ways to Stop Wasting Electricity at Home
You may want to see also
Explore related products
Selecting the right battery: lithium-ion batteries are recommended
Selecting the right battery is critical to ensure optimal performance for your electric scooter. Lithium-ion batteries are the most common choice for modern electric scooters. They are lightweight, have a long lifespan, and offer high energy capacity. Their performance justifies the investment, despite being more expensive than other types of batteries.
Lithium-ion batteries are also widely used because they can be designed to fit almost any form factor. They have a high ratio of energy density per kg of battery and are long-lasting. They can be charged many times without losing power, and they charge faster than other types of batteries, often in 3-5 hours.
When selecting a lithium-ion battery, it is important to consider the battery capacity, size, and voltage, depending on your desired travel range and power output. The lifespan of a lithium-ion battery is measured in charge cycles, with each cycle corresponding to a full discharge followed by a full charge. These batteries typically last between 300 and 500 cycles or even more in high-quality models.
It is also essential to pay attention to the connector type when choosing a lithium-ion battery. The connector enables the energy transfer between the battery and the scooter. XT Connectors, T-Plug Connectors, and DC Connectors are the most common types of connectors used in electric scooters.
Measuring Electrical Resistance: Aluminum Basics
You may want to see also
Explore related products
Wiring the scooter: connecting the motor, controller, and battery
Wiring an electric scooter can be a complex task, and it is important to understand the wiring diagram and the functions of each component. The controller is the "brain" of the scooter, regulating the motor and battery power, as well as controlling the speed and direction. It is crucial to correctly identify and connect the wires to ensure the scooter operates smoothly and safely.
Firstly, identify the power wires, which carry the main power supply to the controller. These wires are usually colour-coded, with red indicating the positive wire and black indicating the negative wire. These wires are thicker and connect to the battery pack. The battery is the power source for the scooter and is typically a lithium-ion battery due to its lightweight and long lifespan.
Next, identify the throttle wires, which send signals from the throttle grip to the controller, regulating the scooter's speed. These wires are also often colour-coded, with one wire representing the throttle signal (green or yellow) and another acting as a ground wire (black or blue). The throttle is an essential component for controlling the scooter's speed.
The motor wires are then connected to the controller, controlling the motor's direction and speed. The motor can be a belt/gear-driven or direct drive type, such as a hub motor. The controller and motor must be compatible to ensure proper functioning.
Finally, ensure that all connections are properly wired and secure. Test the connections by performing a visual inspection for any signs of damage or loose connections. A continuity test can also be performed using a multimeter to check for any breaks in the wiring. It is important to test the scooter thoroughly before use to ensure the proper function of the motor, brakes, and throttle.
Electric Rates: Do They Fluctuate Throughout the Day?
You may want to see also
Explore related products
Attaching the motor to the frame: using a hub motor or chain-driven motor
When it comes to attaching the motor to the frame of your electric scooter, you have two main options: using a hub motor or a chain-driven motor. Each has its own advantages and considerations, and the process for attaching them differs.
Hub Motor
The hub motor is a popular choice for electric scooters because it offers an unmatched power-to-cost ratio. This type of motor is placed directly in the hub of the wheel, driving it directly. To attach a hub motor, you will typically need to replace the original wheel with the hub motor wheel. This can be a straightforward process, and you can design a mount to hold the motor to the turning axle. One advantage of the hub motor is that it has fewer components that can break, and it is generally easier to maintain and repair. Additionally, since the power output does not lose energy through the transmission system, you may experience better efficiency.
Chain-Driven Motor
With a chain-driven motor, the power is transferred to the wheel via a set of chains and gears. If you opt for this type of motor, you will need to mount it onto the frame and then connect it to the wheel using a chain and sprocket system. One consideration with chain-driven motors is that there may be more components involved, potentially leading to more maintenance and repair needs. However, they can offer advantages in certain scenarios, such as providing better acceleration and hill-climbing ability.
It's important to consider the intended use of your electric scooter when choosing between a hub motor and a chain-driven motor. If you plan to use your scooter on flat ground, a smaller motor may suffice. However, if you anticipate riding on hills, you will likely need a more powerful motor to handle the inclines. Additionally, factors such as desired speed, range, and acceleration can influence your motor choice.
By understanding the characteristics and requirements of each motor type, you can make an informed decision about which option aligns with your specific needs and preferences for your electric scooter build.
Understanding 3-Phase Electrical Systems: Powering Our World
You may want to see also
Explore related products
Testing the scooter: checking the motor, brakes, and throttle
Testing the scooter is an essential step to ensure your safety and the scooter's optimal performance. Here are the steps to check the motor, brakes, and throttle:
Motor
Before beginning any testing, ensure the scooter is turned off and unplugged from the charger to avoid any electrical hazards. Start by checking for loose connections between the motor and the controller. Inspect if the cables are properly connected and secured as faulty wiring can cause the motor to malfunction. Next, test the motor's resistance using a multimeter. Probe the motor's terminals with the multimeter to measure the resistance between the windings. Additionally, test the voltage by setting the multimeter to voltage reading mode and placing the probes on the motor terminals. Gradually increase the throttle; the voltage should increase accordingly. If the voltage remains unchanged or shows no reading, there might be an issue with the motor or controller. Also, inspect the motor for any physical damage, such as dents, cracks, or loose parts, which could impact its performance. Lastly, test the Hall sensors inside the motor by checking the voltage across their power supply using a multimeter and comparing the readings to the manufacturer's specifications.
Brakes
The brakes are the most important safety feature of an electric scooter, so ensure they are in proper working condition. The most common types of brakes are disc, drum, foot, regenerative, and electronic brakes. Disc brakes are considered the safest as they provide strong braking power in all conditions and are easy to adjust. If your scooter has disc brakes, ensure the brake lever functions correctly and the caliper activates when the lever is pulled. For foot brakes, test the hinged fender by pushing it into the rear tire with your heel to generate friction and slow down. Regenerative brakes can be tested by activating a switch that electrically couples the motor to the charging system, creating resistance to motor rotation. Electronic brakes are similar to regenerative brakes but do not recharge the battery. They are activated by a push-button or brake lever, shorting the terminals of the motor to create resistance.
Throttle
To test the throttle, use a multimeter set to voltage reading mode and place the probes on the motor terminals. Gradually increase the throttle and observe the voltage reading. A functioning throttle should show an increase in voltage as you accelerate. If the voltage remains constant or shows no change, there might be an issue with the throttle or the controller.
Finding Electrical Wires: Drilling Safely and Precisely
You may want to see also
Frequently asked questions
The two key components of an electric scooter are the scooter frame and the motor.
There are two main types of motor drives for DIY scooters: belt/gear-driven or direct drive such as a hub motor. If you are using a hub motor, you will need to replace the original wheel with the hub motor wheel. If you are using a chain-driven motor, you will need to mount the motor onto the frame and connect it to the wheel with a chain and sprocket system.
Lithium-ion batteries are recommended for electric scooters because they are lightweight and have a long lifespan. You will need to consider the battery capacity, size, and voltage depending on your desired travel range and power output.
The controller is the brain of your scooter, managing the motor, battery, and other electronics. Make sure to choose a controller that is compatible with your chosen motor and battery.
Before hitting the road, make sure to test your scooter thoroughly to ensure everything is working correctly. Check the motor, brakes, and throttle for proper function, and perform a test ride to ensure smooth operation.
