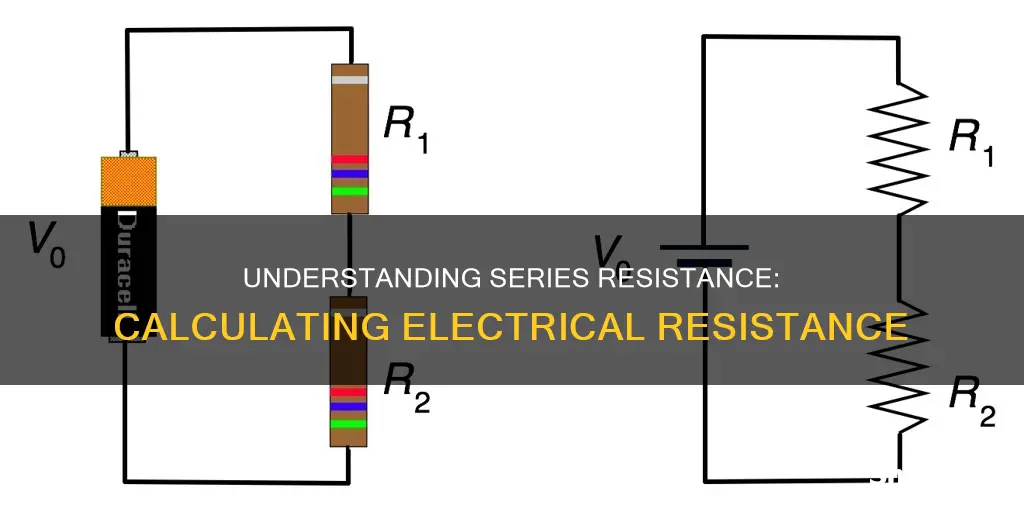

To calculate the total electrical resistance in a series circuit, you must first identify the circuit as a series circuit. A series circuit is a single loop with no branching paths, and all the resistors or components are arranged in a line. Once you've identified the circuit as a series circuit, you can calculate the total resistance by adding up all the individual resistances in the circuit. This can be done using the formula: Rtotal = R1 + R2 + ... Rn. It's important to note that each resistor in a series circuit has the same amount of current flowing through it, but the voltage drop or power dissipation across each resistor may be different. If you don't know the individual resistance values, you can use Ohm's law, where resistance is equal to voltage divided by current.
| Characteristics | Values |
|---|---|
| Total resistance in a series circuit | Sum of the individual resistances |
| Total voltage drop in a series circuit | Sum of the individual voltage drops |
| Current in a series circuit | The same amount of current flows through each resistor |
| Voltage drop across each resistor in a series circuit | Different for each resistor |
| Ohm's Law equation | Resistance = Voltage/Current |
| Joule's Law equation | Power = Current x Voltage |
Explore related products
What You'll Learn
Identifying series circuits
A series circuit is a closed path that allows current to flow from a power source, through connected components, and back to the power source again. In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component.
For example, consider a simple circuit consisting of four light bulbs and a 12-volt automotive battery. If a wire joins the battery to one bulb, to the next bulb, to the next bulb, to the next bulb, and then back to the battery in one continuous loop, the bulbs are said to be in series. In this case, the same current flows through all the bulbs, and the voltage drop may be 3 volts across each bulb.
Another example of a series circuit is an older-style string of Christmas tree lights. If one of the light bulbs burns out or is removed, the entire string becomes inoperable until the faulty bulb is replaced. This is because, in a series circuit, every device must function for the circuit to be complete.
Series circuits were also formerly used for lighting in electric multiple-unit trains. For instance, if the supply voltage was 600 volts, there might be eight 70-volt bulbs in series (total 560 volts) plus a resistor to drop the remaining 40 volts.
