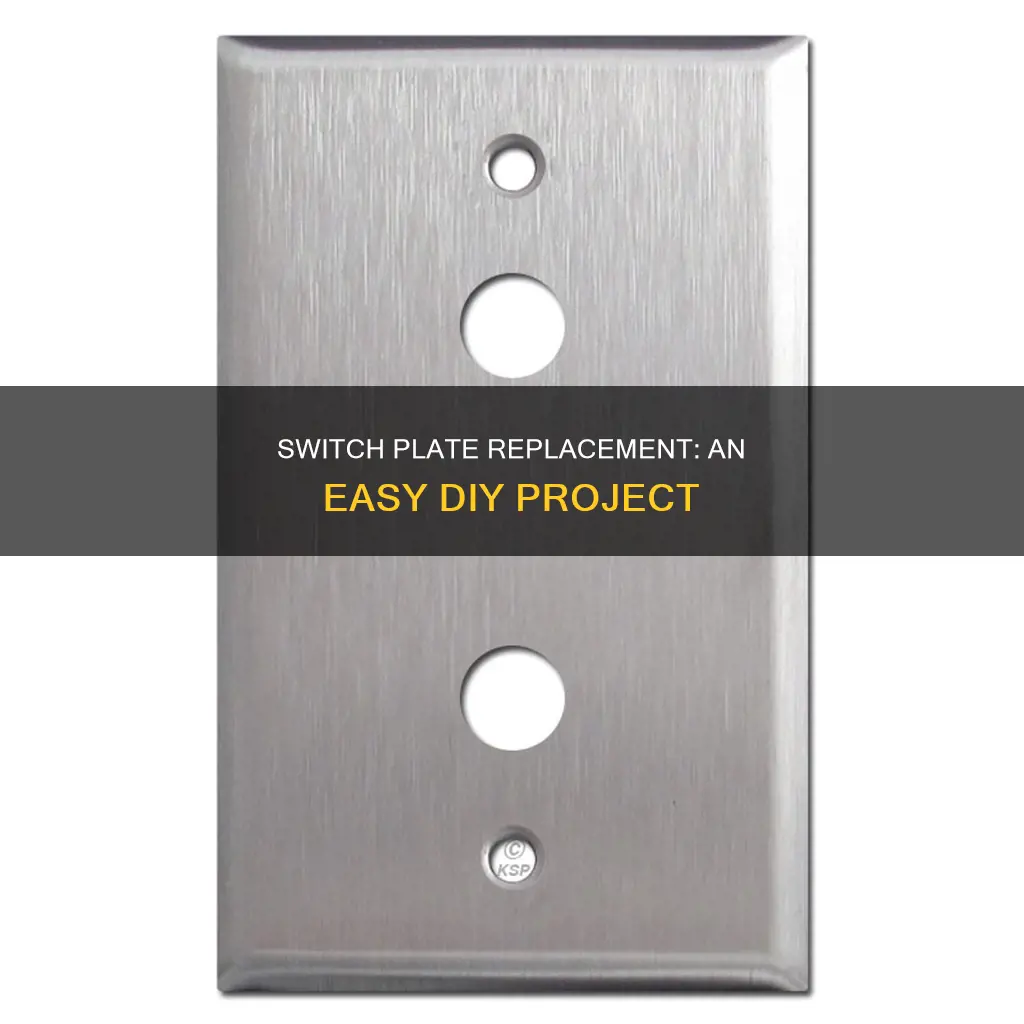

Changing an electrical switch plate is a simple way to give your home a fresh look. It is also a practical necessity if your light switch is worn or broken. Before starting, it is important to note that you should only proceed with this project if you have some home wiring and electrical knowledge. If you are unsure about any part of the process, consult a qualified electrician. Now, let's get into the step-by-step guide on how to change an electrical switch plate.
| Characteristics | Values |
|---|---|
| Safety precautions | Always take proper safety precautions when working with electricity. Refresh yourself on electrical safety procedures, including the assumption that every wire is live until proven otherwise. |
| Tools required | Screwdriver, voltage tester, electrical gloves |
| Steps | 1. De-energize the electrical circuit that controls the switch. 2. Remove the switch cover plate. 3. Inspect the old switch to determine the type of replacement model you need. 4. Prepare the new switch for installation. 5. Disconnect the old switch by removing the screws and pulling out the switch and attached wires. 6. Attach the new wires to the new switch. 7. Put the switch back into place using the mounting screws. 8. Reinstall the cover plate. 9. Turn the breaker switch back on and test the light and switch for functionality. |
| Types of switches | Single-pole, three-way, two-way, one-way, multi-way, dimmer |
Explore related products
What You'll Learn
Safety precautions
While changing an electrical switch plate is a simple task, it is important to take the necessary safety precautions. Here are some detailed safety measures to follow when replacing an electrical switch plate:
- Understand the basics and risks: It is important to understand how a light switch works and the risks involved with electricity. A light switch interrupts the flow of electricity to a light fixture. When the switch is flipped, it either connects or disconnects the circuit, turning the light on or off. Always assume that every wire is live until proven otherwise with a voltage tester.
- De-energize the circuit: Before beginning any work, ensure that the electrical circuit controlling the switch is turned off at the main circuit breaker. This is crucial to prevent electrical shocks. Test for power by using a voltage tester to ensure no power is flowing to the switch.
- Wear protective gear: Wear rubber-soled shoes and use tools with insulated handles for added protection. Electrical gloves are also recommended when handling wires.
- Handle wires carefully: When removing the switch plate, gently pull it off the wall. Avoid pulling directly on the wires. Use a screwdriver to release wires from the old switch if necessary. Always ensure you know what wires are being disconnected and where they connect to the switch.
- Choose the right switch: It is important to choose a replacement switch that matches the voltage and amperage of your electrical system. Consult an electrician or a knowledgeable salesperson if you are unsure.
- Consult a professional: If you have any concerns or encounter difficulties during the process, don't hesitate to consult a professional electrician. It is always better to be safe than sorry when dealing with electrical work.
Understanding Skeletal Muscle Cells' Electrical Insulation
You may want to see also
Explore related products
Removing the old switch plate
Before removing the old switch plate, it is important to note that you should only proceed with this project if you have some home wiring and electrical knowledge. If you are unsure how to perform the task safely, it is always advisable to hire a local electrician. You must also follow local building regulations and electrical safety procedures. Remember to assume that every wire is live until proven otherwise.
Now, to remove the old switch plate, start by de-energizing the electrical circuit that controls the switch. This can be done by turning off the mains power at the consumer unit/fuse box and removing the circuit fuse. Put the fuse in your pocket to avoid accidental replacement and attach a note to the unit to indicate that you are working on the circuit. Check that the circuit is dead with a socket tester or voltage tester.
Next, remove the switch cover plate. If the cover plate is held in place by paint, use a razor blade or utility knife to cut the paint closely around the edge of the plate to free it. With the cover plate removed, you will see the mounting screws holding the switch in place. Remove these screws and carefully pull the switch out of the box, being mindful not to pull directly on the wires.
Before disconnecting the old switch, record the wire connections. There are typically three types of wires: black wires that go to black or brass screws, copper or green ground wires attached to green or copper screws, and neutral white wires.
Ceiling Fan Speed: Electricity Consumption's Worst Enemy?
You may want to see also
Explore related products
Choosing a replacement
Firstly, it is essential to inspect the old switch to determine the type of replacement model you need. It is recommended to use the same type of switch, whether it is a single-pole or three-way switch. Single-pole switches have two screws with wires attached, while three-way switches have three screws, allowing you to turn the light on and off from two locations.
Secondly, consider the style and design of the new switch plate. You can opt for decorative switches that add a stylish touch to your home or choose a minimalist design, such as screwless wall plates, which can redefine your home's aesthetics.
Thirdly, ensure that the new switch plate fits properly. Check the size of the switch box and the orientation of the switch to ensure it will fit and function correctly.
Additionally, if you are upgrading to a dimmer switch or a two-way switching system, refer to specific instructions for those installations.
Lastly, always prioritise electrical safety. Consult a certified electrician if you have any concerns or encounter difficulties during the process. Remember to switch off the mains power and follow local building regulations and electrical safety procedures.
Turning Off Breakers: Electricity Saving or Myth?
You may want to see also
Explore related products
Wiring the new switch
Wiring a new light switch requires some electrical knowledge and caution. Before you start, ensure you are familiar with electrical safety procedures and assume that every wire is live until proven otherwise.
Firstly, check that the old wires are in good condition and that you understand their configuration. If you are unsure, consult an electrician. You will need to disconnect the old switch by removing the screws and pulling the switch and attached wires out slightly, being careful not to damage any wiring. There are typically three types of wires that run to most switches: black wires that connect to black or brass screws, copper or green ground wires attached to green or copper screws, and neutral white wires.
Once you have unscrewed all the wires, you can attach the new wires to the new switch in the same configuration as the old ones. Make sure the new wall plate fits, and that the switch is oriented so that it is in the downward position when off.
Now, put the switch back into place, using the two mounting screws provided with the new switch. The oval holes in the mounting bracket allow you to fasten the switch so that it is straight up and down, even if the screw holes in the electrical box are tilted.
Finally, guide the wires back into the electrical box as you push the switch back into place. Use the switch installation screws in the end tabs to secure the switch in position.
Fans: Energy-Saving or Energy-Draining?
You may want to see also
Explore related products
![Cable Matters [UL Listed] 10-Pack Single-Gang Toggle Switch Wall Plate (Wall Switch Cover) in White, Color-matched Screws Included](https://m.media-amazon.com/images/I/31GK31MlSjL._AC_UL320_.jpg)
Testing the new switch
Check the Wiring
Before turning the power back on, carefully inspect the wiring connections to the new switch. Ensure that the wires are securely attached and that there is no damage to the wiring. It is important to verify that the wires are connected correctly, following the same configuration as the old switch.
Turn the Power Back On
Once you are satisfied with the wiring connections, it is time to restore power to the circuit. Go to your home's electrical panel and turn on the breaker switch. This will energize the circuit and allow you to test the new switch.
Test the Switch Functionality
Return to your work area and carefully attempt to operate the new switch. Flip the switch or push the button, depending on its design, and observe if the connected light or fixture turns on or off as expected. Ensure that the switch operates smoothly and securely without any signs of malfunction.
Check for Proper Orientation
Verify that the new switch is oriented correctly. For most switches, the "off" position should be downward, with the “on” position upright. Ensure that the switch plate is straight and securely attached, with no signs of tilting or uneven mounting.
Voltage Testing
If the light or fixture does not turn on, perform voltage testing to identify any issues. Use a voltage tester, such as a probe tester or a non-contact tester, to check for voltage readings. A probe tester requires touching the probes to the neutral and hot wire terminals, while a non-contact tester can be hovered over the wires and switch.
If your tester detects voltage issues, such as a lack of power or a short circuit, further troubleshooting may be needed. This may include checking for wire contact with the wrong terminals or inspecting the circuit for any faults.
Remember, always prioritize electrical safety. If you encounter any issues or are unsure about any steps, consult a professional electrician for guidance.
Understanding Kilowatt Hour Costs: Calculating Your Electric Bill
You may want to see also
Frequently asked questions
Before you start, make sure to follow electrical safety procedures and assume that every wire is live until proven otherwise. You should also put on electrical gloves. Next, use a screwdriver to remove the mounting screws on the switch cover plate and take off the plate.
First, check that the wires are in good condition and that you understand their configuration. Attach the new wires to the new switch in the same configuration as the old switch. Then, put the switch back into place using the mounting screws provided with the new switch. Finally, attach the cover plate with the screws you took out earlier.
No, changing a light switch cover is a quick and simple way to give your home a fresh new look and does not require electrical expertise. However, if you have any concerns or encounter any difficulties during the installation process, consult a professional.
While it is possible to change a light switch cover without turning off the electricity, it is not recommended as it is very easy to shock yourself and can be dangerous.
