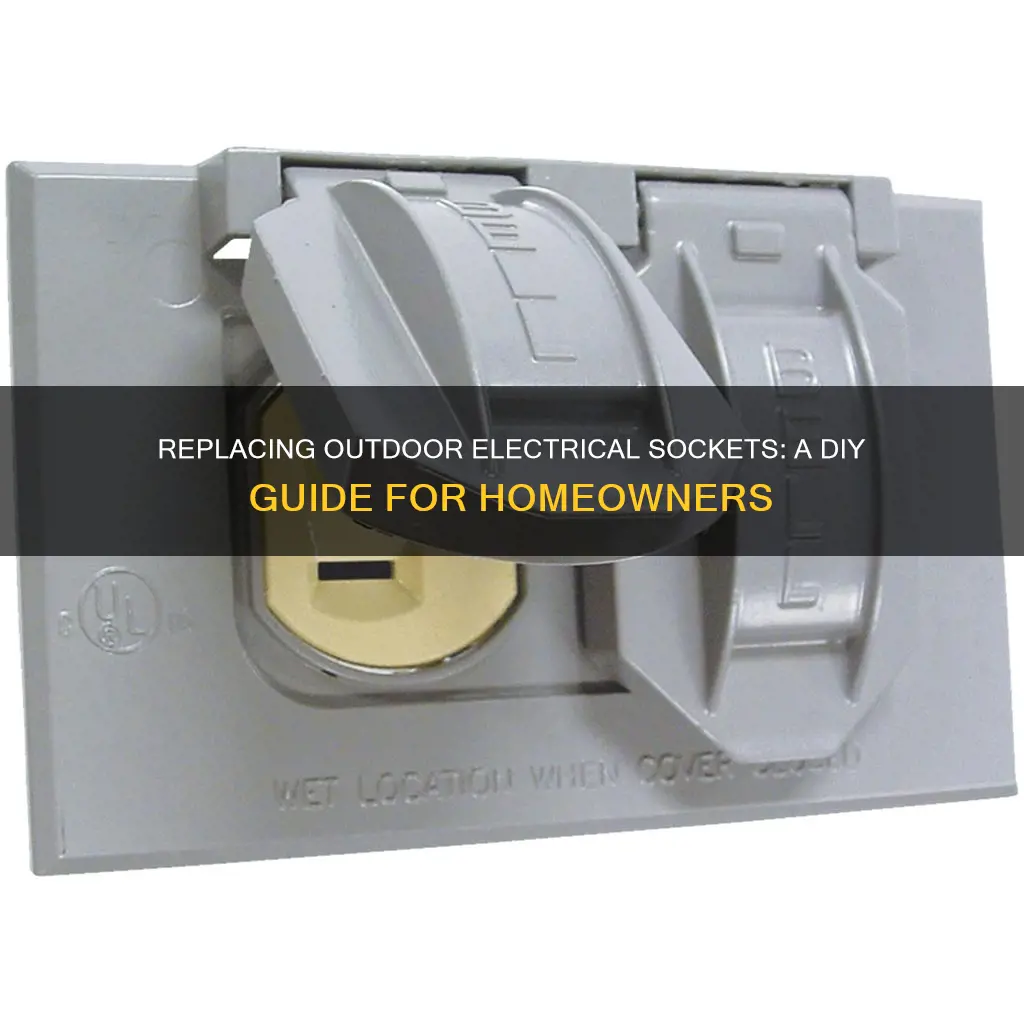

Changing an outdoor electrical socket is a straightforward process, but it's important to take the necessary precautions to ensure safety. Before beginning any electrical work, it is crucial to switch off the main power supply and isolate the circuit. When dealing with outdoor sockets, it is recommended to use GFCI protection to prevent electrical hazards. Additionally, regular maintenance and replacement of outdoor outlet covers are essential to protect the outlets from the elements and reduce the risk of electrical fires. When installing a new outdoor electrical socket, it is advisable to place it near an existing indoor outlet to simplify the process. Drilling through the wall and siding is necessary to mark the location for the new socket. This guide will provide a comprehensive overview of the tools and steps required to safely change an outdoor electrical socket.
| Characteristics | Values |
|---|---|
| When to change an outdoor electrical socket | When the faceplate is cracked, the socket feels hot, sparks or smokes, or there's a burning smell. |
| When to call an electrician | When the socket is producing sparks, smoke, or a burning smell, or when an item plugged into it isn't receiving power. |
| Safety precautions | Switch off the main power at the consumer unit/fuse box. Isolate the circuit by removing the circuit fuse. |
| Tools required | Screwdriver, voltage tester, wire stripping tool, electrical tape, receptacle analyzer, socket tester, drill, pad saw/plasterboard saw, wire cutters. |
| Steps | 1. Turn off the power at the breaker box. 2. Test with a voltage tester to confirm there's no current. 3. Unscrew the mounting screws and remove the wall plate. 4. Unscrew the terminals and pull away the wires. 5. If a wire is damaged, snip off the end and restrip it. 6. Wire the new receptacle as the old one was, with white wires connected to silver terminals and black wires to brass terminals. 7. Wrap with electrical tape. 8. Push the outlet back into the box, tighten the mounting screws and put the wall plate back on. 9. Test the socket with a socket tester. |
| Additional considerations | If the existing electrical box isn't large enough, replace it with a plastic "remodeling" box. If the socket is part of a ring circuit, consult a qualified electrician. If there is aluminum wiring, call a licensed electrician. If the socket is outdoors, it will likely need GFCI protection. |
Explore related products
What You'll Learn
Identify the correct screwdriver type
Before you begin to change an outdoor electrical socket, it is important to identify the correct screwdriver type. This is a crucial step as it ensures you have the right tools for the job and can help you work efficiently and safely.
To identify the correct screwdriver type, start by examining the head of the screw. Look for the presence of lines or markings. If you see a single line through the circle, this indicates that you will need a flathead screwdriver. A flathead screwdriver is characterised by a straight blade that tapers to a point, designed to fit securely into the straight slot of the screw.
On the other hand, if you observe perpendicular lines or crosshairs on the screw head, this is an indication that a Phillips head screwdriver is required. Phillips head screwdrivers feature a cross-shaped tip that is specifically designed to fit securely into the cross-shaped indentation on the screw head.
If you are unsure about the type of screwdriver required, it is always a good idea to seek advice. You can consult a hardware store employee or a licensed electrician for guidance. They can help you identify the correct screwdriver type and provide recommendations for the specific project you are undertaking.
Remember, safety should always be a priority when working with electrical components. Even when you have identified the correct screwdriver type, it is important to proceed with caution and follow established safety protocols to ensure a successful and secure installation.
Adding a New Electrical Circuit: A Step-by-Step Guide
You may want to see also
Explore related products
Turn off the power at the breaker box
Before attempting to change an outdoor electrical socket, it is crucial to prioritise safety by turning off the power at the breaker box. This step is fundamental to preventing any electrical accidents or mishaps. Here is a detailed guide on how to safely turn off the power:
Locate the Breaker Box
Begin by finding the breaker box, also known as the consumer unit or fuse box, in your home. It is typically located in a utility room, garage, basement, or closet. The breaker box houses the electrical circuits that supply power to your entire home.
Identify the Correct Circuit Breaker
The breaker box contains multiple circuit breakers, each controlling the electricity flow to different areas or circuits in your home. You need to identify the specific circuit breaker associated with the outdoor electrical socket you plan to work on. This step may require some investigation. If you are unsure, consult a qualified electrician or refer to your home's electrical plan.
Turn Off the Power
Once you have identified the correct circuit breaker, it's time to turn off the power. Flip the circuit breaker switch to the "off" position. In some cases, the switch may have an "on" or "off" label, making it easier to confirm its status. Ensure that the switch is firmly in the "off" position.
Verify Power Disconnection
After turning off the circuit breaker, use a voltage tester to verify that the power is indeed off. Connect the voltage tester to the electrical socket you plan to work on. If the tester indicates the presence of voltage or current, you may have flipped the wrong breaker switch. Return to the breaker box and try turning off a different circuit breaker. Re-test with the voltage tester until you confirm that the power is completely off.
Isolate the Circuit (Optional)
For added safety, you can further isolate the circuit you plan to work on. This step involves removing the circuit fuse associated with the specific circuit. By doing so, you eliminate any possibility of accidental power reconnection while you work.
Remember, working with electricity can be dangerous, so always exercise extreme caution. If you have any doubts or concerns, it is best to consult a licensed electrician who can guide you through the process of safely changing an outdoor electrical socket.
Electricity Connection in Oswego, NY: A Simple Guide
You may want to see also
Explore related products
Unscrew the terminals and pull away the wires
Before attempting to change an outdoor electrical socket, it is important to ensure your own safety. Turn off the main power at the consumer unit/fuse box and isolate the circuit by removing the circuit fuse. You should also test with a voltage tester to confirm that the power is off. If the tester shows current, you may have flipped the wrong breaker switch. Check the service panel and turn off another circuit that may be powering the outlet.
Once you are sure the power is off, you can begin to unscrew the terminals and pull away the wires. Do not twist them too much. If a wire end appears nicked, damaged, or twisted, you will need a wire stripping tool. Snip off the end of the affected wire and restrip it.
If you have old wiring and both wires are black, use a receptacle analyser to check that the neutral wire is connected to the silver terminal and the hot wire to the brass. There are two sizes of 120-volt outlet receptacles. If you don't know which one is in your outlet, examine the wiring to find out what size you need. Check the gauge of the wire and the circuit amperage. Typically, the wires leading to a receptacle will be 14-gauge and the circuit breaker or fuse will be 15 amps.
After you have unscrewed the terminals and pulled away the wires, you can wire the new receptacle as the old one was, with each white wire connected to a silver terminal and each black wire connected to a brass terminal. Wrap with electrical tape to cover all terminals and bare wires.
Electric Cat Fence: DIY Guide to Keep Cats Safe
You may want to see also
Explore related products
Wire the new socket as the old one was
If you are replacing an outdoor electrical socket, it is important to wire the new socket exactly as the old one was. Before starting, make sure you have turned off the main power at the consumer unit/fuse box. You can then proceed to unscrew the terminals and pull away the wires. If a wire looks damaged, you will need a wire stripping tool to snip off the affected area and restrip it.
When wiring the new socket, connect each white wire to a silver terminal and each black wire to a brass terminal. If you are unsure which wire is which, you can use a receptacle analyser to check. You can also take a photo of the old socket wiring to refer back to. Wrap all terminals and bare wires with electrical tape and gently push the new socket into the box.
If your existing electrical box is not large enough to hold more wires, you will need to replace it with a bigger one. Cut the nails holding the old box in place and remove it, then cut a larger opening in the wall for the new box. Feed the new cable into the box before installing it and wrap the cable with electrical tape where the sheathing meets the exposed wires.
If you are tapping into a new electrical circuit, you can drill a hole through the rim joist and siding and run a cable from a basement light fixture to the new outlet location. Alternatively, you can run wires inside a metal conduit from an existing exterior outlet.
Mastering Electrical Conduit Bending: Marking Techniques for Accuracy
You may want to see also
Explore related products
Test the new socket with a socket tester
Before testing the new socket with a socket tester, it is important to follow safety precautions. Switch off the main power at the consumer unit/fuse box and isolate the circuit by removing the circuit fuse. You can then proceed to wire the new socket.
To wire the new socket, follow the same wiring pattern as the old socket. If you have more than one hot wire or neutral wire, ensure that you wire everything exactly as it was. Take a photo with your phone before dismantling the old socket to help you remember the wiring pattern. If you have old wiring and both wires are black, use a receptacle analyser to check that the neutral wire is connected to the silver terminal and the hot wire to the brass. Wrap all terminals and bare wires with electrical tape.
Once you have wired the new socket, gently push the socket back into the box and tighten the mounting screws. Check that the socket is straight and put the wall plate back on. If the wall plate has been cracked or damaged, replace it with a new one.
Now, you can test the new socket with a socket tester. A socket tester will help you determine if the socket is wired correctly and if it is safe to use. Follow the instructions provided with the socket tester to properly test the new socket. If the socket tester indicates any issues, do not use the socket and consult a qualified electrician for assistance.
It is important to note that electrical work can be dangerous, and it is always recommended to hire a licensed electrician for any electrical installation or replacement projects. If you are unsure about any part of the process or have doubts about the safety of the installation, seek professional help.
Designing a STEM Lab: Electrical System Essentials
You may want to see also
Frequently asked questions
If the socket has a cracked faceplate, feels hot, sparks, or emits smoke, it's likely time for a replacement.
Always switch off the main power at the consumer unit/fuse box and isolate the circuit by removing the circuit fuse.
You will need a screwdriver. To determine the type of screwdriver, look at the head of the screw. If there is a single line through the circle, you need a flathead screwdriver. If you see perpendicular lines or crosshairs, you need a Phillips-head screwdriver.
First, turn off the power for the circuit at the breaker box and confirm with a voltage tester. Then, unscrew the mounting screws and remove the wall plate. Unscrew the terminals and pull away the wires. Wire the new socket as the old one was, with each white wire connected to a silver terminal and each black wire to a brass terminal. Wrap with electrical tape and gently push the socket back into the box. Tighten the mounting screws, put the wall plate back on, and turn the power back on.
Choose an interior outlet and place the new outlet in the same stud cavity. Drill through the wall and siding to mark the location for the new outlet. Drill a one-inch hole over the smaller hole to make room for the cable. If you want the exterior outlet somewhere without a convenient interior outlet, you can tap into another electrical circuit, such as a junction box in the basement.
