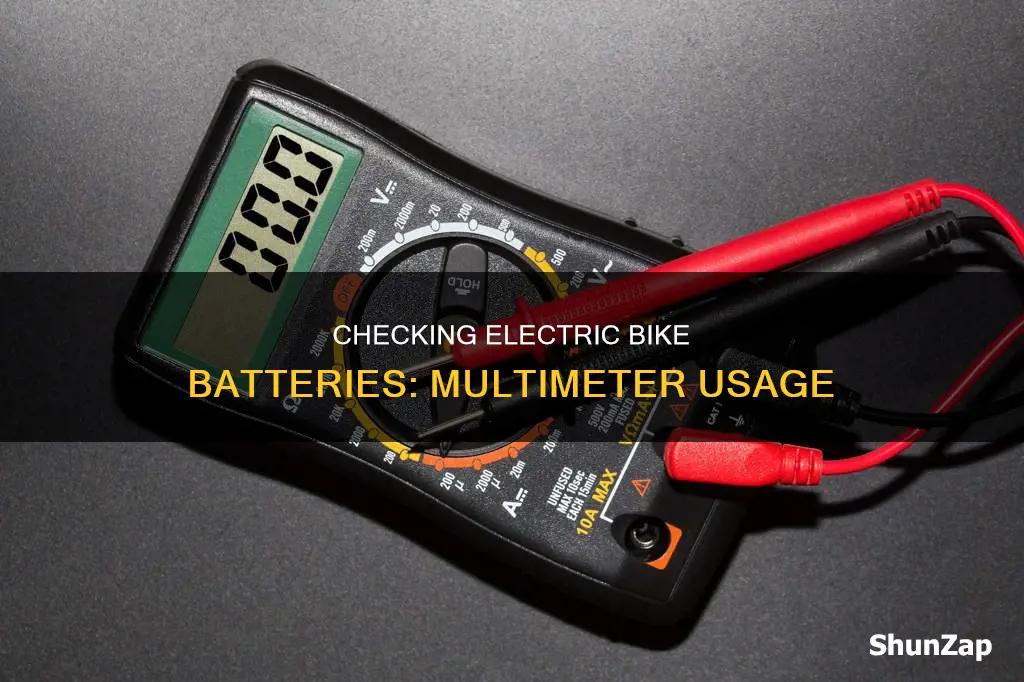

Electric bikes are a convenient mode of transport, but they can be frustrating when the battery lets you down. A multimeter is a handy device that can help you test your electric bike battery to ensure it's in good condition and prevent unexpected power losses. Multimeters measure voltage, current, and resistance, and digital versions tend to provide more precise results. This guide will explain the steps to testing your electric bike battery with a multimeter to keep your electric bike running smoothly.
| Characteristics | Values |
|---|---|
| Purpose | To check the condition of the electric bike battery |
| Multimeter features | Measures voltage, current and resistance |
| Multimeter types | Digital or analog |
| Battery charge | Multimeters have an AC/DC readout function and a "battery test load" function |
| Multimeter setting | Set to DC to prevent overcharging |
| Voltage | Check the manual for the voltage range. If the voltage is lower than the range, the battery may need changing |
| Battery capacity | Measured in ampere-hours (Ah) |
| Battery voltage | Usually 24V, 36V or 48V |
| Battery health | Regular testing prevents unexpected power losses and extends the lifespan of the battery |
