If you're experiencing issues with your Husqvarna lawnmower's PTO switch, there are several steps you can take to troubleshoot and potentially resolve the problem. First, check if the engine starts when the PTO switch is disconnected. If it does, you may have an issue with the clutch or a short circuit. You can test this by applying 12vdc directly to the clutch connection to see if it engages. If the clutch is functional, the issue could lie in the circuit leading to it. Additionally, you can test for voltage at the PTO switch by turning the key to the ON position and listening for a clunk noise, indicating the switch is working. If these initial checks don't resolve the issue, further diagnostics, such as checking wiring and safety circuitry, may be required.
| Characteristics | Values |
|---|---|
| How to check for power to the PTO clutch | Set the tractor to ON, turn the PTO on and listen for a clunk noise. |
| How to check for continuity | Test the continuity with the PTO switch off. |
| How to check for resistance | Test the resistance with the PTO switch on. |
| How to check for voltage | Use a voltmeter to check the plug that goes into the PTO switch. |
| How to test the clutch | Disconnect the PTO clutch and apply 12vdc directly to the connection. |
| How to check the air gap of the clutch | Check from the part backward to the electrical supply source. |
| How to check for a short | Unplug the PTO clutch and try to start the engine. |
| How to check for low battery voltage | Check the battery voltage with a voltmeter. |
Explore related products
What You'll Learn
Check for voltage to the PTO clutch wires
To check for voltage to the PTO clutch wires, you must first locate the clutch wires. The PTO clutch wires will be red and should be located underneath the mower deck.
Once you have located the wires, you can use a voltmeter to check for voltage. Place the positive lead of the voltmeter on the red, positive post on the battery. Then, place the negative voltmeter lead on a good engine source. If the battery output indicates 12.5 volts or below, you will need to charge the battery. The PTO clutch will not engage without sufficient voltage.
If you are still experiencing issues with the PTO clutch after checking the voltage, there are a few other things you can try. First, check the wiring for any signs of damage or wear. If the wiring looks intact, try applying 12vdc directly to the connection to see if the clutch is physically capable of engaging. You can also check the air gap of the clutch and look for any signs of overheating or damage.
If you are still unable to identify the issue, it may be necessary to consult a professional for further assistance.
Amps Required for Electric Range: What You Need to Know
You may want to see also
Explore related products
Test the PTO first
If you suspect that your Husqvarna electric PTO switch is faulty, the best course of action is to test the PTO first before spending any money on repairs or replacements. This can be done by following the steps outlined below:
Test the PTO
- Disconnect the PTO clutch: Start by disconnecting the PTO clutch from the mower. This will allow you to isolate the PTO and test its functionality separately from the rest of the mower.
- Apply 12vdc directly to the connection: Once the PTO clutch is disconnected, apply 12vdc directly to the connection. This can be done by using a 12-volt charger or battery.
- Check for engagement: Observe whether the clutch is physically capable of engaging. A properly functioning clutch should engage and lock to the crankshaft when activated.
- Check the air gap of the clutch: While you are testing the clutch, it is also a good idea to inspect the air gap of the clutch. This will help you identify any issues with the clutch itself or the circuit leading to it.
- Check for voltage: Use a voltmeter to check for voltage at the plug that goes into the PTO switch. Ensure that the battery has sufficient voltage (12 volts) for the PTO clutch to engage properly.
- Listen for a clunk noise: With the tractor set to the "ON" position and the engine turned off, turn on the PTO. If you hear a clunk noise, it indicates that the PTO switch is working, and the issue may be related to a bad belt or some other component.
By following these steps, you can determine whether the issue lies with the PTO or the switch. If the PTO tests successfully, then you can conclude that the switch is likely faulty and may need replacement. On the other hand, if the PTO fails the test, then the issue is likely with the PTO itself, and further troubleshooting or replacement may be required.
Repairing Electric Keyboard Keys: A Step-by-Step Guide
You may want to see also
Explore related products
Check the wiring
If the PTO switch is turned on but the mower deck does not come on, there may be an issue with the wiring. Before checking the wiring, ensure that the mower's battery is charged.
To check the wiring, start by disconnecting the PTO clutch and applying 12vdc directly to the connection to see if the clutch is physically capable of engaging. Check the air gap of the clutch as well. This way, you can quickly eliminate the trouble as being either the part itself or the circuit leading to it.
Check for any loose wires at the clutch. The clutch usually has two or three wires coming out of it, along with a plug or connector. Since the clutch is usually underneath the mower, it is exposed to dirt and debris, which can cause issues with the connector.
If there are no issues with the clutch connection, work your way back and physically inspect all the wiring, connectors, and any grounds. If you don't find any issues with the wiring, you can assume that the switch is the problem and replace it.
The World Transformed: An Earlier Electric Revolution
You may want to see also
Explore related products
Check for continuity
Checking for continuity is an important step in troubleshooting a Husqvarna electric PTO switch that is not working as expected. Here is a detailed guide on how to check for continuity:
Step 1: Disconnect the PTO Clutch
Before testing for continuity, it is recommended to disconnect the Power Take-Off (PTO) clutch. This can be done by locating the clutch and disconnecting the wiring harness or connector. Ensure that the mower is turned off and the battery is disconnected for safety.
Step 2: Apply 12V Directly to the Clutch
After disconnecting the clutch, apply 12 volts (12V) of direct current (DC) directly to the connection. This can be done using a 12V battery or a suitable power source. This step helps determine if the clutch is physically capable of engaging.
Step 3: Check Air Gap of the Clutch
While you have the clutch disconnected, it is a good idea to inspect the air gap of the clutch. This can help identify any physical issues with the clutch mechanism. Ensure that the air gap is within the specified tolerances.
Step 4: Use a Continuity Checker
To test for continuity, you will need a continuity checker or a multimeter with a continuity testing function. Set the device to the appropriate mode and ensure it is functioning correctly.
Step 5: Test Continuity on the PTO Switch

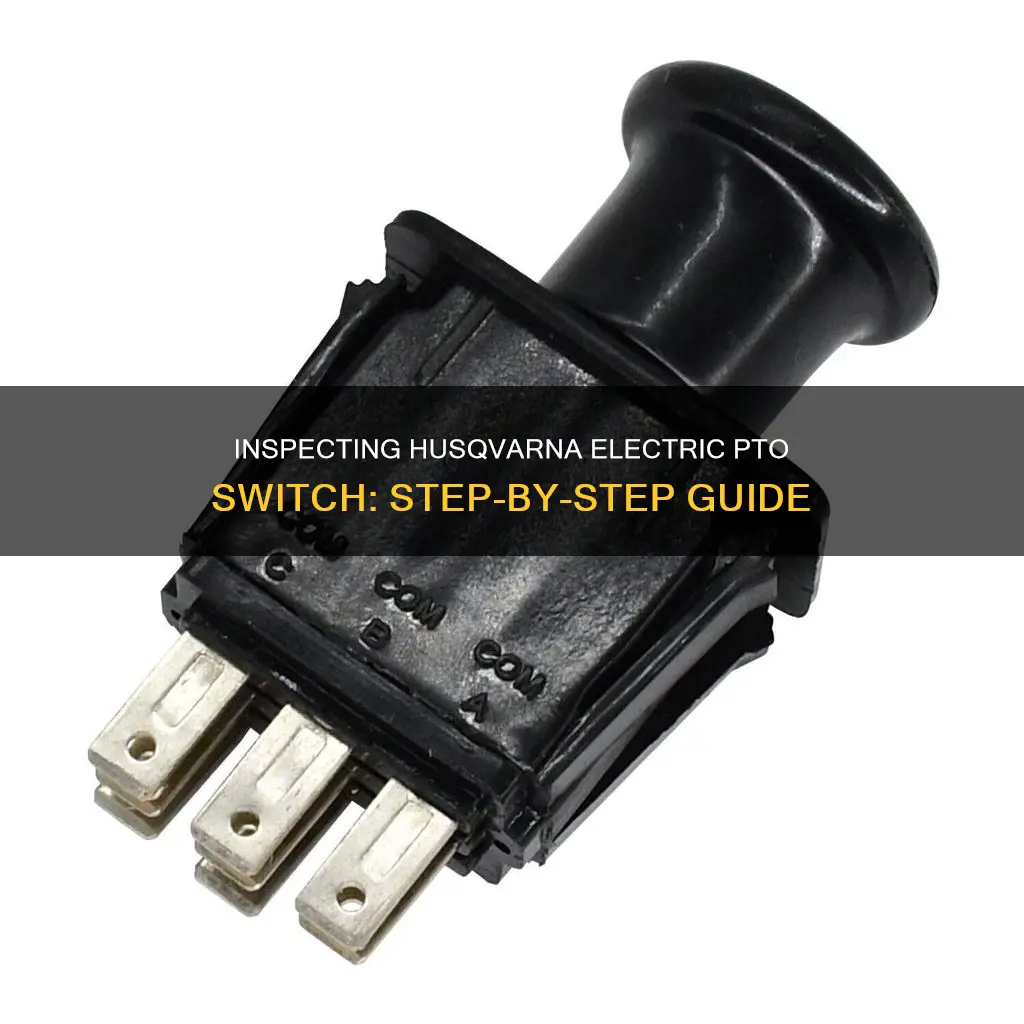

With the continuity checker or multimeter, start testing the continuity of the PTO switch. Typically, a PTO switch has three rows of spades or terminals. Check the continuity between the different sets of spades or terminals.
Step 6: Interpret the Results
If you find continuity between the top and bottom rows of spades when the switch is in the off position, this is normal. When you move the switch to the on position, you should find continuity between the bottom and middle rows of spades. If you observe anything different, it may indicate a faulty switch.
Step 7: Further Troubleshooting
If you suspect the switch is faulty, you can try replacing it with a new one. Before replacing, ensure that you have checked all other potential issues, such as wiring, connectors, and the clutch mechanism. Sometimes, a faulty switch can be intermittent, making it challenging to identify the root cause.
By following these steps and checking for continuity, you can effectively troubleshoot and diagnose issues with your Husqvarna electric PTO switch. Remember to consult a professional or a qualified technician if you are unsure about any steps or if the problem persists.
Electrical Knockout: A Step-by-Step Guide to Success
You may want to see also
Explore related products
Test a spare switch
If you suspect that your Husqvarna electric PTO switch is faulty, a quick and inexpensive way to test this is to plug in a spare switch. This will help you determine whether the problem lies with the switch or another component.
You can buy a new PTO switch for around $20 and plug it in to see if that solves the problem. If the mower works with the new switch, then the old switch was faulty. If the new switch doesn't solve the problem, then the old switch is likely fine, and you can keep the new one as a spare.
Before purchasing a new switch, you can also try disconnecting the PTO clutch and applying 12vdc directly to the connection to see if the clutch is physically capable of engaging. This will help you determine whether the issue lies with the part itself or the circuit leading to it.
Another way to test whether your PTO switch is working is to set the tractor to the ON position and turn on the PTO. If you hear a clunk noise, then the switch is working, and the problem may be a bad belt. If you don't hear the noise, then the PTO is likely bad.
Electric Toothbrushes: American Airlines' Policy Explained
You may want to see also
Frequently asked questions
If your Husqvarna PTO switch is faulty, it may not engage and the mower blades won't turn. You can test this by checking the voltage to the PTO clutch wires and the safety circuitry. If there is no voltage, the switch may be faulty.
You can try replacing the PTO switch with a new one. If you don't want to spend money on a new switch, you can try plugging in a spare switch to test if the current switch is faulty.
If your Husqvarna mower is not working, it could be due to a faulty electric PTO clutch, low battery voltage, or a bad connection at the clutch. Check the wiring and battery voltage, and ensure that the clutch is engaging properly.
