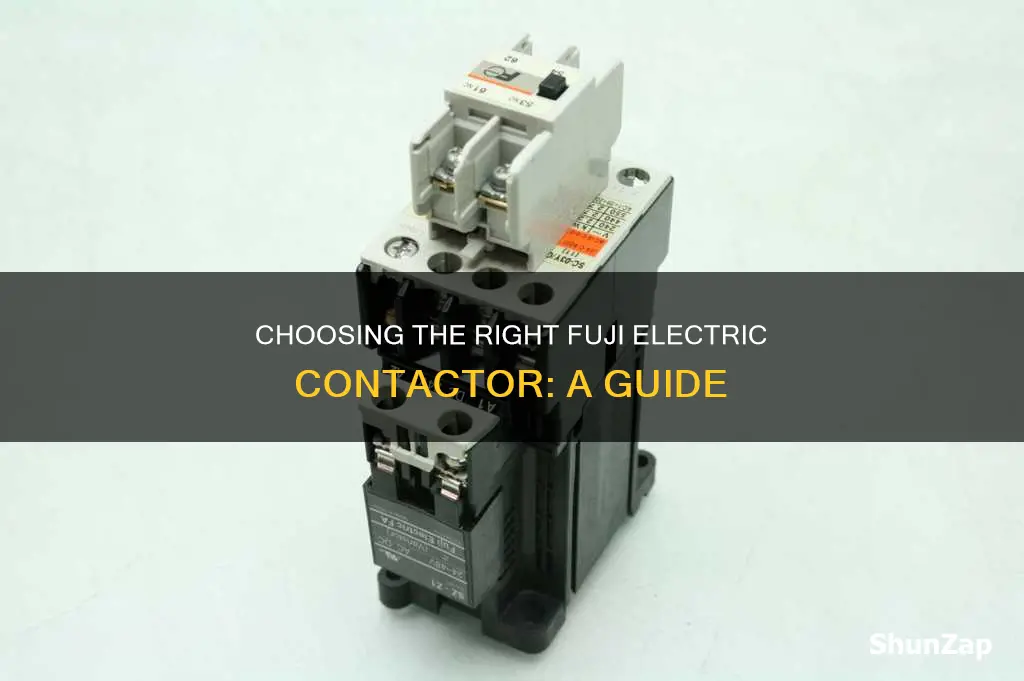

When choosing a Fuji Electric contactor, it is important to consider the specific requirements and applications. Fuji Electric offers a wide range of contactors, including the SK Series Mini Contactors, the SC-E Series Contactors, and the flagship Orange Line and Odyssey Series Contactors. The company also offers the DUO series line of motor contactors and the SC series, which includes small frame contactors with new functions. When selecting a Fuji Electric contactor, factors to consider include the voltage requirements, the current ratings, the number of poles, and the type of coil. Additionally, it is important to ensure that the contactor complies with relevant standards and regulations, such as the International Electrotechnical Commission (IEC) 60947 standards.
| Characteristics | Values |
|---|---|
| Product series | SC, SK, DUO, Orange Line, Odyssey |
| Voltage | 24 VAC, 24 VDC, 120 VAC, 240 VAC, 480 VAC |
| Coil | SUPER MAGNET coil, Super Magnet coil technology |
| Coil voltage | AC and DC |
| Power | Up to 5HP at 480VAC, up to 10HP at 480VAC, up to 300HP at 480VAC, up to 100HP at 480VAC, up to 300 horsepower at 480 VAC |
| Motor branch circuit protection | UL-listed for Category E self-protected motor control |
| Frame width | 45 mm, 55 mm |
| Coil rated voltage | AC200 V |
Explore related products
What You'll Learn
- Consider the SC series for long service life and high performance
- The SC-E series is available up to 100HP at 480VAC
- The SK series is a mini contactor, up to 5HP at 480VAC
- The DUO series is integrated and can be used to build a conventional contactor
- The Odyssey series is available up to 300HP at 480VAC
Consider the SC series for long service life and high performance
When choosing a Fuji Electric contactor, the SC series is an excellent option to consider. The SC series is known for its long service life and high performance, making it a reliable and efficient choice for your needs.
The SC series offers a range of small frame contactors, from SC-03 to SC-N3, that provide snap-on fitting of various optional units. These units include auxiliary contact blocks, coil surge suppressors, and operation counters. Field modifications for these contactors are quick and easy to make, ensuring convenience and flexibility in use.
For higher-level requirements, the SC-N6 and above contactors in the SC series are a great choice. These contactors are designed with an IC-controlled SUPER MAGNET coil, which can be operated from both AC and DC sources. This innovative feature eliminates the issue of burnt coils and contact chattering caused by voltage fluctuation, enhancing the performance and reliability of the contactor.
The SUPER MAGNET in the SC-N6 to N16 contactors is based on an "AC-input, DC-operated concept," allowing for energization of the coil by both AC and DC input. This design also enables precise control of the sealed current through a switching circuit, resulting in a significant reduction in power consumption.
The SC series contactors also offer additional features, such as compact size, arc extinguishing mechanisms with high breaking efficiency, and easy operation, making them a versatile and user-friendly option for your electric contactor needs.
Electricity Pricing: What's the Average Cost?
You may want to see also
Explore related products
The SC-E series is available up to 100HP at 480VAC
When choosing a Fuji Electric contactor, it is important to consider the specific requirements and applications. Fuji Electric offers a range of contactors, including the SC-E series, which is available up to 100HP at 480VAC.
The SC-E series from Fuji Electric is a powerful and versatile option for those seeking high-performance contactors. This series is designed to deliver exceptional performance and can handle a wide range of applications. With a power capacity of up to 100HP at 480VAC, the SC-E series contactors are well-suited for a variety of industrial and commercial applications.
One of the standout features of the SC-E series is its high power handling capability. With a maximum capacity of 100HP, it can manage a diverse range of equipment and systems. This makes it an ideal choice for applications that require a significant amount of power, such as motors, pumps, or other industrial machinery.
Additionally, the SC-E series contactors are known for their reliability and durability. They are built with high-quality components and engineered to withstand demanding environments. This ensures that they can handle the rigours of continuous use and provide consistent performance over an extended period.
The SC-E series also offers flexibility in terms of voltage compatibility. Its capacity of up to 480VAC means it can accommodate a broad range of voltage requirements. This makes it suitable for use in various regions with different voltage standards, ensuring compatibility and a safe, efficient performance.
Furthermore, the SC-E series benefits from Fuji Electric's innovative technologies. It incorporates advanced features, such as the SUPER MAGNET coil, which enhances the contactor's performance and longevity. This technology helps to prevent issues like coil burning and contact chattering, thereby improving the overall reliability and efficiency of the system.
In conclusion, the SC-E series from Fuji Electric is a robust and versatile solution for those seeking high-performance contactors. With its impressive power handling capability, reliability, and voltage compatibility, it is well-suited to meet the demands of a wide range of applications. By choosing the SC-E series, users can benefit from Fuji Electric's engineering expertise and innovative technologies, ensuring efficient and dependable performance in their operations.
Electric Prodigy: Weaknesses and Strategies to Overcome Them
You may want to see also
Explore related products
The SK series is a mini contactor, up to 5HP at 480VAC
When choosing a Fuji Electric contactor, you should consider the SK series, which is a mini contactor that offers up to 5HP at 480VAC. This series is an excellent choice for those seeking a compact and powerful solution for their electrical applications.
The SK series mini contactors are the smallest in the world, measuring just 45 x 48 x 49mm (W x H x D). Despite their small size, these contactors pack a punch and offer the same dimensions for both AC-operated and DC-operated models. They are available in three different ratings: 6A, 9A, and 12A, making them versatile for a range of applications.
One of the standout features of the SK series is its enhanced safety and applicability. It comes with a standard-feature removable terminal cover (IP20), mirror contacts, and a short-circuit current rating (SCCR) of 50kA at 480V. This makes it a safe and reliable choice for your electrical needs.
The SK series also offers a complete lineup of models with AC, DC, or low-power operating coils, ensuring you can find the perfect fit for your specific requirements. These contactors are RoHS compliant, meaning they do not contain any of the six hazardous substances specified in the RoHS Directive, making them environmentally friendly.
When choosing the SK series, you can be assured of their international safety standards, as they meet the requirements of IEC, GB (CCC), JIS, UL, and TÜV. With their combination of performance, safety, and compact design, the SK series mini contactors from Fuji Electric are an excellent option for those seeking a powerful and reliable solution in a small package.
A Hardback Dream: Androids and Electric Sheep
You may want to see also
Explore related products
The DUO series is integrated and can be used to build a conventional contactor
When choosing a Fuji Electric contactor, it's important to understand the differences between contactors and relays, as well as the specific requirements of your application. Contactors are a type of relay, but they differ in load capacity, switching mechanisms, size, construction, electrical noise generation, and lifespan.
Fuji Electric offers a range of contactors, including the SC series, which provides long service life and high performance. The SC series includes small-frame contactors like the SC-03 and extends up to SC-N16. These contactors offer options such as additional auxiliary contact blocks, operation counter units, and coil surge suppressors. They are designed for quick and easy field modifications.
When selecting a Fuji Electric contactor, consider factors such as load requirements, environmental conditions, and cost. Contactors are typically chosen for higher power applications compared to relays. They are designed to handle high currents, typically above 15 amps, and are used in situations where large amounts of current need to be switched frequently or rapidly.
By understanding the specific requirements of your application and the features offered by the DUO series, you can make an informed decision about choosing a Fuji Electric contactor that best suits your needs.
The History of Electricity in Homes: A Timeline
You may want to see also
Explore related products
The Odyssey series is available up to 300HP at 480VAC
Fuji Electric offers a range of magnetic contactors, starters, and relays for power distribution and control equipment. Their products are designed to help customers "visualize electric power" through a wide range of offerings.
The Odyssey series of contactors features a Super Magnet operation that is electrically controlled, eliminating issues like chattering, contact welding, and coil burning. This Super Magnet can be controlled by both AC and DC voltage sources, providing flexibility and reliability.
The Odyssey series is available in a range up to 300HP at 480VAC. This series is part of the Orange Line/Odyssey Series, which offers different power capacities. The Orange Line series, for instance, can provide up to 10HP at 480VAC.
The Odyssey series' Super Magnet technology enhances the performance and reliability of the contactors. This technology is based on an "AC-input, DC-operated concept," allowing the coil to be energized by both AC and DC inputs. This dual-input capability ensures compatibility with a broader range of power sources and improves efficiency.
When choosing a Fuji Electric contactor, it's important to consider the specific application requirements, such as power needs and voltage compatibility. The Odyssey series, with its higher power capacity, may be suitable for applications that demand more robust performance, while the Orange Line series might be better suited for applications with lower power requirements.
Kenai Princess RV Park: Electricity Availability and More
You may want to see also
Frequently asked questions
A Fuji Electric contactor is a device used to control the flow of electrical current in a circuit. It is a type of magnetic contactor that can be used in various industrial and commercial applications.
Fuji Electric offers several series of contactors, including the SC, SK, TK, DUO, and Odyssey series. Each series has different features and specifications, such as different voltage ratings and current capacities.
The SC series of Fuji Electric contactors are known for their long service life and high performance. They offer quick and easy field modifications and come with optional features such as auxiliary contact blocks, coil surge suppressors, and operation counters. The SC-N6 and above also feature an IC-controlled SUPER MAGNET coil that operates with both AC and DC sources, preventing issues like coil burning and contact chattering.
The DUO series of Fuji Electric contactors provide a fully integrated solution for conventional contactor and overload starter applications. They are available in different coil versions (24 VAC, 24 VDC, 120 VAC, and 240 VAC) and can be used to build a conventional contactor/overload starter or combined with an SC-E series contactor for a combination starter. The DUO line offers motor control solutions up to 300 horsepower at 480 VAC.
