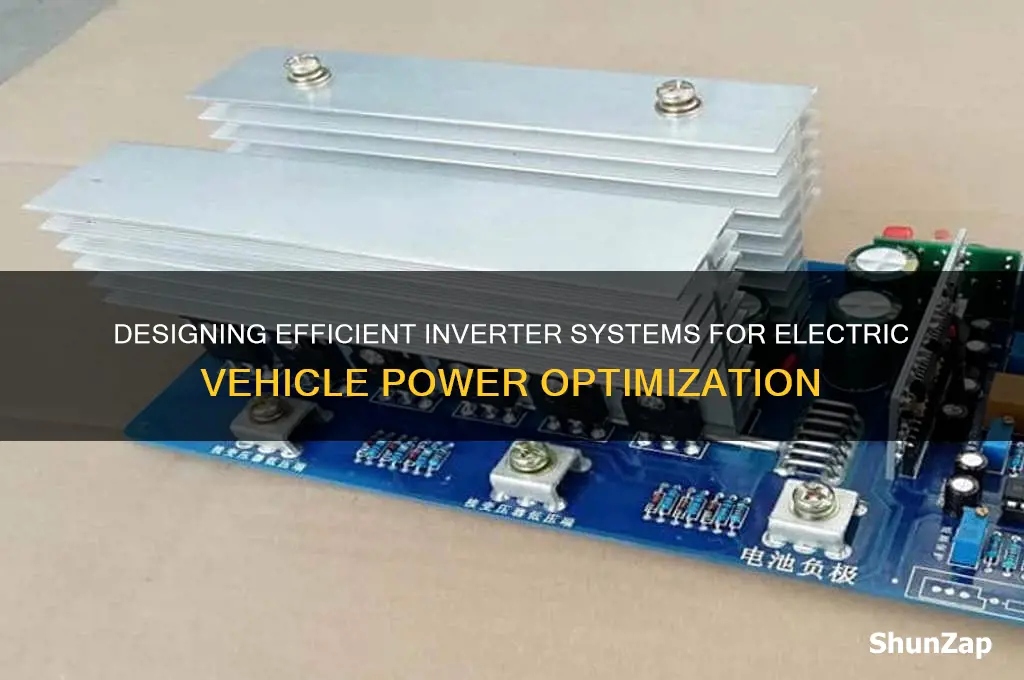

Designing and coding an inverter for electric cars is a complex yet crucial task in modern automotive engineering. The inverter serves as the bridge between the electric vehicle’s battery and its electric motor, converting direct current (DC) from the battery into alternating current (AC) required by the motor. To code an inverter, engineers must first understand the principles of power electronics, including pulse-width modulation (PWM) techniques, which control the switching of semiconductor devices like IGBTs or MOSFETs. The software development involves programming microcontrollers or digital signal processors (DSPs) to generate precise PWM signals, ensuring efficient power conversion and minimizing energy losses. Additionally, safety and reliability are paramount, requiring robust algorithms for fault detection, thermal management, and synchronization with the vehicle’s control systems. Familiarity with programming languages such as C or MATLAB/Simulink, along with knowledge of automotive communication protocols like CAN, is essential. Ultimately, coding an inverter for electric cars demands a blend of electrical engineering expertise, software development skills, and a deep understanding of vehicle dynamics to optimize performance and sustainability.
Explore related products
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
What You'll Learn
- Power Electronics Basics: Understand MOSFETs, IGBTs, and gate drivers for efficient power switching
- PWM Control Techniques: Implement Pulse Width Modulation for precise motor control and efficiency
- Battery Interface Design: Ensure safe and reliable connection between the inverter and battery pack
- Thermal Management Systems: Design cooling solutions to prevent overheating during high-power operations
- Firmware Development: Write code for real-time control, fault detection, and communication protocols
Power Electronics Basics: Understand MOSFETs, IGBTs, and gate drivers for efficient power switching
MOSFETs and IGBTs are the workhorses of power electronics, particularly in electric vehicle (EV) inverters, where they switch high currents and voltages with minimal loss. MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) excel in low- to medium-voltage applications (up to 1000V) due to their fast switching speeds and low on-resistance, making them ideal for battery voltages in most EVs. IGBTs (Insulated Gate Bipolar Transistors), on the other hand, handle higher voltages (up to 6000V) and currents, leveraging bipolar conduction for lower saturation voltage but with slower switching speeds. Choosing between them depends on the EV’s voltage architecture: MOSFETs for 400V systems, IGBTs for 800V or higher.
Gate drivers are the unsung heroes of power switching, translating low-voltage control signals from the microcontroller into high-voltage pulses that drive MOSFETs or IGBTs. They must deliver sufficient current to charge the gate capacitance quickly, ensuring fast turn-on and turn-off times while minimizing energy loss. A poorly designed gate driver can lead to overheating, electromagnetic interference (EMI), or even device failure. For instance, a gate driver for a 600V IGBT should provide a peak current of 2–5A and a rise/fall time under 100ns to optimize switching efficiency. Always pair the gate driver with a snubber circuit to suppress voltage spikes during switching.
Switching efficiency is critical in EV inverters, as losses directly reduce range and performance. MOSFETs and IGBTs generate heat during switching due to their inherent parasitic capacitances and resistances. To mitigate this, optimize the gate drive waveform: use a lower voltage for turn-off (to reduce Miller effect) and a higher voltage for turn-on (to minimize on-resistance). For example, a 15V turn-off voltage and 20V turn-on voltage can reduce switching losses by up to 30% in a 400V MOSFET-based inverter. Additionally, implement dead-time control (typically 50–200ns) to prevent shoot-through currents when both high-side and low-side switches are on simultaneously.
Thermal management is inseparable from power switching efficiency. MOSFETs and IGBTs degrade rapidly at temperatures above 150°C, so integrate heat sinks, thermal pads, and phase-change materials to dissipate heat effectively. For IGBTs, which are more sensitive to temperature, monitor junction temperature in real-time using embedded sensors or external thermocouples. A practical tip: use a thermal interface material (TIM) with a thermal conductivity of at least 5 W/m·K to minimize contact resistance between the device and heat sink. Overlooking thermal design can turn a theoretically efficient inverter into a range-draining liability.
Finally, consider the trade-offs between MOSFETs and IGBTs in the context of emerging EV trends. As 800V architectures become more common, IGBTs remain dominant due to their higher voltage ratings, but silicon carbide (SiC) MOSFETs are gaining traction for their superior switching speeds and lower losses. SiC MOSFETs can reduce inverter losses by 50% compared to silicon IGBTs, but their higher cost and gate oxide fragility require careful gate driver design. For instance, SiC MOSFETs need a negative gate voltage (-5V) during turn-off to prevent degradation. As you code the inverter control algorithm, factor in these device characteristics to balance efficiency, cost, and reliability.
Is Tesla an Electric Car? Unraveling the Myth and Reality
You may want to see also
Explore related products
![400W Power Inverter, FSATBTNE DC 12V to 110V AC Car Plug Adapter Outlet Converter with [65W PD USB-C] & [18W QC USB-A] Fast Charging Ports and 2 AC Outlets Car Power Inverters for Vehicles](https://m.media-amazon.com/images/I/71obrX4Rn8L._AC_UL320_.jpg)
PWM Control Techniques: Implement Pulse Width Modulation for precise motor control and efficiency
Pulse Width Modulation (PWM) is the backbone of efficient motor control in electric vehicles, acting as the translator between digital commands and analog motor behavior. By rapidly switching the power supply on and off, PWM mimics a variable voltage supply, allowing precise control over motor speed and torque. This technique is critical for inverters, which convert the DC battery power into the AC required by electric motors. Without PWM, achieving the smooth acceleration, regenerative braking, and energy efficiency demanded by modern EVs would be impossible.
PWM's effectiveness lies in its ability to control the average power delivered to the motor. By adjusting the duty cycle – the proportion of time the signal is on versus off – PWM can simulate any voltage level between 0% and 100% of the supply voltage. For example, a 50% duty cycle delivers half the maximum power, effectively halving the motor speed. This granular control is essential for matching motor output to driver demands, ensuring optimal performance across the entire speed range.
Implementing PWM in an inverter requires careful consideration of switching frequency and dead time. The switching frequency, typically in the tens of kilohertz, must be high enough to minimize motor current ripple but low enough to avoid excessive switching losses. Dead time, a short delay between turning off one switch and turning on another in a half-bridge configuration, prevents shoot-through currents that could damage the inverter. A typical dead time value ranges from 100 nanoseconds to 1 microsecond, depending on the specific MOSFETs or IGBTs used.
Implementing PWM effectively involves several key steps. First, define the desired duty cycle based on the required motor speed or torque. This can be calculated using a simple formula: Duty Cycle = (Desired Voltage / Supply Voltage) * 100. Next, configure the microcontroller's PWM timer to generate the desired frequency and duty cycle. Ensure the timer resolution is sufficient to achieve the required precision – a 16-bit timer, for instance, provides 65,536 discrete steps, allowing for fine-grained control. Finally, connect the PWM signal to the inverter's gate drivers, which amplify the signal to drive the power switches.
While PWM is a powerful tool, it's not without challenges. High switching frequencies can lead to electromagnetic interference (EMI), requiring careful filtering and shielding. Additionally, the rapid voltage changes can cause voltage spikes, necessitating the use of snubber circuits to protect the switches. Despite these challenges, PWM remains the most effective method for achieving precise motor control and maximizing efficiency in electric vehicle inverters. By understanding its principles and implementing it correctly, engineers can unlock the full potential of electric propulsion systems.
