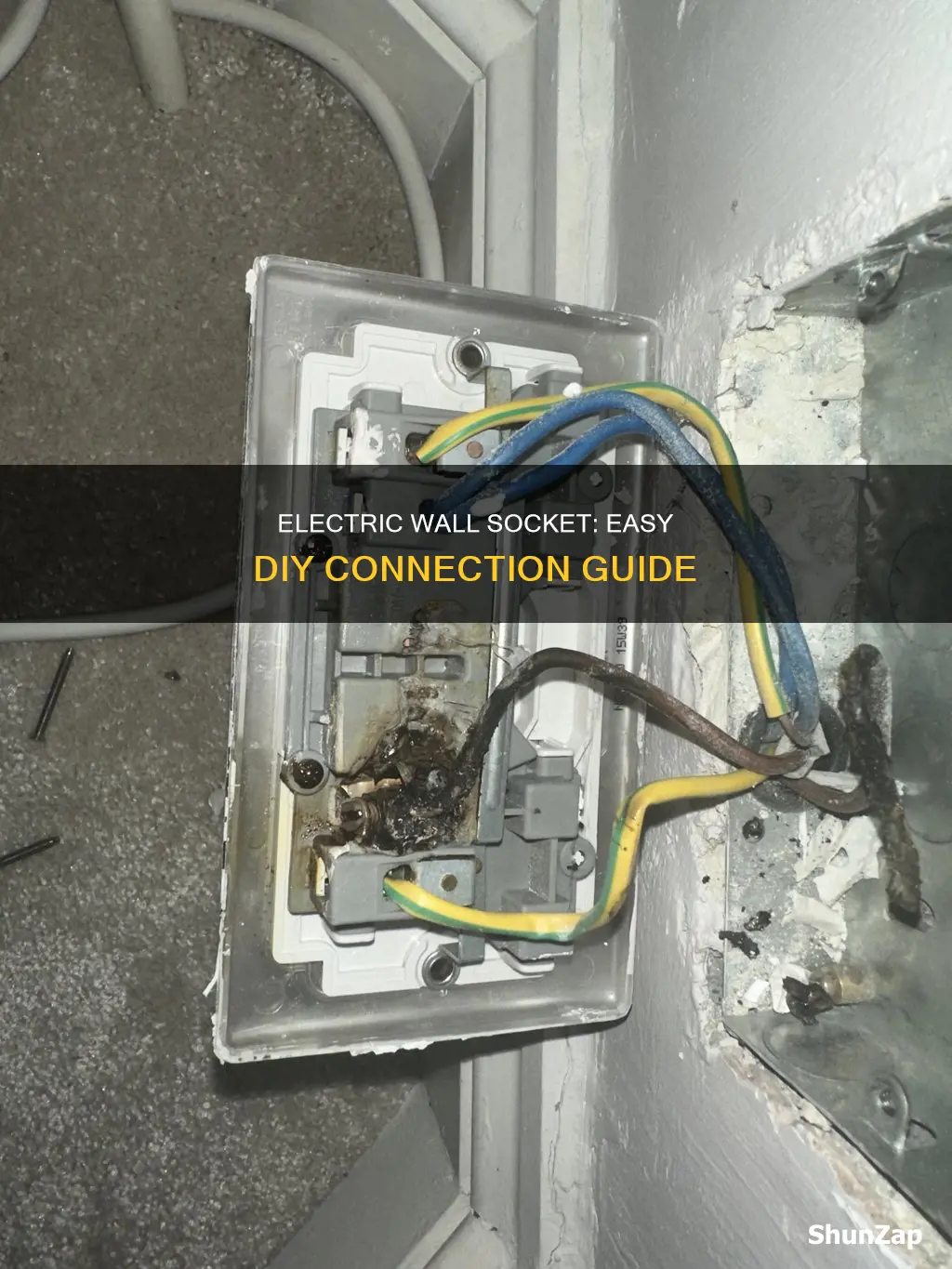

Installing an electric wall socket is a great way to add convenience and functionality to your home. Whether you're looking to power a new appliance, rearrange your furniture, or simply modernise your space, adding an electrical outlet can be a DIY project with the right tools and safety precautions. It's important to note that any work on electrical systems can be dangerous, so it's always recommended to work slowly and consult a professional electrician if you have any doubts or encounter unusual wiring setups. In this guide, we'll cover the steps to connect an electric wall socket safely and effectively, including important considerations for specific rooms and regulations.
Explore related products
What You'll Learn
Check regulations and safety precautions
Before you start connecting an electrical wall socket, it is important to be aware of the regulations and safety precautions. Electrical work can be dangerous, so it is always best to proceed with caution and consult a qualified electrician if you are unsure about anything.
Firstly, check the regulations for your specific location. For example, in the UK and some former UK colonies, houses may be wired in a ring circuit, which requires a different approach. In the US, a standard modern outlet for household use should have three terminals for connecting wires: brass terminals are live, silver terminals are neutral, and green terminals are ground. It is also important to understand the electrical codes in your jurisdiction, as some practices may be considered violations. For instance, interrupting the neutral while leaving the hot connected can mess up circuits down the line and may not conform to present electrical codes.
Secondly, be aware of any extra safety precautions that may be required. Kitchens, bathrooms, laundry rooms, and areas near water sources require additional safety measures due to the high risk of water spills. In these cases, you will need an outlet with a GFCI (Ground Fault Circuit Interrupter) or RCD (Residual-Current Device) that will shut off the power if it gets wet. It is recommended to have a qualified electrician install new sockets in these locations.
Additionally, always ensure that you are using the proper tools and taking precautions to protect yourself from electrical shocks. Use tools with rubber handles and wear rubber-soled shoes to avoid conducting electricity. Do not touch your bare skin to any metal or conductive surfaces, including multimeter probes. When working with wires, be careful not to nick the metal, as this can cause electrical faults. Use electrical tape to secure connections and reduce the chance of contact with loose wires.
Finally, consider the specific requirements of your project. If you are adding a new electrical outlet, check with your local code authority to ensure you are complying with regulations regarding receptacle loads and placement. Determine if your circuit can handle another receptacle and turn off the breaker for the old receptacle before beginning work. If you are installing a socket in an existing wall, be cautious when cutting holes and always make them smaller rather than larger, as they can be enlarged but not reduced.
Concealing Cords: Electric Fireplace Installation Tricks
You may want to see also
Explore related products
Cut a hole in the wall
Before cutting a hole in the wall, ensure that you have turned off the power to the circuit at the main electrical panel and confirm it is off using a voltage tester. Mark the area to be cut by holding the electrical box to the wall and tracing the box with a pencil. Use a level to ensure the outline is straight.
It is recommended to start with a small hole to check for a hollow space and to feel for the exact location of the stud. It is best to put the socket next to a stud so that it can be screwed directly into the wood. If you encounter an obstruction, cut horizontally first and then move the box outline sideways away from the obstruction.
Use a drywall saw to cut just inside the outline of the box. Avoid cutting too deep with the drywall saw in case there are cables that you can't see. It is okay if the edges of the opening are rough. You can also use a utility knife to cut the hole. First, cut firmly along the lines, and then use a saw-like action with the knife to cut all the way through.
If you are drilling through an attic, drill a hole through the top plate, which is the beam adjacent to the protruding stiff wire. If you are drilling through a basement, drill a hole in the bottom plate, which is the bottom of the wall. Check with a flashlight to ensure there are no electrical wires or plumbing pipes behind the wall.
United Healthcare's Coverage for Electric Breast Pumps: What's Included?
You may want to see also
Explore related products
Strip wire ends
Stripping the wire ends is a crucial step when connecting an electric wall socket, as it ensures a secure and safe connection. Here's a detailed guide on how to strip wire ends effectively:
Preparation:
Before starting, ensure you have the necessary tools, including a wire stripper or a utility knife, and safety gear such as gloves and eye protection. Choose a wire stripper that is sized appropriately for the gauge of your wire; it should have a cutting jaw and a stripping jaw. If you're using a utility knife, ensure it's sharp and suitable for precision work.
Measuring and Marking:
Using a measuring tape, determine the length of wire you need, and mark the point where you'll need to strip the insulation. Typically, you'll need to strip about 3/4 inch of insulation for a standard wall socket connection. Make a clear mark on the wire jacket using a permanent marker or a small cut with your wire strippers.
Cutting and Stripping:
Using the wire stripper or utility knife, carefully cut through the outer insulation of the wire at the marked point. Do not cut too deeply to avoid damaging the inner wires. Once you've made a circumferential cut, carefully lift and separate the insulation from the inner wires. Some wire strippers allow you to grip the insulation and pull, stripping it in one motion. If using a knife, gently lift and peel back the insulation with your fingers. Take your time with this step to avoid nicking or damaging the inner wires.
Trimming and Adjusting:
After removing the insulation, use the wire stripper's cutting jaw to carefully trim and neaten the ends of the inner wires. Ensure that the wires are straight and free of any kinks or bends that could affect their connectivity. If necessary, gently twist the strands of the inner wires together to create a uniform end. Be careful not to over-twist, as this can also affect the connection.
Final Checks:
Check that the stripped wire ends are
Exploring Lessons From Do Androids Dream of Electric Sheep?
You may want to see also
Explore related products
Connect the wires
Before connecting the wires, ensure that the power to the circuit is turned off at the main electrical panel. Verify that the power is off by using a voltage tester. It is crucial to work slowly and steadily when dealing with electrical systems, and if you notice anything unusual, don't hesitate to contact an electrician.
Now, let's begin with connecting the wires:
First, remove the old receptacle by unscrewing and taking off the cover plate. Gently pull out the outlet from the electrical box. Loosen the terminal screws and disconnect the wires. Typically, there are three wires: a black (hot) wire, a white (neutral) wire, and a green or bare (ground) wire. Inspect these wires for any signs of damage or weakness. If they are in good condition, you can reuse them with the new outlet. If not, cut off the damaged ends.
Next, strip about 3/4 inch (2 cm) of insulation from the wire ends to expose fresh copper. You can use a wire stripper or a utility knife for this step, being careful not to nick the metal of the wire. It is better to under-strip and adjust later than to strip too much. Some outlets have a built-in guide: place the wire in the short groove on the back and mark the end of the groove as your strip point.
After stripping, bend new hooks at the end of the wires using needle-nose pliers or a bending hole on a wire stripper. Now you are ready to connect the wires to the new outlet. The black wire should be attached to the brass screw, the white wire to the silver screw, and the bare copper wire to the green screw on the receptacle. Tighten these connections with a screwdriver, ensuring they are secure but not overtightened.
Finally, wrap electrical tape around the receptacle terminals for added safety. Reassemble the receptacle and cover plate. Tug on each connection to ensure that all wires are tight and cannot come loose.
Remember to follow specific guidelines for kitchens, bathrooms, and areas near water sources, as outlined by electrical codes and regulations. Always check with your local code authority to ensure your work complies with the National Electrical Code (NEC) and other applicable standards.
Electric Dryers and GFCI: What's the Connection?
You may want to see also
Explore related products
Test the socket
Testing a newly connected electric wall socket is a crucial step to ensure it is functioning correctly and safely. Here is a detailed guide on how to test the socket:
Firstly, ensure you have the right tools. A digital multimeter is a commonly used device to test electrical sockets. It is affordable and can be purchased at a hardware store or anywhere tools are sold. A basic multimeter for non-professional use typically costs between $15 and $50. You can also use a voltage tester, which is a small, cheap, and easy-to-use tool that can be purchased or found on a home improvement mobile app.
Before you begin, always turn off the power to the socket. Then, carefully read the instructions that came with your testing device, as different models may have varying instructions and safety precautions. It is important to take safety measures to avoid the risk of electrocution.
Now, you can start testing the socket. Here are the steps for using a multimeter:
- Set the multimeter to measure voltage.
- Insert a probe into each slot of the socket.
- A properly functioning socket should give a reading of 110 to 120 volts.
- If there is no reading or a reading outside this range, further inspection is needed.
- You can also check the polarity of the socket by inserting one probe into the large slot and the other against the screw.
- If the voltage detector lights up, it indicates that the hot and neutral wires are reversed, and the wiring should be checked.
For a voltage tester, follow these steps:
- Insert the end of the voltage tester into both straight slots of the socket.
- If the tester is functioning correctly, it should flash, beep, or do both if the current is live.
- Additionally, you can test for current by touching one probe to the hot screw terminal (attached to a black wire) and the other probe to the ground screw, bare copper wire, or metal electrical box.
- Repeat this test with each screw terminal.
By following these steps and using the appropriate tools, you can effectively test your newly connected electric wall socket to ensure it is safe and functional.
Hand Luggage Electricals: What's Allowed and What's Not
You may want to see also
Frequently asked questions
To connect an electric wall socket, you will need to turn off the power to the circuit at the main electrical panel and confirm it is off using a voltage tester. Then, cut a hole in the wall where you want the socket to go, taking care to avoid any electrical wires or plumbing pipes. Next, connect the wires, following any specific instructions for your type of outlet, and wrap electrical tape around the terminals. Finally, secure the socket to the wall and turn the electricity back on.
You will need a voltage tester, a screwdriver, a wire stripper or utility knife, electrical tape, and a drill. You may also need a drywall saw, a stud finder, and a fish tape or coat hanger.
Always ensure the power is off before beginning any work. Work slowly and steadily, and contact an electrician if you see anything unusual such as burn marks or unfamiliar wiring setups. Check regulations for kitchens and bathrooms, as these installations require extra safety precautions due to the high chance of water spill.
First, strip about 3/4 inch of insulation from the ends of the wires to expose the metal. Then, connect the wires to the terminals on the socket, following the specific instructions for your type of outlet. For example, for a US two-socket outlet, you can attach a wire to either the live or neutral terminal to power both sockets. Finally, tighten the terminal screws with a screwdriver and wrap the sides of the outlet in electrical tape for extra safety.
