Connecting a car radio to electricity is a fundamental step in ensuring your vehicle’s audio system functions properly. This process typically involves linking the radio’s wiring harness to the car’s electrical system, which includes the battery and ignition switch. Most car radios come with a standard ISO connector that plugs directly into the vehicle’s wiring harness, simplifying installation. However, if your car lacks a compatible harness or you’re installing an aftermarket radio, you may need to manually connect wires for power, ground, and accessories. It’s crucial to identify the correct wires—usually marked as constant power (battery), switched power (ignition), and ground—and ensure secure connections to avoid electrical issues or damage. Always consult the radio’s manual or a wiring diagram specific to your vehicle for accurate guidance.
| Characteristics | Values |
|---|---|
| Power Source | Car Battery (12V DC) |
| Connection Type | Wired Connection |
| Wiring Harness | Vehicle-specific or Universal ISO Harness |
| Power Wire Colors | Typically Yellow (Constant 12V) and Red (Ignition Switched 12V) |
| Ground Wire Color | Typically Black |
| Fuse Protection | Inline Fuse (5-15A) recommended |
| Tools Required | Wire Strippers, Crimping Tool, Screwdriver, Multimeter |
| Installation Location | Dashboard or Custom Mount |
| Compatibility | Depends on Radio and Vehicle Model |
| Additional Components | Antenna Adapter, Mounting Kit (if needed) |
| Safety Precautions | Disconnect Battery Before Installation, Avoid Short Circuits |
| Wiring Diagram | Refer to Vehicle and Radio Manuals |
| Professional Help | Recommended for Complex Installations |
| Cost | Varies ($20-$100 depending on components) |
| Time Required | 1-3 Hours (depending on experience and complexity) |
| Legal Considerations | Ensure Compliance with Local Regulations |
Explore related products
What You'll Learn
Check Car Battery Voltage
Before connecting a car radio to electricity, it’s critical to verify the car battery voltage to ensure compatibility and prevent damage. A standard car battery operates at 12 volts, but fluctuations can occur due to age, usage, or environmental factors. Use a multimeter to measure the voltage accurately: set it to the DC voltage range (typically 20V), connect the red probe to the battery’s positive terminal and the black probe to the negative terminal. A reading between 12.6 and 12.8 volts indicates a fully charged battery, while anything below 12 volts suggests it may need charging or replacement. This step is essential because insufficient voltage can cause the radio to malfunction or fail to power on, while excessive voltage can fry its circuitry.
Analyzing the voltage reading provides insight into the battery’s health and its ability to power accessories like a radio. For instance, a voltage of 12.4 volts means the battery is 75% charged, sufficient for most radios but not ideal for prolonged use. If the voltage drops below 11.8 volts, the battery is severely discharged and may not provide stable power, leading to intermittent radio operation or complete failure. In colder climates, batteries tend to lose efficiency, so a voltage check is even more crucial before installing or using electrical components. Understanding these thresholds ensures you’re not overloading a weak battery or risking damage to the radio.
To perform a voltage check, follow these steps: turn off the car and all electrical components, locate the battery terminals (usually under the hood), and clean any corrosion with a mixture of baking soda and water to ensure accurate readings. Hold the multimeter probes firmly against the terminals for a stable reading. If the voltage is low, consider charging the battery with a trickle charger or consult a mechanic if the issue persists. Pro tip: test the voltage after the car has been off for at least an hour to get a true resting state reading, as recent driving can artificially inflate the voltage.
Comparing the voltage requirements of your car radio to the battery’s output is a practical safeguard. Most car radios operate optimally between 11 and 14 volts, but high-end models with advanced features may require a more stable power supply. If your battery consistently reads below 12 volts, invest in a voltage stabilizer or capacitor to ensure consistent power delivery. This is especially important for radios with Bluetooth, GPS, or touchscreen capabilities, which draw more power. Ignoring this step could void the radio’s warranty or lead to costly repairs, making the voltage check a small but vital investment of time.
Finally, maintaining proper battery voltage isn’t just about the radio—it’s about overall vehicle health. A weak battery affects starting reliability, lighting, and other electrical systems. Regular voltage checks, especially before adding new electrical components, can prevent unexpected failures. Keep a multimeter in your vehicle for on-the-spot checks, and replace batteries older than 3–5 years to avoid sudden drops in voltage. By treating the battery as the foundation of your car’s electrical system, you ensure that every component, including the radio, functions seamlessly and safely.
Electric Cars and Cancer: Separating Fact from Fiction
You may want to see also
Explore related products
Locate Radio Power Wires
Identifying the correct power wires is the linchpin of connecting your car radio to electricity. Most car radios require a constant power wire (usually yellow) and an ignition-switched wire (typically red). The constant wire maintains memory settings, while the switched wire powers the radio when the ignition is on. These wires are often bundled with others in the vehicle’s wiring harness, so careful inspection is essential. If your car’s wiring colors deviate from standard conventions, consult the vehicle’s manual or a wiring diagram specific to your make and model.
To locate these wires, start by accessing the factory radio harness, usually found behind the dashboard or in the trunk. Use a multimeter set to DC voltage to test each wire. With the ignition off, probe each wire to identify the constant 12V source. Then, turn the ignition on and test again to find the switched wire, which will now show 12V. Label these wires clearly to avoid confusion during installation. If you’re unsure, compare your findings with a wiring diagram to confirm accuracy.
A common mistake is assuming all wires are active, but some may be unused or repurposed by the manufacturer. For instance, a blue wire often indicates an antenna power source, not a primary power wire. Misidentifying wires can lead to short circuits or damage to the radio. Always double-check your work and use electrical tape or heat shrink tubing to insulate connections securely.
For aftermarket installations, adapter harnesses are a practical solution. These plug directly into the factory harness and provide color-coded wires for easy identification. While they add cost, they reduce the risk of errors and simplify the process, especially for beginners. If you’re working on an older vehicle, corrosion or wear may affect wire integrity, so inspect connections thoroughly before proceeding.
In summary, locating radio power wires demands precision and patience. By combining testing tools, reference materials, and cautious techniques, you can ensure a safe and functional connection. Whether you’re upgrading your audio system or replacing a faulty unit, understanding these wires is the foundation of a successful installation.
Electric Cars: Unlocking Unprecedented Power and Sustainable Performance
You may want to see also
Explore related products
Use Wiring Harness Adapter

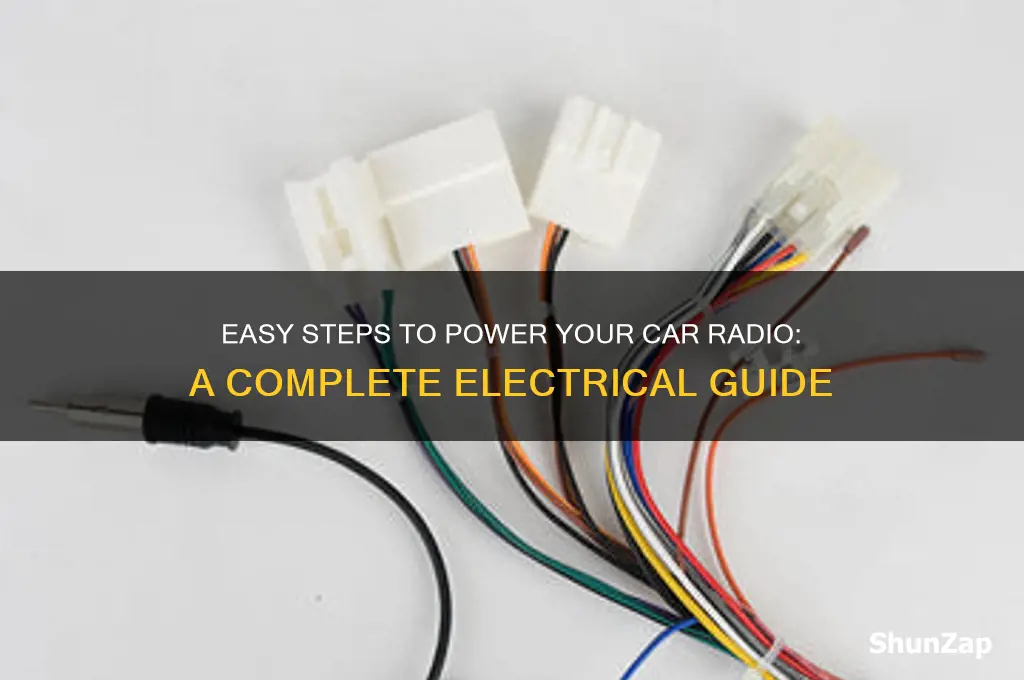

A wiring harness adapter is a critical tool for seamlessly connecting a new car radio to your vehicle's electrical system. It acts as a bridge between the radio's wiring and your car's factory harness, eliminating the need for cutting or splicing wires. This not only preserves your car's original wiring but also ensures a clean, professional installation.
