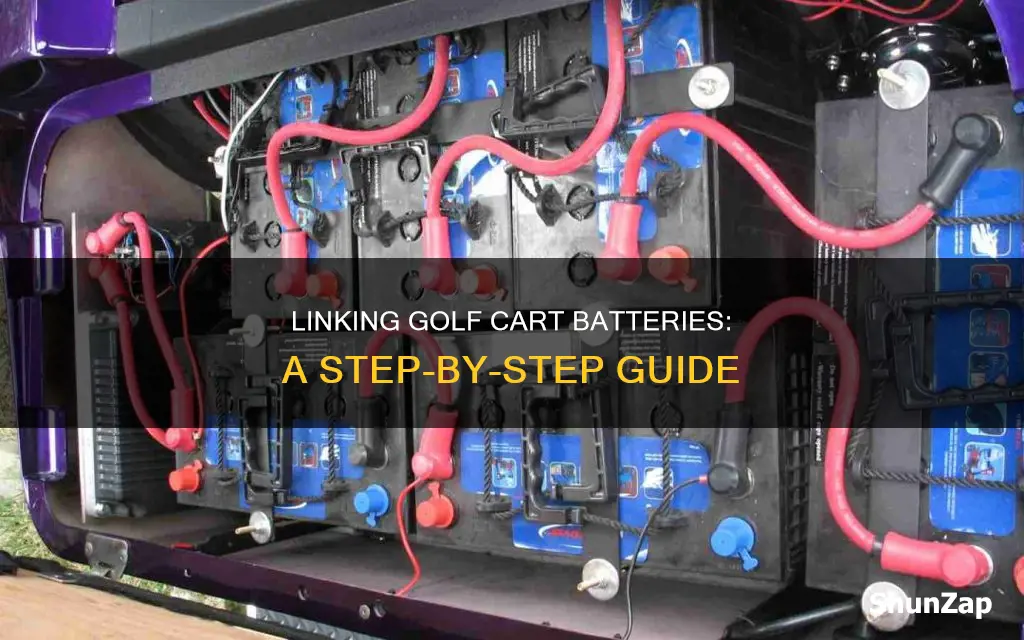

Golf carts are typically powered by 6-volt, 8-volt, or 12-volt batteries, which are connected in series to achieve the required voltage for operation, often around 36 to 48 volts. Before connecting electric golf cart batteries, it is crucial to prioritize safety. This includes wearing protective gear, such as gloves and safety goggles, to shield yourself from potential hazards like battery acid and sparks. Additionally, ensure you work in a well-ventilated area, as batteries can emit gases. Once safety measures are in place, you can begin by identifying the positive and negative terminals of the battery bank and the golf cart's electrical system. After establishing these connections, you should verify the voltage compatibility between the battery bank and the golf cart. Finally, utilize appropriate cables to establish the connection between the battery bank and the golf cart's electrical system.
Explore related products
What You'll Learn
Identify the type of battery system
Golf carts typically run on 6-volt, 8-volt, or 12-volt batteries, depending on the make and model. The batteries are connected in series to achieve a total voltage sufficient to operate the golf cart, which is often around 48 volts.
Golf cart battery systems usually consist of either 36-volt or 48-volt configurations. A 36-volt system typically uses six 6-volt batteries, while a 48-volt system can use six 8-volt batteries, eight 6-volt batteries, or four 12-volt batteries.
It's important to understand the difference between series and parallel wiring systems in golf carts. In a series wiring system, the batteries are connected end-to-end, increasing the total voltage while maintaining the same capacity. This setup is crucial for providing the high voltage needed to power the golf cart motor effectively. On the other hand, a parallel wiring system connects batteries side-by-side, increasing the capacity while keeping the voltage the same. This method is less common in golf carts as it does not provide the higher voltage required for efficient operation.
Before connecting the batteries, it's essential to identify the positive and negative terminals of the battery bank and the golf cart's electrical system. The positive terminal of the battery bank should be connected to the positive terminal of the golf cart's electrical system, and similarly, the negative terminal of the battery bank should be connected to the negative terminal of the system.
Additionally, it's important to ensure that the connections are secure and protected, and that the voltage of the battery bank matches the system voltage (e.g., 36 volts or 48 volts).
Dyson's Electricity Consumption: How Much Power Do They Draw?
You may want to see also
Explore related products
Prepare safety gear and inspect batteries
Safety should always be the top priority when working with golf cart batteries. Before you begin the process of connecting your electric golf cart's batteries, it is crucial to prepare the necessary safety gear and conduct a thorough inspection of the batteries themselves. Here is a detailed guide to help you through these important steps:
Prepare Safety Gear
When working with golf cart batteries, it is essential to have the right safety gear to protect yourself and prevent accidents. Here is a checklist of safety gear you should prepare:
- Protective Clothing: Wear long sleeves and pants to protect your skin from any potential spills or sparks.
- Insulated Gloves: Always wear insulated gloves to protect your hands from electric shocks and battery acid.
- Safety Goggles: Battery acid can cause serious eye damage. Safety goggles are a must-have to safeguard your eyes.
- Ventilated Work Area: Batteries can emit harmful gases, so ensure you work in a well-ventilated area or outdoors if possible.
- Avoid Open Flames: Keep the work area free from any open flames or sparks to minimize the risk of explosions or fires.
- Multimeter: A multimeter is a handy tool used to check the voltage of your batteries. Ensure you have one within reach.
- Hydrometer: If you have flooded (wet) batteries, a hydrometer can be used to test the specific gravity of the electrolyte solution.
- Basic Tools: Have wrenches, screwdrivers, and other basic tools ready for the battery connection process.
Inspect Batteries
Before connecting the batteries, it is crucial to inspect them thoroughly. Here is a checklist to guide you through the battery inspection process:
- Identify Battery Type: Determine the type of battery system your golf cart uses. Common configurations include 36-volt and 48-volt systems, each using different combinations of 6-volt, 8-volt, or 12-volt batteries.
- Check for Damage: Inspect all batteries for any signs of physical damage, such as leaks, bulges, or cracks. If a battery is damaged, do not use it and replace it with a new one.
- Test Battery Voltage: Using a multimeter, test the voltage of each battery. A fully charged 12-volt battery should have a voltage of 12.7 volts or higher. A 6-volt battery should read 6.3 volts or higher, while an 8-volt battery should be 8.4 volts or higher. If the voltage is lower than these thresholds, the battery may need replacement.
- Check for Corrosion: Inspect the battery terminals for any signs of corrosion or debris. Clean the terminals with a wire brush if necessary to ensure good electrical contact.
- Ensure Proper Water Levels: For flooded lead-acid batteries, check and maintain proper water levels in each cell. Add distilled water as needed.
By following these safety gear preparation and battery inspection steps, you can ensure a safer and more effective process when connecting your electric golf cart's batteries. Remember, safety should always come first when working with electrical systems and batteries.
Electric Toothbrush Tricks to Keep Toothpaste in Place
You may want to see also
Explore related products
Disconnect old batteries
Disconnecting old batteries from a golf cart is a simple process, but it requires careful attention to safety. Before beginning, ensure you have the correct safety gear, including gloves and safety goggles, to protect yourself from electric shock, battery acid, and sparks. Work in a well-ventilated area, and make sure the golf cart is turned off and disconnected from any power source.
Start by identifying the cables and terminals. The negative cable and terminal are usually black, while the positive cable and terminal are typically red. Before removing the old batteries, it is good practice to label the cables to ensure correct reconnection.
Always start by disconnecting the negative cable first to prevent short circuits. Then, disconnect the positive cable, ensuring all connections are fully detached. Carefully lift out the old batteries and set them aside for disposal or recycling. It is recommended to return old batteries for proper recycling, and you may even get your core deposit back.
Before installing new batteries, clean the battery tray and terminals with a wire brush to remove any corrosion or debris. This ensures good electrical contact and a solid connection. You can also use a baking soda cleaning agent to remove any residue from the wires, improving the lifespan of the new batteries. Allow the wires to dry completely before attaching the new batteries.
Cooling a Camper: Off-Grid Solutions for Summer Camping
You may want to see also
Explore related products
Connect new batteries
Connecting new batteries to your golf cart is a relatively straightforward process, but it requires careful attention to safety and the correct procedure. Here is a detailed, step-by-step guide to help you connect new batteries safely and effectively:
Prepare the Work Area and Gather Tools:
First, ensure you have a well-ventilated workspace, free from any open flames or sparks. Wear insulated gloves and safety goggles to protect yourself from electric shock, battery acid, and sparks. Gather all the necessary tools and materials before you begin, including wrenches, battery cables, a wire brush, and a multimeter.
Inspect and Identify:
Before installing new batteries, carefully inspect each battery for any signs of damage, such as cracks or leaks. Identify the type of battery system your golf cart uses, as this will determine the configuration of the new batteries. Common configurations include 36-volt and 48-volt systems, which use different combinations of 6-volt, 8-volt, or 12-volt batteries.
Disconnect and Remove Old Batteries:
Before removing the old batteries, label the cables to ensure proper reconnection. Always start by disconnecting the negative cable first, followed by the positive cable, to prevent short circuits. Carefully lift out the old batteries and set them aside for disposal or recycling.
Clean and Prepare:
Use a wire brush to clean any corrosion or debris from the battery tray and terminals. Ensure the terminals are free of residue to achieve a good electrical contact. Allow the wires to dry completely before proceeding.
Position and Connect New Batteries:
Place the new batteries in the tray, ensuring they are oriented correctly. Refer to the manufacturer's guidelines and your notes on the original battery arrangement. Connect the batteries in series to achieve the necessary voltage. Start by connecting the negative terminals, followed by the positive terminals. Ensure all connections are tight and secure.
Final Checks and Charging:
Check the voltage of the battery pack using a multimeter. It should match the system voltage, such as 36 volts or 48 volts. Apply a battery terminal protector to prevent corrosion. Reconnect the charger and allow the new batteries to charge fully. Test the golf cart to ensure it operates correctly.
Remember to follow the manufacturer's guidelines and safety precautions throughout the process. This guide provides a general overview, but specific steps may vary depending on your golf cart model and battery type.
Electric Fireplaces: Are They a Health Hazard?
You may want to see also
Explore related products
Test the golf cart
Testing your golf cart batteries is essential for maintaining their performance and longevity. Here are some detailed steps to test your golf cart after connecting the batteries:
Prepare for Testing:
Firstly, ensure the golf cart is turned off and the key is removed. Prioritize safety by wearing protective gloves and eyewear to prevent accidents or exposure to battery acid.
Visual Inspection:
Begin by visually inspecting the batteries for any signs of damage, corrosion, or leaks. Look for bulging or cracked cases, loose connections, or excessive corrosion buildup on the terminals. If you notice any of these issues, it may indicate the need for immediate attention or cleaning of the terminals.
Voltage Testing:
The voltage test is your first line of defense. Use a digital multimeter to determine the voltage of each battery. Set the multimeter to the DC voltage setting, typically 200V for the whole pack and 20V for individual batteries. Ensure it can measure the battery voltage range (usually 6V or 8V for golf cart batteries). Test each battery individually by placing the positive probe on the positive terminal and the negative probe on the negative terminal. Healthy batteries should indicate about 50 to 52 volts, and most battery packs should hold around 48 volts.
Load Testing:
While voltage testing provides a basic snapshot, load testing offers a more accurate assessment of the battery's performance under real-world conditions. Use a load tester specifically designed for golf cart batteries, following the manufacturer's instructions for connecting it to the terminals. Apply a load for around 15 seconds and monitor the voltage drop. A healthy battery should maintain a stable voltage during the test, typically above 9.6V for a 12V battery.
Hydrometer Testing:
If you have a flooded golf cart battery, you can use a hydrometer to test the specific gravity of the electrolyte solution. This tool resembles a syringe with a glass float inside. Ensure the battery is fully charged before testing and always perform the test in a well-ventilated area with protective gear.
Professional Testing:
For AGM batteries, accurate testing methods like load capacity tests require special equipment. Consider taking the battery to a specialist, such as Batteries Plus, for a comprehensive assessment.
Remember, regular testing every 3-6 months can help catch problems early and prevent unexpected breakdowns. Additionally, keep your batteries well-maintained by recharging them before they drop below 50% capacity and addressing any corrosion issues promptly.
Electrical Licenses: Transferable Across States or Not?
You may want to see also
Frequently asked questions
Safety is paramount when dealing with golf cart batteries. Always wear insulated gloves and safety goggles to protect yourself from electric shock and battery acid. Ensure you work in a well-ventilated area and avoid open flames or sparks near the batteries. Inspect all batteries and cables for any signs of damage. Make sure you have the correct battery cables and tools before you begin the wiring process.
First, identify the type of battery system your golf cart uses. Common configurations include 36-volt and 48-volt systems. Label the cables before removing the old batteries. Disconnect the negative cable first, followed by the positive cable. Remove the old batteries and clean the tray and terminals with a wire brush. Position the new batteries in the tray, ensuring they are oriented correctly. Finally, connect the batteries in series, starting with the negative terminals.
Identify the positive and negative terminals of the battery bank and the golf cart's electrical system. Connect the positive terminal of the battery bank to the positive terminal of the golf cart's system, and then do the same for the negative terminals. Ensure the connections are secure and protected, and check the voltage compatibility. Finally, connect the battery bank to the system using appropriate cables.
