Wiktor Wise

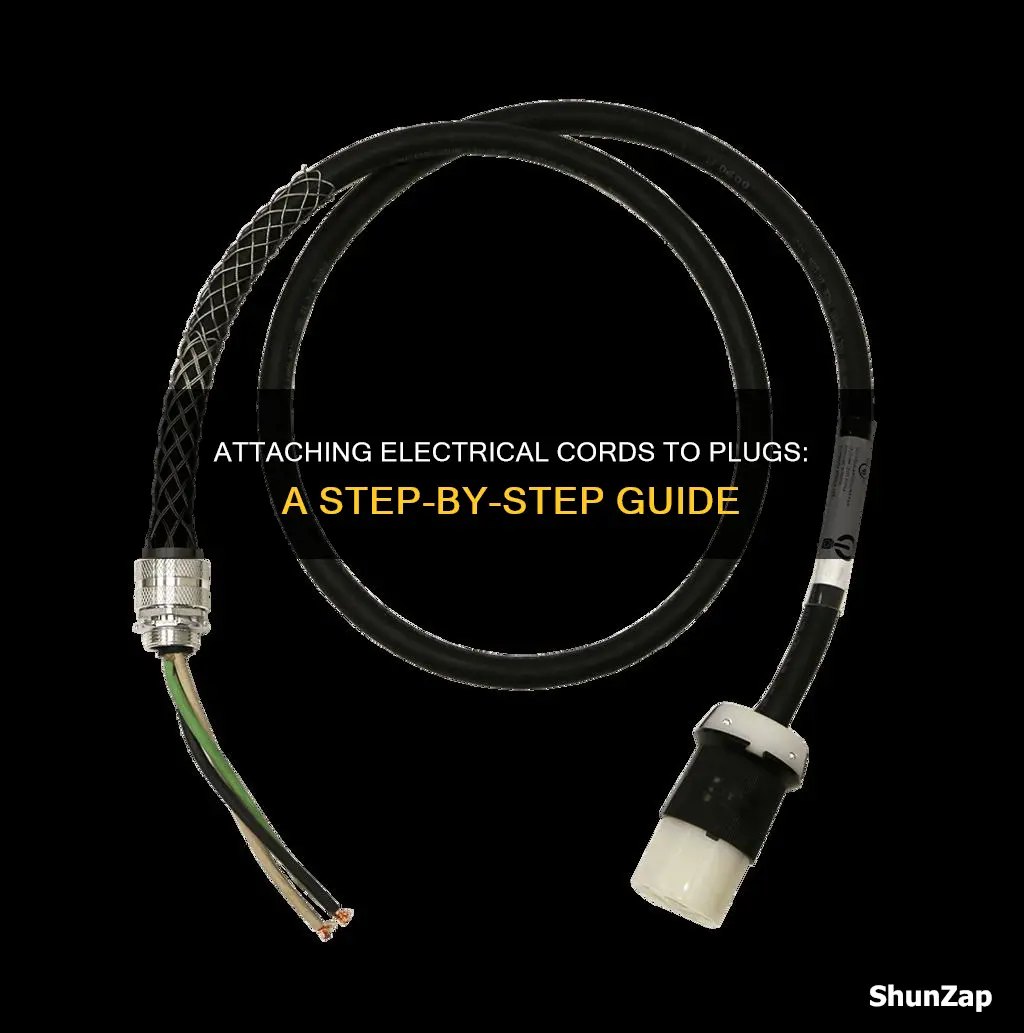

Connecting an electrical cord to a plug is a simple process, but it's important to be aware of safety precautions and get the wiring correct. The process will vary depending on the type of plug and cord you are using, but the basic steps involve stripping the cord, connecting the wires to the correct terminals, and securing the connection. It's important to match the plug to your cord's specifications and to be aware of the different types of plugs, such as self-connecting, terminal screw, and three-prong plugs. Safety should always be the top priority when working with electrical components.
Explore related products
![[UL Listed] Cable Matters 3-Pack 3 Way Plug Adapter 15A 1875W, 3 Prong 3 Outlet Adapter, Power Splitter Plug Outlet, 3 Way Electrical Splitter, Multicolored (White, Gray, Orange)](https://m.media-amazon.com/images/I/71CuygCpTiL._AC_UY218_.jpg)
What You'll Learn
How to connect a three-prong plug
Connecting a three-prong plug is a straightforward process, but it's important to prioritise safety. Before you begin, ensure that the plug matches the voltage rating and amperage of the wire. The numbers should be printed on the old and new plugs.
First, unplug the device and inspect the entire cord for damage. If the cord is frayed or has exposed wiring, you may need to replace the entire electrical cord. If the damage is close to the plug, you may be able to cut the cord at the damaged spot and retain the wire.
Next, strip the insulated jacket from the end of the cord, taking care not to cut the three wires inside. Then, use wire strippers to strip insulation from each wire, and twist the exposed copper strands to prevent fraying.
Now, open the replacement plug to access the terminal screws. Attach each exposed copper wire to the correct screw: the black wire (which is "hot" and carries electricity) to the brass-coloured screw, the white wire (neutral) to the silver screw, and the green wire to the ground screw, which may be green or silver. Wrap each wire clockwise around its terminal and tighten the screws. Ensure no stray copper strands are left, as these could cause a short circuit.
Finally, carefully tuck the wires into the plug housing, ensuring they don't cross or touch. Close the plug housing and tighten any screws. Use electrical tape to wrap the area where the cord enters the plug for added protection.
Once the plug is connected, inspect it to ensure all connections are tight and no bare wire is exposed. Plug the cord into a three-prong receptacle and use a circuit tester to check that the wires are hooked up correctly. If you don't have a circuit tester, carefully plug in a small appliance to test the cord. Monitor the plug for any signs of overheating or unusual smells.
It is important to note that this guide covers 110-120v plugs and outlets in the United States.
Electricity's Path: Straight or Not?
You may want to see also
Explore related products
How to connect a terminal screw plug
Connecting an electrical cord to a plug is a fix you can make yourself, but it's important to get the hot and neutral wires connected to the proper prongs to avoid a serious shock hazard.
If you have a terminal screw plug, you will need to strip the wires within the insulated jacket. The jacket should only be stripped enough for installation. The plug body needs to clamp to the jacket for proper function.
Next, use a pair of wire strippers or a combination tool to strip about 3/4 inch of wire insulation from each conductor to be connected. Take care not to nick the metal wire itself; using the proper opening on the wire stripper will prevent this.
Use a pair of long-nosed pliers to bend the exposed metal tip of the wire into a J-shaped hook. This bend will allow the wire to wrap completely around the screw terminal without any insulation touching the screw head.
Loop the wire hook around the screw terminal so that when the screw is turned closed, the hook will tighten the wire closed, not force it open. This means, essentially, that the wire should be looped around the screw terminal in a clockwise direction as you look down at the screw head from above. Always make sure you are connecting the right wires to the right screw terminals.
The black wire, which is hot and carries the electricity, goes to the brass-colored screw. The white wire is neutral and goes to the silver-colored screw. The green wire goes to the ground screw, which is often green but may be silver-colored.
Finally, tighten the screw terminal firmly down onto the wire. Make sure there is no wire insulation under the head of the screw, and make sure that the bare wire is not resting on any part of the plastic housing of the switch or receptacle.
Lighting an Electric Menorah: A Simple Guide
You may want to see also
Explore related products
How to connect a self-connecting plug
Connecting a self-connecting plug is a straightforward process, but it's important to be careful as you're dealing with electricity. Before you begin, make sure the device is unplugged. If the plug is damaged but still plugged in, turn off the power at the breaker before unplugging.
To begin, align either side of the cord with the side of the wiring channel marked with a "W". Insert the cord through the assembly clip and into the wiring channel up to the cord-stop ribs. If there are instructions specific to the plug you have chosen, follow those detailed instructions.
For a self-connecting plug, press down on the cord to seat it in the wiring channel. Sandwich the plastic pieces together around the cord and press until they snap into place.
It is important to get the hot and neutral wires connected to the proper prongs. The wide prong on the plug links the threaded base of light bulbs to the neutral terminal (the wider slot) in the receptacle. The hot side of the outlet (the side that can deliver a shock) is wired to the threaded socket if the wires are reversed. Normally, there is a cardboard insulator isolating the base from the socket. If the cardboard insulator is worn out (common on old lamps), the metal parts of the lamp can also become "hot" (charged). You can then get a dangerous shock if you touch the metal, which is easy to do when you’re “grounded” and changing a dead bulb.
Polarized plugs show you which side is the hot side of the circuit and which is the neutral. The hot side, the narrow tine or blade, conducts the electricity. The neutral is the return wire, and the wide tine carries the current back to the electrical panel.
Portland General Electric: Medical Equipment Availability and Accessibility
You may want to see also
Explore related products
How to avoid shock hazards
Connecting electrical cords to plugs can be dangerous if not done properly. Here are some detailed instructions on how to avoid shock hazards when dealing with electrical cords and plugs:
Before connecting or disconnecting an electrical cord from a plug, it is important to inspect the cord and the plug for any damage. Look for frayed cords, broken prongs, cracks, cuts, or any other signs of wear and tear. If you notice any damage, do not attempt to connect or disconnect the cord. Replace or repair damaged cords and plugs before use.
When connecting a cord, ensure that the plug is fully inserted into the outlet. Check that no part of the prongs are exposed. When disconnecting, pull the plug out of the outlet smoothly and directly, without jerking or pulling on the cord, as this can damage the wiring and create a shock hazard. Always grasp the plug itself, not the cord.
To avoid shock hazards, it is important to choose the right type of cord for your intended use. For outdoor use, select a cord that is marked for outdoor environments. Choose a cord with the appropriate gauge to handle the electrical current safely. Thicker, low-gauge cords are suitable for larger appliances, while thinner or flat cords can be used for smaller appliances and electronics. Ensure you do not overload a power strip or plug multiple cords together.
Keep electrical cords away from water or moisture. Do not use cords with wet hands, and avoid letting cords rest in water or snow. Water conducts electricity, increasing the risk of electric shock. If you are using extension cords, avoid running them under rugs or furniture, as this can cause overheating and increase the risk of fire. Ensure cords are stored neatly and are not twisted or knotted when not in use.
Additionally, consider investing in safety features such as plug covers, tamper-resistant outlets, or Ground Fault Circuit Interrupters (GFCI). These devices detect ground faults and automatically shut off power, helping to prevent electric shocks and electrocution. Regularly inspect your electrical cords and outlets, and if you are unsure or notice any issues, consult a licensed electrician to conduct a thorough inspection and recommend necessary upgrades or repairs.
How Wind Turbines Operate: Powering with Electricity?
You may want to see also
Explore related products
How to select the right plug
When selecting a replacement plug, it is important to ensure that it matches the type and rating of the original. Electrical plugs typically feature two or three prongs, with each prong designed for a specific function. Two-pronged plugs have one prong for the "hot" connection and another for the "neutral" connection. Three-pronged plugs introduce a grounding pin as a safety feature.
It is crucial to match the voltage rating and amperage of the wire to the plug. The number should be printed on both the old and new plugs. Additionally, the plug's prongs should align with the slots on the outlet to prevent electricity from arcing out.
For household use, the two most common plug configurations are two prongs (NEMA 1-15) and three prongs (NEMA 5-15). The three-pronged variation is typically used for high-powered devices such as refrigerators and microwaves, as it helps prevent ground shock. The two-pronged version is not grounded and is used for devices like electric fans, lamps, charger cords, and TVs.
If you plan to use an extension cord outdoors, consider purchasing one with an "All-Weather" outer jacket to prevent it from stiffening in cold temperatures. Additionally, thicker gauge cables enable more power transfer, making them suitable for high-power devices.
Electricity and Magnetism: A Dynamic Intertwined Relationship
You may want to see also
Frequently asked questions
Connecting an electrical cord to a plug is not difficult, but it is important to get the hot and neutral wires connected to the proper prongs. First, unplug the cord and open the plug housing. Then, check that each wire is connected to the correct terminal. If any wires are incorrect, remove and reattach them. Finally, reassemble and test the plug.
A miswired plug poses a serious shock hazard. If the wires are reversed, the metal parts of the lamp could become "hot" and charged, and you can get a shock if you touch the metal.
Polarized plugs indicate which side is the hot side of the circuit and which is the neutral. The hot side, or narrow tine, conducts the electricity, while the neutral, or wide tine, carries the current back to the electrical panel.
Safety is the top priority when working with electrical components. Unplug the cord from any power source and use insulated tools to prevent accidental shocks. Work in a dry, well-lit area and inspect the entire cord for damage.
