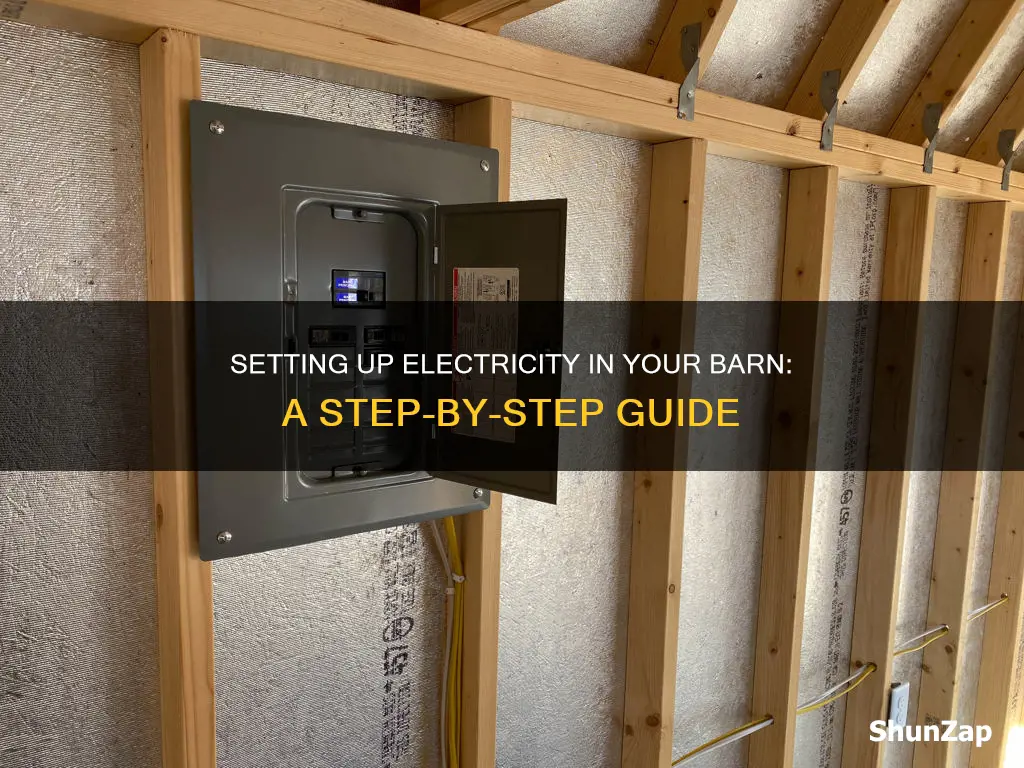

Connecting electricity to a barn is a complex process that requires careful planning and execution. Whether it's a pole barn or a traditional barn, the electrical work involved can be challenging and may require professional assistance. The process typically involves running electrical wiring from the main power source to the barn, installing circuit breakers, and setting up electrical outlets and lighting. It's important to consider factors such as voltage, wire type, burial depth, and local electrical codes to ensure a safe and functional electrical system. With the right knowledge and precautions, individuals can successfully bring electricity to their barns, enhancing their functionality and usability.
Explore related products
What You'll Learn
- Planning: sketch the interior, plan wiring locations, and calculate square footage.
- Installation: attach circuit breakers and electrical outlets to poles
- Connect wires: run conduit from the circuit breaker to outlets, keeping lines straight
- Wire connections: use anti-ox on strands, tape splices, and insulate with shrink tube
- Safety: ensure connectors and breakers are rated for wire type, and check for voltage drop
Planning: sketch the interior, plan wiring locations, and calculate square footage.
Planning is a crucial step in connecting electricity to your barn. Here are the steps you can take to plan the electrical layout effectively:
Sketch the Interior and Plan Wiring Locations:
Start by drawing a detailed sketch of the interior of your barn. This sketch should include the placement of walls, doors, windows, and any other permanent fixtures. Once you have a clear layout, decide on the locations for your wiring. Mark the spots where you plan to place electrical outlets, lights, and any other electrical devices. Consider the functionality of the space and how you intend to use it. For example, if you're using the barn as a workshop, you might want to plan for additional outlets to power tools.
Calculate Square Footage and Determine Energy Requirements:
Calculate the total square footage of the barn's interior space. This measurement will help you determine the length of wiring needed and the number of electrical components required. Consider the energy requirements for your barn based on its intended use. Think about the types of electrical devices and equipment you'll be using. For example, will you be using power tools, lighting, fans, or other appliances? Estimating your energy requirements will help you decide on the appropriate electrical panel and wiring method.
Comply with Regulations and Seek Professional Advice:
Before proceeding, it's essential to understand the specific rules, codes, and regulations for construction and electrical work in your area. Consult with a professional electrical inspector to ensure your plan complies with local guidelines. They can provide valuable advice and help you navigate any permits or special permissions required for your project. This step is crucial to ensure the safety and legality of your electrical installation.
Create a Detailed Diagram:
Draw a comprehensive diagram that builds upon your initial sketch. Include the locations of electrical boxes, circuit breakers, and any other components. This diagram will guide your installation process and ensure a well-organized wiring system.
By following these planning steps, you'll have a clear understanding of your barn's electrical needs and layout, making the installation process smoother and safer. Remember to consult professionals and comply with regulations to ensure a functional and secure electrical system for your barn.
