The electrical service drop is a set of overhead wires that run from an electric utility pole to a house or building. It is the main connection that brings electricity into a home. The service drop is installed and maintained by the local electrical utility company, and it is connected at the service point to the
| Characteristics | Values |
|---|---|
| Definition | A "service drop" is the set of overhead wires running from an electric utility’s pole to a house or other building. |
| Installation and Maintenance | Installed and maintained by the local electrical utility. |
| Connection Point | Connected at the "service point" to the "service conductors" that run to the "service panel," usually through a "service mast" that extends above the roof. |
| Responsibility for Wiring and Components | All wiring and other electrical components past the service point are the responsibility of the building owner. |
| Underground Wiring | When the wires come to the building underground, it is called a "service lateral." |
| Minimum Height Requirements | Local building and electrical codes dictate minimum height requirements, but all local provisions must follow the National Electrical Code (NEC). Typically, the height requirement is 12 feet above the ground for service drops, but this can vary depending on the specific location and context. |
| Composition | A standard service drop includes three cables or conductors: two insulated hot cables, each carrying 120 volts of electricity (240 volts across both wires), and a third cable, usually a bare aluminum wire with a steel core, serving as the neutral conductor and providing structural support. |
| Safety Concerns | Service drops carry a lot of electricity and are dangerous if they fall or are damaged. In such cases, do not approach or touch the service drop, and contact the utility company immediately. |
| Service Head | When the service drop reaches the house, it connects to an assembly called the service head, made of rigid steel conduit that runs up through the roof or along an exterior wall. A weatherhead or weather cap tops the assembly to protect against rain and snow. |
| Power Supply | The service drop is the main connection that provides all power to the house. If it goes down, the house loses all power. |
| Circuit Breakers | The service panel contains a "main" fuse or circuit breaker that controls all the electric current entering the building, as well as smaller fuses or breakers for individual branch circuits. |
| Voltage | In North America, the 120/240 V split-phase system is used for residential service drops. The service drop provides two 120 V lines of opposite phase, allowing for 240 V connections for high-demand devices and 120 V connections for lighter loads. |
Explore related products
What You'll Learn
Understanding the electrical service drop
An electrical service drop is the main connection between the power pole of the electric utility company and your house. It is a bundle of electrical cables that run from the utility company's power pole to your property's connection. The service drop is the key element that funnels all of the electricity into your home. If the service drop goes down, all power in your home will shut off.
The service drop usually consists of three cables, or conductors. Two are insulated hot cables, each carrying 120 volts of electricity (240 volts across the two wires). A third cable, usually a bare (uninsulated) aluminium wire with a steel core, serves as the neutral conductor and provides structural support for the entire service drop.

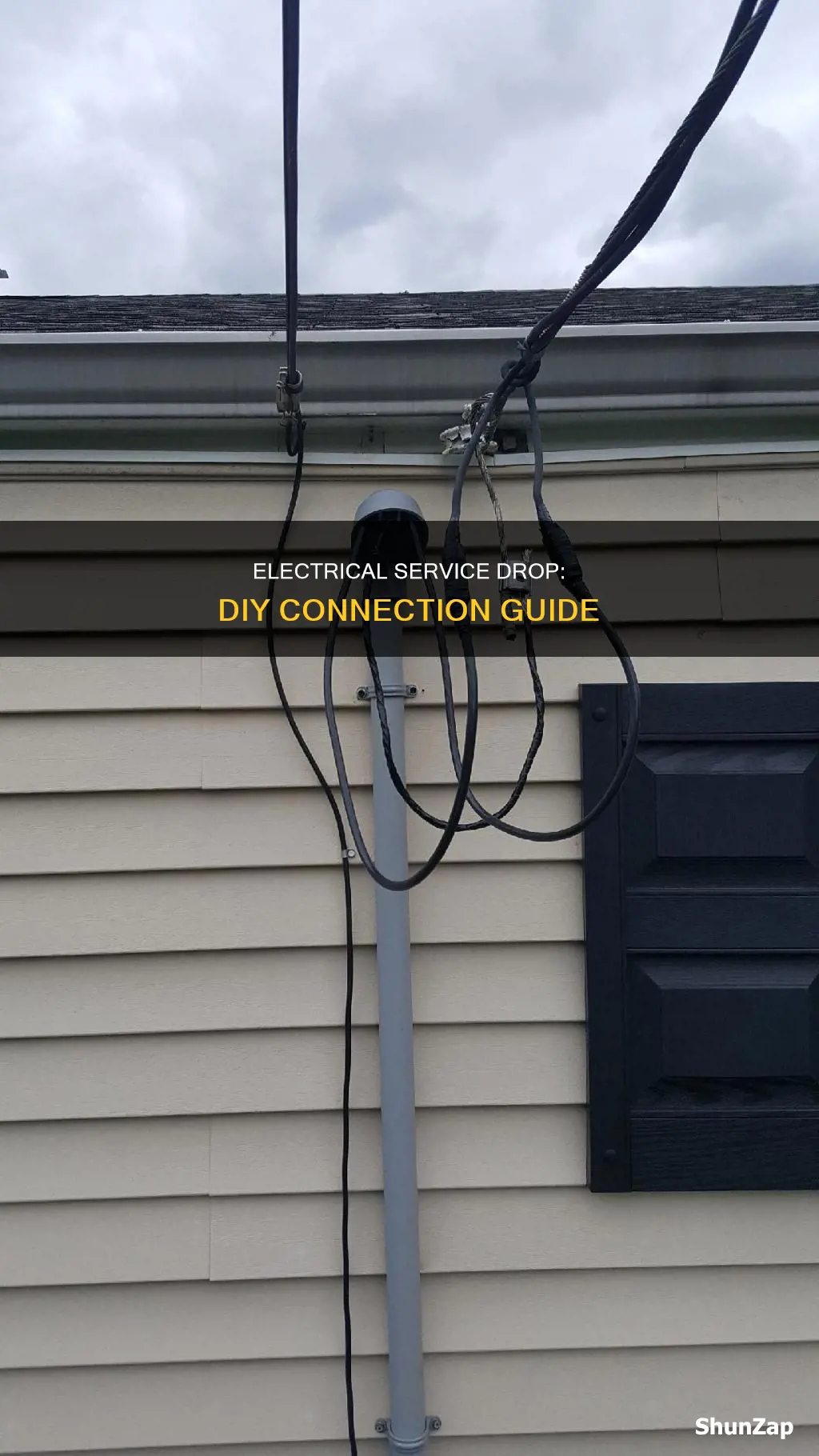

The service drop connects to an assembly called the service head, also known as the service mast or masthead. The service head is usually a rigid steel conduit (like a big pipe) that runs up through the roof or along an exterior wall and is topped with a shell-like fitting called a weatherhead or weather cap. The open front of the weatherhead faces downward to keep out rain and snow. The bottom end of the service mast connects to the home's meter base.
The service drop is installed and maintained by the local electrical utility. Utility companies own everything up to the service point, which is the point of connection between the serving utility and the home's wiring system. Power line regulations and responsibilities vary from one municipality to another and depend on whether a power line is public or private.
Electrical Plugs on Planes: What You Need to Know
You may want to see also
Explore related products
$236.59
Safety precautions
The service drop is an essential component that delivers electricity to your home. However, it is crucial to prioritise safety when dealing with electrical connections. Here are the safety precautions to keep in mind:
- Do not attempt to connect the house electrical service drop yourself. It is dangerous work that should be left to professionals. Contact a licensed electrician or your local power company for assistance.
- Always maintain a safe distance from a fallen service drop. These lines carry a significant amount of electricity, posing a severe risk of electrocution. Never approach a fallen service drop under any circumstances.
- Regularly inspect the area surrounding the service drop. Ensure that trees, limbs, debris, and vegetation are cleared away from the overhead service drop conductors. Vegetation growth can damage the conductors and attract lightning, leading to potential power outages.
- Be cautious when performing any activities that involve digging, such as remodelling or repairs. Buried power lines are vulnerable to accidental strikes, which can have dangerous consequences.
- Comply with the minimum height requirements for service drop cables. Local building and electrical codes dictate these standards, which typically adhere to the National Electrical Code (NEC). The height requirements vary depending on the specific location, such as residential areas, decks, public roads, and swimming pools.
- Do not attach any wires other than electric utility conductors to the service mast. This includes television, telephone, or cable wires.
- If you notice any issues with the service drop or the cables connected to your home's main electrical panel, immediately contact your utility company. These cables are live at all times, and any problems should be addressed by professionals.
Remember, working with electrical connections can be hazardous. Always prioritise safety and seek professional assistance when in doubt.
Finding Electrical Apprenticeships: Your Career's First Steps
You may want to see also
Explore related products
Connecting the service drop to the service head
The service head, also known as the service mast or masthead, is an assembly that connects to the service drop when it reaches your home. It is usually made from a rigid steel conduit pipe that runs up through the roof or along an exterior wall. The service head is topped with a shell-like fitting called a weatherhead or weather cap. The open front of the weatherhead faces downward to prevent rain, snow, and water from entering the service head and to keep the connection dry.
The bottom end of the service mast connects to the home's meter base or electrical service panel (breaker box). This is the point of connection between the utility company and the home's wiring system, and it is typically located on private property. The service point is often the electric meter, which belongs to the power company, while the meter enclosure belongs to the homeowner.
An additional set of service cables starts at the service panel and runs up through and out of the service head. These cables connect to the service drop cables near the outside of the mast. This connection point is called the service point, and it is the dividing line between the property of the utility company and the homeowner. The service drop cables are typically twisted around a strain relief cable to support their weight and relieve strain on the attachment points.
The service drop provides all the power to your home and consists of three cables or conductors: two "hot" cables, each carrying 120 volts of electricity, and a third uninsulated aluminum cable that serves as the neutral conductor and provides structural support. In some areas, the service drop may consist of three-phase wires, each carrying 230 volts, and a neutral wire.
It is important to note that the power in the service drop lines is live unless the power company shuts it off. If there is any issue with the service drop, it is crucial to contact the utility company. For problems with the service head or the cables between the service point and the home's service panel, a licensed electrician should be called.
Well-Oiled Machine: Electric Razor Maintenance 101
You may want to see also
Explore related products
The role of the utility company
Utility companies are responsible for ensuring that the service drop is installed correctly and safely. This includes following local building and electrical codes, such as minimum height requirements for service drop cables. These codes, such as the National Electrical Code (NEC), dictate the necessary clearances between the cables and structures like roofs, sidewalks, and roads to ensure safety and compliance.
Another vital role of the utility company is addressing any issues or emergencies related to the service drop. If a service drop goes down due to severe weather conditions or obstacles like fallen trees, the utility company must be contacted immediately. As the service drop cables are always energised and carry high voltages, approaching or attempting to fix a fallen service drop can be extremely dangerous. Therefore, it is the utility company's responsibility to handle such situations and restore power safely.
Additionally, the utility company is responsible for managing the power supply to the service drop. They have the authority to shut off the power in the service drop cables if necessary. Homeowners are not permitted to work on any part of the service drop owned by the utility company, and any repairs or maintenance on these lines should be left to the professionals from the utility company.
In some cases, the utility company may also own the electric meter or service point, which is the connection point between the serving utility and the home's wiring system. However, the specific definitions of the service point and ownership may vary among different utility companies and locations.
Monitoring Electricity Usage: Real-Time Power Tracking
You may want to see also
Explore related products
Maintenance and repairs
Understanding the Electrical Service Drop
Before performing any maintenance or repairs, it is crucial to understand the components and functionality of an electrical service drop. An electrical service drop is a group of electrical cables or conductors that run from the utility company's power pole to a residential property. These cables provide a vital connection, supplying electricity to the home. The standard drop consists of three cables: two insulated "hot" cables carrying electricity and a neutral conductor that provides structural support.
Safety Precautions
Working with electrical systems can be dangerous, and service drops are no exception. It is essential to follow safety protocols and leave repairs to qualified professionals. Homeowners are typically not permitted to work on the service drop or the cables between the drop and the home's electrical panel. These cables are always energised, creating a significant safety hazard. Repairs to these live conductors must be handled by the utility company or a licensed electrician.
Regular Inspections
Regular inspections of the electrical service drop can help identify potential issues before they become more significant problems. Homeowners should periodically check for any signs of damage, corrosion, or wear and tear. This includes inspecting the service mast, which is part of the house but contains conductors owned by the power company. Inspections should also extend to the drip loop, ensuring it is properly positioned to prevent water from entering the service head.
Reporting Issues
If any issues or defects are identified during inspections or if there is a power outage, it is crucial to report the problem promptly. Homeowners should contact their utility company or electrical provider to address issues related to the service drop, conductors, or meter. Depending on the specific issue and local regulations, the utility company may handle the repairs or advise the homeowner to contact a licensed electrician.
Repair and Replacement
Repairs to electrical service drops may involve replacing damaged components, upgrading outdated parts, or ensuring compliance with safety regulations. For example, if the service mast is damaged, it is the homeowner's responsibility to fix it, while the utility company handles the wiring. In some cases, repairs may extend to the entire main service wire, meter, electrical panel, and associated wiring to bring everything up to code.
Underground Service Lines
In recent years, underground service lines, also known as service lateral, have become more common. While these lines are less vulnerable to weather conditions and falling trees, they are at risk of being accidentally struck during digging or construction work. Repairs to underground lines can be more costly and labour-intensive than those for overhead service drops.
Remember, when it comes to electrical service drops, safety should always come first. Homeowners should familiarise themselves with the components and potential hazards of their electrical systems and leave repairs to qualified professionals to ensure the continued safe and reliable delivery of electricity to their homes.
