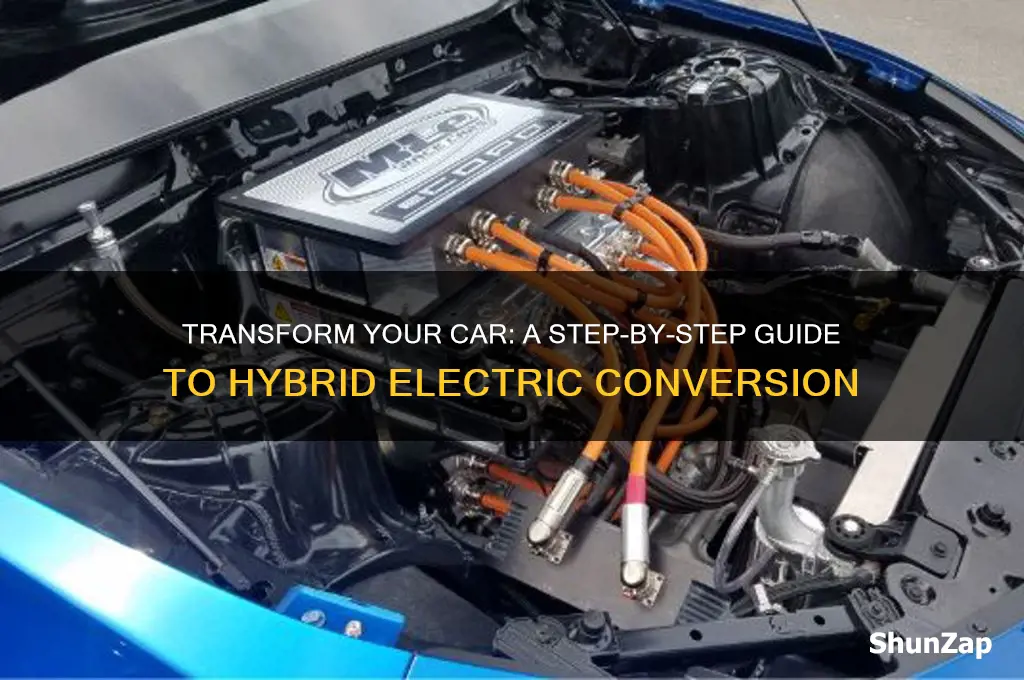

Converting a traditional internal combustion engine (ICE) vehicle into a hybrid electric vehicle (HEV) is an innovative and eco-friendly approach to reducing emissions and improving fuel efficiency. This process involves integrating an electric motor and battery system alongside the existing engine, allowing the car to switch between gasoline and electric power or use both simultaneously. Key steps include selecting a compatible hybrid kit, ensuring proper installation of the electric components, and reprogramming the vehicle’s control systems to manage the dual power sources effectively. While the conversion requires technical expertise and careful planning, it offers a cost-effective alternative to purchasing a new hybrid vehicle, extending the lifespan of older cars while contributing to a greener future.
Explore related products
What You'll Learn
- Battery Selection: Choose compatible, high-capacity batteries for optimal performance and range in hybrid conversions
- Motor Integration: Install electric motor alongside existing engine for seamless hybrid functionality
- Controller Setup: Configure motor controllers to manage power flow between battery and engine
- Wiring & Safety: Ensure secure wiring, fuses, and safety systems to prevent electrical hazards
- Testing & Tuning: Calibrate systems, test efficiency, and optimize performance for smooth hybrid operation
Battery Selection: Choose compatible, high-capacity batteries for optimal performance and range in hybrid conversions
Selecting the right battery is the cornerstone of a successful hybrid conversion, as it directly impacts performance, range, and safety. Lithium-ion batteries, particularly those using nickel-manganese-cobalt (NMC) or lithium iron phosphate (LiFePO4) chemistries, are the most popular choices due to their high energy density and long cycle life. For instance, a 100Ah LiFePO4 battery can provide a stable voltage of 3.2V per cell, offering a total of 320Wh per cell, which is ideal for balancing power and longevity in hybrid systems.
Compatibility is non-negotiable. Ensure the battery’s voltage and capacity align with your vehicle’s electrical system and motor requirements. A mismatch can lead to inefficiency or damage. For example, a 48V motor requires a battery pack composed of 16 LiFePO4 cells in series (16 × 3.2V = 51.2V), allowing for a safe operating range. Use a battery management system (BMS) to monitor cell balance, temperature, and state of charge, preventing overcharging or deep discharging that could shorten battery life.
High-capacity batteries are essential for maximizing range, but they must be balanced with weight and space constraints. A 200Ah LiFePO4 battery pack, weighing approximately 100 lbs, can provide 6.4 kWh of energy, sufficient for 30–50 miles of electric-only driving in a lightweight vehicle. However, larger batteries may require structural modifications to accommodate their size and weight. Consider modular designs that allow for scalable capacity without overburdening the vehicle’s chassis.
Cost and longevity are critical factors. While lithium-ion batteries are more expensive upfront (around $200–$400 per kWh), their 3,000–5,000 cycle life makes them a cost-effective long-term investment compared to lead-acid batteries. For DIY conversions, sourcing used batteries from electric vehicles or industrial applications can reduce costs, but thoroughly test them for capacity and health before integration.
Finally, safety cannot be overlooked. Lithium-ion batteries require proper ventilation and thermal management to prevent overheating or thermal runaway. Install the battery pack in a fire-resistant enclosure and ensure it’s securely mounted to withstand vibrations and impacts. Regularly inspect connections for corrosion and use insulated tools during installation to avoid short circuits. A well-chosen and properly installed battery pack transforms a conventional vehicle into a reliable, efficient hybrid, bridging the gap between internal combustion and electric propulsion.
Electric Car Regrets: Am I Foolish for Going Green?
You may want to see also
Explore related products
Motor Integration: Install electric motor alongside existing engine for seamless hybrid functionality
Converting a conventional car to a hybrid electric vehicle (HEV) involves a delicate balance between preserving the existing powertrain and integrating new electric components. Motor integration, specifically installing an electric motor alongside the existing engine, is a pivotal step in achieving seamless hybrid functionality. This approach allows the vehicle to leverage both combustion and electric power, optimizing efficiency without requiring a complete overhaul of the drivetrain.
Analytical Perspective:
The key to successful motor integration lies in compatibility and synchronization. The electric motor must be sized appropriately to complement the existing engine’s output, typically ranging from 10 to 50 kW for passenger vehicles. This ensures the motor assists during acceleration or high-load conditions without overtaxing the battery system. For instance, a 20 kW motor paired with a 2.0L gasoline engine can reduce fuel consumption by up to 30% under urban driving conditions. Advanced control systems, such as a hybrid control unit (HCU), are essential to manage power distribution between the two propulsion sources, ensuring smooth transitions and preventing mechanical stress.
Instructive Steps:
Begin by selecting a motor that matches your vehicle’s torque and power requirements. Brushless DC (BLDC) or AC induction motors are popular choices due to their efficiency and durability. Mount the motor near the transmission, using custom brackets or adapters to ensure alignment. Connect the motor to the driveshaft or transmission via a coupling mechanism, such as a chain drive or direct shaft connection. Wiring the motor to the battery pack and HCU requires high-gauge cables (e.g., 4 AWG for a 20 kW motor) to handle the current load. Finally, calibrate the HCU to coordinate motor engagement based on throttle input, vehicle speed, and battery state of charge.
Comparative Insight:
Unlike parallel hybrid systems, where the motor and engine are both connected to the transmission, a series hybrid configuration routes all power through the electric motor, with the engine acting as a generator. However, for a retrofit project, parallel integration is often more practical due to its simplicity and lower cost. For example, a parallel setup in a midsize sedan can be achieved for $5,000–$8,000, compared to $10,000+ for a series configuration. The trade-off is slightly reduced efficiency but greater reliability and ease of installation.
Practical Tips:
When installing the motor, ensure adequate cooling by incorporating a liquid or air cooling system, as electric motors can overheat under prolonged use. Use vibration dampeners to minimize noise and wear from the motor’s operation. Regularly monitor the HCU’s diagnostics to detect issues like overheating or power imbalances early. For DIY enthusiasts, start with a smaller motor (e.g., 10 kW) to gain experience before scaling up. Always consult a professional for complex tasks like transmission modifications or high-voltage wiring.
Motor integration is a transformative step in hybrid conversion, offering a cost-effective way to enhance fuel efficiency and reduce emissions. By carefully selecting components, ensuring proper installation, and leveraging advanced control systems, even older vehicles can achieve modern hybrid performance. While the process requires technical expertise, the environmental and economic benefits make it a worthwhile investment for both enthusiasts and eco-conscious drivers.
Electric Vehicles and Renewable Energy: Power Sources Explained
You may want to see also
Explore related products
Controller Setup: Configure motor controllers to manage power flow between battery and engine
Motor controllers are the brain of a hybrid electric vehicle (HEV) conversion, orchestrating the delicate dance of power between the battery and engine. These controllers dictate when the electric motor assists the combustion engine, when it regenerates energy through braking, and when it operates independently for pure electric driving. Proper configuration ensures optimal efficiency, performance, and longevity of the hybrid system.
Mismatched controller settings can lead to inefficiencies, overheating, or even damage to components.
Understanding Controller Parameters:
Think of motor controllers as translators, converting driver input into precise electrical signals for the motor. Key parameters to configure include:
- Current Limits: Define the maximum amperage the controller allows, preventing overload and protecting the motor and battery.
- Voltage Range: Ensure compatibility with your battery pack's voltage, typically ranging from 144V to 400V in HEV conversions.
- Throttle Mapping: Calibrate the controller to interpret accelerator pedal input accurately, ensuring smooth and responsive acceleration.
- Regenerative Braking: Adjust the aggressiveness of energy recapture during deceleration, balancing battery charging with driver feel.
Configuration Process: A Step-by-Step Guide
- Gather Data: Consult the motor and battery specifications for voltage, current, and power ratings.
- Software Interface: Most modern controllers utilize software for configuration. Download the manufacturer's software and connect the controller via USB or CAN bus.
- Parameter Adjustment: Carefully adjust the parameters mentioned above, starting with conservative settings and gradually refining based on testing.
- Bench Testing: Before installation, test the controller on a bench with the motor and battery to verify functionality and identify any issues.
- In-Vehicle Calibration: After installation, fine-tune throttle mapping and regenerative braking while driving to optimize performance and driver experience.
Advanced Considerations:
For those seeking maximum efficiency and customization, delve into advanced controller features like:
- Torque Control: Precisely control motor output for specific driving scenarios, such as hill climbing or towing.
- Temperature Monitoring: Implement safeguards to prevent overheating by adjusting power output based on motor and controller temperatures.
- CAN Bus Integration: Integrate the controller with the vehicle's existing CAN bus network for seamless communication with other systems.
Remember: Controller setup is a critical aspect of a successful hybrid conversion. Thorough research, careful configuration, and meticulous testing are essential to unlock the full potential of your hybrid electric vehicle.
Why PVC is the Preferred Choice for Electrical Wiring
You may want to see also
Explore related products
Wiring & Safety: Ensure secure wiring, fuses, and safety systems to prevent electrical hazards
Electrical hazards in hybrid conversions can turn a dream project into a dangerous nightmare. High-voltage systems, if improperly wired, pose risks of shocks, fires, or system failures. Ensuring secure wiring, fuses, and safety systems isn’t just a precaution—it’s a necessity. Start by selecting automotive-grade wiring rated for the voltage and amperage your hybrid system demands. For instance, 8-gauge wire is commonly used for high-current applications, while 12-gauge may suffice for lower-load circuits. Always consult your system’s specifications to avoid underrating components.
Fuses and circuit breakers are your first line of defense against overcurrent conditions. Install fuses at every critical junction, sizing them to protect both the wiring and the connected components. For example, a 30-amp fuse might safeguard a high-power inverter, while a 10-amp fuse could protect accessory circuits. Use automotive blade fuses for ease of replacement and compatibility with standard fuse blocks. Additionally, incorporate a master disconnect switch to isolate the high-voltage system during maintenance or emergencies. This simple addition can prevent accidental electrocution or short circuits.
Safety systems in hybrid conversions go beyond fuses. Install a Battery Management System (BMS) to monitor the state of charge, temperature, and health of your battery pack. A BMS can shut down the system if it detects overvoltage, undervoltage, or overheating, mitigating risks of thermal runaway or battery failure. Similarly, integrate a pre-charge circuit to slowly charge high-voltage capacitors before full system activation, preventing inrush currents that could damage components. These systems, while adding complexity, are essential for long-term reliability and safety.
Grounding is another critical aspect often overlooked. Ensure a robust ground connection between the battery pack, inverter, and vehicle chassis to prevent voltage spikes and electrical noise. Use grounding straps made of braided copper for low resistance and durability. Inspect all grounding points regularly for corrosion or looseness, as poor grounding can lead to erratic system behavior or even fires. A well-grounded system not only enhances safety but also improves overall performance.
Finally, adopt a meticulous approach to wiring organization and insulation. Route wires away from moving parts, sharp edges, and heat sources, using split loom tubing or braided sleeving for protection. Label wires clearly to avoid confusion during troubleshooting or future modifications. Test the entire system with a multimeter before powering it up, checking for continuity, shorts, and proper fuse functionality. By treating wiring and safety as a top priority, you’ll create a hybrid conversion that’s not only efficient but also secure for everyday use.
Master Car Painting: Electric Spray Gun Techniques for a Flawless Finish
You may want to see also
Explore related products
Testing & Tuning: Calibrate systems, test efficiency, and optimize performance for smooth hybrid operation
Converting a conventional car to a hybrid electric vehicle (HEV) is a complex process that requires meticulous testing and tuning to ensure seamless integration of the new systems. Once the hybrid components—such as the electric motor, battery pack, and control unit—are installed, the real challenge begins: calibrating these systems to work harmoniously with the existing internal combustion engine (ICE). This phase is critical because even minor discrepancies in synchronization can lead to inefficiencies, reduced performance, or premature wear. For instance, improper calibration of the regenerative braking system can result in jerky stops or inadequate energy recovery, undermining the hybrid’s fuel-saving potential.
The first step in testing and tuning is to calibrate the hybrid control unit (HCU), which acts as the brain of the system, managing power distribution between the ICE and electric motor. This involves programming the HCU to recognize the vehicle’s specific parameters, such as engine size, battery capacity, and drivetrain configuration. Tools like OBD-II scanners and specialized software are essential for this process, allowing technicians to adjust settings like throttle response, motor engagement points, and battery charge thresholds. For example, a 2.0L ICE paired with a 10 kWh battery pack might require the HCU to prioritize electric mode at speeds below 40 mph to maximize efficiency, while seamlessly transitioning to the ICE for higher speeds or heavy loads.
Efficiency testing follows calibration, focusing on real-world performance metrics such as fuel consumption, electric range, and overall energy utilization. This stage often involves dynamometer testing to simulate various driving conditions, from city stop-and-go traffic to highway cruising. For instance, a converted sedan might achieve 45 mpg in hybrid mode during urban testing but only 35 mpg on the highway if the HCU isn’t optimized for sustained high-speed driving. Technicians can use these results to fine-tune the system, adjusting parameters like regenerative braking intensity or motor-to-ICE power split ratios. A practical tip here is to log data during test drives, analyzing metrics like battery state of charge (SoC) and ICE load to identify inefficiencies.
Optimizing performance for smooth operation requires addressing both mechanical and software aspects. On the mechanical side, ensuring proper alignment of the electric motor and drivetrain is crucial to avoid vibrations or power losses. For example, a misaligned driveshaft can cause uneven power delivery, leading to a rough driving experience. On the software side, refining the HCU’s algorithms to predict driver behavior—such as anticipating acceleration or deceleration—can enhance responsiveness. A persuasive argument for this step is that a well-tuned hybrid system not only improves efficiency but also enhances the driving experience, making the conversion feel like a factory-installed hybrid rather than an aftermarket modification.
Finally, ongoing monitoring and adjustments are essential to maintain optimal performance over time. Environmental factors like temperature fluctuations or battery degradation can impact system efficiency, necessitating periodic recalibration. For instance, a battery that loses 10% of its capacity after two years may require the HCU to adjust charge/discharge cycles to prevent overloading. Practical advice includes scheduling biannual diagnostics and keeping detailed logs of performance metrics to track long-term trends. By treating testing and tuning as an iterative process, rather than a one-time task, converters can ensure their hybrid systems remain reliable, efficient, and enjoyable to drive.
Save Energy, Save Earth: The Importance of Reducing Electricity Use
You may want to see also
Frequently asked questions
Converting a car to hybrid electric involves modifying a conventional internal combustion engine (ICE) vehicle to incorporate an electric motor and battery system, allowing it to run on both gasoline and electricity.
Not all cars are suitable for hybrid conversion. Factors such as vehicle age, condition, and availability of compatible components play a significant role. Generally, newer vehicles with modern engine management systems and sufficient space for additional components are better candidates.
The primary components required for a hybrid conversion include an electric motor, battery pack, motor controller, DC-DC converter, and a hybrid control unit. Additionally, you'll need wiring, sensors, and potentially a transmission adapter.
The cost of converting a car to hybrid electric can range from $5,000 to $20,000 or more, depending on the vehicle, components, and labor. Whether it's worth it depends on factors like fuel savings, environmental impact, and personal preferences. For some, the investment may pay off over time through reduced fuel costs and lower emissions.
